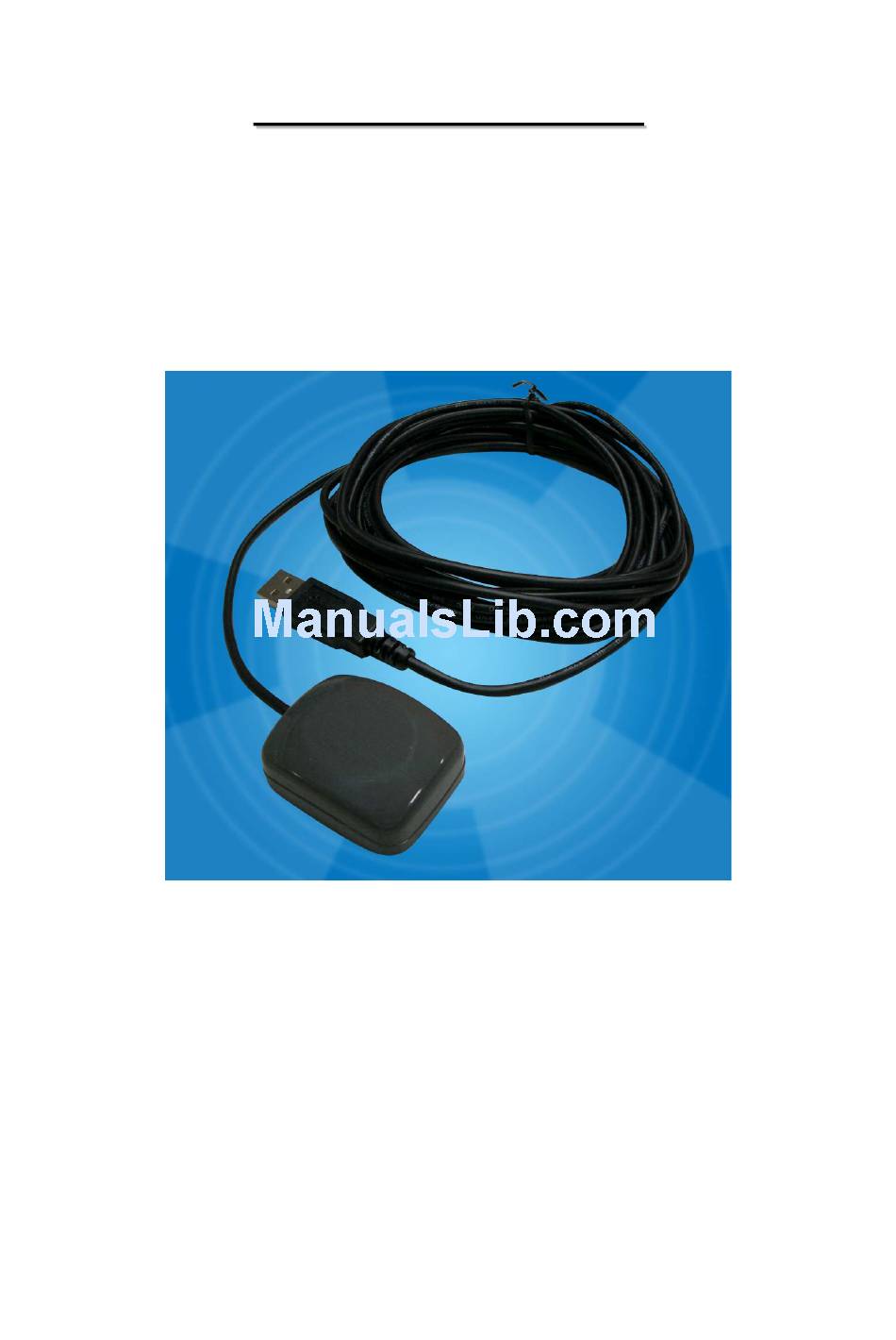

- Page 1 < < GPS MOBILE LOCATOR USER’S MANUAL ® ® > >...
-
Page 2: Table Of Contents
Contents INTRODUCTION & APPLICATIONS…...…………………………...….………..3 PACKAGE CONTENTS…………………………………………………………….4 GETTING STARTED.……………………………………………………….………5 OPERATING PROCEDURE……………………………………..…………………6 SPECIFICATION………………………………………………………...…………..7 APPENDIX …………………………………………...………………………………8 WARRANTY……………………………………………………….………………….9... -
Page 3: Introduction & Applications
Congratulation on your purchase of the GM-158-USB ® Mobile Locator GPS receiver/antenna. This is the latest in Plug-Navigate-Position innovation from SANJOSE Navigation, manufacturer of OEM GPS receiver & antenna around the world. This new concept of Mobile navigation solution is using the devise to integrate with your Personal Computer and map software to display your real time location on the monitor. -
Page 4: Package Contents
After opening your package, make sure that the following items are not missing or damaged. ‧GM-158-USB ® Mobile Locator ‧User’s Manual and Driver’s CD If above items are missing or damaged, contact SAN JOSE Navigation immediately at Tel: 886-2-26879500 Fax: 886-2-26878893... -
Page 5: Getting Started
This section will introduce you to simply outfit your new GM-158-USB ® GPS Mobile locator to your PC. GM-158-USB ® is a compact GPS receiver/antenna design for general purpose navigation and position locating when integrated with a computing device for mapping display (Notebook PC, PDA or Palmtop). -
Page 6: Operating Procedure
Operating Procedure DO NOT TRY TO DO STEPS, WHILE VEHICLE IS IN MOTION. AND KEEP YOUR EYES ON THE ROAD Step 1: Before installing the USB driver to your computer, please don’t plug your GPS USB product to your computer. Step 2: Place the CD attached in the package into your CD-ROM drive. -
Page 7: Specification
PHYSICAL CONSTRUCTION Dimension L46.2mm*W38mm*H16.1mm Weight without cable 70 gram Receiving frequency 1575.42MHZ; C/A code Enclosure Highly impact; corrosion-proof Mounting Magnetic mount Construction Ultrasonic welded, fully waterproof ENVIRONMENTAL CONDITIONS Operating: -0 ~ +70 ℃ Temperature Storage: -20 ~ +85 ℃ COMMUNICATION Protocol NMEA V3.01 Signal level... -
Page 8: Appendix
2. No ASCII NMEA data when running terminal program in COM-n,4800 8N1 ‧ Check Control Panel/System Properties/Device Manager/Com-Port. 3.Navigational software does not auto detect the GPS receiver ‧Check Installation & If the USB connecter connects to PC 4. If your PC recognizes GM-158-USB as a mouse ‧... -
Page 9: Warranty
Limited Warranty ® ® ’ ’...
