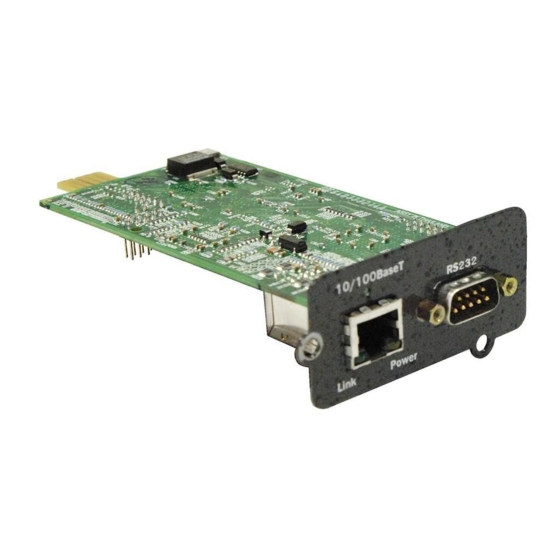

- Page 1 Monitoring For Business-Critical Continuity™ Liebert IntelliSlot Web Cards ® Firmware Upgrade Manual – Liebert IntelliSlot Web Card, Liebert IntelliSlot Web Card-LB, Liebert IntelliSlot Web Card-LBDS, Liebert IntelliSlot Web/485 Card-ADPT...
-
Page 3: Table Of Contents
IRMWARE Requirements to Update the Liebert IntelliSlot Card’s Firmware ..... 4 Determine the Liebert IntelliSlot Card Type and Firmware Version ....4 Download the Firmware Upgrade File to the Computer . -
Page 5: Introduction
This identifying information—the type of card and firmware version currently installed—may be found in the documentation shipped with the card or by reading the card’s support information through a terminal emulation, Telnet or Web interface, as described in 3.2 - Determine the Liebert IntelliSlot Card Type and Firmware Version. -
Page 6: Connect To The Card - Terminal Emulation , Telnet Or Web Interface
RTCS v2.96.00 Telnet server press the Enter key. Service Port Manager Active 5. Enter the Administrator username and password (both are case- <Esc> Ends Session sensitive): a. Login (username—default is Liebert) Login: Liebert b. Password (default is Liebert) Password: ********... -
Page 7: Open The Telnet Interface
Open the Telnet Interface To connect to the card using Telnet: 1. Open a Telnet connection on a computer with an Ethernet connection to the Liebert unit. To do this: • Open a command prompt window—click the Start button, then Run. -
Page 8: Preparing To
Web Interface To view Web card information using a Web browser: 1. Open a connection to the Liebert IntelliSlot card (if needed, see instructions in 2.4 - Open the Web Interface). 2. Click on the Support tab, then Summary in the left panel. The Liebert IntelliSlot card model, part number and firmware version appear in the right panel. -
Page 9: Download The Firmware Upgrade File To The Computer
2. Navigate to Liebert’s Web site, www.liebert.com/downloads. 3. Choose the firmware upgrade for your card from the selections on the Web page (see 3.2 - Determine the Liebert IntelliSlot Card Type and Firmware Version). 4. Click on the link to download the file. -
Page 10: Updating The Firmware - Http (Web ) Method
To update the Liebert IntelliSlot card firmware using the HTTP (Web) method: 1. Open a connection to the Liebert IntelliSlot card (if needed, see instructions in 2.4 - Open the Web Interface). -
Page 11: Updating The Irmware - Tftp
7. Choose Exit and Save to save your changes and reboot the card. Reconnect to the Card 8. Connect to the Liebert IntelliSlot card again (if needed, see 2.3 - Open the Telnet Interface or 2.1 - Open the Terminal Emulation Interface - Serial Connection). - Page 12 4: Factory Settings 5: Firmware Updates q: Quit and abort changes Check the new firmware version if you x: Exit and save wish (see 3.2 - Determine the Liebert Please select a key ?> IntelliSlot Card Type and Firmware Version).
-
Page 13: Tftp Method - Web Interface
To update the Liebert IntelliSlot card firmware using the TFTP method with a Web interface: Open a Connection to the Card 1. Open a connection to the Liebert IntelliSlot card (if needed, see instructions in 2.4 - Open the Web Interface). - Page 14 When the rebooting is complete, the Web browser window returns to the default opening view. The upgrade is now complete. Check the new firmware version if you wish (see 3.2 - Determine the Liebert IntelliSlot Card Type and Firmware Version).
-
Page 15: Figure 1 Null Connection
Transmit Tx (Pin 3) Transmit Tx (Pin 3) Open a Terminal Emulation Connection Firmware Updates Menu 2. Open a connection to the Liebert IntelliSlot card (if ---------------------- 1: XMODEM Update needed, see instructions in 2.1 - Open the Terminal 2: TFTP Update Emulation Interface - Serial Connection). - Page 16 15. In the Send File window, choose 1K Xmodem from the Protocol drop-down list and click Send. A progress window opens, showing the elapsed time and amount of time remaining for the first file to be downloaded to the Liebert IntelliSlot card. The window closes after the first file is down- loaded.
- Page 17 1: System Information 2: IP Network Settings Check the new firmware version if you wish (see 3.2 - Determine 3: Messaging the Liebert IntelliSlot Card Type and Firmware Version). 4: Factory Settings 5: Firmware Updates q: Quit and abort changes x: Exit and save Please select a key ?>...
- Page 20 All rights reserved throughout the world. Specifications subject to change Hong Kong without notice. 852 2572220 ® Liebert and the Liebert logo are registered trademarks of Liebert Corporation. All names referred to are trademarks Fax: 852 28029250 or registered trademarks of their respective owners.
