DataDirect Networks EF2800 User Manual

Fibre channel raid system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EF2800
Fibre Channel RAID System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF2800 and is the answer not in the manual?

Questions and answers

Related Manuals for DataDirect Networks EF2800

Summary of Contents for DataDirect Networks EF2800

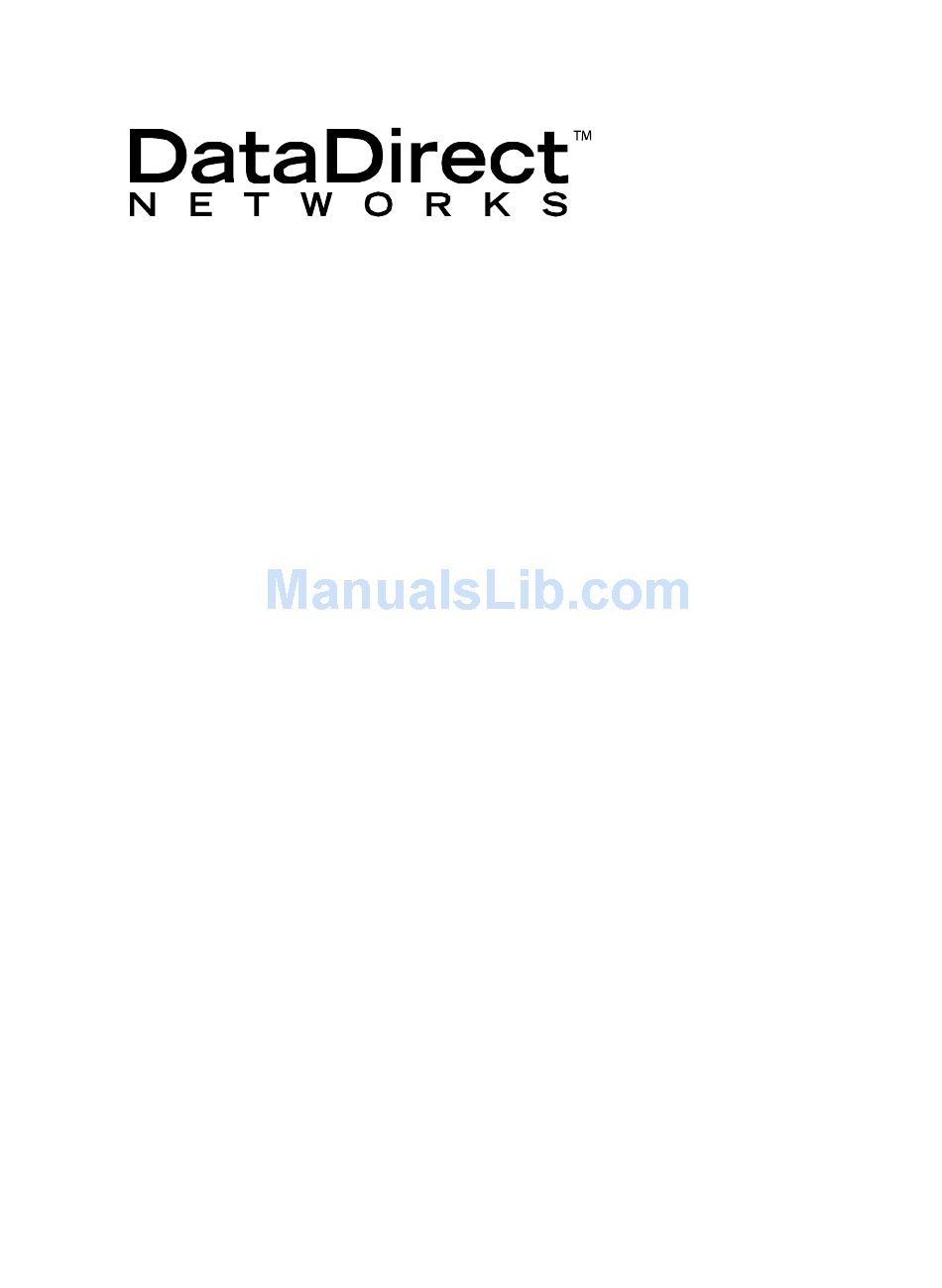

  • Page 1 EF2800 Fibre Channel RAID System User Guide...
  • Page 2 DataDirect Networks EF2800 Fibre Channel RAID Storage System User Guide V 1.0...
  • Page 3 Information in this document is subject to change without notice and does not represent a commitment on the part of DataDirect Networks, Inc. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser’s personal...
  • Page 4 DataDirect Networks or an authorized DataDirect Networks reseller. During the term of this Warranty, DataDirect Networks will, at its option, repair or replace any defective parts of the DataDirect Networks products purchased under this Warranty at no additional charge. Repair parts or replacement DataDirect Networks products will be furnished on an exchange basis, and will be either reconditioned or new.
  • Page 5 This page intentionally left blank.

  • Page 6: Preface

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. The supplier is not responsible for any radio or television interference caused by using other than DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 7: European Regulations

    Permanently unplug the unit if you think that it has become damaged in any way and before you move it. Drive Carrier Module Caution Label: • Do not operate with modules missing • Spin down time 30 seconds DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 8 P r e f a c e Chassis Warning Label: Weight Hazard • An EF2800 enclosure can weigh up to 37kg (81lb). Do not try to lift it by yourself. • Do not attempt to lift the enclosure by means of the extended LRC module or by the handles on the PSU/Cooling module as they are not designed to support the weight of the populated enclosure.
  • Page 9 P r e f a c e • The EF2800 unit must only be operated from a power supply input voltage range of 100 - 120 VAC or 200-240 VAC. • The plug on the power supply cord is used as the main disconnect device.

  • Page 10: Battery Safety

    Laser Safety Class 1 Laser Product When the EF2800 is supplied with optical modules they contain a laser that complies with Laser Class 1, US 21 CFR (J) and EN 60825-1. If optical modules are to be provided and fitted by the end user, lasers must comply with the standards listed above.
  • Page 11 SM online, see section 4.3.4 page Tests show that electrical surges up to 2,000 volts coming through the AC connection will not damage the SM hardware. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 12 There are no special tools required but in order to complete the assembly of some configurations you may need the following: • Security keys (one of these should be included with your EF2800 enclosure for use with the drive locks).
  • Page 13 This page intentionally left blank.

  • Page 14: Table Of Contents

    ....... 35 xiii DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 15 ....44 Configuring the EF2800 for TCP/IP ......
  • Page 16 Setting Up Remote Notification ......DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 17 Displaying Disk Drive Cache Status ......136 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 18 EF2800 Problems ........
  • Page 19 Comparing RAID Levels ........xviii DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 20 ......... . 257 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 21 Changing the Additional EMP Setting ......296 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 22 ..............341 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 23 ..........357 xxii DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 24: Introduction

    FC disk drives as fault-tolerant arrays. The arrays are presented as logical units to one or two host ports. The EF2800s have write-back cache memory that is backed up by a battery in each EF2800 Storage Manager (SM) module.
  • Page 25 • Advanced disk drive utilities, array verification and recovery, and global spares • Embedded Configuration Application Programming Interface (CAPI) for programmatic configuration and management of the EF2800 • Replacement of major system modules during online operation DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 26: The Enclosure Core Product

    The Enclosure Core Product The EF2800 design concept is based on a subsystem together with a set of plug-in modules. The EF2800 enclosure as supplied comprises: • Chassis and backplane with integral Operators Panel •...

  • Page 27: Enclosure Chassis

    The 4 × 4 chassis is fitted with 19 inch Rack mounting features which enables it to be fitted to standard 19 inch racks and uses 3EIA units of rack space. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 28: The Plug-In Modules

    I n t r o d u c t i o n The Plug-in Modules An EF2800 Enclosure requires one or more of the following modules for normal operation. 1.2.1 Power Supply/Cooling Module The EF2800 enclosure utilizes two Power Supply/Cooling modules .

  • Page 29: Operators Panel

    The Ops Panel provides the enclosure with a micro controller (Figure 6) which is used to monitor and control all elements of the EF2800 enclosure. It is supplied as an integral part of the enclosure. Invalid Address LED Power On LED...

  • Page 30: Lrci/O Module (Fc-Al)

    EF2800 system, utilizing FC-AL interfacing with the host computer system. Processors housed on the I/O modules provide enclosure management and interface to devices on the backplane, PSU, LRC, and Ops Panel, to DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 31 Host Port 1 Signal Good LED Host Port 0 Signal Good LED Host Port 0 Enclosure Services Interface (ESI) RS232 RS232 (RAID) Figure 9. Connectors and LEDs on I/O Module DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 32 The SM module also incorporates a standby Li-ion battery pack, 72 hours cache hold up time (512Mb). The battery cell has thermal protection. Battery cells cannot be replaced in the field. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 33: Drive Carrier Module

    . In normal operation the (Figure 10) Status LED will be ON and will flash as the drive operates. The Fault LED will be on if the drive fails. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 34: Dummy Carrier Modules

    It is ESSENTIAL that all apertures are filled before operating the unit. Dummy Carriers are Warning available for this purpose. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 35: Visible And Audible Alarms

    Warning Internal Drive Loop Structure The EF2800 enclosure is configured with two internal loops of 8 drives. The 16 drive dual loop internal connection structure is shown in Figure 12. Two plug-in, Loop Redundancy Circuit SM modules are mounted in rear Bays 3 and 4 ;...
  • Page 36 Each FC loop is routed through an independent SM module fitted in the rear of the enclosure. Either of these may be removed while the other is operating, thus providing fully redundant FC operation. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 37 This page intentionally left blank.

  • Page 38: Getting Started

    No in-depth discussion of integration of the EF2800 is included here due to the high level of expertise required on the part of the integrator and the level of support that may be needed from your supplier.

  • Page 39: Planning Your Installation

    Drive 6 Drive 5 Drive 7 Drive 4 Drive 11 Drive 9 Drive 10 Drive 8 Drive 15* Drive 14 Drive 13 Drive 12 Figure 14. Drive Locations at Front DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 40: Rack-Mounting The Enclosure

    Manager A Figure 15. Module Locations at Rear The EF2800 system is housed in a 4 × 4 enclosure, i.e. 4 bays wide by 4 bays high. The front bays are numbered 1 to 4 from left to right, when viewed from the front, and 1 to 4 from top to bottom.

  • Page 41: Unpacking The Ef2800

    Place the shipping container on a flat, clean, stable surface. Carefully remove the EF2800 and verify the contents against the packing list. Remove the foam from the sides of the EF2800 and remove it from the plastic bag. Save the original shipping container and packing materials in case future reshipment is necessary.

  • Page 42: Installing The Enclosure In Rack

    G e t t i n g S t a r t e d 2.2.3 Installing the Enclosure in Rack : The EF2800 enclosure with all its component parts installed is AUTION too heavy for easy installation into a rack cabinet. The following...
  • Page 43 Figure 18. Latch Operation on Drive Module Then swing open the handle and pull the module out of the bay. If the anti-tamper lock is activated, see Step [5] on page 27 for DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 44 Note the orientation of the modules (Figure 19). Swing the handle towards the module to cam the module home. Make sure that the latches are engaged. Figure 19. Power Supply Locations in Rear Panel DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 45: Power Supply/Cooling Module Installation

    Do not install the module if any pins appear to be bent. Squeeze to open both latches and leave the handle in open position (Figure 20) Figure 20. Power Supply Module with Handle in Open Position DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 46 Cam the module home by manually closing the handle. A click should be heard as the handle latches engage (Figure 22) Figure 22. Installing an AC Power Supply Cooling Module DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 47: Controller I/O Module Installation

    Check for damage especially to the interface connector, do not install if any pins are bent. Squeeze to open the latches (Figure 23) Figure 23. Controller Module Latch Operation DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 48 Figure 24. Module Locations Cam the module home by manually closing the latches (Figure 25) A click should be heard as the latches fully engage. Figure 25. Installing a Controller I/O Module DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 49: Drive Module Installation

    Continue to push firmly until the handle fully engages. A click should be heard as the latch engages and holds the handle closed. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 50 Indicator Aperture Anti-Tamper Lock Turn key Turn key clockwise counter-clockwise to lock to unlock Figure 29. Activating the Anti-Tamper Lock DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 51: Verify Configuration Switch Settings On Ops Panel

    Drive loop speed select 7 & 8 7 On, 8 Off (Force 2Gb/s) Drive addressing mode select 9 & 10 9 On, 10 Off (Mode 2) Soft select Not used DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 52: Connecting The Enclosure To Fc Host And Disk Ports

    There are no external terminators required with Fibre Channel architecture and any drive may be hot plugged during operation. • You can connect the EF2800 directly to one or more FC HBAs or to a FC switch or hub . Each Storage Manager has two FC (Figure 32) host ports.
  • Page 53 SFP connector is available in two versions: Copper and Optical. • You can connect additional disk enclosures by daisy-chaining them using the patterns shown in Figure Figure 33. Connecting the Expansion Enclosures to EF2800 (2x8 Mode) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 54: Expansion Enclosures

    Ensure that the EF2800 enclosure is powered down prior to powering down the JBOD enclosures. 2.7.2 Enclosure Device Addressing The EF2800 enclosure supports 15 address ranges (1 to 9, A to F). The thumb wheel switch on the Ops panel is used to select the SEL_ID base address. Figure 34 below shows the device addresses for the drive slots, with respect to different enclosure ID settings.
  • Page 55 1-45 2-46 2-42 1-42 1-46 2-45 2-41 1-43 1-47 2-44 2-40 Enclosure ID=7 1-48 1-52 2-55 2-51 1-49 1-53 2-54 2-50 1-50 1-54 2-53 2-49 1-51 1-55 2-52 2-48 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 56 1-109 2-110 2-106 1-106 1-110 2-109 2-105 1-107 1-111 2-108 2-104 Enclosure ID=F 1-112 1-116 2-119 2-115 1-113 1-117 2-118 2-114 1-114 1-118 2-117 2-113 1-115 1-119 2-116 2-112 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 57: Connecting To The Rs-232 Port (Optional)

    RS-232 port and the Disk Array Administrator software, see Appendix C. You must use the RS-232 cable that came with the EF2800 or one configured like it. The RS-232 cable is a standard 6-conductor, flatline cable with a 3.5mm jack plug to DB9 adaptor.

  • Page 58: Connecting To The Ethernet Port

    You use the Ethernet (10/100BaseT) port to configure and manage the EF2800. This lets you manage the EF2800 from a remote computer that is connected to your LAN. The EF2800’s default IP address is 10.0.0.1. To comply with radiated emissions requirements, you must use...

  • Page 59: Powering On The Enclosures

    - Connect the EF2800 power cord to the rack distribution and the enclosure. • If a direct connection is made with the EF2800 power cord, ensure that it is connected to the enclosure. Some electrical circuits could be damaged if external signal cables or power control cables are present during the grounding checks.

  • Page 60: Powering On

    G e t t i n g S t a r t e d 2.8.2 Powering On Before powering up your EF2800 enclosure please ensure that all the modules are firmly seated in their correct bays and that blank modules are installed in any unused bays.

  • Page 61: Status Led Indicators

    Invalid Address LED Power On LED Enclosure ID Switch Alarm Mute Switch System Fault LED PSU/Cooling/Temperature Fault LED 2Gb Link Speed LED Hub Mode LED (not used) Figure 36. Ops Panel DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 62 No SES Drives installed Flashing Ops to ESI Communications failed Flashing Intermittent audible alarm Invalid address mode setting (change Flashing thumb wheel to valid ranges) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 63: Disk Drives Leds

    The amber LED will be on if the drive fails. Status LED Fault LED Figure 38. Opening the Drive Module Handle DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 64: Understanding How The Sms Work Together

    • Put offline: When you use SAM to gracefully take an SM module offline. • Put online: When you use SAM to put the other SM module online. The other SM module will restart and attempt to come online. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 65 This page intentionally left blank.

  • Page 66: Accessing The Ef2800 Sam Software

    Accessing the EF2800 SAM Software You can monitor and manage your EF2800 using the EF2800 Storage Array Manager (SAM) software. You should review the following sections to ensure that you are set up to use SAM: • 3.1, ”SAM System Requirements”, on page 44 •...

  • Page 67: Sam System Requirements

    From the General tab, click Settings below Temporary Internet Files. Select the Every visit to the page option at the top of window. Click OK on each window to save your changes. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 68: Configuring The Ef2800 For Tcp/Ip

    3.3, ”Accessing SAM”, on page 48 Section 3.4, ”Configuring the IP Settings Using SAM”, on page • Using the serial connection to the EF2800 to set the permanent IP addresses—See 3.2.1, ”Accessing EF2800 via Serial Port & Disk Array Administrator”, on page...

  • Page 69: Accessing Ef2800 Via Serial Port & Disk Array Administrator

    3.2.1 Accessing EF2800 via Serial Port & Disk Array Administrator You can access the EF2800 using the RS-232 serial port to set the permanent IP addresses. You must use a straight-through serial cable. You cannot use a null modem cable.
  • Page 70 Select IP Settings and press <Enter>. The IP Settings screen displays. Select IP Address and press <Enter>. The IP Address screen displays. Enter the permanent IP address and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 71: Accessing Sam

    Gateway options. 12. Repeat steps through for the other SM. You can now use the IP addresses you set to access the EF2800 using SAM. For information about accessing SAM, see section below. Accessing SAM Once you have set up the permanent IP addresses, you can access SAM using your browser and LAN connection.
  • Page 72 A c c e s s i n g t h e E F 2 8 0 0 S A M S o f t w a r e Enter the IP address for one of the EF2800 SMs in the browser’s Address or Location field and press <Enter>.

  • Page 73: Understanding The Page Refresh Icons

    EF2800 status, and configuring the host and device ports. Figure 42. SAM Status Summary Page You can access all SAM functions from either SM. If one SM becomes unavailable, you can continue to the monitor and manage the EF2800 from the other SM. 3.3.1...

  • Page 74: Navigating In Ef2800 Sam

    EF2800 and your IP address stays logged in until the timeout period expires. SAM permits only one manage user to be logged on to each EF2800 at a time. Up to three monitor users can be logged in to each EF2800 at a time To log off SAM: From SAM, click Log Off at the bottom of the SAM menu.

  • Page 75: Configuring The Ip Settings Using Sam

    IP address for each. If one SM becomes unavailable, you can continue to monitor and manage the EF2800 from the other SM. Click Change LAN Configuration. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 76: Configuring The Http Setting

    A c c e s s i n g t h e E F 2 8 0 0 S A M S o f t w a r e You will lose access to the EF2800 after the change takes effect. If the EF2800 is not already connected to your LAN, you should connect it now.

  • Page 77: Setting Your User Preferences

    0 and 255 minutes, with 0 meaning that SAM will not timeout. The default is 30 minutes. Temperature Display Mode: Select Fahrenheit or Centigrade for all temperature status displays. The default is Fahrenheit. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 78 - SAM Configuration Mode: Select whether you want to save the preferences for all SAM sessions and users or for just this SAM session. Click Change Preferences to save your changes. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 79 This page intentionally left blank.

  • Page 80: Setting Up The Ef2800

    Setting Up the EF2800 SAM lets you set up the FC ports and restart the EF2800. You can:. • Set up the host ports (see section 4.1) • Set up the FC device ports (see section 4.2) • Shut down and restart the SMs (see section 4.3)

  • Page 81: Fc Host Port Loop Ids

    For each SM, select the loop ID you want. - SOFT: Use this setting if you do not care whether the EF2800’s Loop ID changes when you power down and power up. This setting lets the FC loop initialization process determine the Loop ID.

  • Page 82: Fc Host Port Topology

    - Point to Point: Use this option when you connect the EF2800 to a switch F-port. If you change from Loop to Point to Point after already establishing a public loop connection, the switch may ignore subsequent attempts to perform point to point initialization.

  • Page 83: Setting Up The Fc Device Ports

    4.2.1 FC Device Port Loop IDs The EF2800 assigns each of its FC device ports one of the FC loop IDs. You can change the loop ID assigned to each port. You may need to do this if the default IDs (125) conflict with an enclosure management processor (EMP) ID..

  • Page 84: Restarting The Sms

    SM’s write-back cache is written to disk. Use this option when you have changed a configuration that requires restarting (SAM messages say when you need to do this) or when you want to restart an EF2800 that does not seem to be working properly (see page 62).

  • Page 85: Restarting The Sms

    SAM. To restart the SMs: In SAM, select Manage EF2800 > Manage Modules > Shutdown/ Restart. The Shutdown/Restart page displays. In the Restart EF2800 panel, select whether you want to restart . Click Restart. one or both SMs (Figure 43) Figure 43.

  • Page 86: Shutting Down The Sms

    Shutting Down the SMs You may need to shut down one or both SM modules when you plan to power down the whole EF2800 system. This shuts down both the storage manager and the LAN Subsystem on the SM module and ensures that any data in the write-back cache is written to disk.

  • Page 87: Putting An Sm Offline

    Put SM Online function when an SM is offline for any reason. You can only put the other SM module online. You cannot put the SM module that SAM is connected to online. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 88: Killing An Sm

    Select Kill SM. Click Perform this Operation to kill the selected module. The Status LED for the module turns red and SAM shows the module as offline. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 89: Restarting The Lan Subsystem

    S e t t i n g U p t h e E F 2 8 0 0 4.3.6 Restarting the LAN Subsystem If you are having difficulty communicating with the EF2800, you can restart the LAN Subsystem in each SM. To restart the LAN Subsystem: From SAM, select Manage EF2800 >...

  • Page 90: Creating And Managing Arrays & Partitions

    SM modules work together see section 2.10, "Understanding how the SMs Work Together" on page The maximum size for any array is 2 TB. Figure 45 describes the drive requirements for each RAID level. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 91 Section 5.3.2 page 80. To create an array: From SAM, select Manage EF2800 > Disk Array Config > Create an Array. The Create an Array page displays (top panel shown) (Figure 46) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 92 You can add partitions later. Click Continue to continue the array creation process. The Select Drives screen appears with a list of available disk drives (top panel shown) (Figure 47) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 93 The drive cannot be used in any other array or as a global spare once it is assigned as a dedicated spare to an array. Click Continue to continue the array creation process. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 94 LUN for each partition on the next page. - Would you like to name your Partitions?: If you select Yes, you can enter a name for each partition on the next page. If you DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 95 12. Click Create Array to continue the array creation process. The EF2800 creates the array and displays Add Partition screen (Figure 49) Figure 49. SAM - Add Partition for Array DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 96 CAPI, select NONE as the management LUN. This allows your first array to be seen at LUN 0. To set the management LUN, select Manage EF2800 > LUN Management > Change Management LUN. - Partition Name: Contains a default name. Edit the name as needed.

  • Page 97: Managing Arrays

    You can still use an array in this state, but you should resolve the problem as soon as possible. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 98: Stopping The Array Initialization Process

    You must delete the array before you can use the drives in another array. To stop the array initialization process: From SAM, select Manage EF2800 > Disk Array Config > Abort an Array Utility. The Abort an Array Utility page displays with a list of existing arrays.

  • Page 99: Expanding Array Capacity

    The number of drives you can add to an array depends upon the RAID level as shown in Figure 51. You also cannot exceed the maximum number of drives for each RAID level. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 100 Expansion begins and the percentage completed displays. You can perform other functions during the expansion. To check the progress of the expansion, select Manage EF2800 > Disk Array Config > Array Utility Progress or any item from the Disk Array Config menu. The status of the expansion displays in the list of arrays.

  • Page 101: Managing Partitions

    You can also create fewer partitions that do not equal the array’s size. That would leave free space in which you can add or expand partitions later as shown in Figure DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 102 After expanding an array, you can either add a partition or expand the last partition to use the new free space. You can also delete one or more partitions and expand a partition into the space. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 103: Adding A Partition

    LUN to a higher value. If you are using a software tool that your company developed to configure and manage the EF2800 (this application uses CAPI to communicate with the EF2800), you must have a management LUN. If you are not using a software tool that your company developed, and therefore are not using CAPI, select NONE as the management LUN.

  • Page 104: Expanding A Partition

    Expansion begins and the percentage completed displays. You can perform other functions during the expansion. To check the progress of the expansion, select Manage EF2800 > Disk Array Config > Array Utility Progress or any item from the Disk Array Config menu. The status of the expansion displays in the list of arrays.

  • Page 105: Managing Spares

    SM can use a global spare to reconstruct the critical array (see page 85). When a drive fails, the EF2800 looks for a dedicated spare first. If it does not find a properly sized dedicated spare, it looks for a global spare.

  • Page 106: Enabling Dynamic Spares

    For example, if you enable Dynamic Spares and a drive fails, you can replace the drive and the EF2800 will rescan the bus, find the new disk drive, and automatically start reconstruction of the array. You do not have to assign the new drive as a spare for the reconstruct to start.

  • Page 107: Managing Dedicated Spares

    Adding a Dedicated Spare You assign dedicated spare drives to a specific array. If a member drive in the array fails, the EF2800 uses a dedicated spare drive to automatically reconstruct the array. You can add dedicated spare drives to redundant arrays (mirrored [RAID 1 and RAID 10] and parity [RAID 3, RAID 4, RAID 5, and RAID 50]).

  • Page 108: Managing Global Spares

    If a drive in any redundant array fails, the EF2800 can use a global spare to reconstruct the array. If a global spare is too small (smaller than an individual member in an array), the array cannot use it.
  • Page 109 Displaying Global Spares You can display a list of all global spares. To display global spares: • From SAM, select Manage EF2800 > Disk Array Config > Global Spare Menu. The Show Global Spare page displays listing all global spares...

  • Page 110: Raid Management

    - Change a partition LUN (see page - Control partition access (see page - Change a partition’s read-ahead cache size (see page 103) - Delete a partition (see page 104) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 111: Managing Arrays

    • Manage EF2800 > Disk Array Config—includes array status information for the selected array. • Manage EF2800 > Disk Array Config > Disk Drive Status—includes disk drive status information for the selected array. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 112: Viewing Array And Partition Statistics

    The statistics are provided as general information for your use, however, they are not intended for benchmarking purposes. To view the rate statistics: • From SAM, select Monitor EF2800 > Statistics > Partition Rate Stats. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 113 R A I D M a n a g e m e n t To view the cumulative statistics: • From SAM, select Monitor EF2800 > Statistics > Cumulative Part Stats. 6.2.2.1 Resetting All Statistics You can reset the following array and partition statistics to zero: •...

  • Page 114: Verifying An Array

    Verification begins and the percentage of verification completed displays. You can continue to use the array during verification. To check the progress of the verification, select Manage EF2800 > Disk Array Config > Array Utility Progress or any item from the Disk Array Config menu.

  • Page 115: Changing Array Ownership

    After changing ownership, you must assign a new LUN to each array partition. To change array ownership: From SAM, select Manage EF2800 > Disk Array Config > Change Array Owner. The Change Array Owner page displays with a list of existing arrays.

  • Page 116: Changing An Array Name

    Changing an Array Name You can change the name of an array. This does not affect the target ID or LUN values of the array. The EF2800 does not allow you to change an array name when a utility is running.
  • Page 117 If the array does not come back online, it may be that too many members are offline or the array may have additional failures on the bus or enclosure that Trust Array cannot fix. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 118: Deleting An Array

    Expand, or Reconstruct) is running on the array. You must stop the utility, if allowed, or let it finish before you can delete the array. To delete an array: From SAM, select Manage EF2800 > Disk Array Config > Delete an Array. The Delete an Array pag displays with a list of all existing arrays.

  • Page 119: Managing Partitions

    You can change the name of a partition. This does not affect the target ID or LUN values of the partition. You cannot change a partition name when a utility is running. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 120: Changing A Partition Lun

    Changing a Partition LUN You can change the LUN assigned to a partition, as it appears under the EF2800’s target ID from the host system’s point of view. The change takes place immediately, however, you may need to restart the host system to see the partition at the new LUN.

  • Page 121: Controlling Partition Access

    WWNs for your network. You can display a list of the last 64 WWNs that the EF2800 is aware of on the SAN, and you can give each WWN a nickname of your own. This makes working with the InfoShield feature faster and easier.
  • Page 122 You can view the global host list, which includes the last 64 host WWNs that the EF2800 is aware of on your SAN. The EF2800 will be aware of any host that was started since the EF2800 was last restarted. Typically, hosts scan for devices during their start-up process.
  • Page 123 - In the Global Host List panel, enter a new nickname for the host you want to change. You can enter up to 15 characters. You can use only letters, numbers, and underscores. - Click Change Host Nickname. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 124 • Include All Hosts: Permits all hosts on the network to access the selected partition. This is the default InfoShield type. This results DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 125 To add a host that is not already on the global host list, enter the host WWN and nickname in the Add New Host for Array panel and click Add New Host. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 126: Changing The Read-Ahead Cache Size

    To change the read-ahead cache size: From SAM, select Manage EF2800 > LUN Management > Partition Menu > Read Ahead Cache. The Read Ahead Cache page displays with a list of all existing arrays DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 127: Deleting A Partition

    In the Select an Array to View LUN Information panel, select the array whose partition you want to delete. In the Partition Menu panel, select the partition name. Click Delete Partition. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 128: Monitoring System Status

    (the page name is also the menu item to select from the Monitor EF2800 > Status menu) and the type of information on each page. View the page help for more information about each page. You may have to scroll down to see the Page Help link.
  • Page 129 Module Status page. Chassis View Displays graphical representations of the front and rear of the EF2800. Failed modules display in red. Click a failed module for more information about the failure and module status. Storage Array Displays icons for each existing array with more detailed...
  • Page 130 EF2800. Audit Security Displays several categories of settings that may affect the security of your EF2800. Audit Displays several common setting problems that can Troubleshooting cause operational issues. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 131: Displaying The Event Log

    Displaying the Event Log The EF2800’s event log contains important information about the status of the EF2800, arrays, and disk drives. You should check it regularly to monitor the status of your system. For more information about specific warning and error events and specific disk and port errors, refer to Chapter 10, "Troubleshooting and Problem Solving"...
  • Page 132 M o n i t o r i n g S y s t e m S t a t u s If you are having a problem with the EF2800 or an array, check the event log before calling technical support. Event messages may let you resolve the problem without calling.

  • Page 133: Setting Up Remote Notification

    • By specific event You can combine the event selections in any way that meets your needs. When one of these events occurs on the EF2800, SAM sends a message to the e-mail addresses that you have set up. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 134: Setting Up The Email Addresses

    M o n i t o r i n g S y s t e m S t a t u s To set up events:. 1. From SAM, select Manage EF2800 > Remote Configuration > Select Event Categories. The Select Event Categories page displays. 2. Select which event categories, if any, you want to trigger an e-mail message.

  • Page 135: Saving Log Information To A File

    M o n i t o r i n g S y s t e m S t a t u s Saving Log Information to a File You can save EF2800 event and debug log information to a file. The file contains selected log information, including: •...

  • Page 136: Displaying Overall Statistics

    "Array Basics" on page 185 for more details on RAID levels. The statistics are provided as general information for your use, however, they are not intended for benchmarking purposes. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 137: Resetting The All Statistics

    You cannot reset the queue depth value. It always reflects the current I/O queue depth. To reset all statistics: 1. From SAM, select Monitor EF2800 > Statistics > Reset All Statistics. The Reset All Statistics page displays. 2. Click Reset Statistics.

  • Page 138: Other Ef2800 Configurations

    • Pause I/O (see page 126) • Save and restore a configuration file (see page 127) • Restore the default settings (see page 130) • Update the software (see page 131) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 139: Configuring The Lan-Related Settings

    Telnet session times out. The default is no timeout, which is shown as 0 minutes. To set the Telnet timeout: 1. In SAM, select Manage EF2800 > General Config > LAN Configuration. The LAN Configuration page displays. 2. In the Telnet Configuration panel, enter the timeout period.

  • Page 140: Configuring The System Information

    8.1.3 Configuring the System Information You can set four system information settings: • System Name: Name of the EF2800 as seen by other systems on the LAN. You can enter up to 74 characters. The default name is Uninitialized Name.

  • Page 141: Setting Passwords

    “Private”. You can use up to 15 characters. You can use only letters, numbers, and underscores. To set SAM passwords: 1. From SAM, select Manage EF2800 > General Config > Passwords/ Security. The Passwords/Security page appears. 2. In the Password Configuration panel, enter the passwords you want.

  • Page 142: Configuring The Security Options

    LUN. To change any of the security options: 1. From SAM, select Manage EF2800 > General Config > Passwords/ Security. The Passwords/Security page displays. 2. In the Security Configuration panel, select the options you want.

  • Page 143: Changing The Date And Time

    1. From SAM, select Manage EF2800 > General Config > Set Date/ Time. The Set Date/Time page displays. 2. In the Set EF2800 System Date panel, select the month, day, and year. 3. In the Set EF2800 System Time panel, enter time using a 24-hour clock.

  • Page 144: Viewing Lun Information

    G.2.1, "Setting the EMP LUN" on page 294. • Partition LUNs: Allow access to array partitions on the EF2800. You can set partition LUNs to any numeric value from 0-63. For information about changing the partition LUN, see section 6.3.3, "Changing a Partition LUN"...

  • Page 145: Changing The Alarm Mute Setting

    You should turn it back on after resolving the problem. You can also use the Mute button on the EF2800 to turn off the alarm when it sounds. The alarm sounds for temperature or voltage conditions (events).
  • Page 146 91°C to 100°C • Shutdown: <0°C and >100°C To enable or disable the alarm: 1. From SAM, select Manage EF2800 > General Config > Audio Alarm. The Audio Alarm page displays. 2. Select the alarm option you want. 3. Click Change Configuration.

  • Page 147: Controlling Host Access To Ef2800'S Write-Back Cache Setting

    3. Click Change Options. Enabling and Disabling the Battery If you are not using a battery in your EF2800, the system alarm will be activated. To eliminate the alarm, you can disable the battery. The default setting is “battery enabled”.

  • Page 148: Changing The Utility Priority

    Configuration. The Option Configuration page displays. 2. Select the Battery option you want. 3. Click Change Options. 4. You must restart the EF2800 for the change to take effect. Select Shutdown/Restart from the SAM menu. Changing the Utility Priority You can change the priority at which all utilities (Verify, Reconstruct, Expand, and Initialize) run when there are active I/O operations competing for the EF2800’s CPU.

  • Page 149: Rescanning All Ports

    O t h e r E F 2 8 0 0 C o n f i g u r a t i o n s Rescanning All Ports You can tell the EF2800 to scan all disk ports for new or removed disk drives. You can use this option when you install or remove disk drives.

  • Page 150: Saving And Restoring A Configuration File

    8.11.1 Saving a Configuration File You can save all of your EF2800 configuration settings to a file. This lets you make a backup of your settings. The configuration file contains all EF2800 configuration information including the following settings: •...

  • Page 151: Restoring A Configuration File

    You can restore a saved EF2800 configuration file. This lets you revert back to previous settings or “clone” one EF2800’s settings to another EF2800. You must use SAM to connect to the EF2800 where you want to restore the file.
  • Page 152 O t h e r E F 2 8 0 0 C o n f i g u r a t i o n s Gateway for both SMs on the same EF2800. After the file is restored, you must reconnect to the EF2800 using one of the new IP addresses.

  • Page 153: Viewing And Restoring Default Settings

    Utilities. The Show Changed Settings page displays. 8.12.2 Restoring Default Settings You may want to do this if the EF2800 is not working properly and you cannot determine why. This lets you then change the settings that are critical to your configuration.

  • Page 154: Updating Software

    SM module. To update software: 1. From SAM, select Manage EF2800 > Utilities > Load Software. The Load Software page displays, which describes the two-step update process and lists your current software versions.
  • Page 155 The update process takes about ten minutes to complete. SAM returns to the Load Software page when update is complete. 8. Connect to the other SM module and repeat the above steps. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 156: Managing Disk Drives & Enclosures

    - Test a disk drive (see page 138) • For EMP enclosures, you can: - Change the EMP LUN (see page 139) - Change additional EMP settings (see page 140) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 157: Managing Disk Drives

    G.1.2, "Clearing Metadata from a Drive" on page 288. To display all disk drives: • From SAM, select Monitor EF2800 > Status > Display All Devices. The Display All Devices page displays, listing all connected devices. 9.1.1.2 Viewing Disk Drive Status You can view the status of the drives in an array.

  • Page 158: Clearing Metadata From A Disk Drive

    To clear metadata from a disk drive: 1. From SAM, select Manage EF2800 > Utilities > Disk Drive Utilities > Clear Metadata. The Clear Metadata page displays listing all available and leftover disk drives.

  • Page 159: Displaying Disk Drive Cache Status

    To display disk cache status: 1. From SAM, select Manage EF2800 > Utilities > Disk Drive Utilities > Display Disk Cache. The Display Disk Cache page displays. 2. Select the drive whose cache settings you want to see.

  • Page 160: Blinking A Drive Led

    The Down Drive function sets the status of a disk drive in a fault- tolerant array to down. This forces the EF2800 to remove it from the array and marks the array as critical. The downed disk drive is marked as Leftover and you cannot add it back to the array.

  • Page 161: Testing A Disk Drive

    M a n a g i n g D i s k D r i v e s & E n c l o s u r e s To take down a disk drive: 1. From SAM, select Manage EF2800 > Utilities > Disk Drive Utilities > Down Disk Drive. The Down Disk Drive page displays listing all devices.

  • Page 162: Managing Enclosures

    EF2800 can inquire about the enclosure’s environmental conditions such as temperature, power supply and fan status, and the presence or absence of disk drives. The EF2800 can also tell the EMP about RAID activities such as disk drive rebuilds and failed disk drives.

  • Page 163: Changing The Additional Emp Setting

    Changing the Additional EMP Setting You can change four additional EMP settings: • EMP Polling Rate: This is the interval, in seconds, that the EF2800 polls the EMPs for status changes. If the polling rate is set to zero, the EF2800 does not communicate with the EMP. Only use this setting if you suspect you are having communication problems with the EMP.

  • Page 164: Troubleshooting And Problem Solving

    First check that you have wired up the enclosures correctly. Then, if: • cords are missing or damaged • plugs are incorrect • cords are too short Call Customer Service for a replacement. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 165 Check that the FC-AL interface cables from the EF2800 enclosure to the host computer are fitted correctly. Check the Drive Select ID settings on your EF2800 enclosure and on your system host. Check that the LEDs on all installed drive carrier modules are illuminated green.

  • Page 166: Leds

    Associated State Description Power Cooling/ System Mode Loop LEDs or Alarm (Green) Temp (Amber) Error Speed (Amber) (Amber) Power On, all functions good 5V Aux present, overall power failed DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 167 Ops to ESI Communications failed audible alarm Flash- Invalid address mode setting (change thumb wheel to valid ranges) 2Gb Drive loop speed selected RAID ONLY Host side Hub mode enabled DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 168: Controller I/O Module

    RAID Activity LED Host Port 1 Signal Good LED Host Port 0 Signal Good LED Host Port 0 Enclosure Services Interface (ESI) RS232 RS232 (RAID) Figure 63. I/O Module LEDs DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 169 Color Function .STATUS SM Status Green Solid when EF2800 is on and this SM is online. Amber Flashing when initializing. Solid if LAN Subsystem or battery has a fault. Solid when EF2800 is on and this SM is offline. Some causes are: •...

  • Page 170: Power Supply/Cooling Module

    The Alarm Mute push-button can also be used to test the LEDs on the Ops Panel. When the Mute push-button is held, all LEDs will be illuminated if there are no faults present. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 171: Troubleshooting

    If none are evident then there may either be an ESI processor problem or a backplane problem. Ops panel module failed. Please contact Customer Service for replacement. (see Section 10.7.2 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 172: Power Supply/Cooling Faults

    Disconnect the power supply/cooling module from AC power and remove the module from the system. Re- install: if problem persists, replace power supply/ cooling module. Reduce the ambient temperature. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 173: Thermal Control

    Note: This Check that all blank/ threshold changes dummy modules are in according to the place. number of drives and power Reduce the ambient supplies fitted. temperature. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 174: Thermal Alarm

    Use in a fully enclosed rack installation is not recommended. If possible shutdown the enclosure and investigate the problem before continuing. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 175: Drive Carrier Module Faults

    If this has not occurred there is a power problem (An alarm and power fault indication would normally be active). The SYSTEM LED will flash green/amber. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 176: Dealing With Hardware Faults

    Replacing a Module Please refer to Chapter 2, "Getting Started" on page 15 for information on the initial installation of the plug-in modules in the EF2800 enclosure. Observe all conventional ESD precautions when handling the modules and components. Avoid contact with Backplane components and module connectors.

  • Page 177: Power Supply/Cooling Modules

    Pull and swing open the handle to cam the module out of the bay. Grip the handle and pull out the module. Figure 66. Disengage the Latches on PSU Module DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 178: Ops Panel

    The alarm will sound until the new power supply/cooling module is operating correctly. 10.7.2 Ops Panel The Ops Panel is an integral part of the enclosure chassis assembly and is not field replaceable. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 179: Storage Manager Module

    Make note of how the cables are connected to the I/O module. Then disconnect the cables. Using both hands, squeeze open the two latches (Figure 68) Figure 68. LRC I/O Module Latch Operation DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 180 Press down firmly on the removal tab located at the bottom of the cable. Remove the module by firmly gripping each side of it. : If the module cannot be easily removed do not use force. AUTION Repeat step 1. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 181: Drive Carrier Module

    30 seconds. This will allow the drive to spin down prior to full removal. Withdraw the module from the drive bay and install a replacement module in accordance with the instructions in Section 2.7 page DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 182: Problems Accessing The Ef2800 Via Ethernet Port

    • Click Refresh or Reload in your browser to display the most current SAM information. • Be sure that no other user is accessing the EF2800 using the menu- based interface or the Configuration Application Programming Interface (CAPI). It is possible for other user to change the EF2800’s configuration using these other interfaces.

  • Page 183: Host Fibre Channel Problems

    Host Fibre Channel Problems Problem: The host system does not see the EF2800. Verify in the Monitor EF2800 > Status > FC Port Status page (or in the Disk Array Administrator, the <Ctrl>-<E> CFG Info screen) that the host channel FC World Wide Name is valid. Verify that the port ID is active and a valid arbitrated loop port address (AL_PA) is assigned.

  • Page 184: Array Problems

    From SAM, select Manage EF2800 > General Config > Option Configuration. The Option Configuration page displays. Enter the Backoff Percent you want. Enter the percentage as three digits using the following format: 00.0%. The default setting is 01.0%. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 185: Ef2800 Problems

    Problem: EF2800 failed the onboard memory test. When this failure occurs, it means the internal CPU memory failed. Contact Technical Support for a replacement. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 186: Terminal Emulator And Com Port Problems

    Problem: Screen continuously puts out garbage characters. The likely cause of this problem is a baud rate mismatch between the terminal emulator and the EF2800. The default baud rate is 115,200. Follow these steps if you set your terminal emulator to this rate and still get garbage characters: If you are able, shut down both SMs.
  • Page 187 Problem: Screen looks correct, but clock is not being updated. Check to be sure that the EF2800 is still powered on. If you are using Xon/Xoff, press the <CTRL> key and <Q> key simultaneously to start data flowing.

  • Page 188: Warning And Error Events

    LEDs. The alarm or buzzer sounds mainly when SAM or the Disk Array Administrator displays a warning or error event. The alarm will silence when you press the Mute button on the EF2800, mute the alarm in SAM (refer to Section 8.5, "Changing the Alarm Mute...
  • Page 189 The online SM module had its flash configuration cleared (this is where the previously used WWNs are stored). DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 190 In probably because availability this case, we recommend that you to the hosts would have been do not take the module offline. affected. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 191 TEMP convertor monitored a Check that the ambient WARN temperature or voltage in the temperature is not too warm. Check warning range. for any obstructions to the air flow. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 192: Errors

    T r o u b l e s h o o t i n g a n d P r o b l e m S o l v i n g 10.14.2 Errors Error events let you know that something related to the EF2800, module, or disk drives has failed and requires immediate attention. Figure 71 defines each error event and recommends the action you should take.

  • Page 193: Setting Up And Viewing The Debug Log

    Disk Array Administrator local serial port connections. If one of the redundant controllers is down we recommend that you restart that Storage Manager module, if possible, before collecting the debug logs. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 194 Start a “data capture” session on your terminal emulator program (in Hyperterm this is the Transfer/Capture Menu drop-down menu selection. Name the file - to include date. bug number or problem name and SM-A or -B, e.g. 20030113_bug#123_SM-A.txt. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 195: Configuring Debug Logs

    Click Change Debug Configuration. To view the debug log: From SAM, select Manage EF2800 > Utilities > View Debug Log. The View Debug Log page displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 196: Using The Loader Diagnostics Menu

    If you see these errors in the event log, the information below may assist you. For more information about viewing the event log, refer to Section 7.2, "Displaying the Event Log" on page 108. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 197: Disk Errors

    Description No sense Recovered error Not ready Medium error Hardware error Illegal request Unit attention Data protect Blank check Vendor-specific Copy aborted Aborted command Obsolete Volume overflow Miscompare Reserved DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 198: Disk Channel Errors

    10.18.2 Disk Channel Errors Disk channel errors are similar to disk-detected errors, except they are detected by the EF2800, instead of the disk drive. Some disk channel errors are displayed as text strings, others are displayed as hexadecimal codes. Figure 74 lists the error code descriptions.
  • Page 199 Target reported busy status. Dn/Ov Run Data overrun or underrun has been detected. IOTimeout EF2800 aborted an I/O request to this target because it timed out. Link Down Link down while communication in progress. I/O request was aborted because of a channel reset.

  • Page 200: Voltage And Temperature Errors And Warnings

    Check that all of the fans are working by making sure all of the EF2800’s LEDs are green or using the SAM status pages. Make sure that all the EF2800 modules are properly seated in their slots and that their handles are locked.
  • Page 201 This page intentionally left blank.

  • Page 202: Appendix A. Enclosure Specifications

    AC Power (450W PSU) Voltage, auto-ranging: 100 - 120 / 200 - 240 VAC Rated Frequency: 50-60 Hz Inrush Current: 50A @ 260VAC Power Factor: >0.98 Harmonics: Meets EN61000-3-2 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 203: Psu Safety And Emc Compliance

    0 °C to 50°C 8% to 80% 27°C Operational non-condensing Storage 1 °C to 60°C 8% to 80% 29°C non-condensing Shipping -40 °C to 60°C 5% to 100% 29°C non-precipitating DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 204: Interfaces

    • SFP HSSDC - 2 cables, max. external cable length: 10m • SFP optical cables, max. daisy-chain cable length: see manufacturer’s specification • Expansion: SFP, cable length as given above DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 205: Controller I/O Module Specification

    • Expansion Port 0 Rx good (green) • Expansion Port 1 Rx good (green) • ESI/LRC module fault LED (amber) • Cache active (green) • RAID controller ready (green) • Battery fault (amber) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 206: Drive Carrier Module Specification

    • RAID controller status: not ready, partner fail, and partner present For more information on the implementation of this function please request a copy of the SES specification from Technical Support. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 207: Spare Parts And Accessories

    • Keys for drive modules • Various types of external FC-AL signal cables • SFP module, optical • SFP module, copper • Battery, Li-ion • (Country specific) power cords • All documentation DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 208: Appendix B. Array Basics

    The redundant information lets you restore user data if a disk in the array fails. The host system views the EF2800 system as a single FC disk drive. It is actually an array of physical disks behind a RAID controller. The EF2800 system is managed by software to appear as a single, very large physical disk.

  • Page 209: Array Types

    The fault tolerance of a RAID 0 array, therefore, is less than that of any single disk in the array. The term RAID 0 is widely used for these arrays, however, because they are conceptually similar to true RAID applications. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 210: Raid 1, Raid 10 (Mirrored Disks)

    RAID 3 is not well suited for transaction processing or other applications that require simultaneous reads and writes. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 211: Raid 4

    RAID 4 is similar to RAID 3 in that the redundant information is achieved in the form of parity data. The user data is distributed across all but one of the disks. The EF2800 uses a single, dedicated parity drive for data protection. The main difference is that RAID 3 usually synchronizes writes to its disks, while RAID 4 can send data to its disk independently.

  • Page 212: Volume Sets

    RAID 1 Disk mirroring Very high High redundancy cost performance and data overhead—because protection, Minimal all data is duplicated, penalty on write twice the storage performance capacity is required DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 213 RAID 0 or distributed transaction-oriented RAID 1 parity networks; very high performance and data protection; supports multiple simultaneous reads and writes; can also be optimized for large, sequential requests DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 214: Mixing Disks From Different Manufacturers/ Capacities

    36-GB disks. To maximize disk capacity, use disks of similar size. NOTE: The manufacturer does not support mixing of different models, or manufacturer’s, of drives in the same enclosure. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 215 This page intentionally left blank.

  • Page 216: Appendix C. Accessing Disk Array Administrator Software

    SM where the array was created, that is, each SM can only see its own arrays and dedicated spares. Each SM can see all pool spares and available drives (drives not used in an array or as a dedicated spare). DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 217: Via The Rs-232 Serial Port

    Configure the RS-232 port in your terminal emulator software using the following settings: Setting Value Terminal Emulation VT-100 or ANSI (for color support) Font Terminal Translations None Columns DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 218 EF2800 can auto-detect the baud rate. Press <Ctrl>-<R> to refresh the screen. The initial SM Disk Array Administrator screen appears (Figure 77) Figure 77. Initial Disk Array Administrator Screen DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 219 Press <Enter>. The System Menu displays (Figure 78) Figure 78. System Menu You can now perform all of the functions described in the following chapters. All steps start from the System Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 220: Via The Ethernet Port

    232 connection, and you can make changes to the configuration using the RS-232 connection. You can configure a variety of settings for the Ethernet connection. For more information, see section I.2, "Configuring the LAN Settings" on page 322. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 221 Figure 79. Select Terminal Font Enter the IP address or, using the Connect menu, select the EF2800 IP address from the menu (if present) and press <Enter>. If needed, enter the port number. The default port is 23.
  • Page 222 Press <Enter>. The System Menu displays (Figure 81) You can now perform all of the functions described in the following chapters. All steps start from the System Menu. Figure 81. System Menu DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 223: Navigating The Disk Array Administrator Software

    Figure 83. Changing Screen Displays Select Function Ctrl-A Toggles between ANSI and VT100 character sets (use VT100 for legacy systems) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 224: Disk Array Administrator Menu Tree

    Administrator menu hierarchy. In the Disk Array Administrator, menu options that are not accessible appear gray. For example, the Array Menu is not accessible unless one or more arrays exist. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 225: Datadirect Networks Ef2800 Fc Raid Storage System User Guide (V)

    Change Partition Name Read-Ahead Size Delete This Partition Infoshield Infoshield Display Host List Add Host List Remove Host from List Change Infoshield Type Figure 84. Menu Tree (1 of 2) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 226 Display Drive Cache Shutdown Restart Shutdown Other Shutdown Both Overall Statistics Reset LAN Subsystem View Statistics View R/W Histogram Reset All Statistics Figure 85. Menu Tree (2 of 2) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 227 This page intentionally left blank.

  • Page 228: Appendix D. Creating And Managing Arrays & Partitions

    RAID level. Figure 86. Drive requirements by RAID level RAID level Min. # of Drives Max. # of drives Volume Set RAID 0 RAID 1 (Mirrored) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 229: Creating A Single-Partition Array

    To create a single-partition array: From the System Menu, select Add an Array and press <Enter>. The Enter Array Name screen displays (Figure 87) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 230 If you want to create a multiple-partition array, see section D.1.2 page 212. Figure 88. Select LUN for Array Select the LUN for the array and press <Enter>. The LUN that displays is the suggested default LUN assignment. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 231 LUN to a higher value. If you are using a custom software application to configure and manage the controller (this application uses CAPI to communicate with the EF2800), you must have a CAPI LUN. If you are not using a custom application, and therefore are not using CAPI, select NONE as the CAPI LUN.
  • Page 232 Loop ID for each channel (------ indicates a single ported drive), Size, Vendor, Model or serial number or node and WWN (press <T> to toggle the display), Rev (firmware revision), Usage, and Usage. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 233 WWN, press <T>. If the array you are creating is a RAID 0, RAID 3, RAID 4, RAID 5, RAID 10, or RAID 50, the Chunk Size screen displays (Figure 92) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 234 A message notifies you that the array is being created and shows the progress of the initialization process. The array initialization process takes from several minutes to more than an hour DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 235: Creating A Multiple-Partition Array

    (parity and spares). For more information, see section D.3.1 on page 235. To create a multiple-partition array: From the System Menu, select Add an Array and press Enter. The Enter Array Name screen displays (Figure 93) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 236 Select the RAID type: RAID0, RAID3, RAID4, RAID5, RAID50, VOLUME (a single drive similar to just a bunch of disks (JBOD) except that it includes metadata), or MIRRORED and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 237 Figure 96. Select Drives for Array The list includes all available drives, that is, drives that are not members of an array and are not assigned as a dedicated or pool DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 238 Use the ↑ or ↓ key to scroll through the list and press <Enter> to select it. Each selected drive turns gray in the drive list. After you selected the correct number of drives, the system automatically goes to the next screen. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 239 - Online Initialization: Using this option lets you begin using the array immediately after creating it, while the array initialization process runs. It uses the verify method to create the array, which takes longer than the zero method. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 240 LUNs by selecting Refresh from the Computer Management Window. NetWare v3.12 and later can recognize new devices by typing the command SCAN FOR NEW DEVICES at the console prompt. Other operating systems might have similar features. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 241: Managing Arrays

    • State: Online, Offline, Critical, or Fault-tolerant. • Serial number: Unique number the EF2800 assigns to each array. • Name: Name you give to the array. • RAID level: Array type (0, 3, 4, 5, 50, Volume, or Mirrored). The term “mirrored”...
  • Page 242 Select Array screen displays with a list of existing arrays (Figure 98) Figure 98. Select Array Screen Select the array you want and press <Enter>. The Array menu displays (Figure 99) Figure 99. Array Menu DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 243 Viewing Drive Status You can view the status of the drives in an array, including the following information: • Drive number: The drive’s sequential position in the EF2800’s drive list. • Drive status: Whether the drive is up or down.
  • Page 244 Use the ↑ or ↓ key to scroll through the drives. These are the drives that are currently members of the array. Press <Esc> to return to the Array Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 245: Stopping The Array Initialization Process

    From the System Menu, select Array Menu and press <Enter>. The Select Array screen displays with a list of existing arrays. Select the multiple-partition array you want and press <Enter>. The Array menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 246 Select the free partition you want to use. The Partition Size screen displays (Figure 105) Figure 105. Enter Partition Size Screen Enter the size you want to make the partition and press <Enter>. The Partition Name screen displays (Figure 106) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 247 LUN to a higher value. If you are using a custom software application to configure and manage the EF2800 subsystem (this application uses CAPI to communicate with the EF2800), you must have a CAPI LUN. If you are not DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 248: Verifying An Array

    The Select Array screen displays with a list of existing arrays. Select the array you want and press <Enter>. The Array menu displays. Select Verify Function and press <Enter>. The Verify menu displays (Figure 108) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 249 The Select Array screen displays with a list of existing arrays. Select the array you want and press <Enter>. The array menu displays. Select Verify Function and press <Enter>. The verify menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 250: Reconstructing An Array

    "Adding a Spare to the Spare Pool" on page 280). Remember that any pool spares added might be used by any critical array, not necessarily the array you want. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 251: Expanding Array Capacity

    You can expand the array, one RAID 5 array at a time up to the maximum number of drives. All RAID 5 arrays must contain the same number of drives. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 252 (Figure 111) Figure 111. Select Number of Drives for Expansion Enter the number of drives you want to add and press Enter. The Select Drives screen displays (Figure 112) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 253 From the System Menu, select Array Menu and press <Enter>. The Select Array screen displays with a list of existing arrays. Select the array you want and press <Enter>. The Array menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 254: Changing An Array Name

    You can change the name of an array. This does not affect the target ID or LUN values of the array. The EF2800 does not allow you to change an array name when a utility is running. To change an array name: From the System Menu, select Array Menu and press <Enter>.

  • Page 255: Trusting An Array

    • One or more disks of an array start up more slowly or were powered on after the rest of the disks in the array. This causes the date and time stamps to differ, which the EF2800 interprets as a problem with the “late” disks. In this case, the array will function normally after using Trust Array.
  • Page 256 If the array does not come back online, it may be that too many members are offline or the array may have additional failures on the bus or enclosure that Trust Array cannot fix. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 257: Deleting An Array

    Figure 113. Select Array to Delete Select the array you want to delete and press <Enter>. The system asks you to confirm the deletion. Select Yes and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 258: Managing Partitions

    For example, if the first partition will be used to store your customer database, give it a name like: cust database. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 259 Figure 116. Array after creating five partitions Caution ! If you delete a partition, you also delete all data stored in the partition. Be sure that you back up all data before deleting a partition. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 260: Viewing Partition Status Information

    3. • Name: Name you give to the partition. • Serial number: Unique number the EF2800 assigns to each partition. • Target ID:LUN: Target ID and LUN presented to the host system. • Partition size: Size of the partition (expressed in MB).
  • Page 261 - Select the partition you want and press <Enter>. The Partition menu displays (Figure 118) Figure 118. Partition Menu Select Partition Status and press <Enter>. The status screen displays showing the status of the partition you selected (Figure 119) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 262 - From the System Menu, select Array Menu and press <Enter>. The Select Array screen displays with a list of existing arrays. - Select the array you want and press <Enter>. The array menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 263 Select Partition Statistics and press <Enter>. The statistics menu displays (Figure 121) Figure 121. Partition Statistics Menu Select View Statistics and press <Enter>. The statistics screen displays showing the statistics of the partition you selected (Figure 122) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 264 NOTE: You cannot reset the queue depth value. It always reflects the current I/O queue depth. To reset partition statistics: Bring up the Partition menu. From the Array Menu: DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 265 - Select the partition you want and press <Enter>. The partition menu displays (Figure 123) Figure 123. Partition Menu Select Partition Statistics and press <Enter>. The statistics menu displays (Figure 124) Figure 124. Partition Statistics Menu DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 266: Expanding A Partition

    <Enter>. The Select Partition or Free Area screen displays with a list of existing partitions and free space. - Select the partition you want and press <Enter>. The partition menu displays (Figure 125) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 267: Changing A Partition Name

    Changing a Partition Name You can change the name of a partition. This does not affect the target ID or LUN values of the partition. The EF2800 does not allow you to change a partition name when a utility is running.

  • Page 268: Changing A Partition Lun

    Changing a Partition LUN You can change the LUN assigned to a partition, as it appears under the EF2800’s target ID from the host system’s point of view. The change takes place immediately, however, you may need to restart the host system to see the partition at the new LUN.
  • Page 269 C r e a t i n g a n d M a n a g i n g A r r a y s & P a r t i t i o n s For more information about LUNs and your EF2800, see section H.4, "Understanding LUNs and Viewing LUN Information"...

  • Page 270: Changing The Read-Ahead Cache Size

    Changing the Read-Ahead Cache Size You can change the read-ahead cache setting for each partition. This setting controls how much data the EF2800 reads ahead and stores in its cache memory during sequential reads. If you want to change this size, you should be prepared to monitor the system performance using the array statistics and adjust the size until you find the optimal size for your application.
  • Page 271 (Figure 129) Figure 129. Select Read-Ahead Size Screen Select the amount of data you want the Storage Manager to read ahead for this partition and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 272: Enabling Or Disabling Write-Back Cache

    - Select Partition Menu and press <Enter>. The Select Partition screen displays with a list of existing partitions for the current array. - Select the partition you want and press <Enter>. The Partition menu displays (Figure 130) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 273: Controlling Partition Access

    WWNs for your network. You can display a list of the last 16 WWNs that the EF2800 is aware of on the SAN, and you can give each WWN a nickname of your own. This makes working with the InfoShield feature faster and easier.
  • Page 274 D.3.8.1 Viewing Known WWNs You can view a list of 16 host WWNs that the EF2800 is aware of on your SAN. The EF2800 will be aware of any host that was started since the EF2800 was last restarted. Typically, hosts scan for devices during their start process.
  • Page 275 A host’s WWN is placed at the top of the known hosts list whenever the host performs a device discovery or bus scanning type of operation. Press <Esc> to return to the previous menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 276 WWN you want to name and press <Enter>. The Enter Host Name screen displays. Enter the nickname you want and press <Enter>. You can enter up to 16 characters. You can use any combination of characters and spaces. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 277 <Enter>. The Select Partition or Free Area screen displays with a list of existing partitions and free space. - Select the partition you want and press <Enter>. The partition menu displays (Figure 135) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 278 If you know other WWNs or names, you can enter the WWN or nickname. Enter the WWN or nickname or select the host from the list and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 279 If you have changed the InfoShield, the system will prompt you to confirm changes. Select Yes and press <Enter> to make the changes. The system confirms that the changes are made. Press <Esc> to return to the InfoShield screen. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 280: Deleting A Partition

    InfoShield menu. This lets you quickly change the InfoShield setting for all partitions at once to permit all hosts to see all partitions, overriding the existing setting for each partition. However, the EF2800 retains all existing include and exclude lists.
  • Page 281 Select Delete This Partition and press <Enter >. The system asks you to confirm the deletion. Select Yes and press <Enter>. The Delete Partition option is also available from the Array Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 282: Appendix E. Monitoring System Status

    Introduction Using the Disk Array Administrator, you can monitor your system. You should monitor your system regularly to ensure that the EF2800, disks, and arrays are working properly. The EF2800 and Disk Array Administrator software let you monitor the status several ways: •...

  • Page 283: Displaying The Event Log

    Displaying the Event Log The SM’s event log contains important information about the status of the EF2800, disks, and arrays. You should check it regularly for each SM to monitor the status of your system. Below is a list of some of the key warning and failure events included in the event log during operation: •...

  • Page 284: Viewing The Most Recent Event

    The event log stores the most recent 400 events. Events have a time stamp next to them with one-second granularity. NOTE: If you are having a problem with the EF2800 or an array, check the event log before calling technical support. Event messages may let you resolve the problem without calling.
  • Page 285 Figure 140. Event Log Screen Press ↑ to see the previous event. You can continue to view earlier events by pressing ↑. Press <Esc> to return to the Event Log Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 286: Viewing A Whole Screen Of Events

    Keep pressing <Ctrl>-<E> to page through the other information screens and return to the menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 287: Capturing The Event Log

    From the Transfer menu in HyperTerminal, select Capture Text, then select Stop. To capture the event log for the other SM, repeat the above steps on the computer connected to the other SM. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 288: Displaying Module Status Information

    <Enter>. The Other Controller Menu screen displays (Figure 142) Figure 142. Other Controller Menu Select the operation you want to perform. Press <Esc> to return to the manage module menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 289: Displaying Hardware And Configuration Information

    None if the FC link is not value or None if the FC active. link is not active. CAPI LUN NONE or specific number as set in the Disk Array Administrator software. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 290 Disk Array software. Administrator software. Cache ON or OFF as set in Disk Dyn. Spare ON or OFF as set in Disk Lock Array Administrator Array Administrator software. software. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 291 From the System Menu, select Utilities Menu and press <Enter>. The Utilities Menu displays (Figure 144) Figure 144. Utilities Menu Select Hardware Information and press <Enter>. The Hardware Information screen displays (Figure 145) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 292 The CFG Info screen displays. Press <U> to page up or <D> to page down in the screen or use the other keys as listed at the bottom of the screen to navigate within the CFG screen. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 293: Capturing Event Log, Hardware, And Configuration Information

    To capture the event log, hardware, and configuration information: With HyperTerminal up and running as your RS-232 interface terminal, from the System Menu, select Utilities Menu and press <Enter>. The Utilities Menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 294: Displaying Drive Errors And Resetting Error Statistics

    Fibre Channel Framing and Signaling Interface document, and go to section 21. To reset the error statistics, select Reset drive error statistics and press <Enter>. Press <Esc> to return to the list of drives. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 295: Displaying Overall Statistics

    HBA, driver configuration, SAN configuration, and host operating system configuration. The statistical information can be useful to profile applications and their usage of a partition, which could be used to DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 296 Select Overall Statistics and press <Enter>. The Overall Statistics screen displays. Select View R/W Histogram and press <Enter>. The View R/W Histogram screen displays. Press <Esc> to return to the Overall Statistics screen. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 297: Resetting Overall Statistics

    Select Reset All Statistics and press <Enter>. The system prompts you to confirm changes. Select Yes and press <Enter>. The system confirms that the statistics have been cleared and returns to the Overall Statistics screen. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 298: Appendix F. Managing Spares

    Pool spares are available to both SMs. If a drive in an array on either SM fails, the EF2800 Subsystem can use a pool spare to reconstruct the array (see page 280).

  • Page 299: Managing Dedicated Spares

    Adding a Dedicated Spare You assign dedicated spare drives to a specific array. If a member drive in the array fails, the EF2800 uses a dedicated spare drive to automatically reconstruct the array. You can add dedicated spare drives to mirrored (RAID 1 and RAID 10) and parity (RAID 3, RAID 4, RAID 5, and RAID 50) arrays when you create the array or afterward.

  • Page 300: Deleting A Dedicated Spare

    Select the spare drive you want to delete and press <Enter>. The system confirms the deletion. Select Yes and press <Enter> to delete the spare. The drive is now available for use in an array or as a spare. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 301: Enabling Dynamic Spares

    The Option Configuration screen displays. Select Dynamic Spare Configuration and press <Enter>. The Dynamic Spare Config screen displays. The current setting is marked with an * next to it. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 302 The EMP will detect the new drive and tell the SM to rescan; the rescan rate you set here will not affect the system. The system confirms the change. Select Yes and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 303: Managing The Spare Pool

    You can add up to eight drives to the spare pool to reconstruct any critical array on the EF2800. After an array has started using a pool spare, other critical arrays are prevented from using it. For a pool spare to be used, it must be at least as large as the smallest drive in the array.

  • Page 304: Deleting A Spare From The Spare Pool

    Select Display Pool Spares and press <Enter>. The Display Pool Spare screen displays listing all disk drives assigned to the spare pool. Press <Esc> to return to the Pool Spare Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 305 This page intentionally left blank.

  • Page 306: Appendix G. Managing Disk Drives And Enclosures

    - Test a drive (see page 293) • For EMP enclosures, you can: - Change the EMP LUN (see page 294) - Change additional EMP settings (see page 296) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 307: Managing Disk Drives

    If any of the drives are members of an array, the following information may also display: • Utility running: such as Expand, Verify • Array number: The array’s sequential position in the EF2800’s array list • Member number: The drive’s sequential position in the array...
  • Page 308 <B>. To toggle the display between the drive model number, serial number, and the node and WWN, press <T>. Press <Esc> to return to the System Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 309 Viewing Drive Status You can view the status of the drives in an array, including the following information: • Drive number: The drive’s sequential position in the EF2800’s drive list • Drive status: Whether the drive is up or down •...
  • Page 310 Fibre Channel Framing and Signaling Interface document, and go to section 21. To reset the error statistics, select Reset drive error statistics and press <Enter>. Press <Esc> to return to the list of drives. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 311: Clearing Metadata From A Drive

    Clearing Metadata from a Drive All of the member drives in an array contain metadata in the first sectors of the drive. The EF2800 uses the metadata to identify array members after restarting or replacing an SM. You can clear the metadata from a drive if you have a drive that was previously a member of an array.
  • Page 312 Restart or rescan to have your changes take effect. (See section H.1.1, "Shutting Down and Restarting the Current SM Module" on page 298 or section H.10, "Rescanning All Channels" on page 314.) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 313: Displaying Disk Cache Status

    Select a drive and press <Enter>. The Cache Status screen displays showing the status of the read and write cache (Figure 154) Figure 154. Cache Status Screen Press <Esc> to return to the Drive Utilities Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 314: Enabling And Disabling Smart Changes

    You can enable or disable the ability to change the Self-Monitoring, Analysis and Reporting Technology (SMART) settings for all drives connected to the EF2800. This can be set to ENABLE, DISABLE, or DON’T MODIFY (which means the EF2800 should not change any drive’s SMART settings).

  • Page 315: Blinking A Drive Led

    The Down Drive function sets the status of a drive in a fault-tolerant array to down. This forces the EF2800 to remove it from the array and marks the array as critical. At this point, you will be unable to take down any additional drives in the array.

  • Page 316: Testing A Drive

    Select the drive you want and press <Enter>. If the TUR was successful, TUR STATUS OK displays. If the TUR was not successful, a failure message displays. Press <Esc> to return to the Drive Utilities Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 317: Managing Enclosures

    EMP LUN to any value between 0 and 63, except where it would conflict with a previously assigned LUN (EMP, array, or CAPI [EF2800]). You can also set it to NONE, which tells the EF2800 not to present a LUN for this EMP under the EF2800’s target ID.
  • Page 318 Select EMP LUNs and press <Enter>. The EMP LUNs screen displays. Figure 157. EMP LUNs Screen Select the EMP you want and press <Enter>. The EF2800 assigns EMP IDs sequentially when it starts. The Set EMP LUN screen displays (Figure 158) Figure 158.

  • Page 319: Changing The Additional Emp Setting

    You can change one additional EMP setting—polling interval. This is the interval, in seconds, that the EF2800 polls the EMPs for status changes. If the polling rate is set to zero, the EF2800 does not communicate with the EMP. Only use this setting if you suspect you are having communication problems with the EMP.

  • Page 320: Appendix H. Configuring The Ef2800

    313) • Rescan all channels (see page 314) • Pause I/O (see page 315) • Restore the default settings (see page 316) • Upgrade the firmware (see page 316) DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 321: Shutting Down And Restarting The Storage Manager Module

    We strongly recommend that you shut down a SM module gracefully and do not just turn off the power. A normal shutdown ensures that the write-back cache has been flushed to the disk. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 322: Shutting Down The Other Sm Module

    We strongly recommend that you shut down the SM module gracefully and do not turn off the power. A normal shutdown ensures that the write-back cache is flushed to the disk. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 323: Shutting Down Both Sm Modules

    If the SM module is the only one working of the redundant AUTION pair, then killing the other SM module will cause users to lose access to data and will interrupt the flow of data. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 324: Changing The Date And Time

    The system prompts you to confirm changes. Select Yes and press <Enter> to make the change. The system confirms that the change is made. Press Esc to return to the Configuration Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 325 The system prompts you to confirm changes. Select Yes and press <Enter> to make the change. The system confirms that the change is made. Press Esc to return to the Configuration Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 326: Configuring The Host Channels

    • CAPI LUN: Each SM module has one LUN that you can change when you configure the host channels. You only need to assign a CAPI EF2800 LUN if you are using CAPI to configure the over a host DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 327 Select the option or number you want to use. There is just one CAPI LUN for each SM module. The system prompts you to confirm changes. Select Yes and press <Enter> to make the changes. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 328: Understanding Luns And Viewing Lun Information

    LUN (see section H.4.1). The three types of LUNs have the following characteristics: • CAPI LUN: Allows CAPI to configure the SM module. Each EF2800 can have a CAPI LUN. You only need to assign a CAPI LUN if you are using CAPI to configure the EF2800 over a host channel using SCSI protocol extensions.

  • Page 329: Viewing Lun Information

    Figure 164. Utilities Menu Select LUN information and press <Enter>. The LUN Information screen displays (Figure 165) Figure 165. LUN Information Screen Press <Esc> to return to the Utilities Menu. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 330: Configuring The Fc Disk Channels

    Configuring the FC Disk Channels You can change two configuration options for each FC disk channel: • Link speed: This is the maximum speed the EF2800 will attempt to negotiate. You can set the speed to: 1 GB/second or 2 GB/second.

  • Page 331: Changing The Alarm Mute Setting

    You should turn it back on after resolving the problem. You can also use the Mute button on the EF2800 Ops Panel to turn off the alarm when it sounds. The alarm sounds for temperature or voltage conditions (events).
  • Page 332 • If it is a shutdown alarm, see which SM module is showing the alarm. If only one SM module shows the alarm, replace that SM module. If it is both, you must troubleshoot the Power Supply/Cooling modules. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 333 Select Alarm Mute and press <Enter>. The Alarm Mute menu displays . The current setting is marked with an * next (Figure 168) to it. Figure 168. Alarm Mute Menu Select the option you want and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 334: Locking The Cache Setting

    Select Cache Lock and press <Enter>. The Cache Lock screen displays . The current setting is marked with an * next (Figure 170) to it. Figure 170. Cache Lock Menu Select the option you want and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 335: Enabling And Disabling The Battery

    C o n f i g u r i n g t h e E F 2 8 0 0 Enabling and Disabling the Battery If you are not using a battery in your EF2800, the EF2800 will activate an alarm. To eliminate the alarm, you can disable the battery. The default setting is battery enabled.

  • Page 336: Changing The Utility Priority

    Select Utility Priority and press <Enter>. The Utility Priority screen displays . The current setting is marked with an * next (Figure 172) to it. Figure 172. Utility Priority Menu Select the option you want and press <Enter>. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 337: Rescanning All Channels

    H.10 Rescanning All Channels You can tell the EF2800 system to scan all disk channels for new or removed disk drives. You can use this option when you install or remove drives. The rescan temporarily pauses all I/O processes and then resumes normal operation.

  • Page 338: Pausing I/O

    However, you may still want to pause I/O if you are replacing more than one disk drive. The Hot Swap Pause option suspends activity on all device channels used in the EF2800, thereby ensuring data integrity on the connected drives and arrays.

  • Page 339: Restoring Default Settings

    H.12 Restoring Default Settings You can restore all of the EF2800 system default settings. You may want to do this if the EF2800 is not working properly and you cannot determine why. This lets you then change the settings that are critical to your configuration.

  • Page 340: Updating Sm, Sm Loader And Memory Controller Firmware

    Press <Enter> to restart. While the SM module restarts, hold down the spacebar on your keyboard. The Flash Utility screen displays (Figure 175) Figure 175. Flash Utility Screen DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 341: Updating Lan Firmware

    Windows NT or Windows 2000, you do not receive this message. To upgrade the LAN subsystem’s firmware: Check the version of LAN firmware you have now by pressing <Ctrl>-<E> until the configuration information screen with that information displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 342 Check the version of LAN firmware you have now to make sure the firmware update worked by pressing <CTRL>-<E> until the configuration information screen with that information displays. Repeat steps through above on the other SM module. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 343 This page intentionally left blank.

  • Page 344: Appendix I. Lan Configuration

    • Setting up your computer with an IP address that is compatible with the SM module default of 10.0.0.1, such as 10.0.0.42. • Using the serial connection to the SM module and setting the address. See section I.2.1 page 322. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 345: Configuring The Lan Settings

    • IP mask ____________________ • Gateway ____________________ To set the IP address, subnet mask, or gateway: From the System Menu, select Configuration Menu and press <Enter>. The Configuration Menu displays. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 346: Configuring The Ftp Settings

    Enter or select the option you want and press <Enter>. The system prompts you to confirm change. Select Yes and press <Enter>. The system makes the change. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 347: Configuring The Telnet Settings

    The default is 0.0.0.0. • Traps Enable: On or off toggle to enable SNMP traps. The default is No (disabled). • Read Community: SNMP read password. The default is Public. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 348: Configuring The Contact Settings

    I.2.5 Configuring the Contact Settings You can set four contact settings: • System Name: Name of the EF2800 as seen by other systems on the LAN. You can enter up to 80 characters. The default is Uninitialized Name. • System Contact: Name of a contact person responsible for the EF2800.

  • Page 349: Configuring The Http Settings

    • Monitor: Have access to only the Monitor menu that lets you view the status and statistics pages. If you have logged in using a monitor password and select a page from the Manage EF2800 menu, SAM displays the Login page, where you can log in with the manage password.

  • Page 350: Configuring The Security Options

    SAM. The default is enabled. • SNMP: Controls the availability of SNMP, which permits remote monitoring of the EF2800 using your LAN. The default is enabled. • Internet Debug: Used for diagnosing problems during the technical support process. We recommend that this remain disabled unless support personnel tell you to enable it.

  • Page 351: Resetting The Lan Subsystem

    From the System Menu, select Shutdown Menu and press <Enter>. The Shutdown Menu displays. Select Reset LAN Subsystem and press <Enter>. The system prompts you to reset. Select Yes and press <Enter>. The system resets the LAN Subsystem. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)

  • Page 352: Glossary

    Throughout this user guide, the term is used as the UK equivalent of the (power US term furcated. cord) A bifurcated power cord is a two branched cord joined together by a yoke DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 353 1 kilobyte (K) is equal to 1,024 bytes or characters; 64K indicates 65,536 bytes or characters. Cable Throughout this EF2800 user guide this term is used in accordance with the preferred US context of: “an insulated flexible electric wire used for the transmission of data signals between computer equipment.”...
  • Page 354 Fabric refers to a switched topology, which is one of the three FC topologies. Fabric elements, which are responsible for frame routing, interconnect various N_Ports or NL_Ports. Connections to fabric can use loop (public loop) or point to point. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 355 Fibre is a generic FC term that refers to all transmission media types specified in the FC Physical Layer standard (FC-PH), such as optical fiber, copper twisted pair, and copper coaxial cable. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 356 Subsystem to the host computer and uses either fiber or copper media. Hot plugging A device with the capability of being connected to a Subsystem without interrupting the power supplies to that Subsystem. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 357 G l o s s a r y Hot swap Hot swapping is the term used for manually swapping a failed disk unit with a replacement while the EF2800 Subsystem is in normal use. Hz (Hertz) a frequency measurement unit used internationally to indicate cycles per second.
  • Page 358 Module (drive A module is a power supply, disk drive or electronics unit held in a carrier, carrier that plugs into a bay inside the enclosure. An EF2800 enclosure can contain sixteen drive carrier modules, two power supply/cooling power sup- modules and two Storage Manager modules.
  • Page 359 (sometime referred to as F-ports). Power Cord Throughout this EF2800 user guide this term is used in accordance with the preferred US context of: “an insulated flexible electric wire fitted with connectors at each end and used for the transmission of electrical power to computer equipment.
  • Page 360 16 devices, including itself. The bus can consist of any mix of initiators and targets, with the requirement that at least one initiator and one target must be present. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 361 SCSI and networking (IP) protocols. Servers and workstations use the FC network for shared access to the same storage device or system. Legacy SCSI systems are interfaced using an FC-to-SCSI bridge. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 362 If the drives are not on a UPS and power is lost during disk writes, the array will lose any data in the disk’s write-back cache. DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 363 This page intentionally left blank.

  • Page 364: Index

    Audit Performance 68, 205 Audit Risky Settings arrays Audit Security Audit Troubleshooting adding 67, 68, 205 adding a partition to Auto-Logoff Timeout setting 80, 222 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 365 81, 236, 243 211, 216 CAPI LUNs communications parameters for the RS-232 port changing configuration file defined 120, 305 restoring 127, 128 capturing saving complete event, hardware, and configuration configuration information DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 366 FC loop ID of setting up disabling data SMART changes 136, 291 status of verifying the battery 124, 312 stopping the verify process write-back cache changes 91, 227 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 367 3, 10, 40, 142, 152 135, 288 anti-tamper lock displaying 134, 284 installation enabling SMART changes 136, 291 lock enabling write-back cache specifications 135, 288 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 368 RS-232 port status setting 140, 296 disabling the battery 124, 312 LUNs for 121, 305 displaying configuration Enable Trust Array information displaying hardware Enable Trust Array screen DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 369 Ethernet ACT LED FC Device Loop ID Map page Ethernet LINK LED FC device ports Ethernet port setting the FC loop ID of access Disk Array Administrator setting up DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 370 Hot Swap Pause page 126, 127 hot swapping 126, 315 configuring HSSDC-2 connectors enabling and disabling HTTP 119, 327 configuring passwords for user login user password enabling and disabling DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 371 LAN subsystem setting up to access RIO software interface, enclosure LAN card LAN subsystem Internet Debug enabling and disabling LAN Configuration page 119, 327 116, 117 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 372 LUN setting up debug memory controller viewing debug updating firmware viewing event memory manager loop IDs updating software setting for device ports setting for host ports menu tree DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 373 92, 231 settings defined configuring the Telnet timeout setting IP address, IP mask, and page refresh icons gateway Page Refresh Rate setting resetting the LAN subsystem parity disk DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 374 SAM putting an SM online Passwords/Security page 118, 119 pausing I/O 126, 315 rack installation permissions, setting for partitions 98, 250 Rack mounting plug-in module RAID controller 3, 4 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 375 SM screen, changing the display of both SMs security the EF2800 options for LAN-related the LAN Subsystem functions 119, 327 the LAN subsystem setting passwords DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 376 51, 200 updating for EF2800 expanding for arrays 76, 228 updating for the EF2800 expanding for partitions updating for the LAN 81, 236, 243 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 377 113, 272 system information 117, 325 viewing for arrays System Information page viewing for partitions 89, 239 SYSTEM LED viewing read/write histogram system LED 89, 113, 272 status system requirements DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 378 View Error Buffers setting up View Event Log topology, set host channel View Event Log page troubleshooting View Expand Status Trust Array page View R/W Histogram screen DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 379 World Wide Names giving nicknames to 100, 253 viewing known 99, 251 write-back cache disabling for disk drives 135, 288 enabling for disk drives 135, 288 DataDirect Networks EF2800 FC RAID Storage System User Guide (V 1.0)
  • Page 380 If you are shipping the product to another location, always use the original packaging provided with your unit(s). If you are sending a product to DataDirect Networks for warranty or out of warranty repair, you must obtain a Return of Materials Authorization (RMA) number from DataDirect Networks Technical Support.
  • Page 381 DataDirect Networks, Inc. 9320 Lurline Avenue Chatsworth, California 91311 800.322.4744 818.700.7600 818.700.7601 Fax E-Mail: sales@datadirectnet.com Internet: www.datadirectnet.com 96-00147-001...
