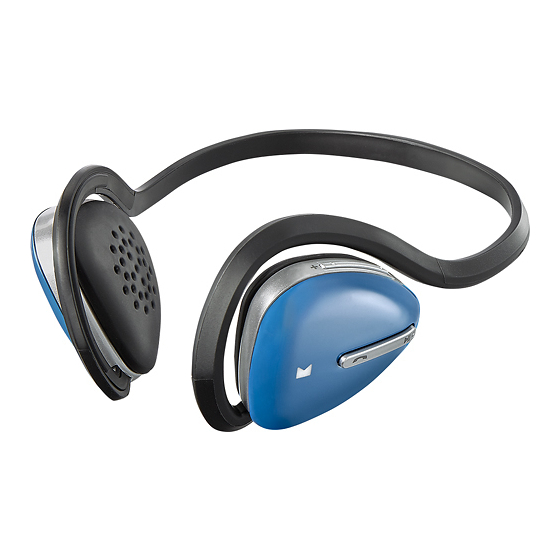

- Page 1 Bluetooth Stereo Headset MD-HPBT01 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Troubleshooting ............15 Specifications..............18 Legal notices ..............19 One-Year Limited Warranty........21 Introduction Congratulations on your purchase of a high-quality Modal product. Your MD-HPBT01 represents the state of the art in Bluetooth stereo headset design and is designed for reliable and trouble-free performance. -
Page 3: Features
Features Package contents • Bluetooth stereo headset • AC wall adapter • USB charging cable • Replacement ear pads • Quick Setup Guide MD-HPBT01... -
Page 4: Side View And Buttons
Side view Item Description Indicator LED show current status of the headphones. See the LED Logo with Indicators table on page 5. indicator LED Volume Up/Down Press + or – to increase or decrease the volume. Press to turn on your stereo headphones. If you receive a phone (power/talk) call, press to talk. -
Page 5: Led Indicators
Blue LED stays on Recharging complete Blue and red LEDs flash rapidly Pairing mode Blue LED blinks every five seconds Connection complete Blue LED flashes rapidly Receiving a call Blue LED brightens and dims repeatedly Talking on the phone MD-HPBT01... -
Page 6: Charging
Setting up your stereo headphones Charging your stereo headphones When your stereo headphone’s battery is low, the red LED blinks. To charge your stereo headphones: • Connect the charging cable from the AC adapter to your Bluetooth stereo headphones and plug the AC adapter into a wall outlet. The red LED stays on while your stereo headphones are charging and turns blue when they are fully charged. -
Page 7: Pairing With Bluetooth Device
For more information, see the documentation that came with your Bluetooth device. On your Bluetooth device, select “MD-HPBT01”, then enter the password 0000 (four zeros), if required, to pair your headphones. Your stereo headphones pair with the Bluetooth device and the LED on your stereo headphones blinks blue every two seconds. -
Page 8: Reconnecting To A Paired Device
• After the headphones have been successfully paired with the cell phone or MP3 player, the headphones will automatically reconnect to the phone or MP3 player. If a device does not automatically reconnect, you may need to reselect MD-HPBT01 on your Bluetooth device. Your stereo headphones will lose the To reconnect: Bluetooth connection if you: Turn them off. - Page 9 Double-click the MD-HPBT01 icon on the computer or highlight the icon and click Next. Note: If you are unable to locate the MD-HPBT01 icon, click the Search Again button. If required, enter 0000 (four zeros) in the Bluetooth security code field, then click Next.
- Page 10 With the headphones turned off, press and hold (power/talk) for four seconds. The LED blinks blue and red rapidly, then pairing mode is activated. Select MD-HPBT01, then click Continue. The computer gathers information. Click Continue. Enter 0000 (four zeros) into the Passkey field, then click Continue.
-
Page 11: Using 3D Sound
(power/talk) to accept the call, or press (play/pause) playing music to reject the call. Press (power/talk) again to end the call. The music resumes playing after a call is rejected or ended. Change the volume Press + or - . MD-HPBT01... -
Page 12: Making A Phone Call
Making a Phone Call Do this: Voice dial Press (power/talk) once. (Some phones might not support this feature.) Redial Press (power/talk) twice. Answer a call Press (power/talk) once. End a call Press (power/talk) once. Refuse a call While your phone is ringing, press (play/pause). -
Page 13: Resetting
Not all devices and functions may be compatible with multi-pairing. Resetting the MD-HPBT01 In case the MD-HPBT01 needs to be reset, press Play, Talk, and + (volume up) simultaneously. Replacing the ear pads Rotate the ear pads counterclockwise, the remove them. - Page 14 Each ear pad is labeled with an L (for left) or an R (for right), along with an arrow. To correctly replace the ear pad, this arrow should be pointed towards the back of the headset (i.e., the headband). Note: For additional help, see the online instructional video at www.bestbuy.com/modal under Modal Resources.
-
Page 15: Maintaining
• Battery life is also dependent on conditions of use. used to. I cannot replace • The rechargeable battery is not a customer replaceable part. the battery. The • New USB charging cables are not available for purchase. USB charging cable was damaged. MD-HPBT01... - Page 16 Bluetooth device. unpairing. • The battery on your stereo headphones or your Bluetooth device may be dead. Recharge the battery. MD-HPBT01 does • Shorten the distance between your stereo headphones and the not appear on my Bluetooth device. Bluetooth device •...
- Page 17 For instructions, see one of the computer, but following: sound is coming • “Pairing with a computer running Windows“ on page 8. from the computer • “Pairing with a Mac computer“ on page 10. instead of the headphones. MD-HPBT01...
-
Page 18: Specifications
The headphones’ • In multi-pairing mode, some functions may be restricted depending buttons do not on the devices paired to the headphones. control the audio • If you pair both a phone and an MP3 player, the device you pair last device. -
Page 19: Legal Notices
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. • This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. MD-HPBT01... - Page 20 Department of Communications-Canada Canadian Compliance Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
-
Page 21: One-Year Limited Warranty
Product is determined to be defective by an authorized Modal repair center or store personnel, Modal will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Modal and are not returned to you. - Page 22 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2014 Best Buy Enterprise Services, Inc. All rights reserved. MODAL is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
- Page 23 MODAL is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Bust Buy Purchasing, 7601 Penn Ave South, Richfield, Mn 55423 U.S.A. © 2014 Best Buy. All rights reserved. Made in Korea. V1 ENGLISH 14-0244...
