Serial Bluetooth adapter Setup guide for Windows 8.1 64-bit
(Tested in Oracle VM VirtualBox version 4.3.6 r91406)

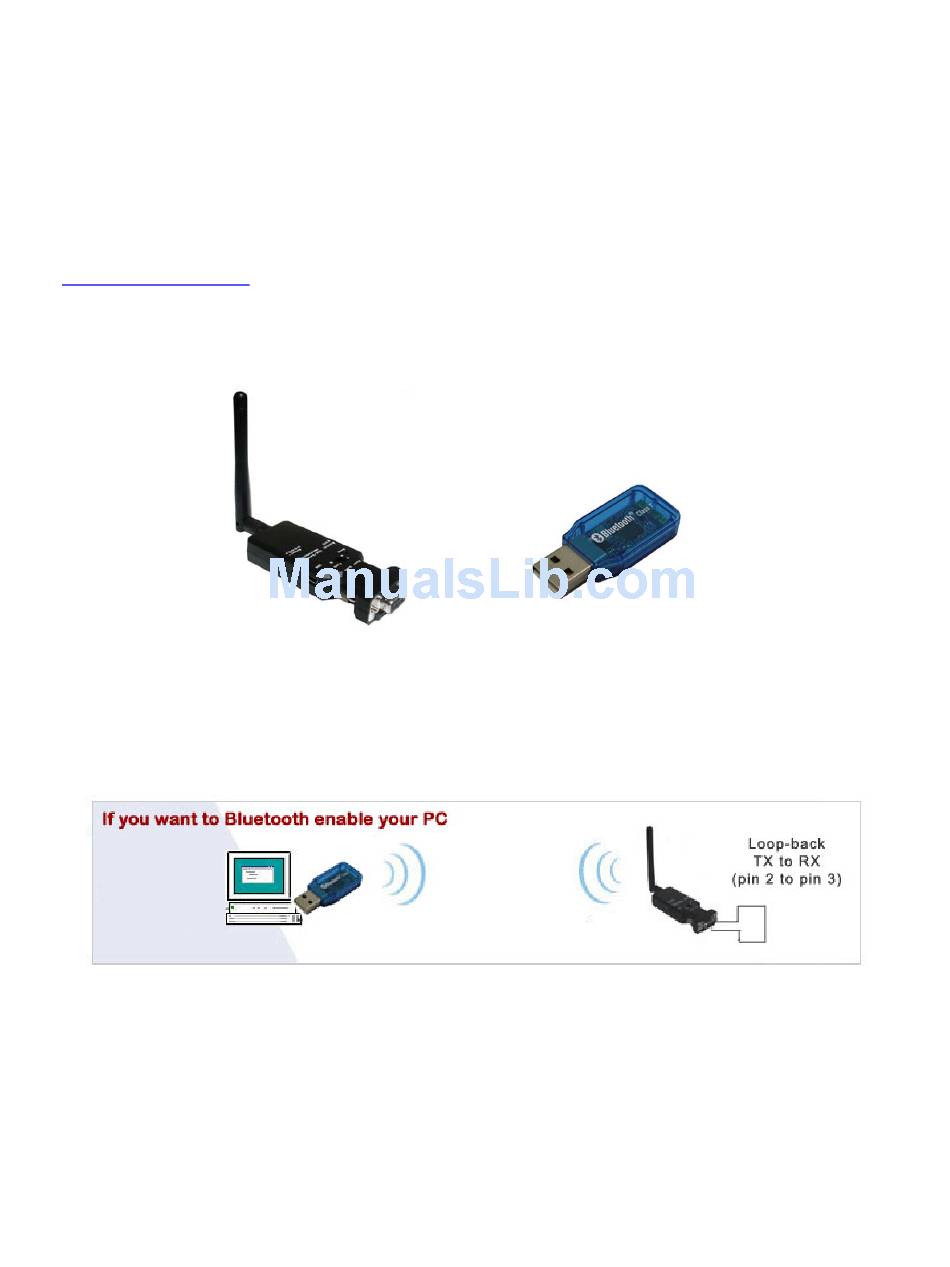

We are in this example using the UCBT232EXA serial Bluetooth adapter and the ES-388 USB Bluetooth
dongle which has a CSR (Cambridge Silicon Radio 41B14) based chipset. Both are available from
www.usconverters.com. We cannot guarantee same functionality if you are using a USB Bluetooth
dongle with a different chipset.
UCBT232EXA
ES-388
Serial Bluetooth adapter
USB Bluetooth dongle
1
Copyright © U.S. Converters LLC
Advertisement
Related Manuals for U.S. Converters UCBT232EXA
Summary of Contents for U.S. Converters UCBT232EXA
- Page 1 Serial Bluetooth adapter Setup guide for Windows 8.1 64-bit (Tested in Oracle VM VirtualBox version 4.3.6 r91406) We are in this example using the UCBT232EXA serial Bluetooth adapter and the ES-388 USB Bluetooth dongle which has a CSR (Cambridge Silicon Radio 41B14) based chipset. Both are available from www.usconverters.com.
- Page 2 Insert the USB Bluetooth dongle into your computer’s USB port. Check in Device Manager that it is recognized by your computer. Copyright © U.S. Converters LLC...
- Page 3 Click the Bluetooth icon in the lower task bar: And select “Add a Bluetooth Device”. If for some reason the Bluetooth icon does not appear in the lower task bar, you can instead search for “Bluetooth” and select “Bluetooth settings”: Copyright © U.S. Converters LLC...
- Page 4 The Bluetooth management screen will open. Click the “Serial Adaptor” and click “Pair”: Copyright © U.S. Converters LLC...
- Page 5 Enter the pairing code “1234” and click “Next” Windows will now show that the serial adapter is connected: Copyright © U.S. Converters LLC...
- Page 6 And after a few seconds it will show “Not connected”: This means that the serial adapter’s COM port is closed; however the adapter is still paired and connected over Bluetooth to your computer. Copyright © U.S. Converters LLC...
- Page 7 In Device Manager you should now see the two serial over Bluetooth COM ports created by the USB Bluetooth dongle (even Windows says “Not connected”): Copyright © U.S. Converters LLC...
- Page 8 By selecting “Open Settings” from the Bluetooth menu in the task bar: You will also be able to see the created COM ports under the “COM Ports” tab: Copyright © U.S. Converters LLC...
- Page 9 Make a loop-back test to verify communication. To verify that the UCBT232EXA is working properly and paired and connected successfully you can make a loop-back test. In this test you will check if you can send data from your computer out through your computer’s Bluetooth (which actually is a virtual serial COM port over Bluetooth) to the TX (transmit)
- Page 10 Notice: serial number 14090200 and up has 9600 baud as default. Copyright © U.S. Converters LLC...
- Page 11 When the port is open the blue LED light on the serial adapter should be solid on. If AccessPort cannot open the port this is an indication that the UCBT232EXA is not properly paired or connected or the port for some other reason has not successfully been created, or perhaps you entered the wrong COM port number in AccssPort Configurations.
- Page 12 Looking again at Windows Bluetooth management, since the adapter’s COM port is now open, it now shows that the adapter is connected: Copyright © U.S. Converters LLC...
