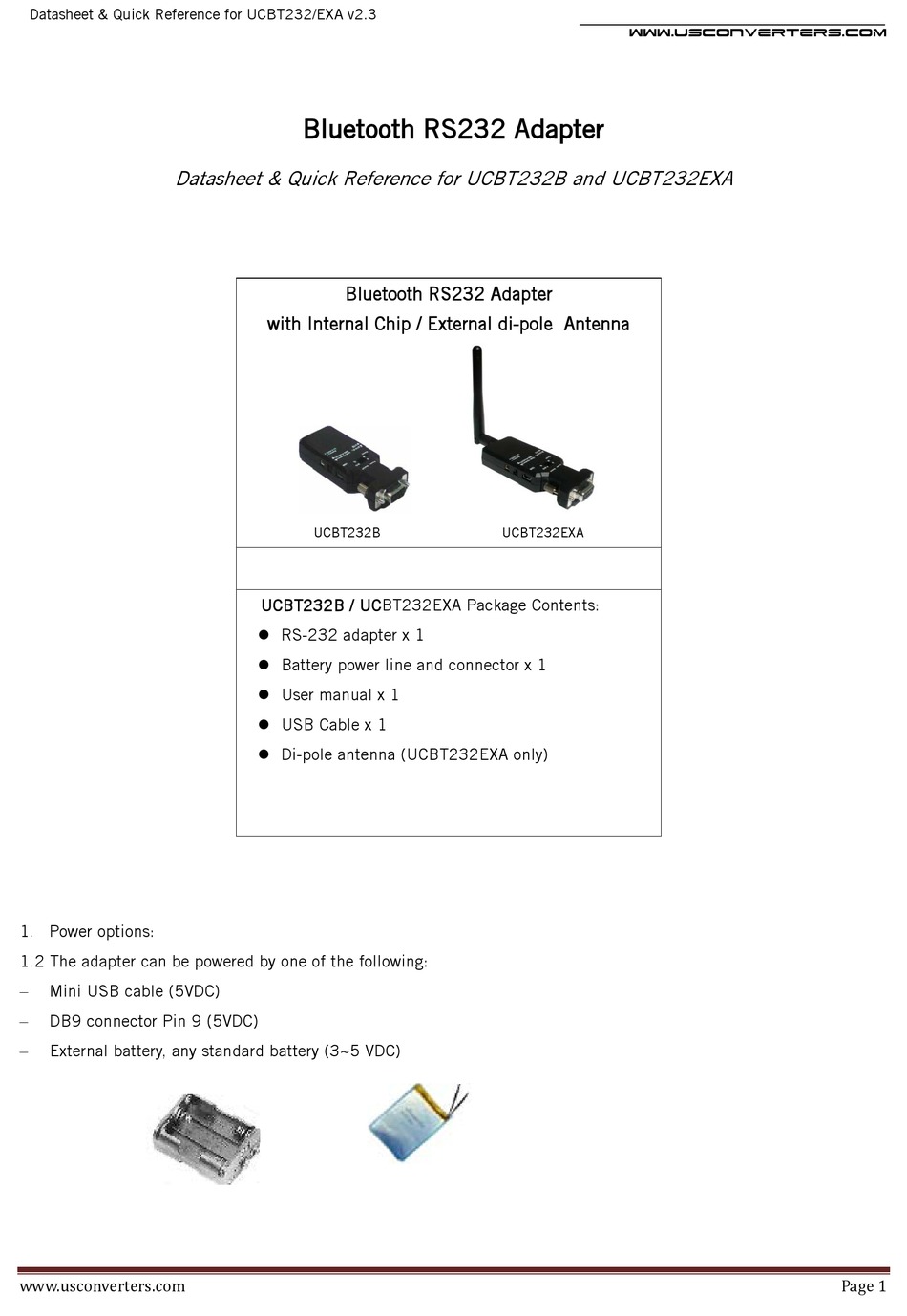

Datasheet & Quick Reference for UCBT232/EXA v2.3
Datasheet & Quick Reference for UCBT232B and UCBT232EXA
1. Power options:
1.2 The adapter can be powered by one of the following:
−
Mini USB cable (5VDC)
−
DB9 connector Pin 9 (5VDC)
−
External battery, any standard battery (3~5 VDC)
www.usconverters.com

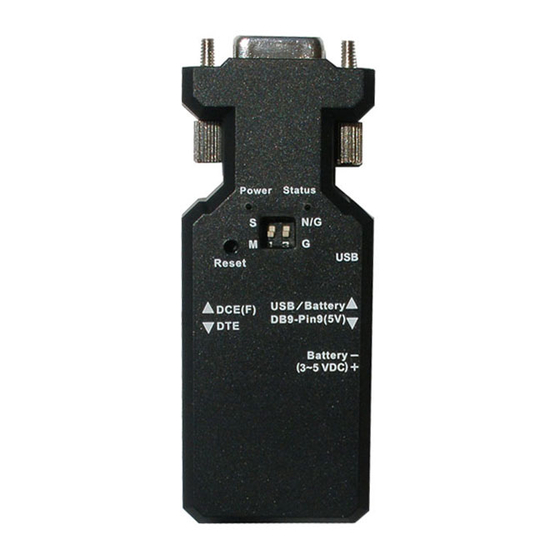

Bluetooth RS232 Adapter
Bluetooth RS232 Adapter
with Internal Chip / External di-pole Antenna
UCBT232B
UCBT232B / UCBT232EXA Package Contents:
RS-232 adapter x 1
Battery power line and connector x 1
User manual x 1
USB Cable x 1
Di-pole antenna (UCBT232EXA only)
www.usconverters.com
UCBT232EXA
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U.S. Converters UCBT232B
Summary of Contents for U.S. Converters UCBT232B
- Page 1 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com Bluetooth RS232 Adapter Datasheet & Quick Reference for UCBT232B and UCBT232EXA Bluetooth RS232 Adapter with Internal Chip / External di-pole Antenna UCBT232B UCBT232EXA UCBT232B / UCBT232EXA Package Contents: RS-232 adapter x 1 ...
- Page 2 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com 2. Typical operating current consumption: 100mAh Status LED Power LED (Red) Group: G: Enable S: Slave N/G: Disable M: Master Mini USB (Power In) Reset Power Source Switch DEC/DTE Switch Power Line Connector Default factory settings: Baud rate: 19200 bps ...
- Page 3 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com LED Status: Status Description Power LED on The power input is equal or larger than 3.5 Volt, (can be checked with the “DETECT” command) Power LED (0.5 sec) blinking The power input is lower than 3.5 Volt, (can be checked with the “DETECT”...
- Page 4 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com AUTO= This command is used to enable/disable the auto-connection feature. It is available only when the adapter is in Master mode and only when DIP=N. The system will not re-start after changing this parameter. Master and Slave will connect automatically.
- Page 5 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com slave address. If the adapter is in the Slave mode, this command is a filter condition to accept the inquiry of the Master device. xxxxxxxxxxx “xxxxxxxxxxxx” is a string of 12 hexadecimal digits. Restore the status in which the adapter can connect with any remote address.
- Page 6 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com PIN= This command is used to specify a PIN. The default PIN is “1234”. Paired adapters should have a same PIN. This command is used to specify a PIN. The default PIN is “1234” and the length is not smaller than 4. Paired adapters should have a same PIN.
- Page 7 Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com VERSION= This command is used to inquiry the firmware version. Inquire the version codes. Some commands are unavailable under certain conditions: If this command is set These commands are unavailable ROLE=S SEARCH=? , CONNECT=?, CONNECT=P , CONNECT=xxxxxxxxxxxx , CONNECT=DEVICE AUTO=Y SEARCH=? , CONNECT=? , CONNECT=P , CONNECT=xxxxxxxxxxxx ,...
-
Page 8: Radio Frequency Interference Statement
Datasheet & Quick Reference for UCBT232/EXA v2.3 www.usconverters.com Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
