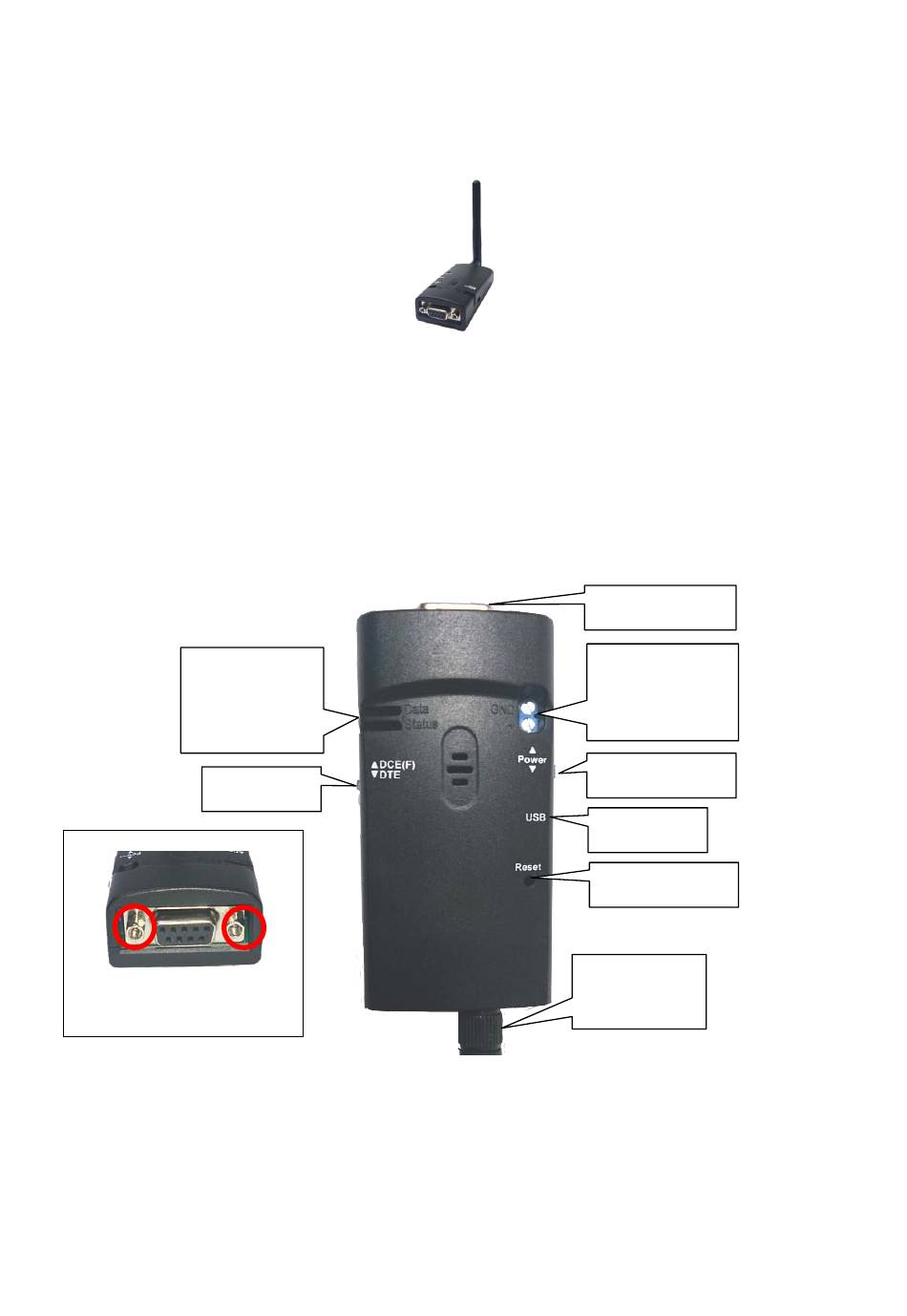

Quick reference V1.2
Removable stand-off nuts
Quick reference sheet for
WiFi to RS-232 adapter UCW232/WA-232B
WiFi RS-232 adapter x 1
LEDs:
Data:
Red
Status:
Blue
DCE/DTE
Copyrights © U.S. Converters LLC
Package Contents:
2 dBi dipole antenna x 1
A4 User manual x 1
USB Cable x 1
www.usconverters.com
DB9 (Female)
4.5 ~27VDC
GND
+
Power switch
Mini USB
Reset switch
2 dBi dipole
antenna
1
Advertisement
Related Manuals for U.S. Converters UCW232/WA-232B
Summary of Contents for U.S. Converters UCW232/WA-232B
- Page 1 Quick reference V1.2 www.usconverters.com Quick reference sheet for WiFi to RS-232 adapter UCW232/WA-232B Package Contents: WiFi RS-232 adapter x 1 2 dBi dipole antenna x 1 A4 User manual x 1 USB Cable x 1 DB9 (Female) 4.5 ~27VDC LEDs:...
-
Page 2: Specifications
5.0VDC by included mini USB cable • 5.0 to 24.0VDC by screw terminals Power supply • External power supply or battery Operating temp. 0C to +70C External battery option Dimensions 80 x 40 x 18 mm Certifications CE, FCC, ROHS Copyrights © U.S. Converters LLC... - Page 3 Telnet over WiFi Serial RS232 port Please refer to the setup guide “How to setup the UCW232/WA-232B Serial WiFi adapter” for details. Virtual COM port driver A virtual COM port can be created with the included software utility. Alternative compatible COM port software are: ...
- Page 4 Contact manufacturer to set this Signal ground Input Output Contact manufacturer to set this Output Input Clear to send Output Input Request to send (Default) Input External Power supply (by special Input request only) DSR/DTR Connection: Command set Copyrights © U.S. Converters LLC...
- Page 5 Local server port setting set srvport Destination port setting set dstport DHCP enable/disable set dhcpclient Communication protocol set connectype Time interval to send out serial data packet set transmitimer Accessible IP Addresses Configuration set accessip Parameters Copyrights © U.S. Converters LLC...
- Page 6 , WEP 64/128, TKIP set et and AES. Preamble will be either Long Preamble, or set pmb Auto Transmission Power Level set tpl Transmission data rate of WiFi connection set dr Enable/disable Auto Power Control set apc Copyrights © U.S. Converters LLC...
- Page 7 0: Odd 2: None 1: Even <stop bits>: 0: 1 1: 1.5 2: 2 <flow ctrl>: 0: Xon/Xoff 2: None 1: Hardware Usage: set mode <mode> <mode>: 0: SERVER 1: CLIENT Usage: set srvport <port> Copyrights © U.S. Converters LLC...
- Page 8 Usage: set pmb <0 = Long preamble, 1 = Auto> Usage: set rts <RTS threshold, 0 ~ 2432> Usage: set tpl <Power level> <Power level> 0: 100% 3: 12.5% 1: 50% 4: 6.25% 2: 25% Copyrights © U.S. Converters LLC...
- Page 9 Usage: set pft <Protection frame type> <Protection frame type>: 0: RTS 1: Self-CTS Usage: set keyauto <key string> Usage: set dhcpsrv <start addr> <end addr> <netmask> <gateway> <lease> Usage: set dhcpsrvenable <status> <status>: 0: disable 1: enable U1.00> Copyrights © U.S. Converters LLC...
