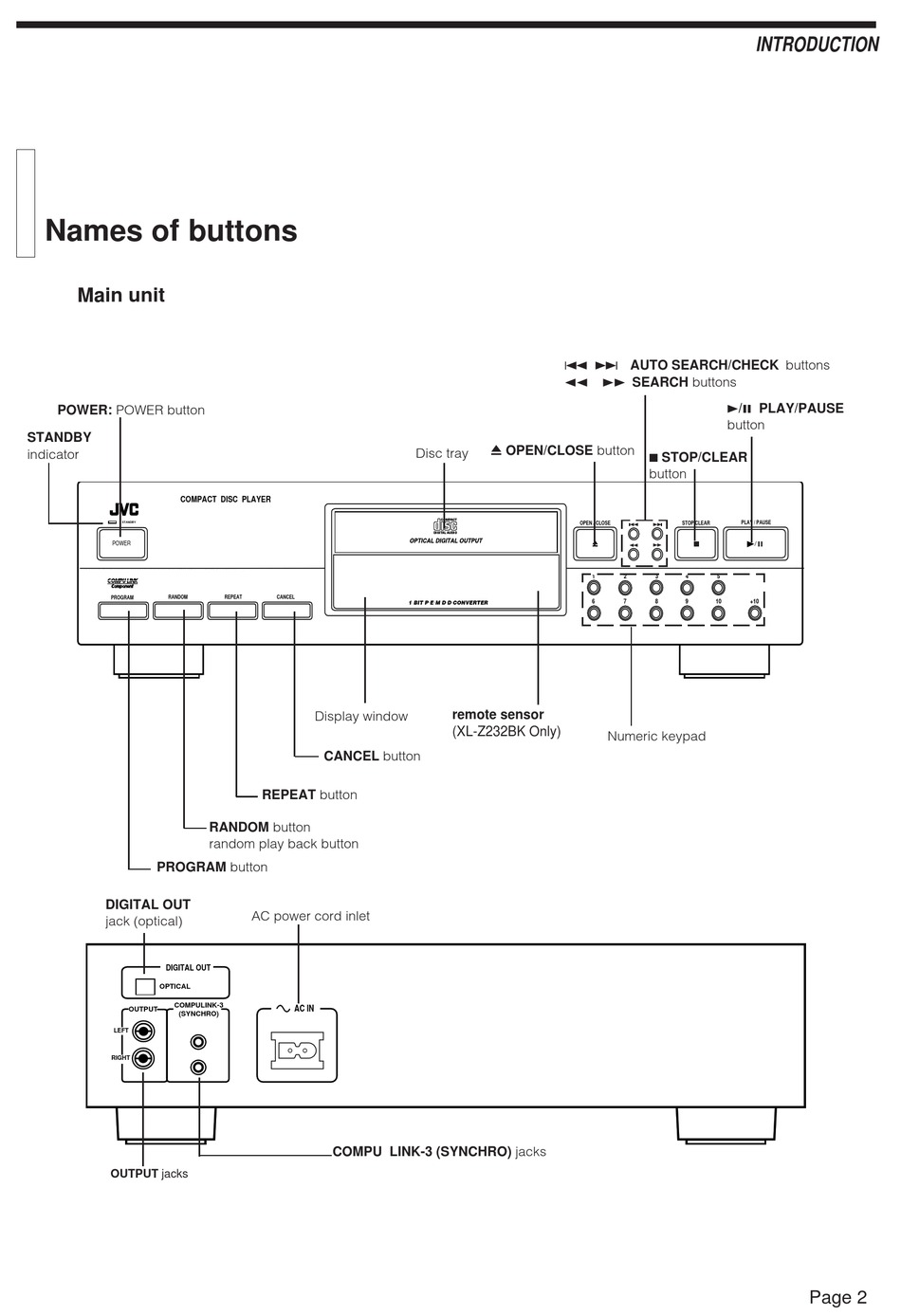

Names of buttons

Main unit

POWER: POWER button
STANDBY
indicator
COMPACT DISC PLAYER
STANDBY
POWER
PROGRAM RANDOM
PROGRAM button
DIGITAL OUT
jack (optical)
DIGITAL OUT
OPTICAL
COMPULINK-3
OUTPUT
(SYNCHRO)
LEFT
RIGHT
OUTPUT jacks
REPEAT CANCEL
Display window
CANCEL button
REPEAT button
RANDOM button
random play back button
AC power cord inlet
AC IN
COMPU LINK-3 (SYNCHRO) jacks
4 ¢ AUTO SEARCH/CHECK buttons
22
0 OPEN/CLOSE button
Disc tray
1 BIT P E M D D CONVERTER
remote sensor
(XL-Z232BK Only)
33 SEARCH buttons
3/8 PLAY/PAUSE
button
7 STOP/CLEAR
button
PLAY / PAUSE
OPEN / CLOSE STOP/CLEAR
1 2 3 4 5
6 7 8 9 10
Numeric keypad
INTRODUCTION
/
+10
