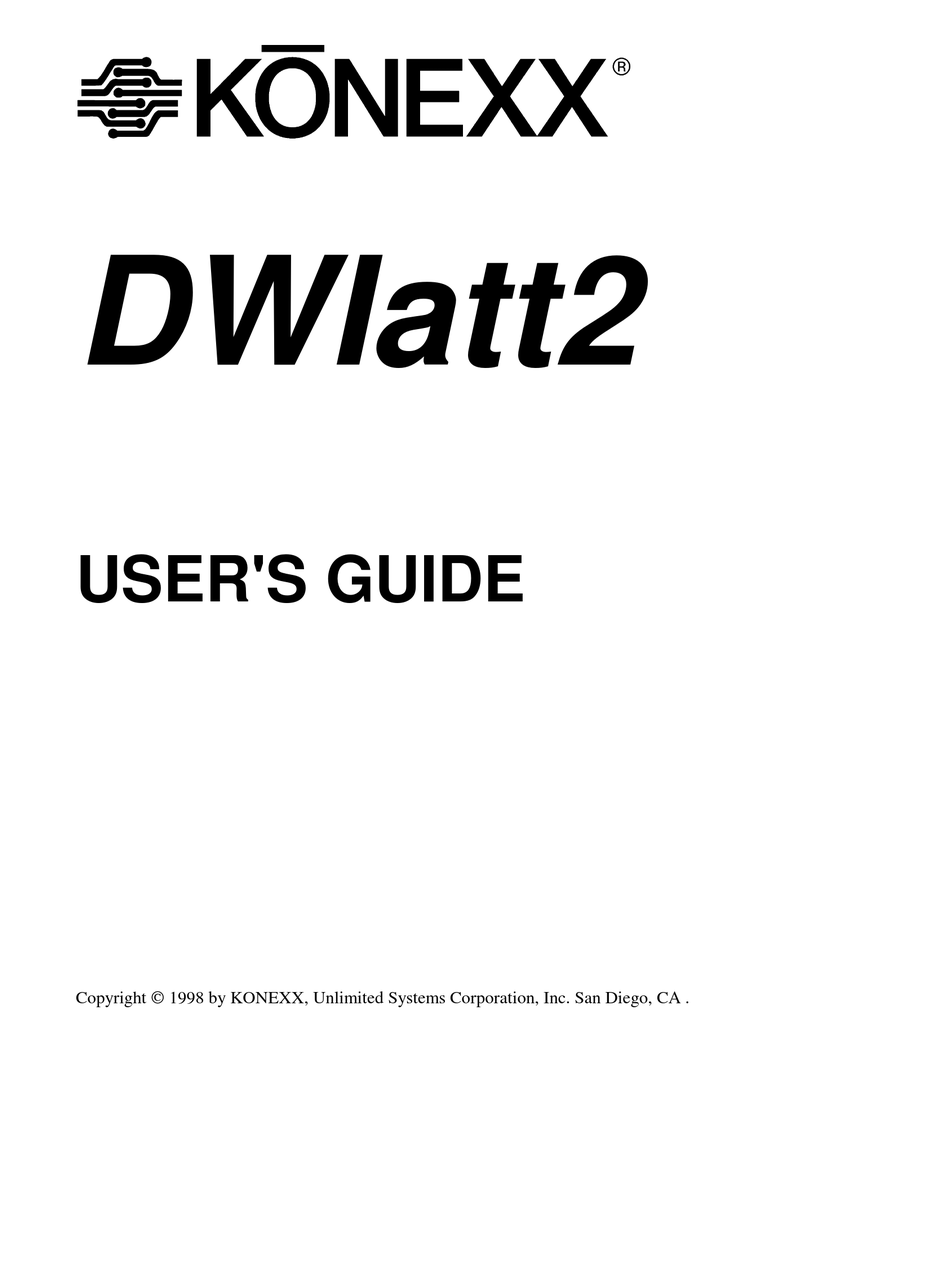

- Page 1 DWIatt2 USER'S GUIDE Copyright 1998 by KONEXX, Unlimited Systems Corporation, Inc. San Diego, CA .
-
Page 2: Pbx Programming
4 issue 3 software, or higher. PBX Programming If you are using the DWIatt2 in single channel mode, no PBX programming is required. When using the DWIatt2 in two channel mode, the PBX port that the DWIatt2 is connected to must be programmed for an 8411D phone. - Page 3 ----------------------------------------------------------------------------- change station 401 Page 2 of 5 STATION FEATURE OPTIONS LWC Reception: msa-spe Auto Select Any Idle Appearance? n LWC Activation? y Coverage Msg Retrieval? y CDR Privacy? n Auto Answer: none Redirect Notification? y Data Restriction? n Per Button Ring Control? n Idle Appearance Preference? n Bridged Call Alerting? n Active Station Ringing: single...
- Page 4 ----------------------------------------------------------------------------- change station 401 Page 4 of 5 STATION SOFTKEY BUTTON ASSIGNMENTS 1: lwc-store 2: lwc-cancel 3: auto-cback 4: timer 5: call-fwd Ext: 6: call-park 7: date-time 8: priority 9: abr-prog 10: abr-spchar Char: ~p 11: abr-spchar Char: ~m 12: abr-spchar Char: ~w ----------------------------------------------------------------------------- change station 401 Page 5 of 5...
- Page 5 "DC" , Power connector, connects to supplied AC adapter, 18 VDC @ 300 ma. output. When no power is applied to the DWIatt2, the digital phone is connected to the PBX line through normally closed relay contacts. The DWIatt2 has two modes of operation, single channel and dual (2) channel. The factory default mode is single channel.
- Page 6 The DWIatt2 can switch modes on a per call basis by the analog device doing a "flash- hook" after going off-hook; that is, by going on-hook again for 1/2 second or less. When a flash-hook is detected by the DWIatt2, the DWIatt2 hangs up the line it would normally obtain (either the data line or the voice line, depending on which mode has been selected) and the other lines dial tone is obtained.
- Page 7 When the equipment connected to the "ANALOG MODEM" port goes off hook, the DWIatt2 detects this, generates an off hook message to the PBX on the data channel and connects the analog equipment to the PBX line. The digital telephone can be used independent of the analog device.
-
Page 8: Installation
Installation The DWIatt2 can be located on the desktop, behind the desk, on the floor or hung on the wall. Connection Procedure Figure 1-1 shows the connection diagram. 1. Connect the PBX wall jack to the DWIatt2 jack labeled " WALL SOCKET ". - Page 9 Figure 1-1 Connection Diagram...
-
Page 10: Incoming Calls
Incoming Calls The DWIatt2 will detect a ring signal from the PBX and generate a ring signal at the "ANALOG MODEM" port of the DWIatt2. The DWIatt2 will not discriminate between an incoming call from outside the PBX or an intercom call, both will generate a ring signal at the "ANALOG MODEM"... - Page 11 ! The device connected to the Analog Modem jack must be configured for tone dialing. The DWIatt2 will not recognize pulse or rotary dialing. Using The DWIatt2 for Contact Management Applications When using the DWIatt2 in conjunction with Contact Management applications follow the procedure below: Single Channel Mode: 1.
-
Page 12: Technical Support
• Communication software used If possible call us on the telephone which has the KONEXX product connected to it, so we may perform diagnostics on the same line. You can also send questions and comments to our 24 hour fax line: (619) 550-7330 or... -
Page 13: Year Limited Warranty
This warranty does not cover, and KONEXX is not responsible for damage caused by misuse, neglect, fire, lightning, electrostatic discharge or modification of this product or damage resulting from the use of this product with hardware not specifically recommended by KONEXX. If a defect should occur, contact Technical Support for an RMA number. -
Page 14: Load Number
Industry Canada (IC) Requirements LOAD NUMBER: 0.00 NOTICE: The Industry Canada (IC) label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective operational and safety requirements. The Department does not quarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
