Summary of Contents for Konexx Konference

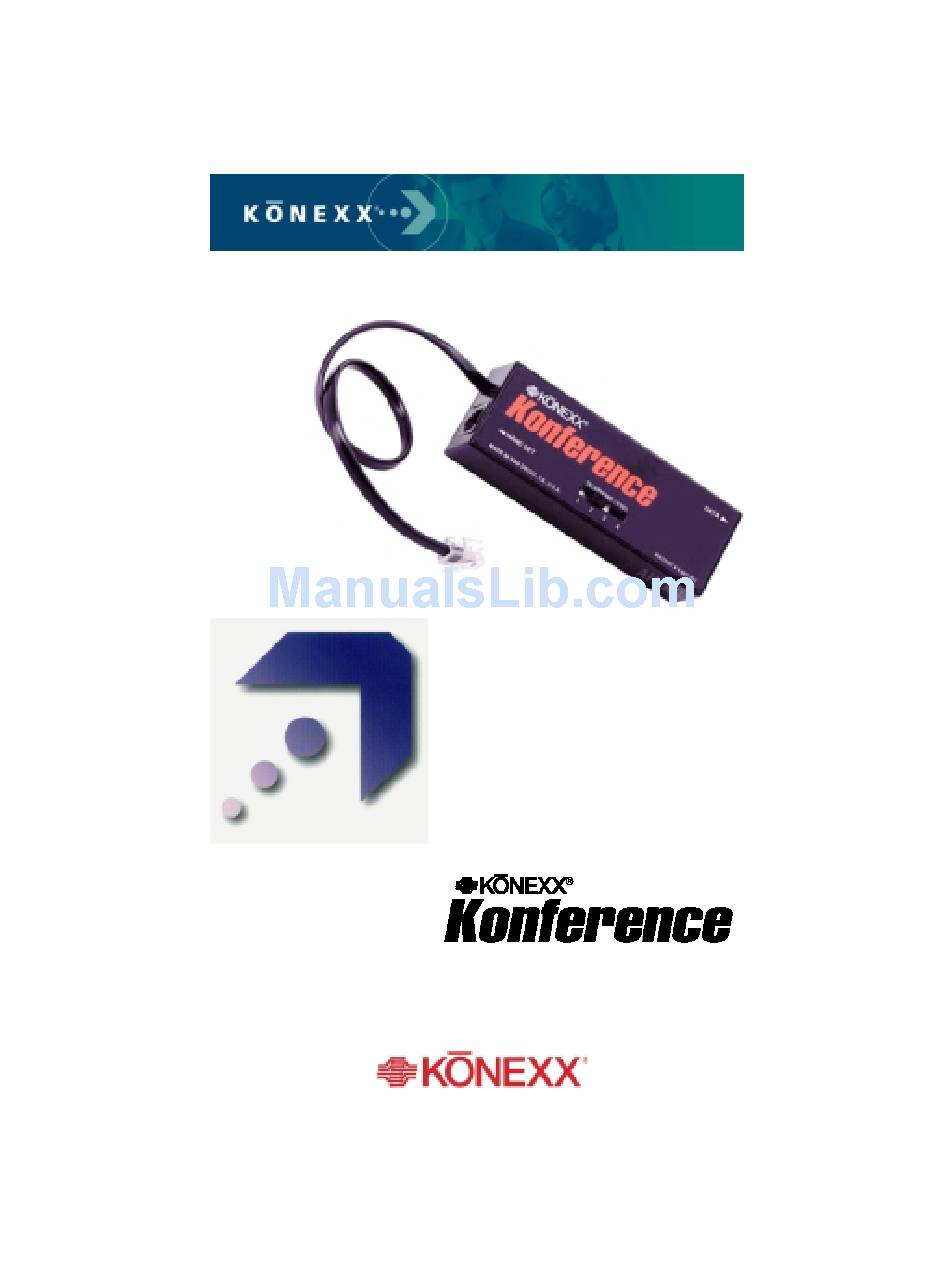

- Page 1 Setup Guide...
-
Page 2: Table Of Contents
Operating Tips & Troubleshooting Warranty Information Why Konference? With the KONEXX Konference, you can now connect your conference speakerphone directly to your office digital PBX, or multi-line phone system and eliminate the need for those expensive dedicated analog phone lines or PBX adapters. -
Page 3: Pre-Installation
KONFERENCE. TELEPHONE LEVEL SWITCH (on the KONFERENCE) - Set the Telephone Level switch on the KONFERENCE for the telephone you are using (refer to the Level Switch Setting Table on page 7). Switch setting #3 is used on the majority of digital telephone systems. -
Page 4: Konference Installation
Step 2. Plug the handset coiled cord that you just removed into the KONFERENCE connector jack labeled HANDSET. Step 3. Plug the short cord on the KONFERENCE into the handset jack on the telephone base unit (desk set). Continue to next page... - Page 5 Step 4. Plug your conference speakerphone line cord into the KONFERENCE jack labeled DATA. Step 5. Connect the power cord into the KONFERENCE then plug the AC adapter into an AC wall outlet (unit will not operate without a power supply).
-
Page 6: Establishing Your Conference Call
(autodial), however we recommend using the following steps to ensure a successful call. Step 1. Set the Telephone Level Switch on the KONFERENCE to the proper setting for the telephone system (see table on page 7). If the phone system is not listed, please see page 11 section C. - Page 7 Do not hang up the office telephone handset until you are ready to terminate your conference call. If you have trouble connecting, please call KONEXX Technical Support at (858) 622-1400 (7:30 – 4:30 PST)
-
Page 8: Level Switch Settings Table
Level Switch Settings Table The Konference Level switch adjusts the transmit level of your conference speakerphone to the digital office telephone set. The Level switch is manually set in one of four settings and is dependent on the telephone set you’re using. - Page 9 Level Switch Settings Table (Cont.) Telephone Telephone Switch Notes Manufacturer Set Model Setting Executone Key Systems 2 or 3 Fujitsu Focus 196 Others GAI-tronics Cohort Harris Lanier Hitachi Digital Model 200 HCX-5000 Intecom Inter-tel Hitech/1232 MPK-2 Axxess Premier 1 or 4 Phoenix 1 or 4 Others...
- Page 10 Level Switch Settings Table (Cont.) Telephone Telephone Switch Notes Manufacturer Set Model Setting Northern Telecom Meridian SL-100 Meridian 1 Meridian 100 Meridian Norstar Unity 2 or 3 Vantage Panasonic KXT-23?5 DBS (old) 2 or 3 DBS (new) 2 or 3 Others Phillips None Specified...
- Page 11 Poet NOTES: 1. Custom Factory Settings: a. The KONEXX product may require a custom factory setting for this phone set. If difficulties are encountered, contact Technical Support at (858) 622- 1400. b. The KONEXX product requires a custom factory setting to work on these phones.
-
Page 12: Operating Tips & Troubleshooting
This is the primary indication that the KONFERENCE is turned on. Make sure the telephone handset is out of the cradle until you finish your conference call. - Page 13 Conference speakerphone manufacturer, model name or model number If possible, call us on the telephone that the KONFERENCE is connected to so that we can test and troubleshoot the problem on that telephone. Our goal is to make you a satisfied customer.
- Page 14 This equipment cannot be used on coin service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact your state public utilities commission for information.) If so required, this device is hearing-aid compatible (EAC). Part 15 B FCC WARNING STATEMENT: NOTE: This equipment has been tested and found to comply with the limits for...
-
Page 15: Warranty Information
KONEXXs’ option. This warranty does not cover, and KONEXX is not responsible for damage caused by misuse, neglect, fire, lightning, electrostatic discharge, or modification of this product or damage resulting from the use of this product with hardware not specifically recommended by KONEXX. - Page 16 To receive TECHNICAL SUPPORT at no charge for a 2-year period, complete both sides of this Registration Card. Registration Card must be postmarked to KONEXX within 14 days of purchase. Stamp and mail, or register on our web site at www.konexx.com...
