Konexx network adaptor Setup Manual

Data port anywhere
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Data Port Anywhere
Setup Guide

Advertisement

Table of Contents
loading

Related Manuals for Konexx network adaptor

Summary of Contents for Konexx network adaptor

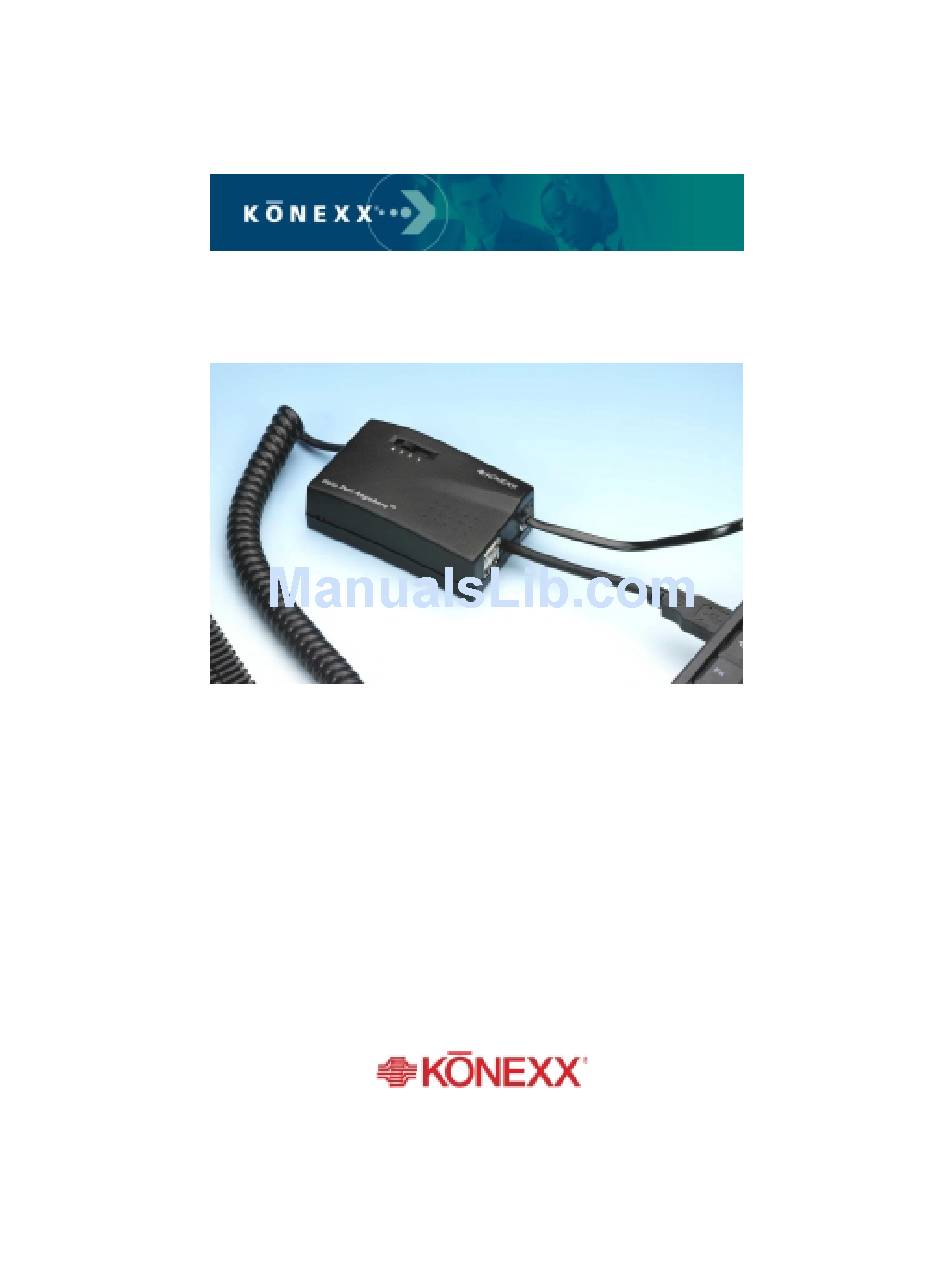

  • Page 1 Data Port Anywhere Setup Guide...

  • Page 2: Table Of Contents

    Table of Contents Contacting KONEXX Pre-Installation Data Port Anywhere Installation Windows Connection Setup Establishing Your Connection Locating the Host Modem’s Phone Number Level Switch Settings Table Operating Tips & Troubleshooting Warranty Information Why Data Port Anywhere (DPA)? As a mobile notebook user you need modem connectivity to send and receive critical information when you are working at client sites and hotels.

  • Page 3: Pre-Installation

    Pre-Installation System Requirements - Windows 98 or later. Compliant with USB 1.1 requirements for bus powered devices. USB Hub supports low power or self powered USB devices (each USB port provides 100 mA). Pre-installation Guidelines - Before installing your DPA, observe the following guidelines: CONNECTION WARNING - Never connect the DPA directly to the telephone line or telephone wall outlet.

  • Page 4: Data Port Anywhere Installation

    Data Port Anywhere Installation Step 1. Connect the USB cable on the DPA to your computer USB port. The first time you connect the DPA to your computer, you will be prompted to install USB drivers, simply follow the prompts. The DPA uses standard Microsoft drivers.
  • Page 5 Optional Connection: If you want to use the telephone for voice communications while the modem is not in use, connect the included coiled handset cord to the telephone handset and the DPA jack labeled HANDSET. If you have connected the telephone handset to the DPA lift the telephone handset and listen for a dial tone.

  • Page 6: Windows Connection Setup

    Windows Connection Setup If you use the DPA while traveling we recommend that you modify your modem settings to setup your modem for manual dialing. Why Manual Dial? Because most digital PBX systems, such as Nortel Meridian, Rolm and others do not accept the analog dialing tones generated by the modem.
  • Page 7 Step 5. In the General tab, highlight the modem to be used, then Select PROPERTIES (not Dialing Properties) Step 6. Select CONNECTION TAB Step 7. Under Call preferences uncheck the “Wait for dial tone before dialing” box Step 8. Select ADVANCED in the same window Continue to next page...
  • Page 8 Step 9. In the Extra Settings box type x3 Step 10. Click OK to exit Advanced Connection Settings screen Step 11. Click OK to exit Modem Properties screen Step 12. Click Close to exit Modems Properties screen Step 13. Close Control Panel Step 14.
  • Page 9 Step 4. Double click PHONE AND MODEM OPTIONS icon Step 5. Click MODEMS tab Step 6. Click PROPERTIES Step 7. In the General Tab, Uncheck – Wait for dial tone before dialing Step 8. Click the ADVANCED tab Continue to next page...

  • Page 10: Establishing Your Connection

    Step 9. In the Extra Initialization commands box type x3 Step 10. Click OK to enter the x3 into the Windows default settings Step 11. Click OK to exit Phone and Modem Options screen Step 12. Close Control Panel Step 13. Reboot your computer and proceed to Establishing Your Connection (Rebooting your computer is only necessary after first installing x3).
  • Page 11 Step 3. If the phone has a volume control, ensure that the volume is set to mid-range. Do this by lifting the handset to your ear and adjust the volume control to mid-range. Step 4. Return the telephone handset in the cradle. Step 5.

  • Page 12: Locating The Host Modem's Phone Number

    Locating a Host Modem Phone Number (Windows 98) For Windows 2000 see next page Step 1. Double click the MY COMPUTER icon located on your desktop Step 2. Double click the DIAL-UP NETWORKING folder Step 3. Right click on the Dial-Up connection you are trying to connect to and choose Properties.
  • Page 13 Step 4. Write down the telephone number that appears (w/ area code) Locating a Host Modem Phone Number (Windows 2000) Step 1. Double click the MY COMPUTER icon located on your desktop Step 2. Double click Control Panel Continue to next page...
  • Page 14 Step 3. Double click the Network and Dial-up Connections icon located in the Control Panel Step 4. Right click on the Dial-up connection you are trying to connect to and choose PROPERTIES Step 5. Write down the telephone number that appears (w/ area code)

  • Page 15: Level Switch Settings Table

    Level Switch Settings Table The Data Port Anywhere Level switch adjusts the transmit level of your modem to the telephone set. The Level switch is manually set in one of four settings and is dependent on the telephone set you’re using. Level 3 - Approximately 75% of the electronic or digital PBX telephone systems you will encounter use Setting 3.
  • Page 16 Hitachi Digital Model 200 HCX-5000 Intecom Inter-tel Hitech/1232 MPK-2 Axxess Premier Phoenix Others Isoetec Key Systems Digital PBX ITT/Cortelco None Specified Iwatsu Omega Omega III Omega IV Kokyo Co. Kanda Lanier EKT-220 Electronic 2 Key Telephone Lexar Telex 2000 series...
  • Page 17 Level Switch Settings Table (Cont.) Telephone Telephone Manufacturer Set Model Northern Telecom Meridian Business 3 System (CENTREX) Meridian SL-1 Meridian SL-100 Meridian 1 Meridian 100 Meridian Norstar Unity Vantage Panasonic KXT-23?5 DBS (old) DBS (new) Others Phillips None Specified Premier Digital Rolm Model 120...
  • Page 18 Level Switch Settings Table (Cont.) Telephone Telephone Manufacturer Set Model EX-2260 Meritore Onyx TC-22 Ultracom CX Keyset 8 Toshiba DKT-1000 series DKT-2000 series EKT 2000 series EKT-3000 series EKT-6000 series Perception Strata (Key Syst) Strata (Digital) 103 series Trillium Panther Talkto 616 Vodavi Electronic Key Sys ---...

  • Page 19: Operating Tips & Troubleshooting

    Operating Tips and Troubleshooting A. USB Drivers - The DPA uses standard Microsoft drivers. When installing the DPA for the first time, you will be prompted by the computer to install/load drivers. Follow the prompts to identify the DPA to your operating system. B.
  • Page 20 G. Princess and Trimline telephones - DPA will not operate with "Princess" or "Trimline" telephones, which have the keypad in the handset. The electronics with which the DPA interacts are not accessible in these telephones. H. Tone dialing - Make sure your modem is configured for Tone (DTMF) dialing.

  • Page 21: Fcc Requirements

    O. Contacting Technical Support – 800-275-6354. If Tech Support is not available to take your call, please leave a voice mail message including your name, the telephone number you would like us to call, and a brief description of the problem you’re encountering. You can also send questions and comments to our 24-hour fax line at (858) 550-7330 or send e-mail to support@konexx.com.
  • Page 22 for you to make necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact the service center for repair and/or warranty information. If the trouble is causing harm to the telephone network, the telephone company may request you to remove the equipment from the network until the problem is resolved.

  • Page 23: Warranty Information

    telecommunications company cause to request the user to disconnect the equipment. User's should ensure for their own protection that electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
  • Page 24 To receive TECHNICAL SUPPORT at no charge for a 2-year period, complete both sides of this Registration Card. Registration Card must be postmarked to KONEXX within 14 days of purchase. Stamp and mail, or register on our web site at www.konexx.com , or fax both sides to KONEXX at 858-550-7330.
