DMX ProFusion iS User Manual

Digital media manager
Hide thumbs Also See for ProFusion iS:
Table of Contents

Advertisement

Quick Links

See also: Feature Manual
ProFusion iS
ProFusion
iS
®
U S e r G U i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProFusion iS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMX ProFusion iS

Summary of Contents for DMX ProFusion iS

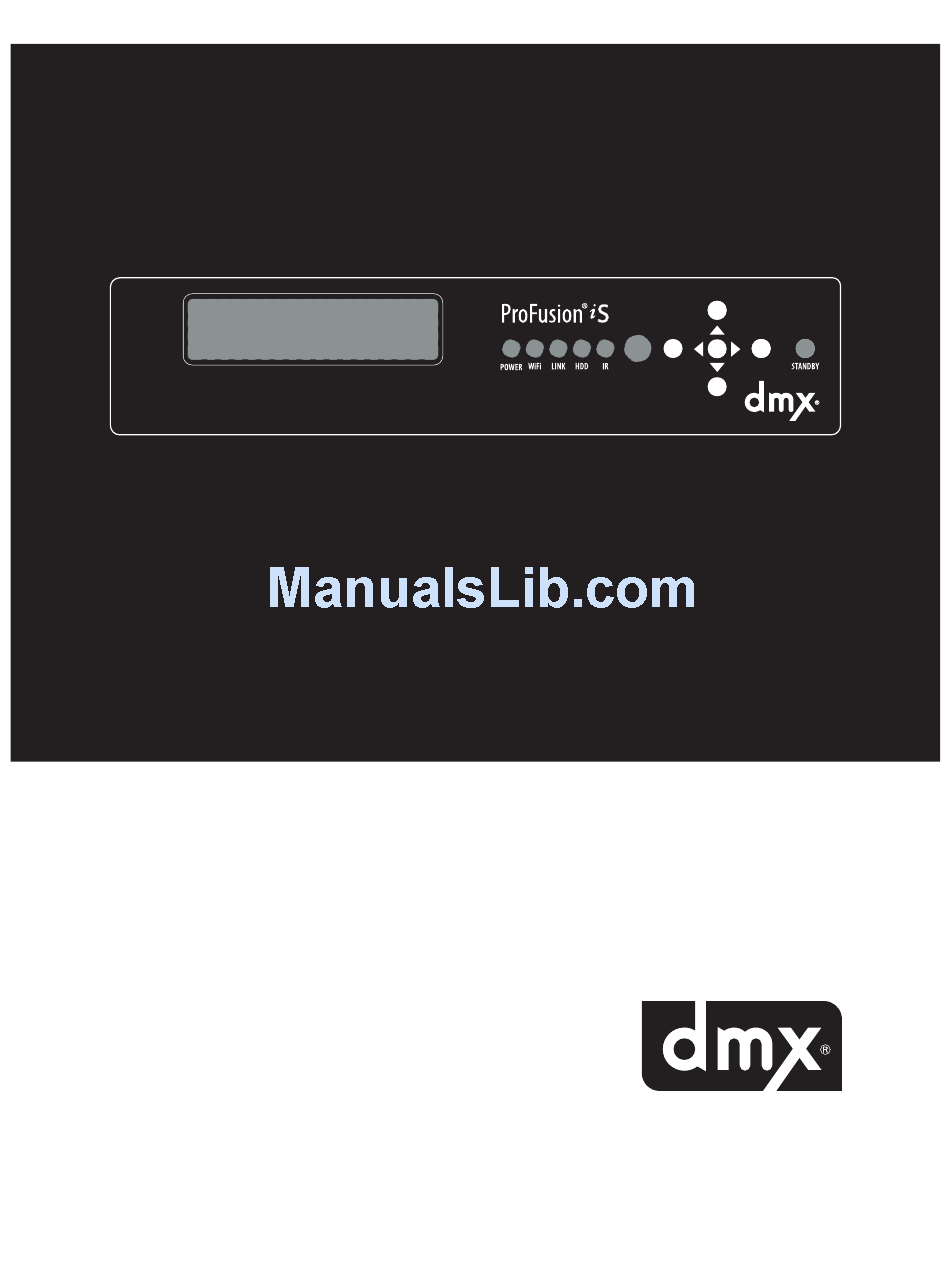

  • Page 1 ProFusion iS ProFusion ® U S e r G U i d e...
  • Page 2 To reduce the risk of fire, electric shock, or injury: Do not use ProFusion® iS if it has been exposed to water. Do not use ProFusion iS if it has been dropped and or damaged. Do not use ProFusion iS with a damaged power cord.

  • Page 3: Table Of Contents

    Checking the Package Contents ........................... 2 Installation and Setup............................... 2 Placement Guidelines ..............................2 Rack Placement ................................2 Connecting ProFusion iS to Your Amplification Equipment ................ 3 Connecting ProFusion iS to Your Network ......................3 Controls and Functions Front Panel .................................... 4 Rear Panel....................................
  • Page 4 © DMX, inc. 2011. all rights reserved. DMX and PRoFuSion are registered trademarks of DMX, inc. all other trademarks are the property of their respective owners.

  • Page 5: Features

    ProFusion iS dramatically cuts the time it takes to receive new music and video. ProFusion iS also supports updates via disc. If you choose to receive your updates via disc, each month you will receive a disc containing new music that will update your ProFusion iS using its built-in DVD-ROM.

  • Page 6: Getting Started

    • Ensure your ProFusion iS is plugged into a properly grounded, always-on AC electrical outlet. Note: Do not plug your ProFusion iS into a switched outlet, such as power strips or other outlets that may be inadvertently turned off. This can lead to improper shutdowns which will likely shorten the life of the equipment.

  • Page 7: Connecting Profusion Is To Your Amplification Equipment

    If your ProFusion iS has been configured with one stereo zone or two mono zones, connect the red RCA plug of the audio cable to the RCA jack labeled Zone 2/R on the rear panel of your ProFusion iS. Connect the other red end of the RCA cable to the appropriate input of your amplification equip- ment.

  • Page 8: Controls And Functions

    Controls and Functions Front Panel The front panel of ProFusion iS is used to change music and video styles, stop playback, and access the Control Panel menu system. The Front Panel LCD Control Panel: The ProFusion iS has a 2x20 LCD display on the front panel. While in Playback Mode, the LCD control panel will display the title and artist information of the content currently playing.

  • Page 9: Rear Panel

    The iS should never be operated by anything other than an approved power supply provided by dMX. on/off: This is the main power switch for the ProFusion iS. This button must be in the ‘On’ position for the ProFusion iS to operate. All functions stop immediately in the ‘Off’ position.

  • Page 10: Basic Operation

    STeP 4 It is now safe to place the main power button on the rear of the ProFusion iS in the ‘Off’ position. NOTE: Never remove the ProFusion iS power cord before pressing the “Standby” button twice, waiting for the LCD display to turn off and then placing this button in the ‘Off’ position Updating ProFusion iS via Cd ProFusion iS can be updated via Ethernet or CD.

  • Page 11: Control Panel Menu System

    The DVD-ROM tray will automatically eject once the update has completed and the control panel will display the status of the update. Note: Contact DMX Customer Service if an update produces an error code. Please note the error code number when contacting DMX for assistance.

  • Page 12: Profusion Is Device Information

    Control Panel Menu Permissions Upon request, your ProFusion iS Control Panel menu system can be configured so any of the following menu options are disabled: • Changing volume levels • Changing date and time • Changing styles • Changing and creating schedules • Disabling and enabling messages for playback...

  • Page 13: Changing Styles

    The ability to change styles has been disabled. If your ProFusion iS is scheduled to stop playback at a certain time, the control panel will display music stopped. You may manually begin playback by selecting any available style.

  • Page 14: Adjusting Volume Levels

    To maximize sound fidelity, it is recommended that volume levels are adjusted from your amplification equipment, not from the ProFusion iS. ProFusion iS supports independent volume levels for each zone of audio. Any changes in volume level will affect only the selected zone.

  • Page 15: Standby Mode

    If it is necessary to stop playback on all zones immediately, press the Standby button once. The music from all zones will fade down as your ProFusion iS enters Standby Mode. When your ProFusion iS is in Standby Mode, all functionality remains active but all zones will stop playback.

  • Page 16: Advanced Operation

    ProFusion iS, the ability to modify and test the current network configuration, and an option to initiate updates. ProFusion iS utilizes the FTP protocol to connect to its designated server for updates. In order to connect, your firewall will need to allow FTP traffic from your ProFusion iS to its designated update server.

  • Page 17: Viewing The Network Settings

    Viewing the Network Settings The View Settings menu option displays the current network configuration for your ProFusion iS. This includes the IP type (DHCP or Static), IP address, subnet mask, default gateway, and the IP address of the FTP server your ProFusion iS will connect to for updates.

  • Page 18: Changing The Ip Address

    Configuration, then press the * button. Note: The Set Configuration menu option requires an unlock code. If access to the Set Configura- tion menu option is needed, contact DMX Customer Service. STeP 4 Press the NAVIGATION UP or NAVIGATION DOWN button until the current line indicator (>) is on Set IP Address, then press the * button.

  • Page 19: Changing The Default Gateway

    Configuration, then press the * button. Note: The Set Configuration menu option requires an unlock code. If access to the Set Configura- tion menu option is needed, contact DMX Customer Service. STeP 4 Press the NAVIGATION UP or NAVIGATION DOWN button until the current line indicator (>) is on Set Default Gateway, then press the * button.

  • Page 20: Changing The Ftp Server

    SUCCeSSFUL appears on the top line of the iS LCd display, the second line will display the install pin number. This number must be called into dMX and printed on the work order. This step is not necessary or possible on Cd update devices.

  • Page 21: Viewing The Update Status

    Viewing the Update Status The View Update Status menu option displays the current connectivity status of your ProFusion iS. If your ProFusion iS is not currently connected, the View Update Status menu option will display the results of the last connection attempt.

  • Page 22: Updating The Content & Configuration

    Note: If new content is available for download, your ProFusion iS may be updating for a long period of time. It is advisable to check with your network administrator before selecting this menu option.

  • Page 23: System Diagnostics

    Press the NAVIGATION UP or NAVIGATION DOWN button until the current line indicator (>) is on the desired style, then press the * button. STeP 7 Press the NAVIGATION RIGHT button to exit to the main screen. System diagnostics The System Diagnostics menu option, used for troubleshooting, can only be accessed with the assistance of a DMX Customer Service agent.

  • Page 24: Appendix A: Glossary

    Standby Button: The Standby button is used to * Button: This button, located in the middle of the power on and off ProFusion iS as well as put it into NAVIGATION buttons, is similar to an Enter button on Standby Mode. When ProFusion iS is powered on a keyboard. The * button is used to select options...

  • Page 25: Appendix B: Troubleshooting

    This section provides a basic troubleshooting guide for the most common issues. If this list does not help you resolve your issue, or if you have an issue that is not listed below, please contact DMX Customer Service for assistance.
  • Page 26 If your ProFusion iS is configured to receive its updates via Network, it may have received newer configuration from a Network update. Continue loading any CDs you received as your ProFusion iS will update any content on the CDs. NeTWOrK UPdATe iSSUeS Verify the network settings for your ProFusion iS are correct for your network.

  • Page 27: Appendix C: Specifications

    Weight: 3.0lbs; 3.9lbs fully configured (1.36/1.78kg) S-video (Y/C): (1) Composite Video: (1) uSB: (2) USB 2.0 ports Conditions For detailed output specifications, please contact DMX. Working temperature: 32°F to 105°F; 0°C to 40°C Power Specifications Working Humidity: 5%-90% (Non-condensing) Storage temperature: -4°F to113°F; -20°C to 45°C Power Supply: external AC to DC power transfer...
  • Page 28 800.345.5000 dmx.com iN CANAdA CALL 800.350.0369...
