Summary of Contents for DMX ProFusion M5

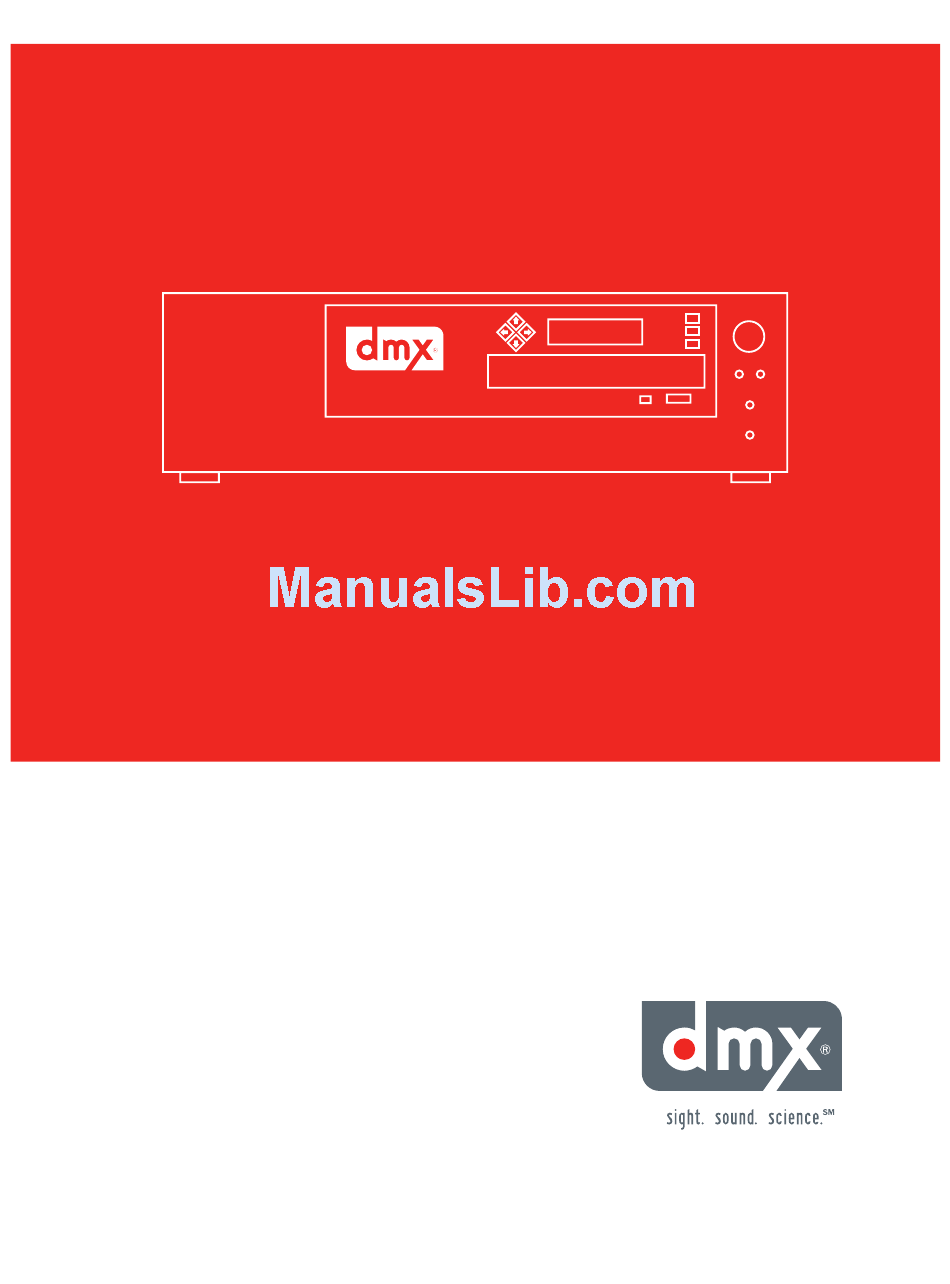

- Page 1 ProFusion M5 ProFusion M5 ProFusion M5 U s e r G U i d e...
- Page 3 To reduce the risk of fire, electric shock, or injury: Do not use the ProFusion M5 if it has been exposed to water. Do not use the ProFusion M5 if it has been dropped and or dam- aged. Do not use the ProFusion M5 with a damaged power cord.
- Page 4 ProFusion M5 – Version 1.0 This device is in compliance with FCC rules Part 15B for class A devices. This device provides reasonable pro- tection against harmful interference if installed and used in accordance with the instructions. This device is UL/CSA listed.
-
Page 5: Table Of Contents
Placement Guidelines ................................7 Rack Placement ..................................7 Connecting the ProFusion M5 ............................7 Basic operation ............................. 9 Powering the ProFusion M5 On and Off ........................9 ProFusion M5 Device Information ..........................9 Changing Styles ................................10 Updating the ProFusion M5 via Disc ......................... 11 Viewing and Setting Date and Time .......................... -
Page 6: Features
ProFusion M5 system Overview Only the ProFusion M5 has the adaptability to deliver a variety of multimedia content from a single, space-efficient component. Multiple visual effects can play simultaneously, from Adobe® Flash™... -
Page 7: Getting Started
(1) 6’ (183cm) Dual RCA stereo audio cable (1) Stereo male to RCA male Y-cable (optional) Additional second set of audio cables if the ProFusion M5 is configured for two audio zones Any additional or different cables required to complete the installation will need to be obtained separately. -
Page 8: Controls And Functions
Controls and Functions Front Panel The front panel of the ProFusion M5 has an LCD control panel used to change styles and access other aspects of the Control Panel menu system. 1. PoWER Button To turn the ProFusion M5 on or off, press the POWER button once. -
Page 9: Rear Panel
Panel The rear panel of ProFusion M5 has a variety of connections that are used to integrate it with your existing Audio/Visual system and Ethernet network. Version 2.0 Version 1.0 1. Power Cord input The ProFusion M5 operates on AC power. - Page 10 6. VGa (D-Sub) Port This port can be used to connect the ProFusion M5 to a single display that is equipped with a VGA in- put, such as a computer monitor and certain LCD and plasma displays, or to external video equpiment that supports VGA or RGBHV signals.
-
Page 11: Installation And Setup
Placement If you are planning on installing the ProFusion M5 in a rack, a minimum 6½” (16.5 cm) (4RU) vertical rack space will be required. Do not improvise a rack mount solution; instead, install the ProFusion M5 on a rack shelf suit- able for approximately 40 lbs (18.1 kg) of weight. - Page 12 Note: Although the ProFusion M5 version 1.0 has audio connectors located next to the Ethernet port, these outputs have been disabled. sTeP 3 (Optional) If your ProFusion M5 has been configured for two zones of audio, repeat steps 1 and 2 for the second audio zone.
-
Page 13: Basic Operation
Failure to do so may result in damage to the device. Powering On the ProFusion M5 sTeP 1 Press the POWER button once (do not hold the button in). The ProFusion M5 will start up and the LCD control panel will illuminate approximately 30 seconds later. -
Page 14: Changing Styles
The ability to change styles may be disabled, if requested, for your ProFusion M5. If you attempt to change styles and the control panel displays Access denied: Style change, you do not have permission to change styles. -
Page 15: Updating The Profusion M5 Via Disc
Updating the ProFusion M5 via disc The ProFusion M5 can be updated via Ethernet or disc. It is important to update your device as soon as you receive any update discs. Please note that customers with devices configured for Ethernet updates may still receive disc updates, and should load them as soon as they arrive. -
Page 16: Viewing And Setting Date And Time
Viewing date and Time This option allows you to view the currently set date and time for your ProFusion M5. Changes to the date and time cannot be made from this menu option. -
Page 17: Style Version Information
Version information In the event you need to verify with a DMX Customer Service agent which playlist version of a style is currently on your ProFusion M5, you can find the information in this option. Viewing the Style Version Information from the Title/Artist screen: sTeP 1 Press the ENTER button to access the Control Panel menu system. - Page 18 2 Press the DOWN button until Messaging Control is highlighted, then press the ENTER button. Note: If your ProFusion M5 is configured for only one zone; skip to step 4. sTeP 3 Press the UP or DOWN buttons to select the zone that contains the message you need to turn on or off, then press the ENTER button.
-
Page 19: Advanced Operation
Enter to Reboot. setting the Video Output resolution The ProFusion M5 will be configured for a specific resolution prior to installation. This resolution will be the DMX Default and can be selected from the Set Resolution option. Changing the resolution from the Title/Artist screen: sTeP 1 Press the ENTER button to access the Control Panel menu system. -
Page 20: Creating A Custom Resolution
M5, the ability to modify and test the current network configuration, and an option to initiate updates. The ProFusion M5 utilizes the FTP protocol to connect to its designated server for updates. In order to con- nect, your firewall will need to allow FTP traffic from the ProFusion M5 to its designated update server. -
Page 21: Viewing The Network Settings
Viewing the Network settings The View Settings option displays the current network configuration for the ProFusion M5. This includes the IP type (DHCP or static), IP address, subnet ask, default gateway, and the IP address of the FTP server the ProFu- sion M5 will connect to for updates. -
Page 22: Modifying The Ip Address And Subnet Mask
Modifying the iP Address and subnet Mask Modifying the IP address and subnet mask from the Title/Artist screen: sTeP 1 Press the ENTER button to access the Control Panel menu system. sTeP 2 Press the DOWN button until Network Control is highlighted, then press the ENTER button. sTeP 3 Press the DOWN button until Set Configuration is highlighted, then press the ENTER button. -
Page 23: Testing The Network Settings
Testing the Network settings The Test Network Connect option allows you to verify your ProFusion M5 is properly connected to your net- work, and its network settings are correct. This will allow the ProFusion M5 to successfully connect at its designated time. -
Page 24: Updating The Configuration
The Update Content & Configuration option allows you at any time to connect and check for configuration changes and software updates, as well as new music or video content. With this option, the ProFusion M5 will download any available configuration changes, software updates and new content. -
Page 25: Appendix A: Troubleshooting
This section provides a basic troubleshooting guide for the most common issues. If this list does not help you re- solve your issue, or if you have an issue that is not listed below, please contact DMX Customer Service (see p. 25) for assistance. - Page 26 M5. If the Device ID on the disc matches the Device ID of your Control panel displays Wrong Device ID 10, 25 ProFusion M5 and the update continues to produce the Wrong Device ID error message, contact DMX Customer Service. Verify you are loading the most recent update. The disc will have the —...
-
Page 27: Appendix B: Lcd Menu Tree
<Style 2> Back Set Date and time <Resolution 1> Set Date and Time <Resolution 2> View Date and Time DMX Default Device information Custom Back Set Rotation Device ID / Conf Ver / SW Ver / OS Ver Back Style Version info... -
Page 28: Appendix C: Specifications
Appendix C: specifications Video specifications Maximum Resolution: 2560x1600 Screen Refresh Rate: 60 Hertz Broadcast Signals: NTSC M, PAL A Ports Video: 15-pin High-Density D-Sub (VGA) DVI-I TV – 4-pin mini-DIN (S-Video/Composite) audio: 1/8” stereo mini-plug Power specifications (Version 1.0) (Version 2.0) Voltage Mains: 115/230 VAC 115/230 VAC... -
Page 29: Appendix D: Contact Dmx
The Device ID for your ProFusion M5 (see p. 10) • The serial number for your ProFusion M5 (located on the front and rear panels) Note: The serial number for ProFusion M5 version 1.0 is on the rear panel only • Your DMX Account Number... - Page 30 Notes: P r o f u s i o n m 5 u s e r G u i d e...
- Page 31 Notes:...
- Page 32 800.345.5000 dmx.com iN CANAdA CALL 800.350.0369...
