Elan OM650S Quick Manual

Outdoor Speaker Systems
Exceptional Performance and Styling
for All Outdoor Music Applications
From the patio to the pool, on a boat or a bookshelf, ELAN O Series™ Outdoor
Speakers deliver the sound you want, anywhere you want it. The front-ported design
delivers a deep, powerful bass that compliments the accurate highs and warm mids.
Designed to withstand the harshest weather conditions, O Series™ speakers will
provide years of outdoor (and indoor!) listening pleasure.

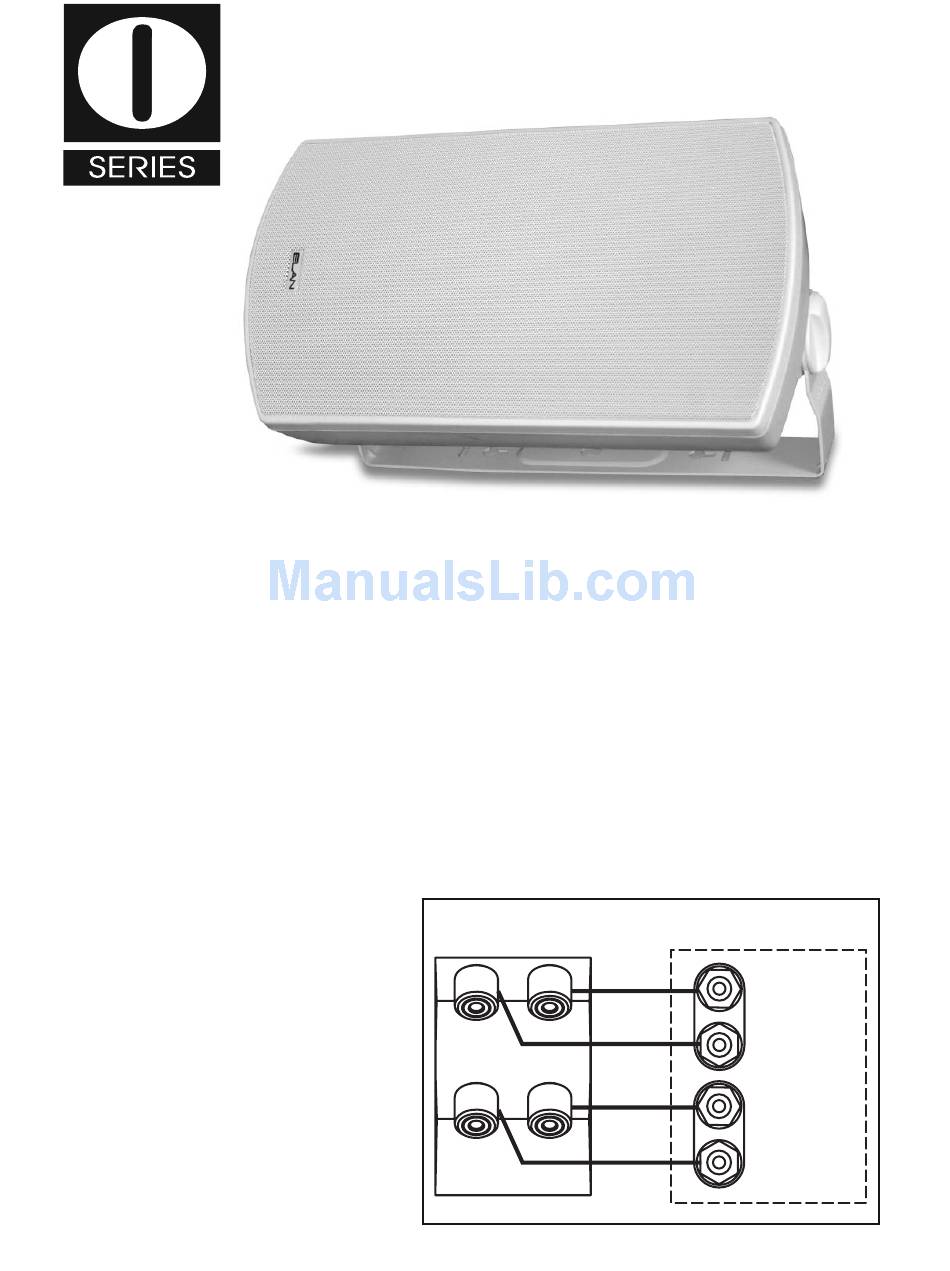

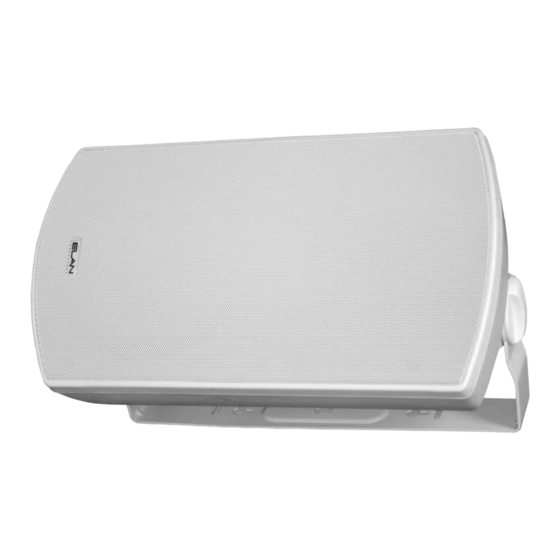

OM650S
The OM650S is a dual voice-coil speaker designed to provide stereo audio to areas
that can accomodate only one speaker. Both channels of a stereo signal are played
through a single transducer, resulting in full, rich, stereo sound from a single, compact
speaker.
Connections
Use bananna plugs, spade terminals, lug
terminals, or bare wires to connect both
left and right channels of an amplifi er to
the OM650's binding posts. (see draw-
ing at right). Be sure to maintain correct
polarity.
Note: It is recommended that you use
quality stranded copper speaker wire
when installing ELAN OM Series speak-
ers. Use at least 16AWG speaker wire for
runs up to 100 feet, and at least 14 AWG
speaker wire for runs up to 200 feet. If
you must cross high-voltage lines, always
do so at a 90 degree angle to avoid au-
dible hum through the speakers!
OM650S
L
+
-
R
-
+
1
Amplifier
+
L
-
+
R
-
