- Page 1 ELAN SPEAKERS Architectural, Outdoor and Home Theater Speakers Built to a Higher Standard ®...
- Page 2 Architectural Audio: Pg. 2 Outdoor Audio: pg. 3 Home Theater Audio: pg. 4 40 unique models ...nearly to suit all of your architectural outdoor home theater needs.
- Page 3 The award winning M Series™ line was born and ELAN became a world-class speaker supplier. Following on the heels of the M Series success, ELAN went back into the lab to create the O Series™ Outdoor Speakers which are designed to M Series™ ELAN SPEAKERS give maximum performance and value in even the harshest conditions.
- Page 4 ELAN SPEAKERS M Series Architectural Speakers True quality begins with a discriminating eye toward the goal of delivering a line of in-wall and in-ceiling speakers with superior performance at all price levels. The M Series are second to none in every cost class.
- Page 5 O Series Outdoor Speakers From the patio to the pool, on a boat or a bookshelf, ELAN O Series Outdoor Speakers deliver the sound you want, anywhere you want it. The front-ported design delivers deep, powerful bass that compliments the accurate highs and warm mids. Designed to...
- Page 6 Sweet Spot. At the center of each pivoting tweeter is a notch for the placement of the ELAN Laser Pointer (included with every pivoting tweeter model), which provides a focused beam of light for directing the tweeter precisely into the Sweet Spot.
- Page 7 THP650LS Voiced to perfection for front stage sound reproduction – and looking the part – the THP650LS is ELAN's premier L/C/R cabinet loudspeaker. THP525LS The THP525LS offers the same precision voicing and high-end features of the THP650LS, only in a smaller, cost-effective package.

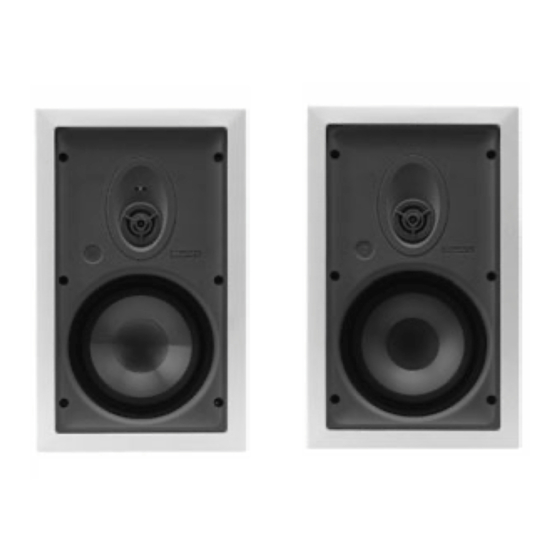

- Page 8 ELAN SPEAKERS MC Series Rated Power Outside Dim. Cutout Dim. Brackets Series M Series M Series M Series M Series M Series M Series TheaterPoint TheaterPoint TheaterPoint Level 1: Contractor MC650C Woofer 6.5" Poly 6.5" Poly Tweeter 14mm PEI 14mm PEI...
- Page 9 45Hz - 20kHz 5 - 65W 9 1 /4" diameter (235mm diameter) 8- 1 /16" diameter (205mm diameter) 4- 1 /4" (107mm) ME650W ELAN SPEAKERS ME800C 8.0" Mineral Filled Poly 25mm Silk Dome, Pivoting 6 dB per Octave None 89dB...
- Page 10 ELAN SPEAKERS MM Series MM525C Woofer 5.25" Injection Molded Mica 19mm Silk Dome, Tweeter Pivoting Crossover 12 dB per Octave Treble Switches Sensitivity 88dB Impedance 8 Ohms 45Hz - 20kHz Freq. Resp. 5 - 50W Rated Power 8" diameter Outside Dim.
- Page 11 33Hz - 20kHz 5 - 100W 9- 7 /8" x 16- 1 /2" (251mm x 419mm) 8- 5 /8" x 15- 3 /16" (219mm x 386mm) 4" (102mm) ELAN SPEAKERS MP800D* 8.0" Mineral Filled Poly Dual 19mm Aluminum/Magnesium Linkwitz Riley...
- Page 12 ELAN SPEAKERS O Series: OM525 Woofer 5.25" Polypropylene/Mica Tweeter 19mm Silk Dome Crossover 2nd Order, Low “Q” @ 2.4 kHz 89dB Sensitivity Impedance 6 Ohms Freq. Resp. 60Hz - 20kHz 9- 1 /2" H x 6- 1 /2" W x 6- 1 /2" D Outside Dim.
- Page 13 8- 3 /8" x 15- 7 /16" (213mm x 392mm) (213mm x 392mm) 7- 1 /4" x 14- 3 /8" 7- 1 /4" x 14- 3 /8" (184mm x 365mm) (184mm x 365mm) 4" (102mm) 4" (102mm) ELAN SPEAKERS THP803C* THP650D* *sold as singles...
- Page 14 ELAN SPEAKERS Home Theater Line (continued) Woofer Tweeter MidRange Crossover Switches Sensitivity Impedance Freq. Resp. Rated Power Outside Dim. THP525LS* Woofer 2 x 5.25" Woven Kevlar 19mm Woven Kevlar, Pivoting Tweeter MidRange Crossover 3rd Order Custom “Q” @ 2.4kHz Switches...
- Page 15 ® www.elanhomesystems.com...
- Page 16 ® www.elanhomesystems.com SPKRCNS REVB...
