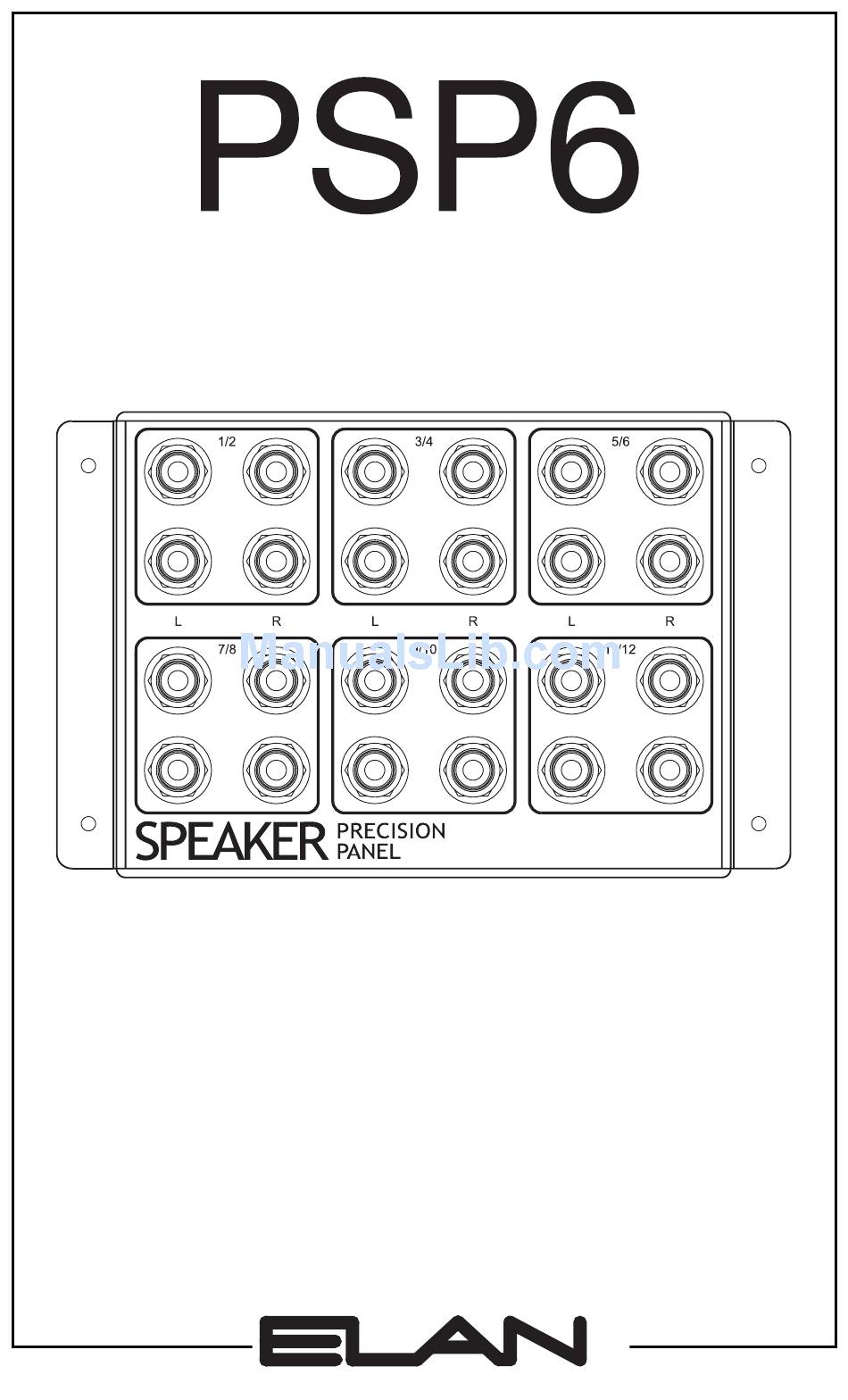

- Page 1 SPEAKER PRECISION PANEL INSTALLATION MANUAL S Y S T E M S T M H O M E...
- Page 3 PF2 Precision Panel Frame, giving the flexibility to mix and match Precision Panels needed to complete a neat, problem-free trim-out. The PSP6 is perfect when installing Z•660 six-channel power amplifiers! © ELAN Home Systems 2004 • All rights reserved. Page 1...
- Page 4 Each 1/2 frame Precision Panel mounts from the back of the PF2. Use four included screws inserted from the front of the PF2 as shown below. PF2 Front Front Screw Screw Screw Screw Page 2 © ELAN Home Systems 2004 • All rights reserved.
- Page 5 Dress the wires in neat bundles and then carefully place the PSP6/PF2 back into the frame and secure using the four included screws. Wire Runs © ELAN Home Systems 2004 • All rights reserved. Page 3...
- Page 6 Note: ELAN recommends the use of our BJACK banana plugs for quick, sure connection of all speakers! 14-18 AWG Banana Plugs Speaker Wire Rear To Amp To Speakers Front PSP6 Side View Page 4 © ELAN Home Systems 2004 • All rights reserved.
- Page 7 Precision panel frame, a blank 1/2 frame plate to cover any unused half of the frame, and all mounting hardware. Required for use with all 1/2 frame Precision Panels. © ELAN Home Systems 2004 • All rights reserved. Page 5...
-
Page 8: Limited Warranty
Limited Warranty ELAN HOME SYSTEMS L.L.C. ("ELAN") warrants the PSP6 Precision Panel to be free from defects in materials and workmanship for the period of two years (2 years) from date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ELAN in writing, ELAN shall repair or replace the item at the company's option.
