Page 2: Table Of Contents

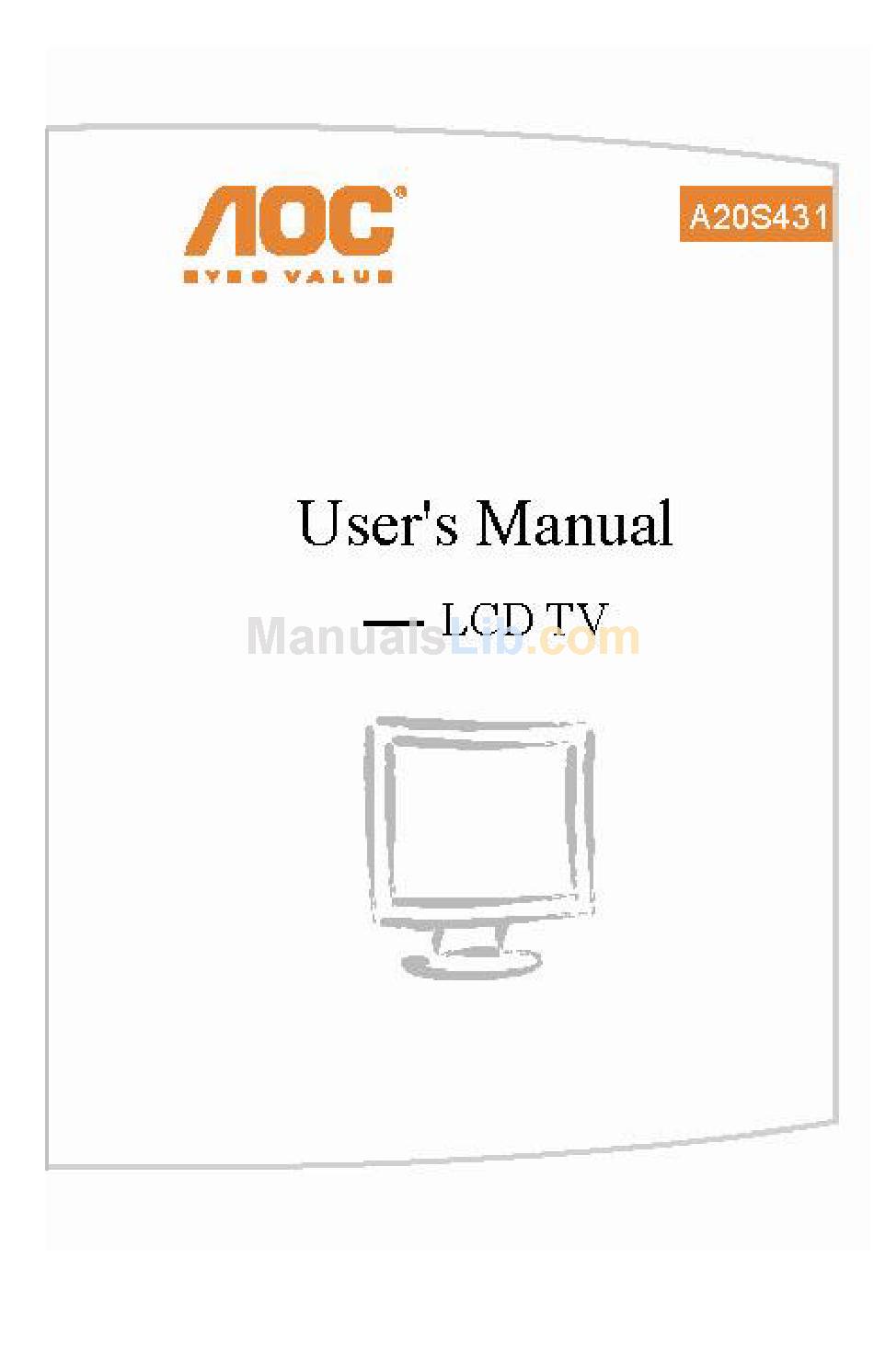

USER’S MANUAL TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ------------------------------------- 3 PREPARATION ---------------------------------------------------------------------- 4 OPERATING INSTRUCTIONS -------------------------------------------------- 6 Use of the remote control --------------------------------------------------- 6 To use the menus ------------------------------------------------------------- 7 Main menu ---------------------------------------------------------------------- 7 CONNECT PERIPHERAL EQUIPMENT -------------------------------------- 14 Front Panel Control Knobs -------------------------------------------------- 14 Preparation --------------------------------------------------------------------- 15 Video recorder ----------------------------------------------------------------- 16 DVD player ---------------------------------------------------------------------- 17... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. - Page 4 16. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org 17. Damage Requiring Service – The appliance should be serviced by qualified service personnel when: A.
-
Page 5: Preparation
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. - Page 6 2. Insert the aerial plug firmly into the aerial socket at the back of the TV. 3. Remote control: Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AAA 1.5V). 4. Power: Insert the power cord in the wall socket having an AC power supply. 5.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS USE OF THE REMOTE CONTROL POWER Press to turn on/off the TV. The TV is never completely powered off unless it is physically unplugged. 0~9/100 Digit buttons To select a TV channel. Press or ( ) to browse through the TV channels,which are not erased. -
Page 8: To Use The Menus
TO USE THE MENUS Press the MENU button to display each menu Press the MENU button to display each menu Use the cursor up/down to select a menu item. Use the cursor up/down to select a menu item. Use the cursor left/right to enter a submenu or enable/disable the Use the cursor left/right to enter a submenu or enable/disable the function. -
Page 9: Osd Setup
OSD Setup Set OSD language Adjust the horizontal position of the OSD. Adjust the vertical position of the OSD. Adjust the OSD time-out. OSD Background Adjustment... - Page 10 TV Setup 1. AIR/CATV for different TV input solution, RF and cable. 2. Auto searching is used for searching all TV program channels. After finishing search and exiting, the machine will save the program automatically, you can also press “menu” to break the searching, but only the searched programs are saved when the machine exits searching.
- Page 11 Text Mode:TT1~TT4 Often used for channel guide, schedules, bulletin board information for Closed Caption programs, news, weather information or stock marker reports. Not all Closed Caption modes are necessarily being use by a TV channel during the transmission of a Closed Caption program. V-CHIP Setup Select V-Chip on OSD then enter 4 digits of pin number.
- Page 12 C. Setting up Movie Guidelines Use Up/Down arrow buttons to move around the matrix and press Right arrow button to change the value from “U” to ‘B” or “B” to “U”...
-
Page 13: Picture Setup
D. CHANGE PIN Personal Identification Number is for change password to control the V-chip setup; it’s included three steps. ENTER PIN to enable this function, then ENTER NEW PIN to change a new one. After that COMFIRM NEW PIN. Picture Setup 1、... -
Page 14: Connect Peripheral Equipment
CONNECT PERIPHERAL EQUIPMENT FRONT PANEL CONTROL KNOBS Power Key⑦ : Press to turn on or off the TV. MENU Key⑥ : Press to show the OSD menu and exit OSD menu at the TV. Down / Up Key⑤④ : Press to perform select function and channel. + /- Key②③... -
Page 15: Preparation
PREPARATION Remove the back plate at the back of the TV as shown on the illustration opposite. Lay the LCD TV with the screen down on a table, as it will be easier to connect your peripheral equipment. Please take precaution not to damage the screen. -
Page 16: Video Recorder
VIDEO RECORDER How to connect Connect the supplied antenna cable to the RF IN port of your VCR. Connect another RF cable ① from the output RF of your VCR to the Antenna input of your TV. Better quality when playing from your VCR can be obtained if you also connect the Video, Audio LEFT AND right (only for stereo equipment) cables ⑤... -
Page 17: Dvd Player
DVD PLAYER Connect the video output port of DVD player to the video input port of TV. Connect the left and right input of TV. If your DVD player is equipped with S-VHS video port: For better quality picture, please connect the ⑥... -
Page 18: Tips
TIPS Care of the screen Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the screen before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. -
Page 19: Product Specification
Product Specification 20” screen Feature Items Screen Size Aspect Ratio Display Area (opening) H x V Pixel Pitch LCD Panel Display colors Lamp Type/Life Color Temperature TV Standard Sound systems TV Function Colour systems DPF function Supported by memory (Optional) card Wireless FM transmission... - Page 20 Audio Output Audio Output: L / R English / French / Spanish/Portuguese language Table Stand Included Wall Mount VESA 100 x 100 mm Power Supply Power Power Consumption Forwards/Backwards/ Panel Tilt Rotation operating storage Environment operating Dimension W x H x D (with stand) Weight (net) Kg (w/o Accessories) Remote Controller, Batteries (AAAx2), AC Power Cord,...
-
Page 21: Before Calling Service
Before Calling Service Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms “Ghost ” or double image No power No picture... -
Page 22: Glossary
GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.
