Samsung EX2220 Service Manual page 7

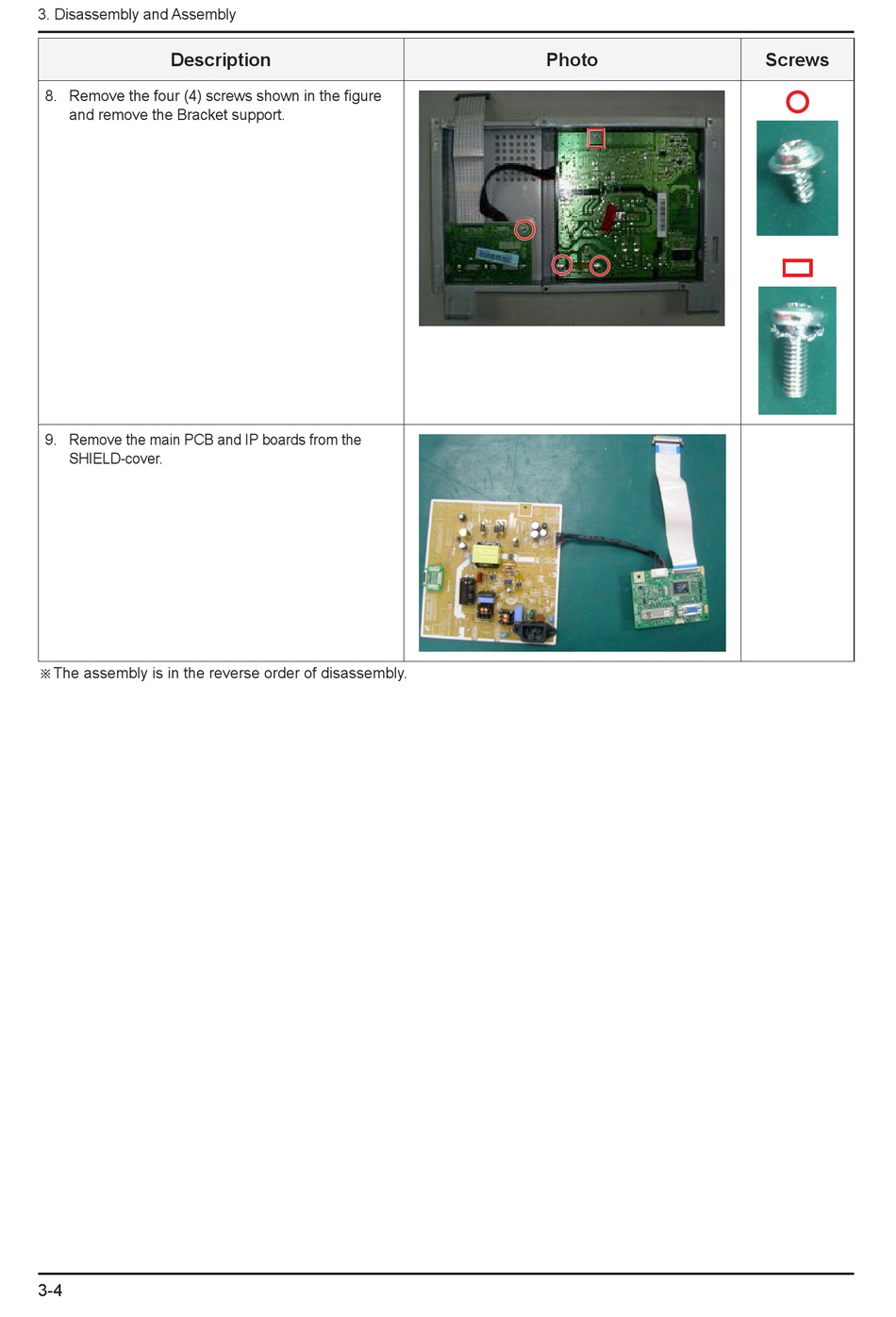

3. Disassembly and Assembly
Description
8. Remove the four (4) screws shown in the figure
and remove the Bracket support.
9. Remove the main PCB and IP boards from the
SHIELD-cover.
※The assembly is in the reverse order of disassembly.
3-4
Photo Screws
