Description

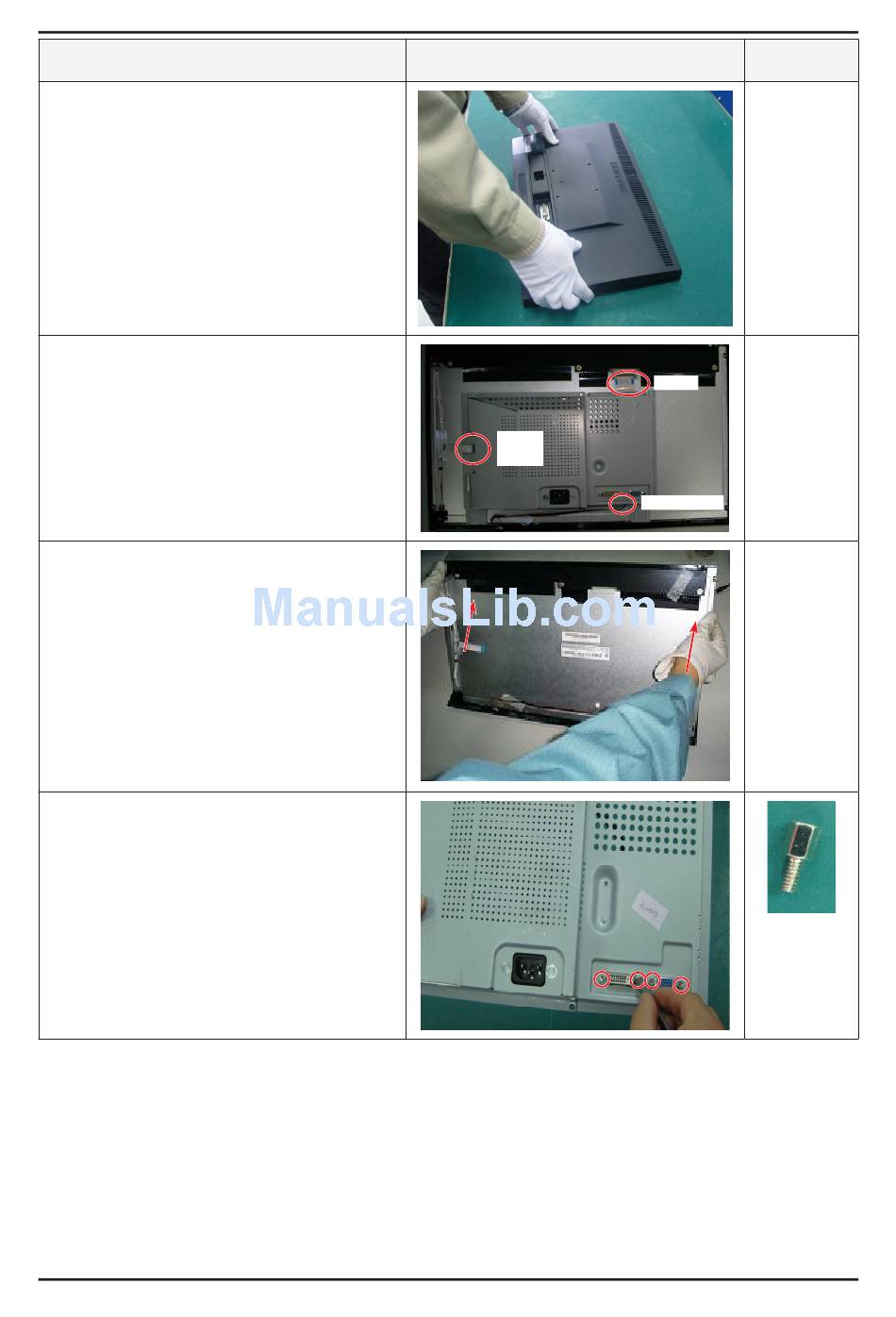

4. Turn the monitor over again to remove the back
cover.
5. Remove the LVDS, LAMP wire and FUNCTION
cable then remove the SHIELD-COVER.
6. Remove the LCD panel.
7. Remove the four (4) screws shown in the figure.
3. Disassembly and Assembly
LVDS
LAMP
WIRE
FUNCTION
Screws
3-3
