Summary of Contents for Samsung ED65D

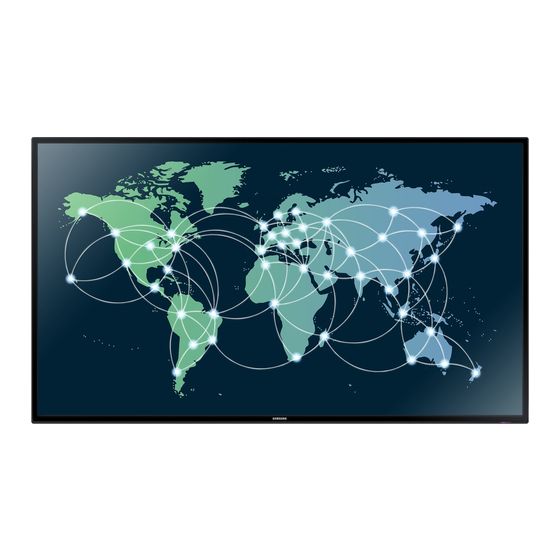

- Page 1 LFD DISPLAY User Manual ED65D ED75D The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
-
Page 2: Table Of Contents
Table of contents Before Using the Product Using MDC Installing the Wall Mount Kit Wall Mount Kit Specifications (VESA) Copyright Configuring Settings for Multi Control Remote Control (RS232C) Configuring settings for Multi Control Safety Precautions Cable Connection Symbols Connection MDC Program Installation/Uninstallation Control Codes Cleaning Installation... - Page 3 Table of contents Applications Video Wall Dynamic Contrast Black Tone Video Wall Flesh Tone Source List Format RGB Only Mode Refresh Horizontal Color Space Edit Name Vertical White Balance Screen Position Information Gamma Source AutoSwitch Settings Motion Lighting Source AutoSwitch Picture Options Primary Source Recovery System...
- Page 4 Table of contents Reset All Appendix Contact SAMSUNG WORLD WIDE Responsibility for the Pay Service (Cost to Support Customers) Not a product defect Software Update A Product damage caused by customer's fault 112 By USB Others Contact Samsung Optimum Picture Quality and Afterimage Burn-...
-
Page 5: Before Using The Product
© 2014 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft, Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association. -
Page 6: Safety Precautions
Safety Precautions Cleaning ― Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ― Take the following steps when cleaning. Caution ― The following images are for reference only. Real-life situations may differ from what is shown in the images. -
Page 7: Storage
Storage Connect the power plug to a grounded power socket (type 1 insulated devices only). High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used • An electric shock or injury may result. nearby. ―... -
Page 8: Installation
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. • A fire may result. Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. • A fire or electric shock may result. - Page 9 SAMSUNG • Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.
-
Page 10: Operation
If the product is dropped or the outer case is damaged, turn off the power Do not lift or move the product by pulling the power cord or any cable. switch and disconnect the power cord. Then contact Samsung Customer Service Center. - Page 11 • Your eyesight may deteriorate. when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center. • Product failure, an electric shock or fire may result. Do not hold the product upside-down or move it by holding the stand.
- Page 12 Rest your eyes for more than 5 minutes for every 1 hour of product use. Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that •...
-
Page 13: Preparations
Chapter 02 Preparations Checking the Components Components - Contact the vendor where you purchased the product if any components are missing. - The appearance of the components and items sold separately may differ from the image shown. - A stand is not provided with the product. To install a stand, you can purchase one Quick setup guide Warranty card... -
Page 14: Items Sold Separately
Items sold separately Wall-mount Kit HDMI cable (P.39) HDMI-DVI cable (P.38) RS232C-Stereo cable RS232C(OUT) adapter Component cable (P.40) DVI cable (P.38) -
Page 15: Parts
Parts Panel Key Power on the product. If you press the [ ] button when the product is turned on, the control menu will be displayed. To exit the OSD menu, press and hold the panel key for at least one second. Move to the upper or lower menu. -
Page 16: Reverse Side
Reverse Side Port Description HDMI IN Connects to a source device using an HDMI cable. SERVICE (5V 0.5A) This port is used to upgrade the software. EXTERNAL IR / AMBIENT SENSOR IN Supplies power to the External ambient sensor board or receives the light sensor signal. -
Page 17: External Sensor Kit
Buttons Description External sensor KIT Aim the remote control towards this spot on the LCD Display. ― The External sensor KIT has a remote-control sensor, a brightness sensor and ― Keep the area between the remote sensor and remote control obstacle-free. function keys. - Page 18 Attaching the External sensor KIT to the side ― This External sensor KIT can be attached to any part of the display using the double-sided tape provided with the sensor. ― The External sensor KIT can also be attached to a wall near the display. ―...
-
Page 19: Assembling The Holder-Wire Stand
Assembling the Holder-Wire stand Anti-theft Lock ― An anti-theft lock allows you to use the product securely even in public places. ― The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. To lock an anti-theft locking device: ―... -
Page 20: Remote Control
Remote Control ― Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. ― A button without a description in the image below is not supported on the product. Power on the product. - Page 21 TOOLS INFO Quickly select frequently used functions. Display information on the screen. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. RETURN EXIT Return to the previous menu. Exit the current menu. Manually select a connected input source from HDMI PC, DVI, HDMI.
-
Page 22: Before Installing The Product (Installation Guide)
Tilting Angle and Rotation 15 ˚ ― Contact Samsung Customer Service Center for further details. • The product can be tilted at a maximum angle of 15 from a perpendicular wall surface. • To use the product vertically (portrait), turn it clockwise so that the LED is pointing down. -
Page 23: Dimensions
Figure 1.3 Side view Installation on an Indented Wall ― Contact Samsung Customer Service Center for further details. Plane view Minimum 40 mm Minimum 70 mm Minimum 50 mm Minimum 50 mm Ambient temperature: Under 35 C ― When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35 C. -
Page 24: Installing The Wall Mount
We recommend you contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own. -
Page 25: Wall Mount Kit Specifications (Vesa)
Samsung is not liable for these kinds of accidents. • Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. -
Page 26: Remote Control (Rs232C)
Remote Control (RS232C) • Pin assignment 1 2 3 4 5 Cable Connection RS232C Cable Interface RS232C (9 pins) 6 7 8 9 TxD (No.2), RxD (No.3), GND (No.5) Signal Bit rate 9600 bps Detect data carrier Data bits 8 bit Received data Parity None... -
Page 27: Connection
Connection • RS232C cable Connector: 9-Pin D-Sub to Stereo Cable • Connection 1 RS232C RS232C RS232C RS232C -P1- -P1- -P2- -P2- Female --------> STEREO <-------- PLUG ---------- (3.5ø) -
Page 28: Control Codes
Command type Command Value range Control Codes Video Wall On 0x84 Viewing control state (Get control command) Video Wall User Control 0x89 Header Command Data length Checksum • All communications take place in hexadecimals. The checksum is calculated by adding up all 0xAA Command type values except the header. -
Page 29: Power Control
Power control Volume control • Function • Function A product can be powered on and off using a PC. The volume of a product can be adjusted using a PC. • Viewing power state (Get Power ON / OFF Status) •... - Page 30 ― Input source control MagicInfo is only available with models that contain the MagicInfo function. ― RF(TV), DTV are only available with models that include a TV. • Function • Ack The input source of a product can be changed using a PC. Header Command Data length...
- Page 31 Screen mode control • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function The screen mode of a product can be changed using a PC. 0xAA 0xFF 0x18 "ERR" Screen mode cannot be controlled when the Video Wall function is enabled.
- Page 32 PIP On/Off control Auto adjustment control (PC and BNC only) • Function • Function The PIP mode of a product can be turned on or off using a PC. Automatically adjust the PC system screen using a PC. ― Only available on models that have the PIP function. •...
- Page 33 Video Wall Mode Control Safety Lock • Function • Function Video Wall mode can be activated on a product using a PC. PC can be used to turn the Safety Lock function on or off on a product. This control is only available on a product whose Video Wall is enabled.
- Page 34 Video Wall On • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function Turn Video Wall on or off on the product from your computer. 0xAA 0xFF 0x84 • Get Video Wall On/Off Status "ERR": A code showing what error has occurred Header Command Data length...
- Page 35 10x10 Video Wall Model 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x1F 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x2F 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28...
- Page 36 Wall_SNo: Product Number code assigned to the product 10x10 Video Wall Model : ( 1 ~ 100) Set Number Data 0x01 0x02 0x63 0x64 • Ack Header Command Data length Ack/Nak r-CMD Val1 Val2 Checksum 0xAA 0xFF 0x89 Wall_Div Wall_SNo •...
-
Page 37: Connecting And Using A Source Device
Chapter 03 Connecting and Using a Source Device Before Connecting Connecting to a PC Check the following before you connect this product with other devices. Devices • Do not connect the power cable before connecting all other cables. that can be connected to this product include PCs, camcorders, speakers, set top Ensure you connect a source device first before connecting the power cable. -
Page 38: Connection Using A Dvi Cable (Digital Type)
Connection using a DVI cable (Digital type) Connection Using an HDMI-DVI Cable ― When you connect a PC to the product using an HDMI-DVI cable, set Edit Name DVI PC to access video and audio content stored on the PC. DVI IN COMPONENT RGB / DVI /... -
Page 39: Connection Using An Hdmi Cable
Connection Using an HDMI Cable DVI IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN HDMI IN... -
Page 40: Connecting To A Video Device
Connecting to a Video Device Connection Using the component Cable • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. • You can connect a video device to the product using a cable. DVI IN RGB / DVI / HDMI / AV /... -
Page 41: Connection Using An Hdmi-Dvi Cable
Connection Using an HDMI-DVI Cable Connection Using an HDMI Cable ― Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To Using an HDMI cable or HDMI to DVI Cable (up to 1080p) resolve this, additionally connect an audio cable to the audio ports on the product and video device. -
Page 42: Connecting To An Audio System
Connecting to an Audio System Changing the Input source ― Connecting parts may differ in different products. ― The displayed image may differ depending on the model. Source DVI IN RGB / DVI / HDMI / AV / COMPONENT AUDIO IN HDMI HDMI-CEC Component... -
Page 43: Using Mdc
Chapter 04 Using MDC MDC (Multiple Display Control) is an application that allows you to easily control multiple display devices simultaneously using a PC. Configuring Settings for Multi Control MENU m : T System Multi Control ENTER Assign an individual ID to your product. Configuring settings for Multi Control ID Setup •... -
Page 44: Mdc Program Installation/Uninstallation
MDC Program Installation/Uninstallation For details on how to use the MDC program, refer to Help after installing the program. The MDC program is available on the website. Installation Click the MDC Unified installation program. MDC installation can be affected by the graphics card, mother board and network conditions. -
Page 45: Connecting To Mdc
Connecting to MDC Multiple display control "MDC" is an application that allows you to easily control multiple display devices Using MDC via RS-232C (serial data communications standards) simultaneously using a PC. An RS-232C serial cable must be connected to the serial ports on the PC and monitor. RS232C IN DVI IN RGB / DVI /... -
Page 46: Screen Adjustment
Chapter 05 Screen Adjustment Picture Color Tone, etc.). Configure the settings (Backlight, Picture - The layout of the menu options may vary depending on the product. Picture Mode Select a picture mode (Picture Mode) suitable for the environment where the product will be used. Different Picture Mode options are displayed depending on the current input source. -
Page 47: Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)
Backlight / Contrast / Brightness / Your product has several options for adjusting picture quality. Input source Picture Mode Adjustable options Sharpness / Color / Tint (G/R) PC, HDMI, (when a PC is Information Advertisement Backlight Contrast Brightness Sharpness connected) MENU m : T Picture... -
Page 48: Picture Size
Picture Size Picture Size If you have a cable box or satellite receiver, it may have its own set of screen sizes as well. However, we highly recommend you use your product’s 16:9 mode most of the time. MENU Picture Picture Size ENTER m : T... - Page 49 Picture Sizes available by Input Source. Input Source Picture Size Component (480i, 480p) 16:9/ 4:3/ Zoom1 Zoom2 Custom Component (1080i, 1080p) Wide Fit Screen Fit 16:9/ 4:3/ Custom HDMI Wide Fit (720p, 1080i, 1080p) 16:9/ 4:3/ Smart View Smart View 2/ Custom/ Screen Fit HDMI...
-
Page 50: Position
Position Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit. ― To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit Original Ratio, follow these steps. Press the button to select Position. -
Page 51: Resolution Select
Resolution Select If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture quality by selecting the same resolution for the product as the PC using this menu. Available resolutions: 1024x768 1280x768... -
Page 52: Pc Screen Adjustment
PC Screen Adjustment Coarse Fine • Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, use the Coarse function to adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned with the center of screen. -
Page 53: Pip
PIP Settings The picture from the external video source will be in the main screen and the picture from the product will be in the PIP sub- picture screen. m : T MENU System ENTER Main picture Sub picture Picture PC, DVI, HDMI Component... -
Page 54: Advanced Settings
Advanced Settings Input Source Picture Mode Advanced Settings PC, DVI, HDMI (when a PC is Information White Balance Gamma connected) MENU Picture Advanced Settings ENTER m : T Advertisement White Balance Gamma Component HDMI Natural Dynamic Not available Advanced Settings HDMI Standard Dynamic Contrast... -
Page 55: Color Space
Color Space Advanced Settings Adjusts the range and variety of colors (the color space) available to create images. Auto Native • Color Space Native White Balance White Balance Gamma Adjust the color temperature for a more natural picture. R-Offset G-Offset / B-Offset: Adjust each color’s (red, green, blue) darkness. -
Page 56: Picture Options
Picture Options Select an option using the arrow keys, and the press Use the arrow keys to change the setting, and then press Input source Picture Mode Picture Options m : T MENU Picture Picture Options ENTER Information Color Tone Color Temp. -
Page 57: Color Tone
Color Tone Picture Options If the input source is PC, DVI, HDMI(PC connection). Color Tone Standard Cool Standard Warm • If the input source is AV, Component, HDMI. Color Temp. 10000K Cool Standard Warm1 Warm2 • Digital Clean View ― Warm1 Warm2 will be deactivated when the... -
Page 58: Hdmi Black Level
HDMI Black Level Picture Options Selects the black level on the screen to adjust the screen depth. HDMI Black Level Normal Normal • ― Available only in HDMI mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p). Film Mode Dynamic Backlight Film Mode This mode is suitable to view movies. -
Page 59: Picture Off
Picture Off The product screen is turned off but the audio will continue. Press any key on your remote to turn the screen back on. Picture Picture Off Reset Picture - The displayed image may differ depending on the model. Reset Picture Resets your current picture mode to its default settings. -
Page 60: Sound Adjustment
Chapter 06 Sound Adjustment Sound Configure the sound ( ) settings for the product. Sound Mode You can select a sound mode to suit your personal preferences. • Standard: Selects the normal sound mode. • Music: Emphasizes music over voices. MENU m : T Sound... -
Page 61: Sound Effect
Sound Effect Configure your preferred sound effect for output sound. ― If Speaker Select is set to External, Sound Effect is disabled. ― Available only when Sound Mode is set to Standard. MENU Sound Sound Effect ENTER m : T DTS TruSurround (Off / On) •... -
Page 62: Speaker Settings
Speaker Settings Speaker Select (External Internal / Receiver) • If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the products speakers and the speakers attached to your audio receiver. -
Page 63: Source List
Chapter 07 Applications Source List Refresh MENU m : T Applications Source List TOOLS Refresh ENTER Source allows you to select a variety of sources and change source device names. Refresh If you cannot find a device you want, select to refresh the list. -
Page 64: System
Chapter 08 System Menu Language Set the menu language. ― A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions on your PC. m : T MENU System Menu Language ENTER... -
Page 65: Multi Control
Multi Control Configuring settings for Multi Control ID Setup • Assign an ID to a set. (Range: 0~99) MENU System Multi Control ENTER m : T Press to select a number, and press ID Input System • Enter the ID number of the product connected to the input cable for input signal reception. Enter the number you want using the number buttons on the remote control. -
Page 66: Time
Time You can configure Clock Set Sleep Timer. You can also set the product to automatically turn on or off at a specified time using the Timer function. Clock Set MENU System Time ENTER m : T Set the clock to use the various various timer features of the product. Time Clock Set •... -
Page 67: On Timer
On Timer Time On Timer so that your product turns on automatically at a time and on a day of your choosing. On Timer The power is turned on with the specified volume or input source. Off Timer Timer: Set the on timer by making a selection from one of the seven options. Ensure you set the current time first. (On Timer1 On Timer7 Holiday Management... -
Page 68: Off Timer
Off Timer Time Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer1 Timer7) On Timer ― You must set the clock before you can use Timer. • Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. -
Page 69: Eco Solution
Eco Solution Energy Saving Reduce the power consumption by adjusting the screen brightness. m : T MENU System Eco Solution ENTER Medium High • Eco Sensor Eco Solution To enhance your power savings, the picture settings will automatically adapt to the light in the room. Energy Saving •... -
Page 70: Screen Burn Protection
Screen Burn Protection To reduce the possibility of screen burn, this unit is equipped with Pixel Shift screen burn prevention technology. Pixel Shift moves the picture slightly on the screen. Pixel Shift Time setting allows you to program the time between movements of the picture in minutes. m : T MENU System... -
Page 71: Timer
Timer Screen Burn Protection You can set the timer for Screen Burn Protection. Pixel Shift Pixel Shift feature stops automatically after a specified period of time. • Timer • Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period). Immediate Display ―... -
Page 72: Immediate Display
Immediate Display Screen Burn Protection Select the screen saver you want to display immediately. Pixel Shift Pixel Rolling Bar Fading Screen • Timer Side Gray Immediate Display When the screen is set to aspect ratio, adjust the brightness of white margins on sides to protect the screen. Side Gray Light Dark... -
Page 73: Ticker
Ticker Input text while a video or image is displayed and display the text on the screen. • ― Message, Time, Position, Motion, and Font Style are enabled only when Ticker is set to On. m : T MENU System Ticker ENTER •... -
Page 74: Video Wall
Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. m : T MENU System Video Wall ENTER... -
Page 75: Vertical
Vertical Video Wall This function automatically divides the screen according to the specified number of vertical displays. Video Wall Enter the number of vertically arranged displays. The vertical screen will automatically be divided according to the number entered. · Format Full A maximum of 15 displays can be assigned to the vertical arrangement. -
Page 76: Source Autoswitch Settings
Source AutoSwitch Settings Turning on the display with Source AutoSwitch On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Source AutoSwitch m : T MENU System Source AutoSwitch Settings ENTER When the... -
Page 77: Change Pin
Change PIN Change PIN screen will appear. Choose any 4 digits for your PIN and enter it in Enter New PIN. Reenter the same 4 digits in Confirm New PIN. When the Confirm screen disappears, press the Close button. The product has memorized your new PIN. m : T MENU System... -
Page 78: General
General Max. Power Saving Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time. m : T MENU System General ENTER • ― Available only PC, DVI, HDMI mode. General Game Mode Max. -
Page 79: Button Lock
Button Lock General This menu can be used to lock the buttons on the product. Max. Power Saving Only the remote control can control the product if Button Lock is set to On. • Game Mode Standby Control Auto Power Safety Lock You can set the screen standby mode to be applied when an input signal is received. -
Page 80: Osd Display
OSD Display General Displays or hides a menu item on the screen. OSD Display ― Source OSD No Signal OSD MDC OSD Power On Adjustment 0 sec Power On Adjustment Temperature Control You can set the warm-up time for the screen to turn on after the power button is pressed. (Range: 0 – 50 seconds) ―... -
Page 81: Anynet+ (Hdmi-Cec)
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your... -
Page 82: Auto Turn Off
Auto Turn Off Anynet+ (HDMI-CEC) Setting an Anynet+ Device to turn automatically when the product is turned off. Anynet+ (HDMI-CEC) • ― If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off. Auto Turn Off ―... -
Page 83: Troubleshooting For Anynet
Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • You can connect only one receiver (home theater). • Check if the Anynet+ device power cord is properly connected. •... - Page 84 Problem Possible Solution The connected device is not • Check whether or not the device supports Anynet+ functions. displayed. • Check whether or not the HDMI cable is properly connected. • Check whether Anynet+ (HDMI-CEC) is set to in the Anynet+ System menu.
-
Page 85: Magic Clone
― Confirm that the USB device functions properly before running the option. Clone to USB ― The option is available for products with the same Model Code Software Version. Support Contact Samsung Model Code Software Version. Go to and find the product Clone From USB - The displayed image may differ depending on the model. -
Page 86: Reset All
Reset All This option returns all the current settings for a display to the default factory settings. m : T MENU System Reset All ENTER System Reset All - The displayed image may differ depending on the model. -
Page 87: Support
― When you upgrade software, all video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade. By USB To perform a software update from a USB device, contact the customer service center. Contact Samsung m : T MENU Support... -
Page 88: Troubleshooting Guide
Chapter 10 Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Center Before calling Samsung Customer Service Testing the Product Center, test your product as follows. If the problem persists, contact Samsung Check if your product is operating normally by using the product test function. -
Page 89: Check The Followings
Check the followings. Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. Blank spaces are found on all four sides of the screen when The blank spaces found on the screen have nothing to do with the product. - Page 90 Screen issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. Remove any accessories (video extension cable, etc) and try again. Set the resolution and frequency to the recommended level. The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product.
- Page 91 Lines (red, green or blue) are displayed on the screen. These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Center to resolve the issue. The display looks unstable and then freezes.
- Page 92 Sound issue There is no sound. Check the connection of the audio cable or adjust the volume. Check the volume. The volume is too low. Adjust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program.
- Page 93 Sound issue There is audible sound when the volume is muted. When Speaker Select is set to External, the volume button and mute function are disabled. Adjust the volume for the external speakers. Audio settings for main speakers are separate from the internal speakers on the product. Changing or muting the volume on the product does not affect an external amplifier(decoder).
- Page 94 Other issue Small particles are found on the edges of the product. The particles are part of the product design. The product is not defective. menu is not available. The menu is enabled or disabled depending on the Source mode. ―...
- Page 95 Other issue The IR sensor is not functioning. Make sure the sensor light turns on when a button is pressed on the remote control. • If the sensor light does not turn on, turn the power switch off and then on again on the back of the product.
-
Page 96: Q & A
Q & A Question Answer How can I change the frequency? Set the frequency on your graphics card. • Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings. •... - Page 97 Question Answer • Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display How do I set powersaving mode? → Screen Saver Settings or BIOS SETUP on the PC. • Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings or BIOS SETUP on the PC.
-
Page 98: Specifications
Chapter 11 Specifications General Size Model Name ED65D ED75D Panel Size 65 Class (64.5 inches / 163 cm) 75 Class (75 inches / 189 cm) Display area 1431.4 (H) x 806.5 (V) mm 1653.3 (H) x 931.3 (V) mm Display area 56.4 (H) x 31.8 (V) inches... - Page 99 Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does not affect product performance. ― This device is a Class A digital apparatus. (USA only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799...
-
Page 100: Powersaver
(Power Button Rating Typical (SOG Signal : Not off) Support the DPM Mode) Power Indicator Blinking Power Consumption ED65D 215 Watts 180 Watts 235 Watts 1 Watts 1 Watts 0 Watts ED75D 280 Watts 247 Watts 310 Watts 1 Watts... -
Page 101: Preset Timing Modes
Preset Timing Modes ― This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product. Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. - Page 102 Resolution Horizontal Frequency Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) (kHz) VESA, 800 x 600 35.156 56.250 36.000 VESA, 800 x 600 37.879 60.317 40.000 VESA, 800 x 600 48.077 72.188 50.000 VESA, 800 x 600 46.875 75.000 49.500 VESA, 1024 x 768 48.363...
-
Page 103: Appendix
Chapter 12 Appendix Contact SAMSUNG WORLD WIDE ― If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. NORTH AMERICA U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us http://www.samsung.com/ca (English) CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca_fr (French) LATIN AMERICA... - Page 104 LATIN AMERICA http://www.samsung.com/latin (Spanish) COSTA RICA 0-800-507-7267 http://www.samsung.com/latin_en (English) http://www.samsung.com/latin (Spanish) DOMINICA 1-800-751-2676 http://www.samsung.com/latin_en (English) http://www.samsung.com/latin (Spanish) ECUADOR 1-800-10-7267 http://www.samsung.com/latin_en (English) http://www.samsung.com/latin (Spanish) EL SALVADOR 800-6225 http://www.samsung.com/latin_en (English) http://www.samsung.com/latin (Spanish) GUATEMALA 1-800-299-0013 http://www.samsung.com/latin_en (English) http://www.samsung.com/latin (Spanish) HONDURAS 800-27919267 http://www.samsung.com/latin_en (English)
- Page 105 062 SAMSUNG (062 726 786) http://www.samsung.com/hr CYPRUS 8009 4000 only from landline http://www.samsung.com/gr 800 - SAMSUNG (800-726786) http://www.samsung.com CZECH Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4 DENMARK 70 70 19 70 http://www.samsung.com EIRE 0818 717100 http://www.samsung.com ESTONIA 800-7267 http://www.samsung.com/ee...
- Page 106 0180 6 SAMSUNG bzw. http://www.samsung.com GERMANY 0180 6 7267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf ) 80111-SAMSUNG (80111 726 7864) only from land line GREECE http://www.samsung.com/gr (+30) 210 6897691 from mobile and land line HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/hu...
- Page 107 EUROPE SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com SPAIN 902172678 http://www.samsung.com SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com http://www.samsung.com/ch (German) SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) http://www.samsung.com/ch_fr (French) 0330 SAMSUNG (7267864) http://www.samsung.com ARMENIA 0-800-05-555 http://www.samsung.com AZERBAIJAN 088-55-55-555 http://www.samsung.com BELARUS 810-800-500-55-500 http://www.samsung.com...
- Page 108 1800 266 8282 0800-112-8888 (Toll Free) INDONESIA http://www.samsung.com/id (021) 56997777 JAPAN 0120-327-527 http://www.samsung.com MALAYSIA 1800-88-9999 http://www.samsung.com/my NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz 1-800-10-7267864 [PLDT] PHILIPPINES 1-800-8-7267864 [Globe landline and Mobile] http://www.samsung.com/ph 02-4222111 [Other landline] SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg TAIWAN 0800-32-9999 http://www.samsung.com/tw...
- Page 109 ASIA PACIFIC VIETNAM 1800 588 889 http://www.samsung.com MENA ALGERIA 0800 100 100 http://www.samsung.com/n_africa http://www.samsung.com/ae (English) BAHRAIN 8000-4726 http://www.samsung.com/ae_ar (Arabic) EGYPT 08000-726786 http://www.samsung.com IRAN 021-8255 http://www.samsung.com 0800-22273 JORDAN http://www.samsung.com/Levant (English) 06 5777444 http://www.samsung.com/ae (English) KUWAIT 183-2255 (183-CALL) http://www.samsung.com/ae_ar (Arabic) MOROCCO 080 100 2255 http://www.samsung.com...
- Page 110 8000 0077 http://www.samsung.com 499999 http://www.samsung.com 0800-10077 http://www.samsung.com GHANA 0302-200077 KENYA 0800 545 545 http://www.samsung.com NAMIBIA 08 197 267 864 http://www.samsung.com NIGERIA 0800-726-7864 http://www.samsung.com MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com RWANDA 9999 http://www.samsung.com SENEGAL 800-00-0077 http://www.samsung.com SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com...
- Page 111 AFRICA SUDAN 1969 http://www.samsung.com TANZANIA 0685 88 99 00 http://www.samsung.com UGANDA 0800 300 300 http://www.samsung.com ZAMBIA 0211 350370 http://www.samsung.com...
-
Page 112: Responsibility For The Pay Service (Cost To Customers)
― When the service is requested, in spite of in warranty, we may charge you for a visit from a service • Use of supplies or separatly sold product unspecified by Samsung. technician in the following cases. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. Not a product defect •... -
Page 113: Optimum Picture Quality And Afterimage Burn-In Prevention
Optimum Picture Quality and Afterimage What is afterimage burn-in? Burn-in Prevention Afterimage burn-in should not occur when the LCD panel is operating normally. Normal operation refers to a continuously changing video pattern. If the LCD panel displays a fixed pattern for an extended period of time (more than 12 hours), a slight voltage difference may occur between the electrodes in pixels that control the liquid crystals. - Page 114 • Avoid combinations of a text color and background color of contrasting brightness. ― Avoid using grey as it may contribute to afterimage burn-in. ― Avoid using colors of contrasting brightness (black and white; grey). FLIGHT TIME FLIGHT TIME OZ348 20:30 OZ348 20:30...
-
Page 115: License
In the case of using open source software, Open Source Licences are available on the product menu. United States and other countries. Open Source Licence Notice is written only English. For information on the Open Source License Notice, contact the Samsung Customer Center or send email to oss.request@samsung.com. -
Page 116: Terminology
Terminology 480i / 480p / 720p / 1080i / Non-interlace Mode and Interlace Vertical Frequency____ The product Plug & Play____ Plug & Play is a HDMI (High Definition Multimedia 1080p____ Each of the scanning Mode____ Non-interlace mode displays a single image many times function that allows the automatic Interface)____ It is an interface that rates above refers to the number of...
