Mini Crosser 125 Service Manual

Electric scooter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Mini Crosser T
Servicemanual
Type: 125, 127, 130 og 140
Version 1.4.4 Valid from 2000 - 2010
KS 23-02-2010
England

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 125 and is the answer not in the manual?

Questions and answers

Jason
May 15, 2025

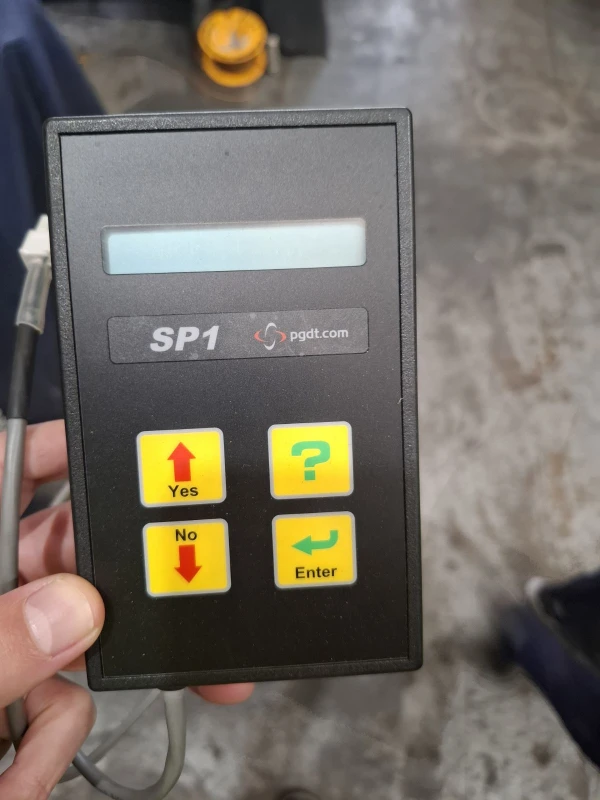

Where can I purchase a SP1 programmer in Australia brisbane as I'm need one asap ?
