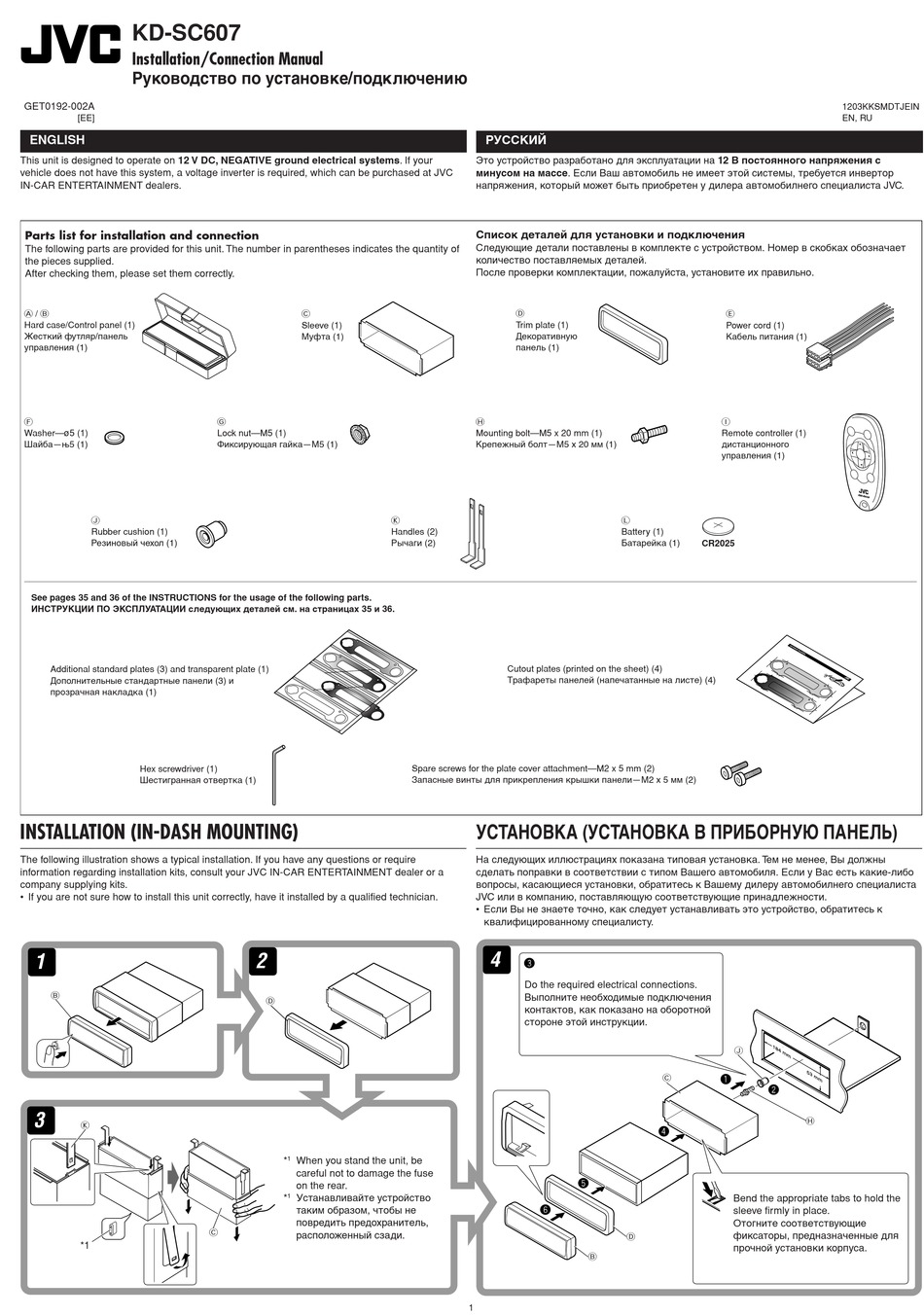

JVC KD-SC607 Installation & Connection Manual

KD-SC607
Installation/Connection Manual
GET0192-002A
[EE]
ENGLISH
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your
vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC
IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this unit. The number in parentheses indicates the quantity of
the pieces supplied.
After checking them, please set them correctly.
A / B
Hard case/Control panel (1)
F
Washer—ø5 (1)
J
Rubber cushion (1)
See pages 35 and 36 of the INSTRUCTIONS for the usage of the following parts.
Additional standard plates (3) and transparent plate (1)
Hex screwdriver (1)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require
information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a
company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
1
B
3
K
*1
C
Sleeve (1)
G
Lock nut—M5 (1)
2
D
* 1 When you stand the unit, be
careful not to damage the fuse
on the rear.
* 1
C
D
Trim plate (1)
H
Mounting bolt—M5 x 20 mm (1)
K
Handles (2)
Cutout plates (printed on the sheet) (4)
Spare screws for the plate cover attachment—M2 x 5 mm (2)
•
4
!
Do the required electrical connections.
¤
1
E
Power cord (1)
I
Remote controller (1)
L
Battery (1)
CR2025
J
C ~
⁄
@
Bend the appropriate tabs to hold the
sleeve firmly in place.
D
B
1203KKSMDTJEIN
EN, RU
1 8
4
m
m
5 3
m
m
Ÿ
H
