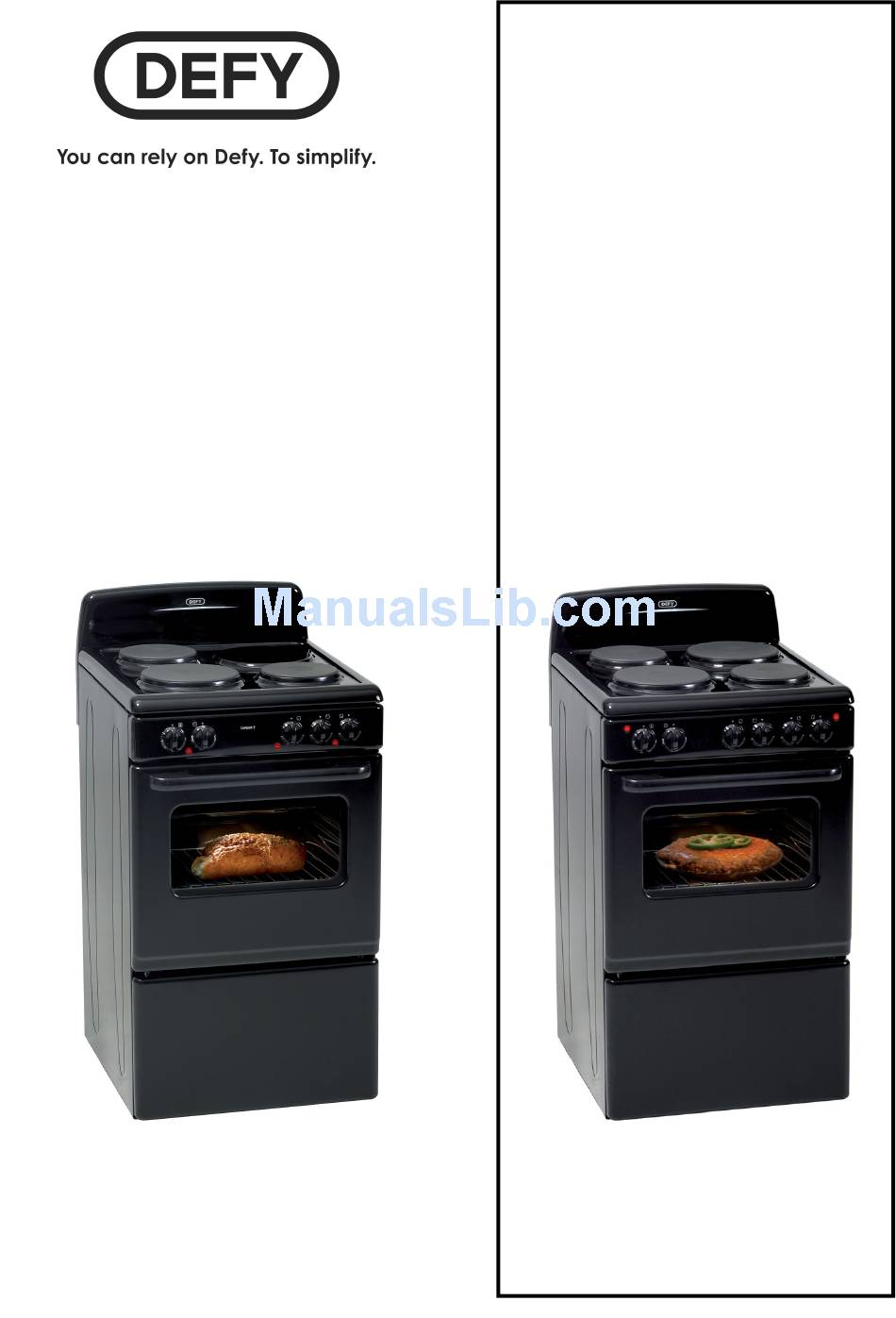

- Page 1 OWNER’S MANUAL MODEL 501 MODEL 521 COMPACT COMPACT PART NUMBER 068 171 www.defy.co.za PAGE 1 OF 12...
-
Page 2: Cupboard Design
Introduction Cupboard design Congratulations on the purchase of this Your Defy oven is designed to give you • quality product. years of trouble free service, however it is important that it be correctly We trust that you will enjoy many years of installed. -
Page 3: Electrical Installation
Electrical installation Electrical installation (Model (Model 521 only) 501 only) This appliance must be earthed and the Push the electric plug into a 230V. 15A. manufacturer and the seller do not Earthed wall socket accept responsibility for any damage incorrect installation The stove is a plug in model with a 15A. -
Page 4: Safety Advice
Safety advice Do not place baking trays, dishes or • aluminium foil directly onto the bottom of This section contains safety instructions that the oven. The heat accumulation might will help you avoid risk of injury and damage. damage the bottom of the oven. All warranties will become void if you do not Keep ventilation... - Page 5 WARNING Hot surfaces may cause Figures in this manual are schematic burns! Do not touch the hot surfaces and may not match your appliance of the appliance. Use oven gloves. exactly. Keep children away from the DANGER appliance. Risk of scalding by hot steam! DANGER Risk of fire by overheated Take care when opening the oven oil! When heating oil, do not leave it...
- Page 6 Fitting the removable splashback Remove the splashback (recessed in the polystyrene) from the polystyrene packaging. Loosen screws numbered 1 and 2 on the stove. Align the 2 splashback key slotted holes with the 2 holes on the back of the stove. Slide the key slotted holes of the splashback over the loosened screws and gently push the splashback into position.
- Page 7 The control panel (Model 501) The control panel (Model 521) PAGE 7 OF 12...
-
Page 8: Position Selector
The selector is used to select one of four • aluminium bake tray (300 x 230 x oven operating modes. 30mm.) These are available from all 0 or OFF, OFF POSITION Defy Parts Centres Part number Bake 067609. Pre-Heat Teflon coated baking trays are not Grill recommended. -
Page 9: Caring For Solid Plates
• sewing machine oil or electrical hotplate Cleaning the Oven polish - available from Defy Service Use a hot, soapy damp cloth to clean any • Centres. Extra attention is required in part of the oven. Stubborn stains may... -
Page 10: Owner's Responsibility
Oven door Owner’s responsibility (Only applies to models with removable Since the following are not factory faults, oven door) they are the owner’s responsibility. The oven door may be removed to Damage to exterior finish. • improve access to the oven for cleaning Breakage of glass and other components. -
Page 11: Defy Service Centres
Defy Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 12: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
