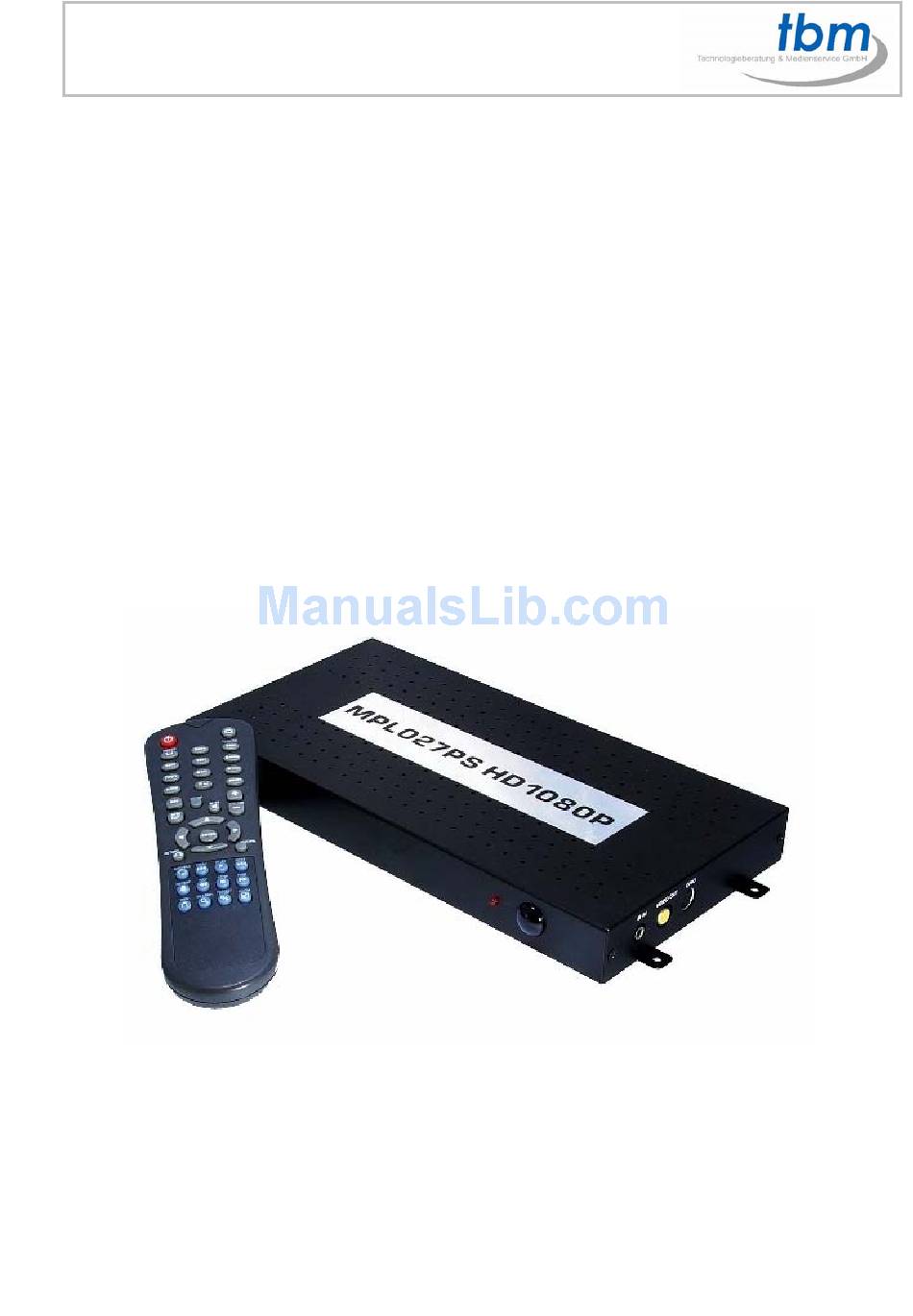

  • Page 1 USER MANUAL MPL027P MPL027P PS MPL027P PT...

  • Page 2: Table Of Contents

    Content Package Contents Introduction Features Hardware Overview Remote Control Entering Text or IP Address Start the MPL027P Setting Up Network Setup FTP Setup Download Function Manual Download Function Automatic Download Function Download Pause - Resume Download/ Upload Media Files HTTP Command Function...

  • Page 3: Package Contents

    768), HDMI (1920 x 1080P) and Audio, you can play media files on any display device. Supports CF memory cards, (Suggest using the high speed (150X) CF card) The MPL027P can connect to a wired network at speed up to 100Mbps. This function provides you with maximum throughput for sharing and transferring digital media.

  • Page 4: Hardware Overview

    Exports the Configuration Value: You can export the configuration value to the CF card. The configuration can be modified on your PC, and can be applied to the MPL027P or others. Compatible with Windows Media Player 11: Play media files stored in a network computer.

  • Page 5: Remote Control

    Status After Power On Status 1: If the “AUTOPLAY (Movie, Picture or MultiLayer)” function is enabled and there are movie or picture files in the CF card, the MPL027P will auto play movie or picture files on the CF card after power on.

  • Page 6: Setting Up

    In the main menu, using the “▼” button on remote control to select the “SETUP” item, and then press the “ENTER” button. You will be presented with the MPL027P settings screen. You can also press the “SETUP” button on remote control to directly open the settings screen. (If there is file that is being play, please stop first.)

  • Page 7: Network Setup

    “Off” and type the network information in “Assign IP Address”. Assign IP Address: If the MPL027P is connected to a network without a DHCP server or you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and DNS for the MPL027P.

  • Page 8: Ftp Setup

    7.2 FTP SETUP Local FTP Server: Turn on/ off the MPL027P server. (If you use the MPL027P server, please disable the DHCP function and input a fixed IP address, Mask, Gateway and DNS of the MPL027P) Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the MPL027P.
  • Page 9 Download Time: Set the FTP auto-download time. Local HTTP Server: Enable/ Disable the HTTP command function. Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the MPL027P. (The Default Port: 80, User ID: root, Password: admin) NOTE: Press the “SETUP”...

  • Page 10: Download Function

    MPL027P is downloading files. After finishing downloading files, the MPL027P will display the files automatically. Screen Saver 8.2 Auto Download Function If there are more than one MPL027P is, you can use ftp tools to divide them into different regional group.
  • Page 11 Setup”User Name” “Password and FTP port number” Enter the “Remote FTP Download Setup” window of MPL027P, and then type the same “User name (User ID)”, “Password” and “Port”. The MPL027P in group 1, please type the “User ID: ipmedia”, “Password: 0000” and “Port: 21”.“Port：21”.

  • Page 12: Download Pause - Resume

    The MPL027P can continue unfinished downloads upon next session. NOTE：If the network connection is unstable or broken a pop-up window will appear as shown below. The MPL027P will attempt to resume downloading in 2 minutes. The user can terminate the download by pressing the “RETURN” button.
  • Page 13 MPL027P Server. (Default User Name: root Default Password：admin) Step 6：After logging on, all the media files in the CF card on the MPL027P will be listed. You can download and upload the media files between CF card and your PC.
  • Page 14 Method 2：Connect by FTP Tools For example. - If there are multiple MPL027P, you can use the “CuteFTP” tool to connect and manage files easily. CuteFTP You can create all the MPL027 PS, and only select the MPL027 PS that you want to connect in the list.

  • Page 15: Http Command Function

    Confirm the “Local HTTP Server” function has been enabled, and the “Local HTTP Server Setup” set has been completed (refer to 6.2). Set your router or firewall, and open a port 80 for the MPL027P. The following figure is an example, please refer to your user’s manual of router for opening ports.

  • Page 16: Player Control

    (Default User Name: root, Default Password: admin) to log on. After logging on all the media files in the CF card on the MPL027P will be listed. You can download and upload the media files between CF card and your PC.

  • Page 17: Network Setup

    (Wi-Fi function only for MPL027PW). DHCP: Enable/ Disable the DHCP function. IP Address: Enter the fixed IP address, Mask, Gateway and DNS for the MPL027P. FTP Server: Enable/ Disable the FTP Server function. You can also change the User ID, Password and port of the FTP Server.

  • Page 18: Timer Setup

    Reboot System: After setting, click “Send” to reboot the MPL027 PS. 10.0 RS-232 FUNCTION Use the tool “Hyper Terminal” or other tools to control the MPL027P with ASCII command. 1. Baud Rates: - Firmware Updating: Set up the baud rate as “115200”.

  • Page 19: Play The Media Files On The Pc

    Keyboard Layout q：POWER -：VOL - w：SLOW R：RETURN *：MUTE >：NEXT !：REPEAT S：SELECT <：PREW ~：SETUP A：Auto Download u：UP #：TV MODE p：PLAY d：DOWN %：AutoPlay P：PAUSE/STEP l：LEFT i：INFO x：STOP r：RIGHT m：NTSC/PAL f：FFW s：ENTER $：SEARCH b：REW C：CLEAR (XXXXX.XXX)：Play The File (xxxxx.xxx is the file name) +：VOL + NOTE：Must include the round brackets.
  • Page 20 Step 7：In the Media Sharing dialog box, select the “Share my media” check box. Step 8：Confirm that the MPL027P is connected to the network. In the list of devices below the “Share my media to” check box, select the device (MPL027P), and click “Allow” to share the media files.
  • Page 21 Step 9：The shared folder will appear on the screen of the MPL027P. Select the folder and click the “ENTER” button on remote control to go into the folder. Step 10：Please select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play, and then press the “ENTER”...

  • Page 22: Video Setup

    Aspecl-ratio: Select TV mode 4:3 or 16:9. HDMI: Select the HDMI output resolution among 480i / 480p/ 720p / 1080i/ 1080p. Select the “Auto EDID”, the MPL027P will scan the display device connected and set the correct resolution automatically. SD Video: Select the SD output mode. (“Video/ S-Video” or “Y.Cb.Cr”) VGA 60Hz: Select the VGA output resolution.
  • Page 23 The “Auto Play” function is turned off, you can change directly the mode to Movies or Pictures. Copy the completed file “HDPlayerSetting.txt” from PC to CF card. Insert the CF card to the MPL027P, the MPL027P will apply the new settings automatically.

  • Page 24: Using The Mpl027P

    13.1 PLAY MEDIA FILES ON THE CF CARD Step 1: Insert the CF card with media files (picture, music, movie), then turn on the MPL027P and press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to take you into the CF card.
  • Page 25 MUTE: Mute the sound while the movie or music is playing. + VOLUME -: Increase/ decrease the volume while the movie or music is playing. SHUFFLE: Turn on/ off the shuffle function. PREV / NEXT: Play the previous/ next file. REPEAT: Select the repeat mode.

  • Page 26: Schedule Function

    14.0 ONLY MPL027PS / PT 14.1.MPL027PS / PT SCHEDULE FUNCTION NOTE: The “NTP Server” or “Local Time” must be set before using the Schedule Function. (refer to 9.3) The Schedule Function is ONLY for Video 14.2 INSTALL THE SCHEDULE SOFTWARE Execute “setup.exe”...
  • Page 27 Modify：Click this button to modify the file in the list. Select the file that you want to modify in the list, and press the “Modify” button. Remove：Click this button to remove the file from the list. Select the file that you want to remove from the list, and press the “Remove” button to delete. Move Up / Move Down：Click these buttons to change the order that the files are played.

  • Page 28: Advance Schedule

    14.5 Advance Schedule In the “Advance Schedule” mode, you can select files that you want to play, and can also set up the volume, the play times, and the initial and end time of each file. There are “Time Setup “ and “File Setup” in the “Advance Schedule”.

  • Page 29: Apply The Schedule On The Mpl027Ps/Pt

    NOTE ： Do not rename the file (schedule.ini), otherwise theMPL027 PS/ PT will not be able to read the file. 14.6 Explanation of the Warning Message No any schedule！Can’t Save！ There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please add and edit a new schedule file first.

  • Page 30: Mpl027Pt Multiple Display Zones

    15. MPL027PT MULTIPLE DISPLAY ZONES 15.1 Setup Scrolling text: Select the language of scrolling text: Latin (English)/ Japanese. Auto Play - MultiLayer: Directly execute Multiple Display function after power on. Multiple Display: - Movie: Display movies with scrolling text. - Movie + PIC (L): Display movies and pictures with scrolling text, and the pictures are on the left. - Movie + PIC (R): Display movies and pictures with scrolling text, and the pictures are on the right.
  • Page 31 Step 2: Select the Multiple Display Zones item to display the movies and pictures with scrolling text immediately.

  • Page 32: Play-Button Box (Bb36 Button Box)

    ---------“ “ ----------- 036.wmv Button 36 Step 2：Insert the CF card to the MPL027P/PS, and the MPL027P/PS will play the default file automatically while powered on. Step 3：Press one of the buttons 1-36 to play the corresponding demo file. Step 4：The MPL027P supports two options (Repeat Default / Repeat All) when the demo file finishes playing.

  • Page 33: Pir Sensor (Pir)

    Application 2: The PIR is a motion detector. 17.1 Using the PIR Sensor Step 1：Insert the CF card to the MPL027P, and the MPL027P will play the default file automatically while powered on. Step 2：After sensing approaching subjects, the MPL027P will play the first demo file.
