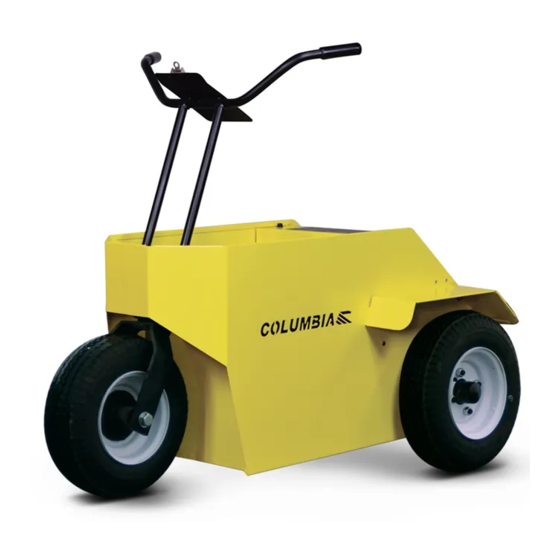

Columbia CR-10 Chariot Owner's Manual

Electric vehicles
Hide thumbs Also See for CR-10 Chariot:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Owner's
and
Operator's
Manual
CR-10
Chariot
Electric
Vehicles
PN 709642-03
5/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-10 Chariot and is the answer not in the manual?

Questions and answers

Related Manuals for Columbia CR-10 Chariot

Summary of Contents for Columbia CR-10 Chariot

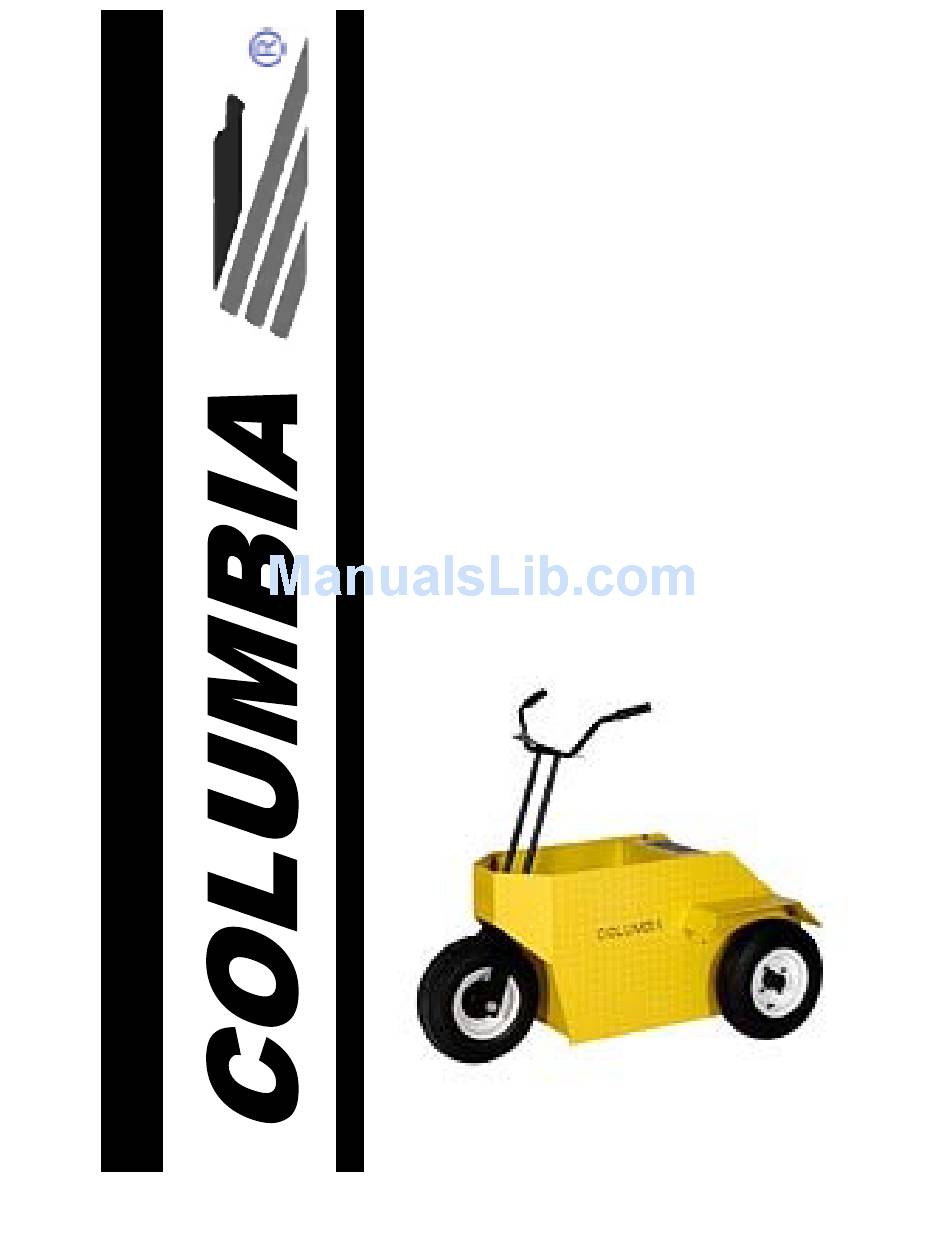

  • Page 1 Owner’s Operator’s Manual CR-10 Chariot Electric Vehicles PN 709642-03 5/2011...
  • Page 2 ANSI B56.8. Your safe use and operation of your vehicle is important to us. Any alteration of your Columbia vehicle that results in the vehicle being in noncompliance with applicable ANSI standards is strictly prohibited.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.0 INTRODUCTION 1.1 SAFETY MESSAGES 1.2 VEHICLE DESCRIPTION 1.3 VEHICLE IDENTIFICATION NUMBER (VIN) 1.4 VIN MATRIX 1.5 VEHICLE SPECIFICATIONS 2.0 SAFETY 2.1 GETTING STARTED 2.2 SAFETY VEHICLE STATEMENTS 2.3 SAFETY WARNINGS 2.4 SAFETY CONCERNS 2.5 LIFTING INSTRUCTIONS 2.6 BATTERY DISCONNECT METHODS 2.7 BATTERY REMOVAL AND INSTALLATION 3.0 OPERATIONS AND CONTROLS...
  • Page 4 NOTICE: In an effort to streamline product support, please ensure your vehicle is properly registered with Columbia ParCar. Registration allows for more effective product support including product updates and warranty processing. Please consult with your servicing dealer to verify or complete the registration process.

  • Page 5: Introduction

    The information in this manual is limited to care and maintenance information only. Information covering repairs and technical service is provided in detailed service manuals available from Columbia Dealers. These activities require the attention of a skilled technician and the use of special tools and equipment.

  • Page 6: Vin Matrix

    The VIN is also stamped on the metal cross bar located under the foot treadle platform. See Figure 1.3.2. To ensure prompt service when repairs or adjustments are required, your Columbia Dealer must have the VIN. Figure 1.3.2 CR1A1-0ZG1234 is an example of a current VIN.

  • Page 7: Safety

    Columbia ParCar Corporation’s specific recommendation that the following warnings must be observed at all times. Not all are repeated throughout this manual, but the recommendations included must be observed whenever these subjects (indoor vehicle operation hazards, battery hazards, etc.) are...

  • Page 8: Safety Warnings

    Your safety and the safety of others depend on your safe operation and maintenance of this vehicle. Prior to operation, you, the operator, must be thoroughly familiar with this and all other sections of this manual. 2.3 SAFETY WARNINGS For personal safety and to maintain stability and control, operate this vehicle under these conditions only.

  • Page 9: Lifting Instructions

    2.5 LIFTING INSTRUCTIONS Use extreme caution lifting or working on or around lifted vehicle. Vehicle should be on a flat, hard and level surface. When lifting the vehicle for service, remove key and use a sturdy lifting device such as a hoist or floor jack placed under the Chariot body.

  • Page 10: Operations And Controls

    Columbia Dealer for service. If any problems are found, Do not operate vehicle until repairs are made. Failure to make necessary repairs could result in fire, severe personal injury, property damage or death. Consult your local Columbia Dealer for professional service.

  • Page 11: Vehicle Controls

    3.3 VEHICLE CONTROLS This section describes the operating controls of the vehicle. Figure 3.3.1 identifies the locations of many of these controls. Figure 3.3.1 3.3.1 KEYSWITCH – Figure 3.3.1 Arrow A The keyswitch energizes the vehicle. Rotate the key to the right from vertical to turn the vehicle on, return to vertical to turn the vehicle off.

  • Page 12: Horn Button

    3.3.7 WARNING LABEL and OPERATING INSTRUCTION - Figure 3.3.1 Arrows G & H Read the warning label and operating instruction information carefully before operating the vehicle. Do not remove any nameplate, warnings, or instructions affixed to your Columbia Vehicle. Promptly replace any that become damaged or removed. Contact Columbia ParCar for replacements.

  • Page 13: Vehicle Operating Instructions

    3.4 VEHICLE OPERATING INSTRUCTIONS 3.4.1 DRIVING THE VEHICLE  Do not operate vehicle unless you are a qualified and trained operator.  Keep the vehicle under control at all times.  Drive only on level surfaces or on surfaces having an incline of no more than 10%. ...

  • Page 14: Electric System

    4.0 ELECTRIC SYSTEM 4.1 IMPORTANT INFORMATION The type of battery used in a Columbia vehicle has a service requirement which is quite different from that of an automotive battery. The electric vehicle battery supplies all of the power to drive the vehicle. During operation the power stored in the batteries is expended.

  • Page 15: Battery Inspection & Maintenance

    Do not attempt to recharge batteries with a charger not designed for your vehicle. Only trained technicians should service the CR-10 charger. Contact your Columbia Dealer for assistance. 4.2 BATTERY INSPECTION & MAINTENANCE Check the electrolyte level on new batteries before they are put into service, and, at a minimum, once a week thereafter.

  • Page 16: Battery Cleaning

    4.5 BATTERY CHARGING 4.5.1 CHARGER INFORMATION The built-in battery charger is custom made for Columbia vehicle CR-10 Models. Its operation is totally automatic. When connected to a 110 - 120 Volt AC power source, the charger's electronic timer will turn the charger on.

  • Page 17: Low Battery Reset Switch

    4.5.3 LOW BATTERY RESET SWITCH: This is used if the batteries are heavily over discharged. When the AC cord is connected, the RED light will turn on but will shortly turn off. To reactivate the charger, push the reset button for 10 seconds. This will restart the charger.

  • Page 18: Vehicle Troubleshooting

    Batteries for loose terminals, corrosion, electrolyte level or state of charge. Brakes dragging Runs slow Under inflated or flat tires. Wheels for binding, do not spin freely. If these test procedures do not resolve your vehicle problem, contact your Columbia Dealer for service.

  • Page 19: Servicing Your Vehicle

    5.0 SERVICING YOUR VEHICLE MAINTENANCE GUIDELINES To ensure that the vehicle is kept in a safe and correct operating condition, it must be inspected and maintained on a regular basis. Proper lubrication, electrical control adjustments, safety feature checks, etc. performed at recommended intervals will help prevent damage or failure of the unit while providing optimum performance.

  • Page 20: Cleaning

    5.2 CLEANING Wash underside to remove all dirt and debris. Do not direct high pressure water at the speed switch or tops of the batteries. Wash body and seat with a mild detergent. Do not use abrasives (bodies are painted). Frequent washings with mild soap will preserve the finish of your vehicle.

  • Page 21: Maintenance Schedule - Qualified Technician

    5.4 MAINTENANCE SCHEDULE - QUALIFIED TECHNICIAN It is recommended that the following be performed by a trained qualified technician or your Columbia Dealer Item Operation Check treadle adjustment, motor Drive mounting hardware, and drive chain adjustment Test batteries Electrical Inspect motor condition and operation.

  • Page 22: Vehicle Storage

    6.0 VEHICLE STORAGE (over 6 weeks) 6.1 BATTERY PREPARATION Before storage make sure batteries are fully charged and the electrolyte is full in all cells per Section 4.2. Clean the batteries and connections per Section 4.3. Recharging will be necessary during storage. Frequency for recharging is as follows: STORAGE TEMPERATURE CHARGE AT Below 4...
  • Page 23 1115 Commercial Avenue • Reedsburg, WI 53959 Phone: (608) 524-8888 • Fax: (608) 524-8380 (800) 222-4653 • Web: www.parcar.com...
