Summary of Contents for Artcoustic Spitfire Control Series

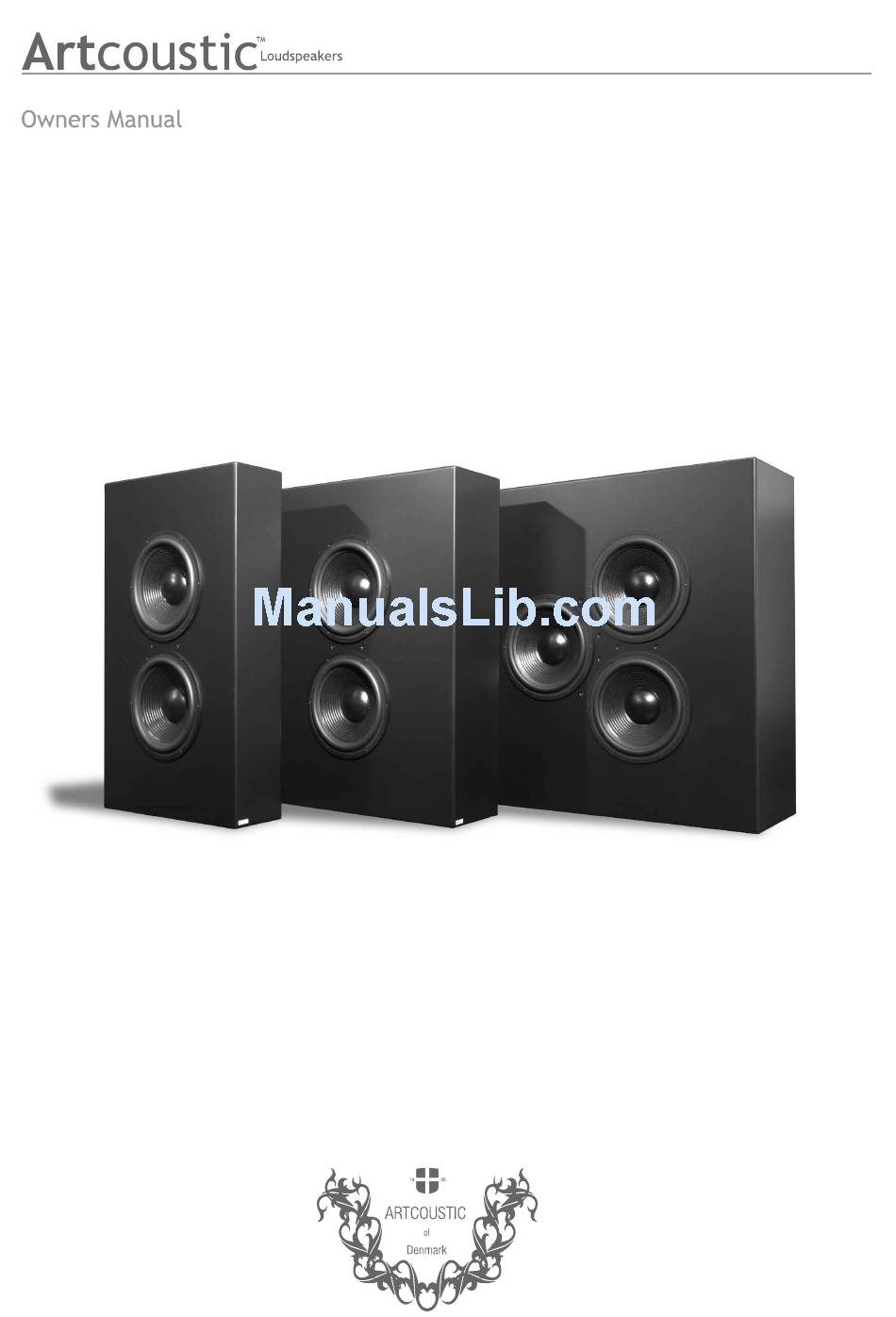

- Page 1 Spitfire Control Series Subwoofer High Sound pressure Level Professional Subwoofers www. artcoustic.com...
-
Page 2: Components Overview

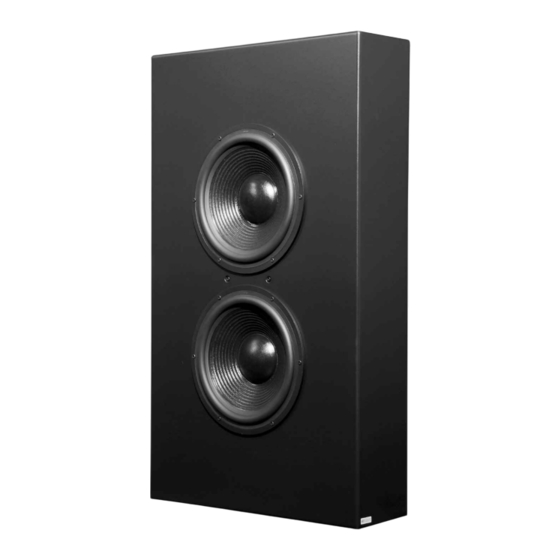

Spitfire Control Series Subwoofer High Sound pressure Level Professional Subwoofers Spitfire Control 1 Dual Coupled Professional Subwoofer Features: Long throw bass units High long term power handling Very low distortion Very high SPL - Remarkable dynamic range and transient response... - Page 3 Spitfire Control 1 Subwoofer Specification Spitfire Control 1 Subwoofer Transducer: LF 2 x 10 inch long throw cones Connection: Single Amped Gold Plated Push Terminals Performance: Operating Range 20 Hz to 120 Hz Nominal Beamwidth omni directional Axial Sensitivity (half space SPL) LF 95 dB Input Impedance Nominal Minimum 11 ohms Maximum Power Handling 500 Watt Calculated Axial Output Limit (half space SPL) Average Peak @ 20Hz 107dB @ 30Hz 113dB @ 40Hz 118dB...
- Page 4 Spitfire Control Series Subwoofer High Sound pressure Level Professional Subwoofers Spitfire Control 2 Dual Coupled Professional Subwoofer Features: Long throw bass units High long term power handling Very low distortion Very high SPL - Remarkable dynamic range and transient response...
- Page 5 Spitfire Control 2 Subwoofer Specification Spitfire Control 2 Subwoofer Transducer: LF 2 x 10 inch long throw cones Connection: Single Amped Gold Plated Push Terminals Performance: Operating Range 20 Hz to 120 Hz Nominal Beamwidth omni directional Axial Sensitivity (half space SPL) LF 95 dB Input Impedance Nominal Minimum 11 ohms Maximum Power Handling 500 Watt Calculated Axial Output Limit (half space SPL) Average Peak @ 20Hz 111dB @ 30Hz 117dB @ 40Hz 121dB...
- Page 6 Spitfire Control Series Subwoofer High Sound pressure Level Professional Subwoofers Spitfire Control 3 Triple Coupled Professional Subwoofer Features: Long throw bass units High long term power handling Very low distortion Very high SPL - Remarkable dynamic range and transient response...
- Page 7 Spitfire Control 3 Subwoofer Specification Spitfire Control 2 Subwoofer Transducer: LF 3 x 10 inch long throw cones Connection: Single Amped Gold Plated Push Terminals Performance: Operating Range 15 Hz to 120 Hz Nominal Beamwidth omni directional Axial Sensitivity (half space SPL) LF 95 dB Input Impedance Nominal Minimum 16 ohms Maximum Power Handling 750 Watt Calculated Axial Output Limit (half space SPL) Average Peak @ 15Hz 112dB @ 20Hz 116dB @ 30Hz 121dB @ 40Hz...
- Page 8 Professional Single Channel Amplifier PA-250 & PA-750 Professional Single Channel Amplifier Artcoustic has designed and engineered the PA-250 & PA- 750 Professional Single Channel Amplifier. The PA-260 & PA- & PA-750 performs smoothly and accurately even in the most demanding conditions. The PA-250 & PA-750 is matched to all the Artcoustic subwoofer’s impedance and tonality,...
- Page 9 Professional Single Channel Amplifier PA-250 Rear Panel PA-750 Rear Panel PA-250 Front Panel PA-750 Front Panel...
- Page 10 Professional Single Channel Amplifier PA-250 Front Panel PA-750 Front Panel with optional rack mount PA-250 Rear Panel PA-750 Front Panel...
- Page 11 Professional Single Channel Amplifier Connect up to two Spitfire Control subwoofers Average impedance 4- 8ohm load...
