Summary of Contents for Artcoustic Diablo Sub Panel X2
- Page 1 Diablo Sub Panel X2 Manual...
- Page 2 Artcoustic hand-picks artists from around the world and invites them to create exclusive artworks for the Artcoustic Artist Portfolio. The Artcoustic Artist Portfolio is available for viewing at all specialist Artcoustic dealers. View our latest selection on the Gallery section of the Artcoustic web...
- Page 3 Artcoustic product range Diablo Target H:200 W:200 D:69mm Diablo C-1 X2 Diablo Monitor X2 Diablo Sub Panel H:126 W:650 D:85mm H:330 W:270 D:73mm H:500 W:500 D:144mm DF-Multi 43” X2 H:150 W:1030 D:74mm DF65-50 X2 H:650 W:500 D:97mm DFS75-55 Subwoofer H:750 W:550 D:133mm DF-Multi 50”...

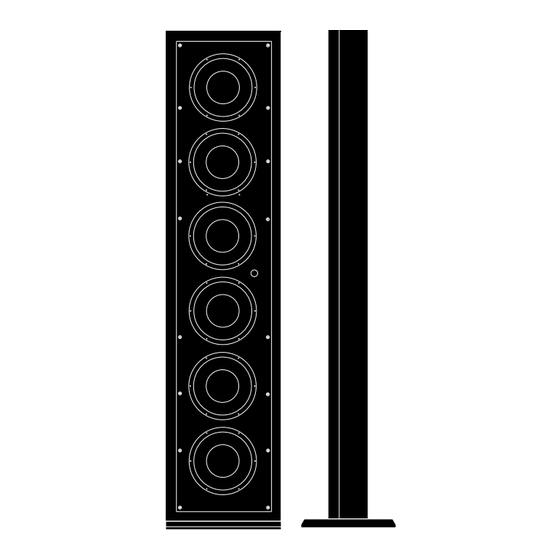

- Page 4 The Diablo Sub Panel is the perfect complement for all the Black Silver White speakers in the Artcoustic range. It is extremely versatile and can hang on the wall or stand on the floor, It employs twin 10" Bottom X2 long-throw woofers and the X2 bass system to precisely...
- Page 5 INSTALLATION OF WALL-HANGING MODELS Artcoustic speakers are designed to be wall mounted. Steel plates on the back of the speaker hang onto steel hooks that attach to the wall. If the speaker is positioned higher than a natural listening position, it can be tilted downward (3 - 5 degrees) by means of a wood stand off as shown below in order to better direct the sound.
- Page 6 Passive crossover (0) 120Hz. 6dB. octave (home cinema applications) (1) 60Hz. 18dB. octave (hi-fi only) 1200watt into 4ohm Subwoofer LFE in Artcoustic PA-1800 3 channel Amplifier Spare channel Spare channel (Example Front left) (Example front right)
- Page 8 1060 COPENHAGEN K DENMARK TEL: +45 3283 6060 FAX: +45 3283 6064 @ : a r t c o u s t i c @ a r t c o u s t i c . c o m www.artcoustic.com...
