WT-4C Page 2 of 13 @2012.11-V1.0 Contents Instruction...................2 Outline Drawing................2 Wiring Diagram................2 Installation Instructions............3-6 Checking after Installation............7 Trial Operation................8 Attentions…………………………………..…….……..…...9-10 Common Malfunction Analysis and Maintenance………...11-12 PICTURES ARE ONLY FOR INFORMATION, TAKE MATERIAL OBJECT AS STANDARD... -
Page 3: Instruction

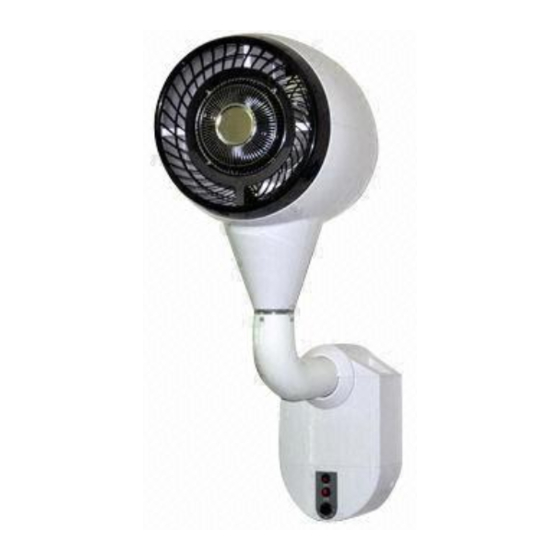

WT-4C Page 3 of 13 @2012.11-V1.0 ■Instruction Misting Air Coolers adopt user-friendly design and colorful appearance. The mist particles (diameter of 10-25 microns) emitted by misting device will take away the heat through evaporation, which travel to target area when the fan blows. In the effective area, it can decrease temperature by 3-8℃and help increase relative humidity, reduce dust and purify air, which makes a comfortable living &... - Page 4 Picture 1 Elbow Screws: 4x M8*80 Picture 2 Picture 3 4 x M6*16 Outlet pipe: orange; Inlet pipe: blue. Leads: 6pin/4pin/3pin...
- Page 5 Picture 4 Screws: 4xM8*80 Picture 5 Water tank 4 x M6*16 Picture 6 Leads of the fan head Leads of the lower part 4xST4*20...
- Page 6 Outlet pipe: orange; Inlet pipe: blue—connect submersible pump Picture 7 Regulating Valve Submersible pump Floater Picture 8 2 x ST4*16 Upper cover Power cord Joint of the inlet pipe...
-
Page 7: Checking After Installation
WT-4C Page 7 of 13 @2012.11-V1.0 Checking after Installation 1. Install the product according to the Instructions, check whether all the parts are firmly connected. 2. Twirl the impeller with insulating material, like batten. Check the normal rotation and isolation between the blades and casing. ... - Page 8 Misting Switch Swaying Switch Blowing Switch...
-
Page 9: Attentions
WT-4C Page 9 of 13 @2012.11-V1.0 regulating switch” from “Min” to “Max”. ■ Attentions: Please carefully read the following items: Caution:The product MUST be connected to the power with leakage protection device. Make sure firmly plugged Be sure not to take off the Be sure not to damage or use ... - Page 10 WT-4C Page 10 of 13 @2012.11-V1.0 Power off while adding The voltage used can be Power off the product immediately water or cleaning the product. fluctuated within the rated once there are some abnormalities. voltage range. Too low or too high voltage may damage the motor.
-
Page 11: Common Malfunction Analysis And Maintenance
WT-4C Page 11 of 13 @2012.11-V1.0 Be sure not to repair the Be sure not to put finger or The elderly, weak and children ◆ ◆ ◆ product by yourself. stick into the net of the fan head shall not be blower directly by the fan. - Page 12 WT-4C Page 12 of 13 @2012.11-V1.0 ※ Power failure? ※ The plug is loose from the socket? ※ Circuit protection device is tripping? ※ Leakage protector is off? It does not work ※ Check if the voltage is too high or too low? （...
- Page 13 5 6 7 8.
- Page 14 When You Receive Your Product: If Your Product is.. oduct Feedback Please contact the manufacturer: LAVA AIRE ITALIA 888.779.5282 or LAVA AIRE ITALIA Toll free No.: 1.888.779.LAVA 1.888.779.5282 Addr.: 5999 Malburg Way, Vernon, CA, 90058...
- Page 15 Lava Aire was originally founded by lead designer and chief engi- neer, Mr. JR Zioni in Modena, Italy in 1997. Today Lava Aire Italia has expanded to the USA and offers well over 100 innovative heating, cooling and home appliance products worldwide.
