Models Available; Dimensions And Clearances - GE Monogram ZDW24 WW Installation Instructions Manual

ZDW24 WW
Model
White Wine Chiller
Available
ZDW24 BB
Black Wine Chiller
Front ventilation allows the wine chiller
Dimensions
to be installed as a built-in and still operate
& Clearances
efficiently.
The bottom front grille area must remain
unobstructed for proper air circulation and
operation.

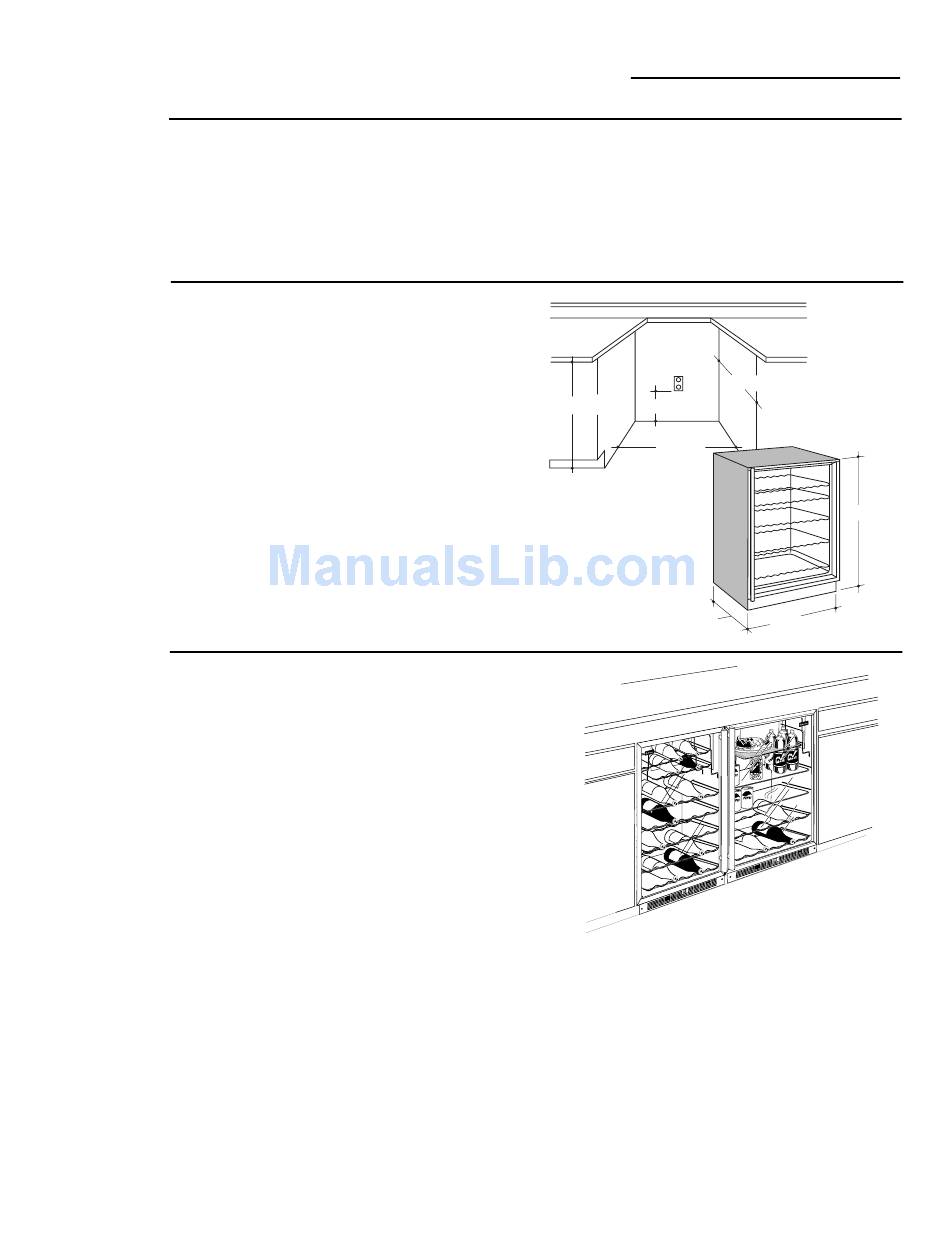

Cutout dimensions shown allow for a full door
swing and access to the pull-out racks.
Increase storage capacity by installing two
Installation
Monogram wine chillers side by side. Or,
Options
install the wine chiller next to a Monogram
beverage center for a complete refreshment
center.
A side by side installation requires a 48" wide
opening. No trim kits required.
• The glass door fronts should align evenly
with adjacent cabinet door fronts.
Frameless Cabinets:
• If installing between frameless cabinets, a
1/2" wide filler strip or side panel may be
required. The filler strip will act as a spacer
between the door case and adjacent cabinet
and will prevent interference with cabinet
door swing. The width of the opening must
include filler panels.
Provide two separate properly grounded
electrical outlets for a side by side installation.
Each electrical outlet should have a voltage
rating that matches the rating plate.
Design Information
The Monogram wine chiller adds an eloquent
statement of style, convenience and flexibility.
The Monogram wine chiller can be used
freestanding or as a built-in.
34-1/2"-35"
Wine Chiller
Locate
Outlet
24" Min.
5"
24" Min.
24-1/8"
23-7/8"
34-1/2"
3
