Insert the SD card into the SD card slot and make sure it snaps IN fully
•
Plug the included AC adapter. (110/240 V AC to 12V DC)
•
Confirm that all 4 Red LED lights in front of this unit are double blinking
•
Confirm that STATUS LED light turns ON
•

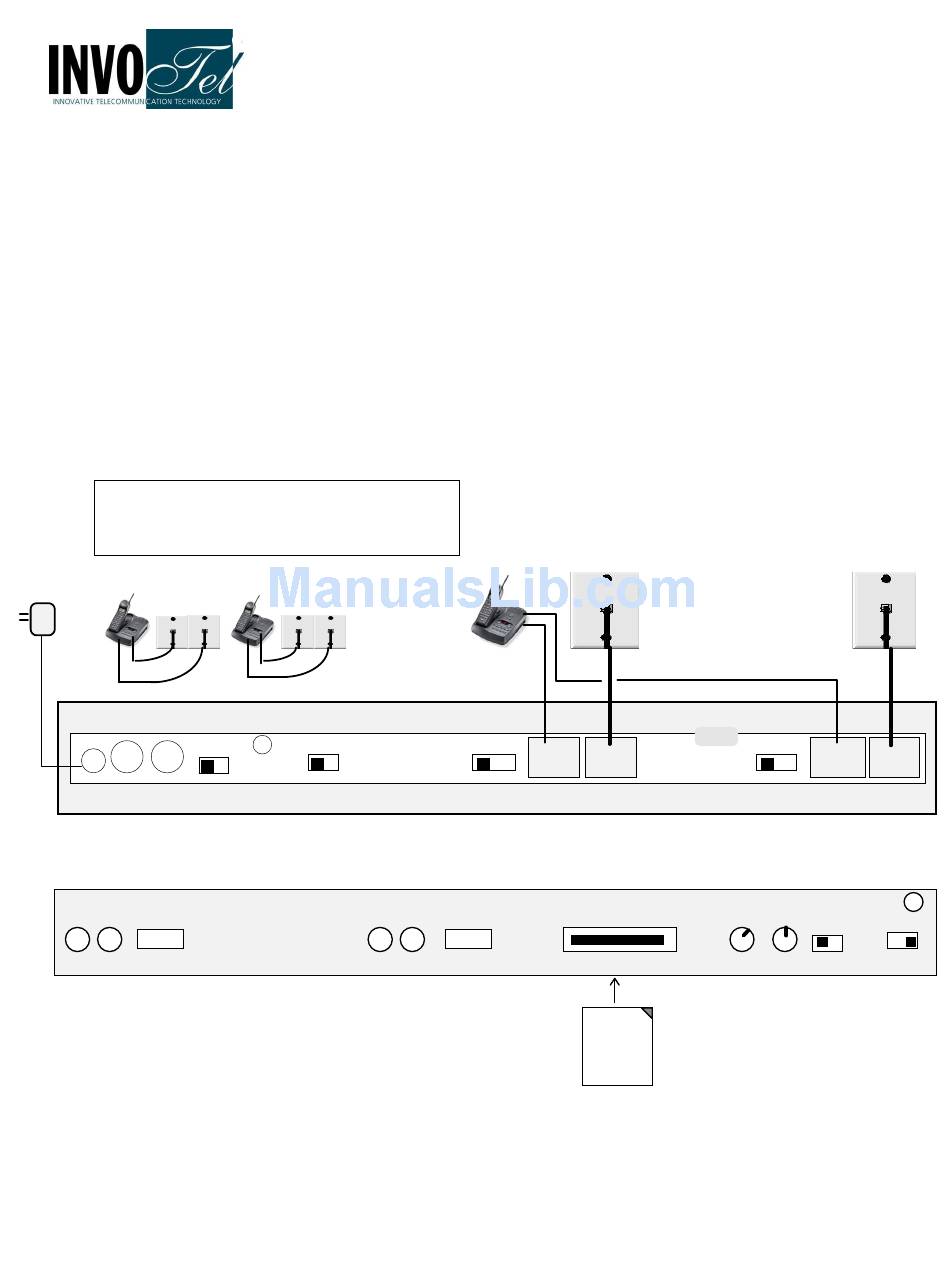

Use one of your telephones and unplug the cord for L1/L2 from it and connect it to L1/L2 IN jack on
•
SX8800, now connect L1/L2 OUT jack to your telephone using the provided phone cord, make sure
you have dial tone on your lines 1 and 2
Now unplug the cord for L3/L4 from your phone and connect it to L3/L4 IN jack on SX8800
•
and connect L3/L4 OUT jack on SX8800
jack)
phone cord, make sure you have dial tone on your lines 3 and 4
Observe that as you connect the lines the blinking lights turn OFF.
•
and that is OK)
Alternatively you may use a splitter (T adapter) at the Wall jack to connect both this device and a
• • • •
telephone
Turn the Speaker ON and Adjust the volume to mid level.
• • • •
Please note: just one telephone may be
connected to this device, other telephones
remain connected to their own wall jacks.
110/240 V
12VDC 600Ω 8Ω
OUTPUT MODE
L3
L4
A B C
All-In-One Professional Music-On-Hold
MP3 USB/SD Digital Player/Adapter with Auto Answer
Models: SX8800-4LPE-AA, SX8800-2LPE-AA
(in that case the L1/L2 OUT and L3/L4 OUT jacks are not connected)
EXT
SD EXT
1 2
INPUT
BANK
nd
(2
jack from right)
1 2 3
L1/L2
OUT
Back of SX8800
L1 L2
A B C
Front of SX8800
Rev 29
to your telephone using the provided
(on non existing lines the lights keep blinking
1/2
USB
L1/L2
IN
VOLUME TONE
SD Card slot
SD Card
(the rightmost
3/4
1 2 3
L3/L4
L3/L4
OUT
IN
STATUS
OFF ON
OFF ON
BASS
SPEAKER
Advertisement
Table of Contents
Related Manuals for invotel SX8800-2LPE-AA
Summary of Contents for invotel SX8800-2LPE-AA
- Page 1 All-In-One Professional Music-On-Hold MP3 USB/SD Digital Player/Adapter with Auto Answer Models: SX8800-4LPE-AA, SX8800-2LPE-AA Rev 29 Insert the SD card into the SD card slot and make sure it snaps IN fully • Plug the included AC adapter. (110/240 V AC to 12V DC) •...
- Page 2 Connection Test: To confirm that you have connected everything correctly: Set Mode switch to SD, Turn Speaker ON, make sure you can hear the audio from the SX8800, adjust the volume up (clockwise) if needed., set two ABC switches in front to C position select line 1 on the phone, L1 LED on SX8800 must turn ON select line 2 on the phone, L2 LED on SX8800 must turn ON select line 3 on the phone, L3 LED on SX8800 must turn ON...
- Page 3 GE: 187, 2-9315-A, 2-9318, 2-9435-A -B -C, 2-9436-A, 2-9438-A, 2-9450-A -B -C -D -E -F, 2-9439-A to -EGL, 2-9451A, 2-9481, 2-9487GE2-A, 2-9488, 2-9638-A, 2-9975, 2-9488GE2-A IBM: 412, 412CID, 4900 ITL-4LT These phones are the most compatible and are available at http://www.invotel.com Northern Telecom: Unity Phonemate: PMG-4600...
- Page 4 1 2 3 Operation in positions 2 or 3 Hang up and set both switches in the back to 2 position via Flash then hold To activate: press then FLASH HOLD To deactivate just re-select that line and press FLASH Voice Deactivation: if the call has been on Hold at least a few seconds, it can also be deactivated by just speaking over the Audio for example say : “Hi I am Back”...
- Page 5 Programming number of Rings and Ring through times Operations Switches set to Result 1 Ring # of Rings to answer the call ← factory preset value 2 Ring initially 4 Ring 3 minutes ←factory preset value # of Minutes to hold the call then 8 minutes ring through.
-
Page 6: Special Cases
Special Cases: Some phones like GE 2-9487GE2-A , GE 2-9488GE2-A and all RCA phones beep every few seconds when the calls are placed on Hold and may not work properly in position 3 settings ( the beep may turn off the Hold Music in some cases) in that case use the position 2 setting or use the 1 position settings and increase the volume a bit so that the beeps are less noticeable to the callers. -
Page 7: Output Mode
Disconnecting from Computer: You may let USB Adapter (if any) remain connected to PC for future updates, just remove the SD card and insert it into the player. The playback automatically starts. If you want to remove the USB adapter or the player from the PC then do as follows ⇒... -
Page 8: Bass Boost
BANK1 BANK2: in Dual mode SX8800 provides an easy slide switch to select which bank or “track” to be played. Flip the switch to BANK1- the SX8800 will play the 1 mp3 file Flip the switch to BANK2- the SX8800 will play the 2 mp3 file Example: BANK1 normal production... -
Page 9: Player Specifications
STATUS LED light and other LEDS: The Status LED will turn ON RED solid when the device is powered ON and working. It blinks one time when the last track is played and it-re-loops. In addition the LED lights located just below the SD card will be blinking yellow to indicate normal playback operation in progress or blink Red when a track or Bank change is being performed. - Page 10 Adapter Trouble Shooting: Problems Possible Cause / Solution Adapter not working Unplug the 12VDC plug from the back of the SX8800 and or stopped working unplug the phone lines; Wait 60 seconds then plug them back in, make sure the AC adapter is plugged in securely. Adapter does not telephone was changed or power failure - do as above, activate or stopped...
-
Page 11: Warranty
SPECIAL PURPOSE. IN NO EVENT SHALL INNOVATIVE TELECOMMUNICATION TECHNOLOGY LLC BE LIABLE FOR LOSS OF PROFITS OR BENEFITS, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. Innovative Telecommunication Technology LLC 1112 Montana Ave Suite 250 Santa Monica, CA 90403 USA http://www.invotel.com Phone: 310-899-0078...
