Plug the USB flash drive/player into USB charger then plug the charger into power outlet. The LED on the
player starts blinking, Flip switch to ON position.
•
Now press & release Play/Pause button on the player
(paused state)
•
Now connect the player to the phone system MOH port via the provided audio cord
•
Now press & release the Start / Next button on the player until the LED starts blinking (Playing starts)
•

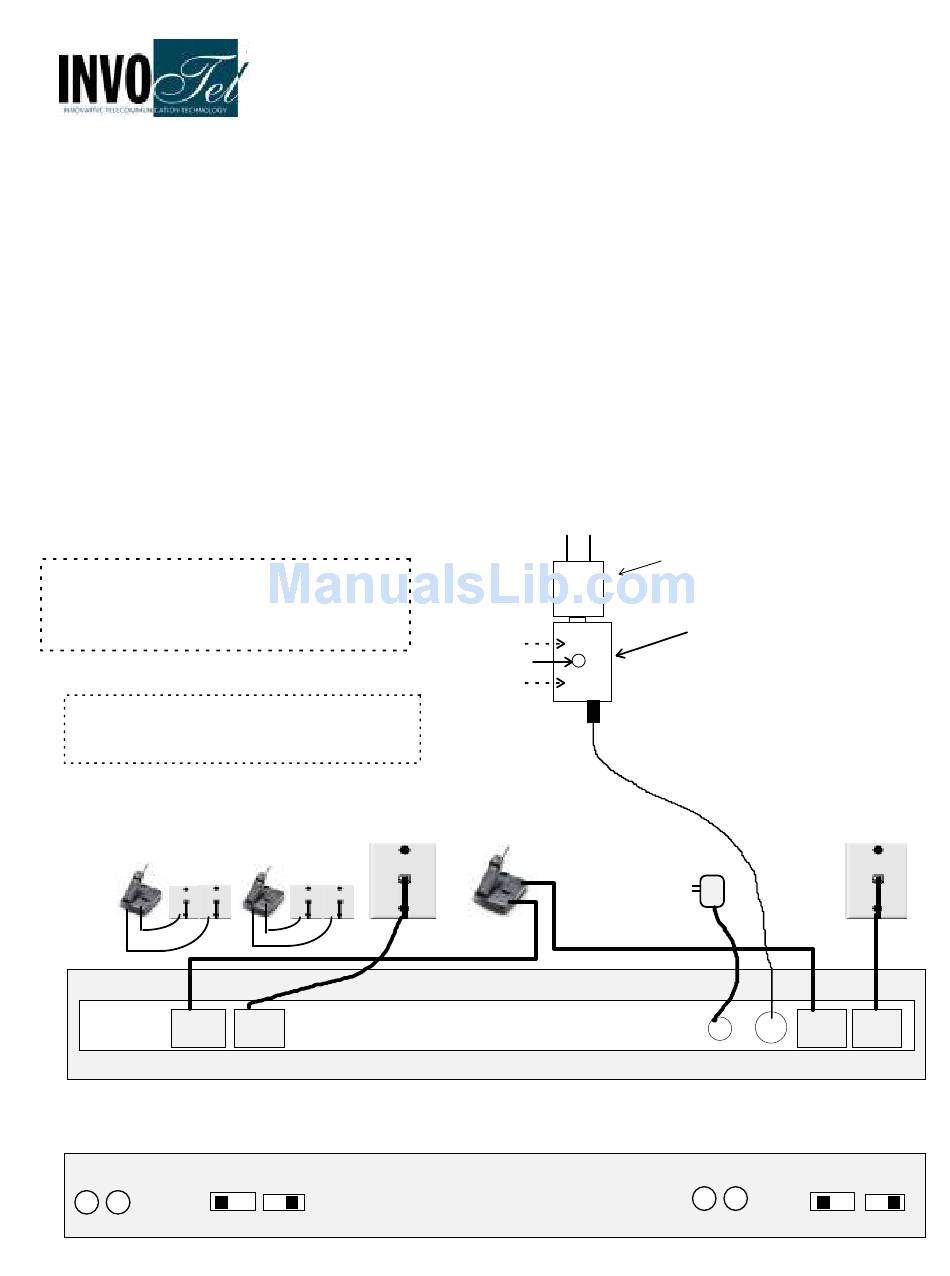

Plug the AC adapter (110 V AC to 12V DC) into the main unit
Confirm that all Red LED lights in front of the main unit are double blinking
•
Use one of your telephones and unplug the cord for L1/L2 from it and connect it to L1/L2 IN jack on SX8800,
•
now connect L1/L2 OUT jack to your telephone using the provided phone cord, make sure you have dial tone
on your lines 1 and 2
If you have the 4 line model now unplug the cord for L3/L4 from your phone and connect it to L3/L4 IN jack on
•
SX8800 and connect L3/L4 OUT jack on SX8800 to your telephone using the provided phone cord, make sure
you have dial tone on your lines 3 and 4
•
Observe that as you connect the lines the blinking lights turn OFF. (on non existing lines the lights keep blinking
and that is OK)
•
Alternatively you may use a splitter (T adapter) at the Wall jack to connect both this device and a telephone (in
that case the L1/L2 OUT and L3/L4 OUT jacks are not connected)
If you want to use your own Audio player such as your
iPOD, CD player, digital player, PC/Mac or any other
mp3 player, simply connect it via the audio cord to the
SX8800 main unit AUDIO INPUT jack.
Please note: just one telephone may be connected to
this device, other telephones remain connected to
their own wall jacks and they all work.
L3/L4
OUT
L1 L2
A B C
Professional Music-On-Hold system
MP3 USB drive Digital Player plus 4 Line Adapter
Model: SX8800-4LPS
3 / 4
L3/L4
IN
1 2 3
Rev 30-B
(the middle circular button)
100-240 V
Volume DN
- - - -
Play/Pause
>>
Volume UP
+ + + +
ON
Back
RECEP
Front
RECEPT
until the LED stops blinking
USB charger
Start / Next
USB flash drive/Player
AUDIO Cord
AUDIO
INTPUT
12VDC
L3
L4
1 / 2
L1/L2
L1/L2
OUT
IN
A B C
1 2 3
Advertisement
Table of Contents
Related Manuals for invotel SX8800-4LPS
Summary of Contents for invotel SX8800-4LPS
- Page 1 Professional Music-On-Hold system MP3 USB drive Digital Player plus 4 Line Adapter Model: SX8800-4LPS Rev 30-B • Plug the USB flash drive/player into USB charger then plug the charger into power outlet. The LED on the player starts blinking, Flip switch to ON position.
-
Page 2: Important Note
Connection Test: To confirm that you have connected everything correctly: set two ABC switches to C position and the two 123 switches to 3 position, select line 1 on the phone, L1 LED on SX8800 must turn ON and you should hear audio from the phone Line 1 select line 2 on the phone, L2 LED on SX8800 must turn ON and you should hear audio from the phone Line 2 select line 3 on the phone, L3 LED on SX8800 must turn ON and you should hear audio from the phone Line 3 select line 4 on the phone, L4 LED on SX8800 must turn ON and you should hear audio from the phone Line 4... - Page 3 Operation in Hold activation: A B C 1 2 3 Hang up and set both switches to A position and both switches to 1 position Start with A1, make or receive a real call, the LED on the SX8800 turns ON solid, then simply press the HOLD button on your telephone, the Music will be heard to the caller and the LED on the SX8800 will start to BLINK , to return to the call just re-select that line.
- Page 4 A B C 1 2 3 Operation in B1, B2 settings: Hang up and set both switches to B position and both switches to 1 position To activate: press then FLASH HOLD To deactivate just re-select that line and press FLASH Voice Deactivation: if the call has been on Hold at least a few seconds, it can also be deactivated by just speaking over the Audio for example say : “Hi I am Back”...
- Page 5 A B C 1 2 3 Operation in C1, C2 settings: Hang up and set both to C position and both switches to 1 position C1 and C2 use “voice activation” method, this mode of operation supports most phones or brands by just using the Hold button but with slightly longer activation time (about 10 to 15 seconds after hold is pressed) In “Voice activation”...
-
Page 6: Package Content
Special Cases: Some phones like GE 2-9487GE2-A , GE 2-9488GE2-A and all RCA phones beep every few seconds when the calls are placed on Hold and may not work properly in C2 or B2 settings ( the beep may turn off the Hold Music in some cases) in that case use the B1 setting or use the A settings and increase the volume a bit so that the beeps are less noticeable to the callers. -
Page 7: Audio Input Jack
Disconnecting USB drive from Computer: When you want to remove the USB player from the PC do as follows: ⇒ ⇒ ⇒ ⇒ Double click on the green arrow in the Taskbar located on the lower -right side of the computer screen (Safely Remove Hardware) ⇒... - Page 8 Adapter Trouble Shooting: Problems Possible Cause / Solution Adapter not working Unplug the 12VDC plug from the back of the SX8800 and or stopped working unplug the phone lines; Wait 60 seconds then plug them back in, make sure the AC adapter is plugged in securely. Adapter does not telephone was changed or power failure - do as above, activate or stopped...
-
Page 9: Warranty
LLC BE LIABLE FOR LOSS OF PROFITS OR BENEFITS, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. Innovative Telecommunication Technology LLC AudioImage 1112 Montana Ave Suite 250 Santa Monica, CA 90403 USA 310-899-0078 http://www.invotel.com Phone: ...
