invotel USB 120M User Manual

Problems
• Unplug the power connector wait 30 seconds then plug it back
Player not working or
in. make sure the connector is plugged in securely. Be sure to
stopped working
turn ON the player and observe the Status LED is Blinking ON
and OFF
• Check RCA audio cord; try re-inserting it again, adjust the volume
Player does not turn ON
• Unplug the power connector then slide out the battery cover
or does not turn OFF door toward the USB connector and remove the AAA battery ,
wait 30 seconds, then insert the battery, the cover and power,
then try again.
• If you use Windows 98 SE, ensure to use USB driver is
Cannot Transfer files to
installed properly in your system.
player
• Ensure the player is connected securely to your PC USB port,
or to the supplied USB cable, try another USB port directly or
another cable, Ensure to observe that the Status LED turns
ON solid when you connect the player to your PC USB port.
Audio Volume is too low
• Verify that the audio cord is plugged in securely, Press and Hold
the Volume up button. Have your dealer email you a new "full
volume" MP3 file. In some older phone systems you may need to
adjust the internal volume control in your phone system. Use an
external "MOH amplifier" such as part number SX9500A

Warranty

This product is warranted against defects for a period of Three (3) years from the date of
original invoice. We will repair/replace the product with no charge for parts or labor within this
time. To obtain warranty service the product needs to be returned freight prepaid by the
customer with a copy of original invoice. This warranty does not apply if in the sole opinion of
Innovative Telecommunication Technology LLC, the product has been tampered with or
damaged by lightning or any other acts of nature, misuse, neglect or unauthorized service.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR OTHERWISE,INCLUDING, BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OR MERCHANTIBILITES OR FITNESS FOR A SPECIAL PURPOSE.
IN NO EVENT SHALL INNOVATIVE TELECOMMUNICATION TECHNOLOGY LLC (INVOTEL)
BE LIABLE FOR LOSS OF PROFITS OR BENEFITS , INDIRECT, SPECIAL,
CONSEQUENTIAL OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY
OR OTHERWISE.
®
1112 Montana Ave Suite 250 Santa Monica, CA 90403 USA
Tel: 310-899-0078 Fax: 310-857-6401 http://www.invotel.com
All manuals and user guides at all-guides.com
Possible Cause / Solution

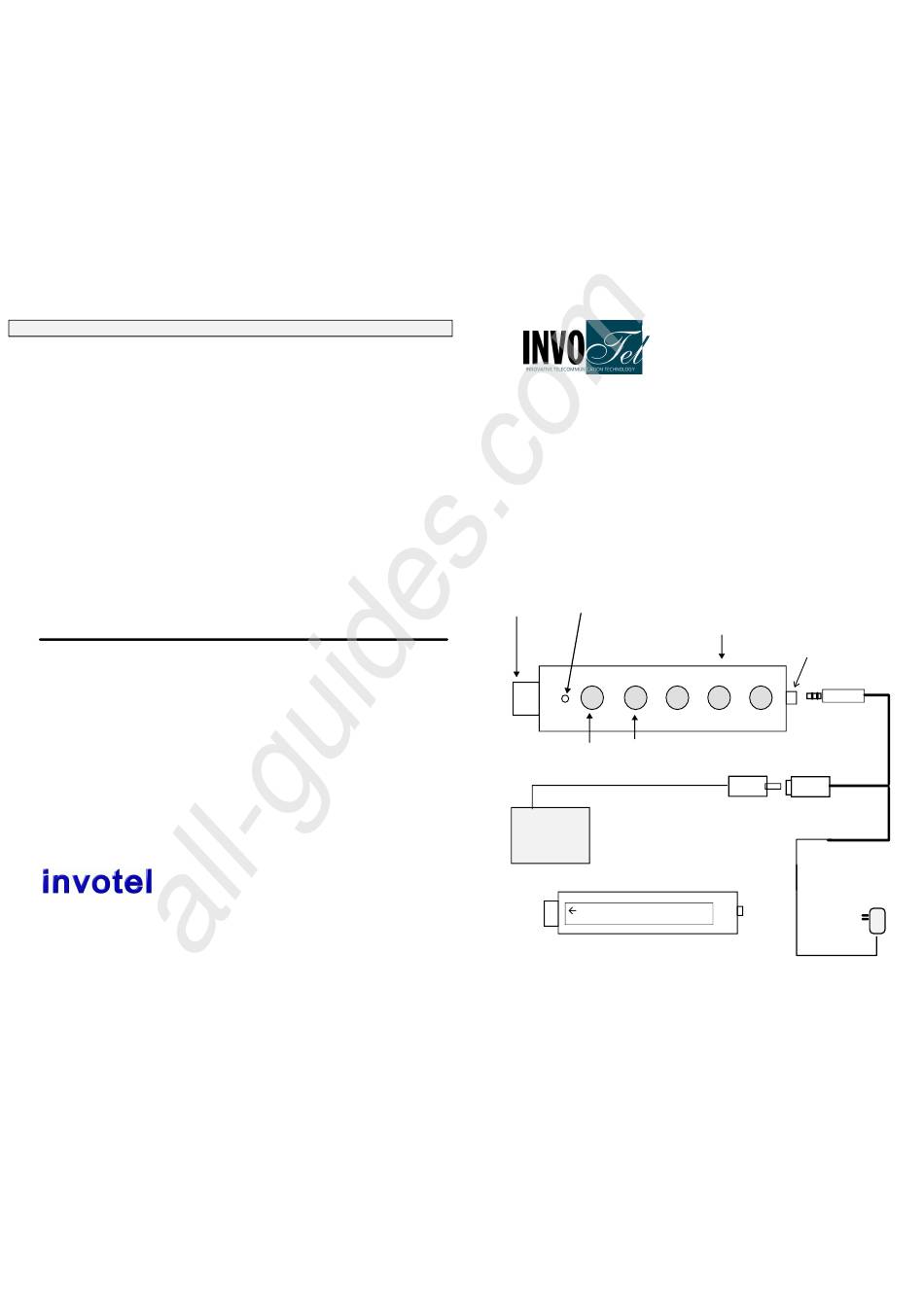

Install the player near the phone system MOH jack using the provided
•
Velcro
Connect the Audio Out to the "Audio & Power "cord as shown
•
Connect the RCA (RED) jack to your phone system MOH jack using the
•
provided RCA-RCA cable (use the RCA to Mono plug adapter if needed)
Plug the AC adapter. (110V AC to 6VDC) to power outlet.
•
Turn On the Player : Press the ON/OFF button
•
LED turns ON, now press it again once to start the play back- LED
begins to BLINK to indicate playing
Adjust Volume level up or down as needed
• • • •
USB connection Status LED
Volume down Volume up
TELEPHONE
SYSTEM
MOH PORT
P4
User Manual
Invotel USB 120M
Music On Hold Digital MP3 Player
ON/OFF
Previous Next
- + < >|| >
slide out to remove battery
Back of USB120M
Rev 04
until the
(about 5 seconds)
Audio Out
"Audio & Power" cord
RED
110 V
