Operating Instructions • Warning Information • Parts Breakdown
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12,000 RPM
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . 90 PSIG
Recommended Air Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . 1.6 CFM (12 SCFM)
Vibration Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 (M/S^2)
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 dBA
Overall Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3"
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 Lbs.
Orbit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/32"
Pad Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3"
WARNING
RATED RPM OF THE ACCESSORY USED
MUST EXCEED THE MAXIMUM TOOL
RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
CAT325
SPECIFICATIONS
WARNING
1
CAT325

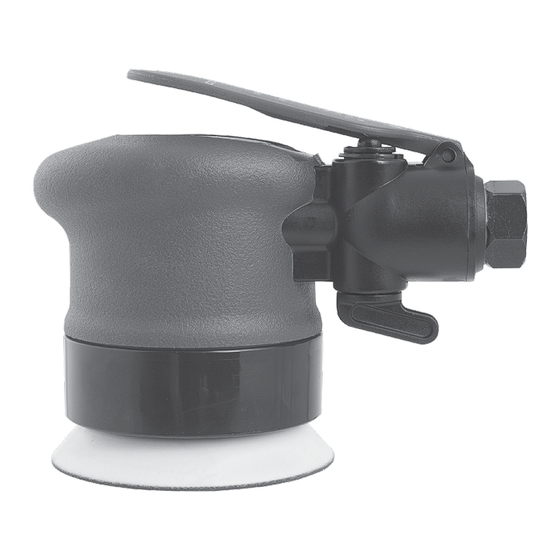

3" 3/32" ORBIT
PALM SANDER
Copyright © Professional Tool Products, 2012
All rights reserved.
12/03/12
Advertisement
Related Manuals for Cornwell Tools CAT325
Summary of Contents for Cornwell Tools CAT325
- Page 1 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive CAT325 harm. Some examples of these chemicals are: • Lead from lead-based paints, 3" 3/32" ORBIT •...
- Page 2 • Air powered tools can vibrate in use. Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful to your hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT325 12/03/12...
- Page 3 Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. Cornwell Quality Tools Company 667 Seville Road • Wadsworth, OH 44281-1094 CAT325 12/03/12...
- Page 4 PARtS bReAKDoWn - cAt325 Ref. # Item # DESCRIPTION QTY. Ref. # Item # DESCRIPTION QTY. RS325001 REGULATOR RS325022 CYLINDER RS325002 O-RING RS325023 O-RING RS325003 SNAP RING RS325024 FRONT PLATE RS31508 O-RING RS221RA32 BEARING (6002ZZ) RS325005 VALVE STEM RS325026 WASHER...
