Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,500 RPM
Pad Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16" x 2-1/2"
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
Minimum Hose Size. . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Maximum Air Pressure . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 8 CFM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16"
Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3/16"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Lbs
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 dBA
CAT315
• Parts Breakdown
WARNING
• MAXIMUM RPM OF 2,500
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
RATED RPM OF THE
ACCESSORY MUST
RPM
RPM
RPM
EXCEED THE MAXIMUM
TOOL RPM SHOWN
CAT315

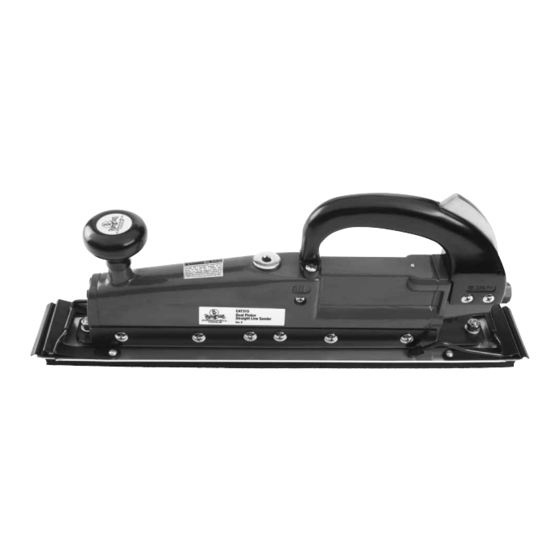

Dual Action
Straight Line Sander
Copyright © Professional Tool Products, 2018
All rights reserved
Rev. 03/27/18
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CAT315
Summary of Contents for Cornwell Tools CAT315
- Page 1 Pad Size ....... . .16" x 2-1/2" CAT315 Air Inlet ........1/4" NPT Minimum Hose Size.
- Page 2 • Use accessories rated at 2,500 RPM or more. di rect air at your self or oth ers. Al ways turn off the air • Use accessories recommended by Cornwell Tools. sup ply, drain hose of air pres sure and de tach tool from air sup ply be fore in stall ing, re mov ing or •...
- Page 3 PARTS BREAKDOWN - CAT315 Ref. # Item # DESCRIPTION Ref. # Item # DESCRIPTION RS28601 Hose Adaptor Rivet RS28602 Cap Screw Compression Spacer RS28603C Rear Cap Fixed Plate RS28604 Valve Spring RS28633 Screw RS28605 O-Ring Foam Pad RS28606 Throttle Valve...
- Page 4 This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. CAT315 Rev. 03/27/18...
