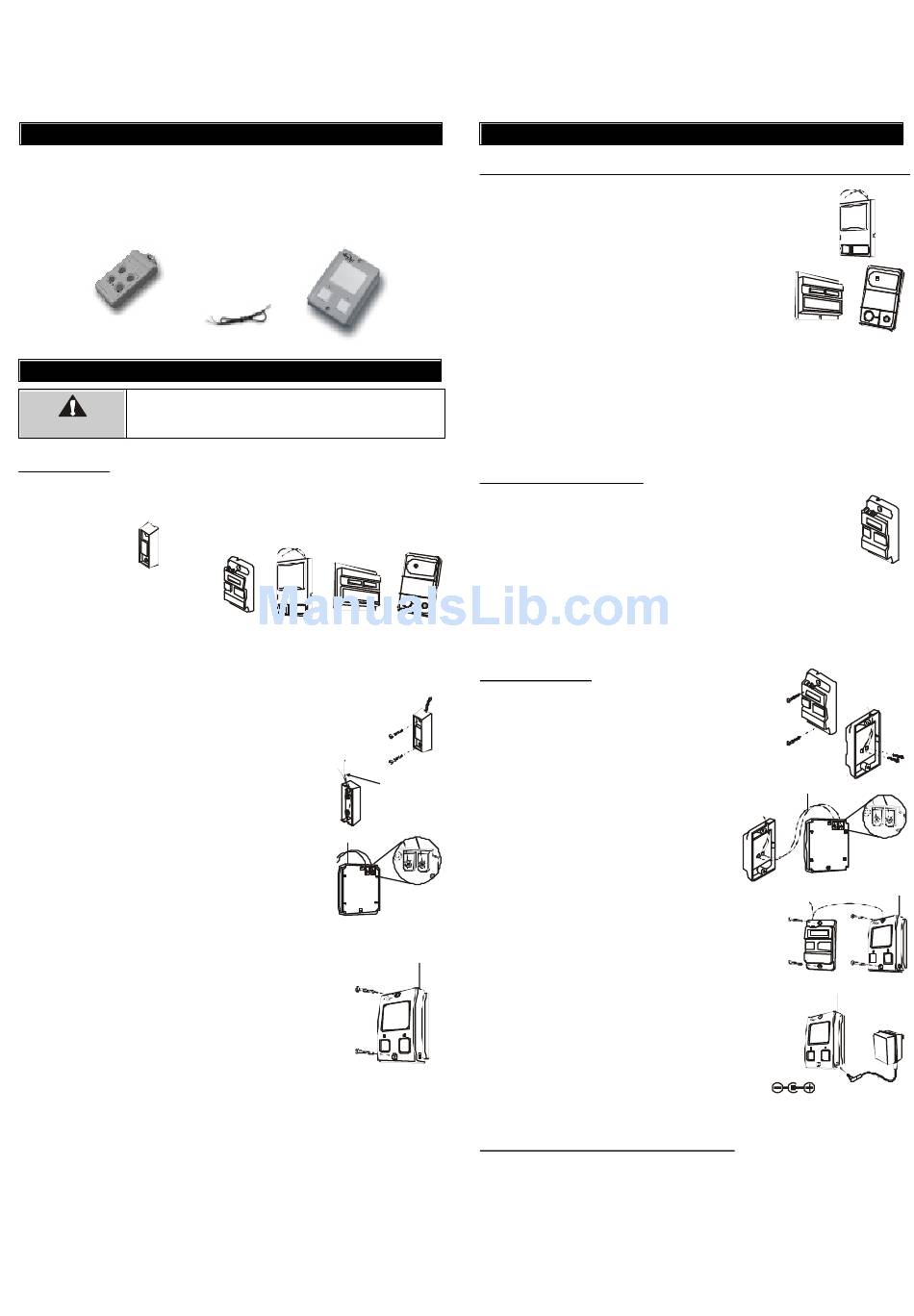

SkyLink GT-110 Installation Manual

Garage Door
Remote Control
1. INTRODUCTION
Congratulations on your purchase of the Skylink
Door Remote Control System. This is a transmitter receiver kit where the
receiver simply replaces your existing garage door opener's push button
or wall console. Installation is very simple, follow the instructions below
to install the Garage One TM receiver GT-100R. This kit comes with the
following items:
4-button
keychain transmitter
(Battery included)
2. INSTALLATION
Unplug the power cord of your garage door opener
before installation to ensure power is not connected.
WARNING
Garage One
TM
The GT-100R Garage One TM replaces most garage door "push buttons"
or "wall consoles". There are 2 different kinds of "push buttons".
1) Single button
2) Multi-Function Wall Console
1) Single button
If your garage door opener equips with a single button "push button",
you can replace the existing push button with Skylink
GT-100R. Please follow the procedures below.
1. Remove the existing push button by removing
the screws.
2. Disconnect the 2 wires that are connected to
the existing push button.
3. Connect these 2 wires to the 2 terminals on the
TM
Garage One GT-100R. Loosen the 2 screws
on the terminals, feed the 2 wires to the 2
terminals and tighten 2 screws to secure the
2 wires.
4. After connecting the 2 wires, the red LED under-
neath the push button will be on. The GT-100R
is now charging up. The GT-100R will be fully
charged when the buzzer emits a beep (approx
10 seconds to 1 minute depending on the brand
of garage door opener), the red LED will then
flash slowly. The GT-100R is now ready to operate.
TM
5. Mount the Garage One to the wall with 2 screws.
6. Straighten up the antenna on the GT-100R.
2) Multi-Function Wall Console
Multi-Function Wall Console normally comes with 3 buttons that can be
used to:
1) operate the garage door opener lighting,
2) lock the receiver so it doesn't accept remote control operation, and
3) push button for door opening / closing
Depending on the brand of garage door opener you have, the installation
is different.
Model GT-110
® Garage One
Garage One
GT-100R
Extension wires
®
Garage One
TM , Garage
Multi-Function Wall Console for Chamberlain
Skylink ® GT-100R Garage One
replace Chamberlain
Multi-Function Wall Console directly. That means if you
have any one of these wall consoles, you can simply
remove the existing wall console and replace it with a
®
Skylink GT-100R. To replace a multi-function wall
console mentioned above, follow the same proce-
dure as to replace a "Single button" wall console.
TM
If your Chamberlain
Multi-Function Wall Console has more than 2 wires, the Skylink
should be installed in parallel with the original Multi-Function Wall Console.
Connect the 2 wires from the GT-100R to the 2 terminals marked "RED"
and "WHT" on your existing Multi-Function Wall Console. Polarity DOES
NOT matter. Note: Do not remove the existing wires from your Multi-
Function Wall Console.
®
Genie Deluxe Wall Console
For the Genie
the "lock" feature will be used.
- If the "lock" feature will not be used, you can simply replace
®
the Genie Deluxe Wall Console with a Skylink
To replace a multi-function wall console, follow the same
procedure as to replace a "Single button" wall console.
- If the "lock" feature will be used, you need to connect the Skylink
in parallel with the Genie
former (sold separately) is needed. Follow the instructions below:
Parallel Connection
TM
1. Remove the existing push button by removing
the screws.
2. Remove the 2 screws that secure the wires
on the Genie
3. Connect one end of the extension wires provided
Remove
in this kit to the 2 terminals on the Genie
existing
console, the other end to the 2 terminals
wires
on the GT-100R wall console.
Polarity DOES NOT matter.
Note: Do not remove the existing wires
from the Genie
4. After connecting the 2 wires, the red LED under-
neath the push button will be on. The GT-100R
is now charging up. The GT-100R will be fully
charged when the buzzer emits a beep (approx
10 seconds to 1 minute depending on the brand
of garage door opener), the red LED will then
flash slowly. The GT-100R is now ready to operate.
5. Mount both w all consoles to the wall with screws.
6. Straighten up the antenna on the GT-100R.
7. Plug in the transformer (sold separately) to Skylink
GT-100R. (For Genie
Rating of the transformer: 12V DC, 100mA
Diameter of DC plug : 3.5mm
Multi-Function Wall Console – Other Brands
For brands other than Chamberlain
Genie ® , the Skylink
original Multi-Function Wall Console. Refer to "Parallel Connection" under
Genie ® Deluxe Wall Console.
2. INSTALLATION (CONT)
®
TM also has 3 buttons. It can
® , Lift-Master , and Sears Craftsman
®
, LiftMaster and Sears Craftsman
® ®
®
Deluxe Wall Console, depending on whether
®
Deluxe Wall Console and an additional trans-
® wall console.
® wall
®
wall console.
® Deluxe Wall Console only)
®
, Lift-Master
® GT-100R should be installed in parallel with the
, Lift-Master , Sears Craftsman
® ®
®
®
GT-100R
®
®
GT-100R.
® GT-100R
Extension
wires
®
® ®
, Sears Craftsman and
