Duo-Therm 600 Series PENGUIN Installation & Operating Instructions Manual

Roof top air conditioner
Hide thumbs Also See for 600 Series PENGUIN:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
USA
SERVICE OFFICE
Dometic Corp.
509 So. Poplar St.
LaGrange, IN 46761
260-463-4858
ALL INITIAL INSTALLATIONS MUST BE APPROVED BY THE SALES DEPT.
CANADA
Dometic Dist.
866 Langs Dr.
Cambridge, Ontario
CANADA N3H 2N7
This manual must be read and un-
519-653-4390
derstood before installation, adjust-
For Service Center
ment, service, or maintenance is per-
Assistance Call:
formed. This unit must be installed
800-544-4881
by a qualified service technician.
Modification of this product can be
extremely hazardous and could re-
sult in personal injury or property
damage.
INSTALLATION & OPERATING
INSTRUCTIONS
REVISION
Form No. 3104994.136 6/03
(Replaces 3104994.128)
(French 3108174.040)
©2003 Dometic Corporation
LaGrange, IN 46761
600 Series PENGUIN
579 Series BRISK AIR
590 Series QUICK COOL
595 Series QUICK COOL

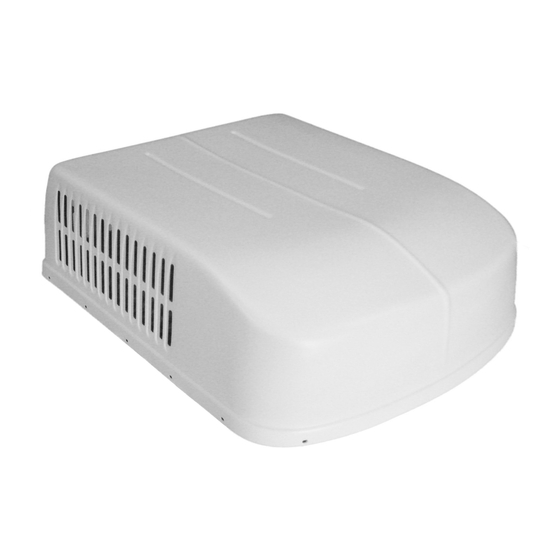

Roof Top Air Conditioner
Part No. 3104998 Relay Kit
WITH REMOTE BI-METAL THERMOSTAT
THIS UNIT IS DESIGNED FOR OEM INSTALLATION
!
WARNING
C
US
Important:
Instructions must stay with unit.
Owner read carefully.
INSTALLATION INSTRUCTIONS DUCTED BI-METAL
RECORD THIS UNIT INFORMATION FOR FUTURE REFERENCE:
Model Number
Serial Number
Date Purchased
USED WITH
DUCTED
!
Lire et comprendre ce manuel avant de
procéder à l'installation, à des réglages,
de l'entretien ou des réparations.
L'installation de cet appareil doit être
effectuée par un réparateur qualifié.
Toute modification de cet appareil peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
57915.521
57908.321
57915.522
57908.331
57908.521
57915.526
57915.531
57912.321
57915.536
57912.531
57915.621
57912.621
57915.622
57912.622
57912.631
57915.626
57915.631
57915.331
57915.731
57915.336
57915.421
59016.521
59016.526
57915.422
59016.621
57915.426
1
AVERTISSEMENT
MODELS
59529.601
59016.626
59529.631
59516.331
59530.531
59516.501
59530.532
59516.506
59530.536
59516.531
59530.601
59516.336
59530.631
59516.536
59530.632
59516.601
600312.321
59516.603
600312.421
59516.606
600315.321
59516.631
600315.326
59528.601
600315.421
59529.531

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 Series PENGUIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duo-Therm 600 Series PENGUIN

Summary of Contents for Duo-Therm 600 Series PENGUIN

  • Page 1 INSTALLATION INSTRUCTIONS DUCTED BI-METAL RECORD THIS UNIT INFORMATION FOR FUTURE REFERENCE: Model Number Serial Number Date Purchased 600 Series PENGUIN 579 Series BRISK AIR 590 Series QUICK COOL 595 Series QUICK COOL Roof Top Air Conditioner USED WITH Part No. 3104998 Relay Kit...

  • Page 2: Safety Instructions

    INSTALLATION INSTRUCTIONS DUCTED BI-METAL SAFETY INSTRUCTIONS 1. GENERAL INFORMATION A. This air conditioner is designed for: This manual has safety information and instruc- 1. Installation on a recreational vehicle at the time the tions to help users eliminate or reduce the risk of vehicle is manufactured.
  • Page 3 INSTALLATION INSTRUCTIONS DUCTED BI-METAL...
  • Page 4 INSTALLATION INSTRUCTIONS DUCTED BI-METAL...

  • Page 5: Air Conditioner

    INSTALLATION INSTRUCTIONS DUCTED BI-METAL 2. PRECAUTIONS It is preferred that the air conditioner/heat pump be installed on a relatively flat and level roof section measured with the WARNING RV parked on a level surface; however, Up to an 8° slant to either side or front-to-back is Improper installation may damage equip- acceptable on 600 Series Air Conditioners.

  • Page 6: Air Distribution System

    INSTALLATION INSTRUCTIONS DUCTED BI-METAL 4. AIR DISTRIBUTION SYSTEM SIZING & DESIGN The Installer of this air conditioner system must design the air distribution system for their particular application. Several requirements for this system MUST be met for the air conditioner to operate properly. These requirements are as follows: A.
  • Page 7 INSTALLATION INSTRUCTIONS DUCTED BI-METAL 5. AIR DISTRIBUTION SYSTEM INSTALLATION A. Dometic Corporation recommends the basic configuration shown on page 8, for installing this air conditioner system. We have found by testing , that this configuration works best in most applications of this air conditioner. It is the responsibility of the Installer of this system to review each RV floor plan and determine the following: 1.
  • Page 8 INSTALLATION INSTRUCTIONS DUCTED BI-METAL C. AIR DISTRIBUTION DUCT INSTALLATION 1. Install the Air Distribution Ducts in the RV Roof Cavity. The Distribution System must meet: a. RV’s requirements b. System requirements listed in Section 4 on page 6 of this Manual. Terminate the start of the Duct at the back edge of the 14-1/4"...
  • Page 9 INSTALLATION INSTRUCTIONS DUCTED BI-METAL 6. THERMOSTAT & CABLE INSTALLATION A. LOCATION The proper location of the thermostat is very important to ensure that is will provide a comfortable RV temperature. Observe the following general rules when selecting a location. Locate the thermostat 54" above the floor. Install thermostat on a partition, NEVER on an outside wall.
  • Page 10 Freeze Control With Wires To Left Side C. Freeze Control installation on 600 Series Penguin Models (See Fig. 8.) 1. Snap freeze control into place on return bend located at right side of evaporator coil as follows: a. Locate “D” shaped notch in flange of evaporator coil.
  • Page 11 INSTALLATION INSTRUCTIONS DUCTED BI-METAL 9. WIRING OF CONTROL SYSTEM A. Position the control box (standing up) with the 6 pin connector to the curb side of the vehicle and the service access facing the rear of the vehicle. B. CONNECTION OF 115 VOLT AC SUPPLY WARNING Disconnect 115 volt AC.
  • Page 12 INSTALLATION INSTRUCTIONS DUCTED BI-METAL 10. INSTALLATION OF AIR CONDITIONER Installing unit with 3105007.XXX or 3105935.XXX Installing unit with 3308120.XXX Genesis Air Filtra- tion System. Return Air Cover. Note: A 12VDC power source is required for this installa- A. INSTALLATION OF CEILING TEMPLATE Check gasket alignment of the air conditioner over tion.
  • Page 13 INSTALLATION INSTRUCTIONS DUCTED BI-METAL Installing unit with 3105007.XXX or 3105935.XXX Installing unit with 3308120.XXX Genesis Air Filtration System, continued from page 12, column B. Return Air Cover, continued from page 12, column 2. Install relay box on ceiling template depending on 5.
  • Page 14 INSTALLATION INSTRUCTIONS DUCTED BI-METAL Installing unit with 3105007.XXX or 3105935.XXX Return Air Cover, continued from page 13, column A. 3. Place divider plate up to bottom of air conditioner base pan firmly. The foam tape on the divider plate must seal to bottom of base pan. See FIG. 14A. Note: The adhesive on the insulation is extremely sticky.
  • Page 15 INSTALLATION INSTRUCTIONS DUCTED BI-METAL 11. INSTALLATION OF INSIDE DECORATIVE COVER. Installing unit with 3105007.XXX or 3105935.XXX Installing unit with 3308120.XXX Genesis Air Filtra- Return Air Cover. tion System. A. Install the slider in the return air cover and raise it to A.
  • Page 16 INSTALLATION INSTRUCTIONS DUCTED BI-METAL RELAY KIT FIELD WIRING DIAGRAM TO T'STAT FREEZE CONTROL RELAY BOARD ELEC CONN ELEC CONN FROM A/C GRN/YEL GRN/YEL 115 VAC 60 HZ 10 115 VAC 60 HZ 10 FIELD WIRING FIELD WIRING USE COPPER CONDUCTORS ONLY USE COPPER CONDUCTORS ONLY FACTORY WIRING LINE SPLICE...
