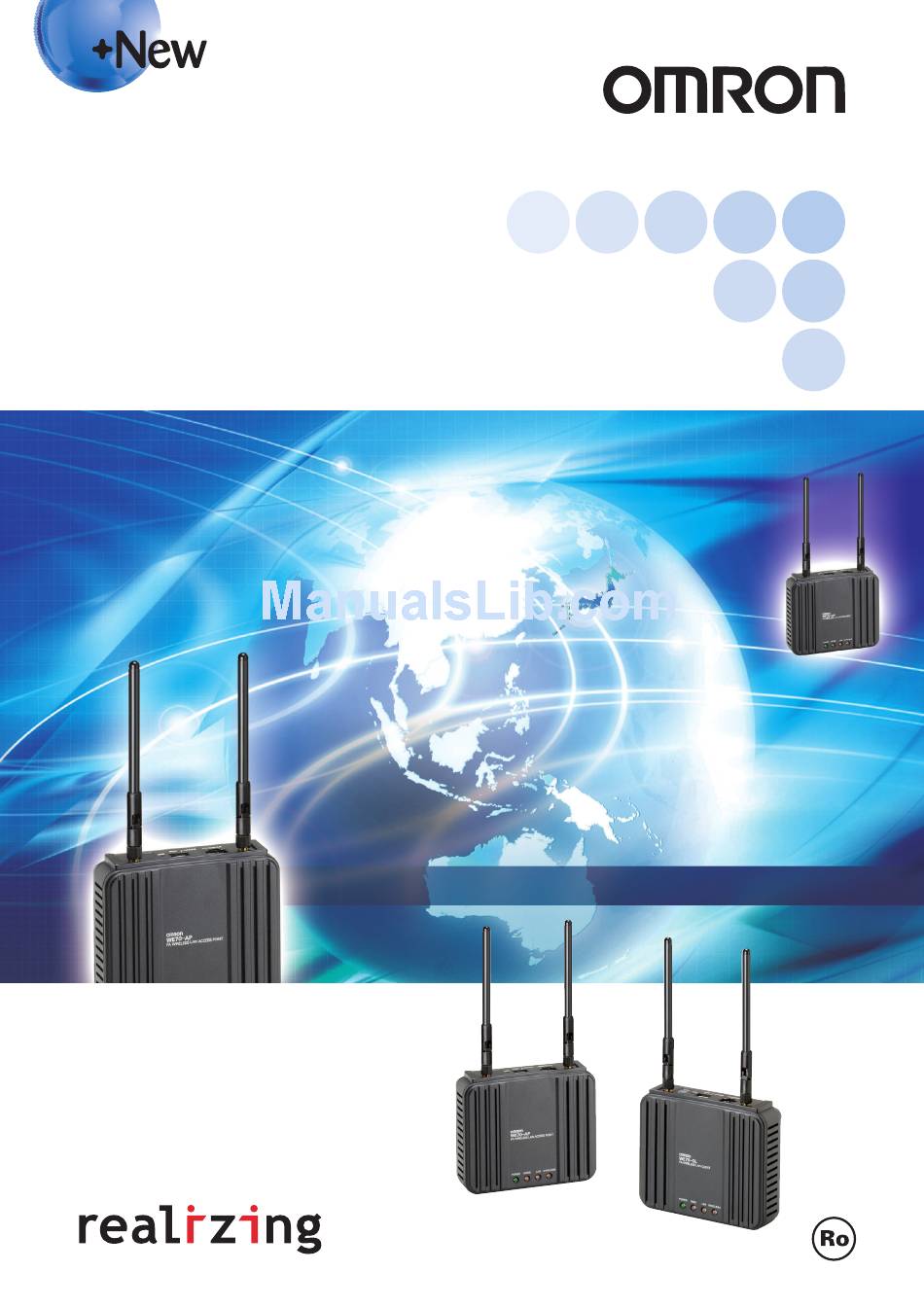

- Page 1 New Product News FA Wireless LAN Unit WE70 Reliable Wireless Ethernet for Harsh FA Environments Conforms to IEEE 802.11a/b/g Construct an Ideal Wireless LAN System for FA Applications!
- Page 2 Wireless LAN systems conforming to global standards. Conforms to IEEE 802.11a/b/g (5 GHz/2.4 GHz)! Nominal 54 Mbit/s high-speed communications! ● General features of Wireless LAN standards The WE70 Wireless Unit supports three Wireless LAN standards. Standards IEEE 802.11a IEEE802.11b IEEE 802.11g...
- Page 3 Signal status can be observed! With the popular Received Signal Strength The Wireless LAN Unit has the same level of noise and environmental resistance as OMRON FA Devices, such as Indicator (RSSI), the status of invisible radio waves can be easily identified by PLCs and Power Supply Units.
- Page 4 Secure and easy to implement at FA sites. Prevents signal interference! Variable transmission power function! There are three transmitter output levels. By setting the level to low, you can reduce its influence on other systems within the same area, and more systems can be added. High transmitter output Low transmitter output (See note.) Note: The transmission distance will be...
- Page 5 The roaming function allows systems to be moved and communicate with mobile devices. Note: Make sure that you read the Wireless LAN Unit Operation Manual (Cat. No. N153) and check the operating conditions on site before using the roaming function. WE70-AP Access Point (Master) WE70-AP Access Point (Master) WE70-AP Access Point (Master)
-
Page 6: Ordering Information
2. Make sure that the correct model for the area is used. DIN Rail Mounting Bracket (for TH35 7.5) WT30-FT001 For example, the use of the WE70-AP-US in an area other DIN Rail Mounting Bracket (for TH35 15) WT30-FT002 than the USA is illegal as stipulated in laws and regulations. -
Page 7: Wireless Interface Specifications
Pencil Antenna at 54 Mbps) (Outdoor (See notes 2 and 3.) use prohibited.) Security OCB AES (128 bit), WEP KEY (OMRON'S original encryption), WEP (64/128/152 bit), WPA-PSK (with AES <128 bit>/TKIP <128 bit> encryption) Transmitter output power 10 mW/MHz max. No. of connected clients 63 max. - Page 8 11 ch 5 ch (11 channels 11 ch total) total) Europe Europe (19 channels 8 ch 11 ch (13 channels 13 ch total) total) China China (5 channels 5 ch (13 channels 13 ch total) total) WE70 FA Wireless LAN Unit...
- Page 9 Note: Hold down the initialization switch while the power is OFF and then turn the power ON without releasing the switch. Note: When the RSSI Button on the back of the WE70 is pressed, the received signal strength will be indicated using the POWER, RSSI, LAN, and WIRELESS indicators.
-
Page 10: Din Rail Mounting Bracket
Dimensions Note: All units are in millimeters unless otherwise indicated. Access Point (Master) Using Pencil Antenna WE70-AP(-EU/-US/-CN) (129.6) (26.6) Client (Slave) WE70-CL(-EU/-US/-CN) 37.2 37.2 22.6 (231.5) (128.5) 107.6 ±1.0 ±1.0 WE70-AP FA WIRELESS LAN A CCESS POINT POWER MODE WIRELESS 34.5... -
Page 11: Warranty
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE... - Page 12 Industrial Automation Company IL 60173-5302 U.S.A. Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 Control Devices Division H.Q. Network Devices Department OMRON ASIA PACIFIC PTE. LTD. Shiokoji Horikawa, Shimogyo-ku, No. 438A Alexandra Road # 05-05/08 (Lobby 2), Kyoto, 600-8530 Japan Alexandra Technopark, Singapore 119967...
