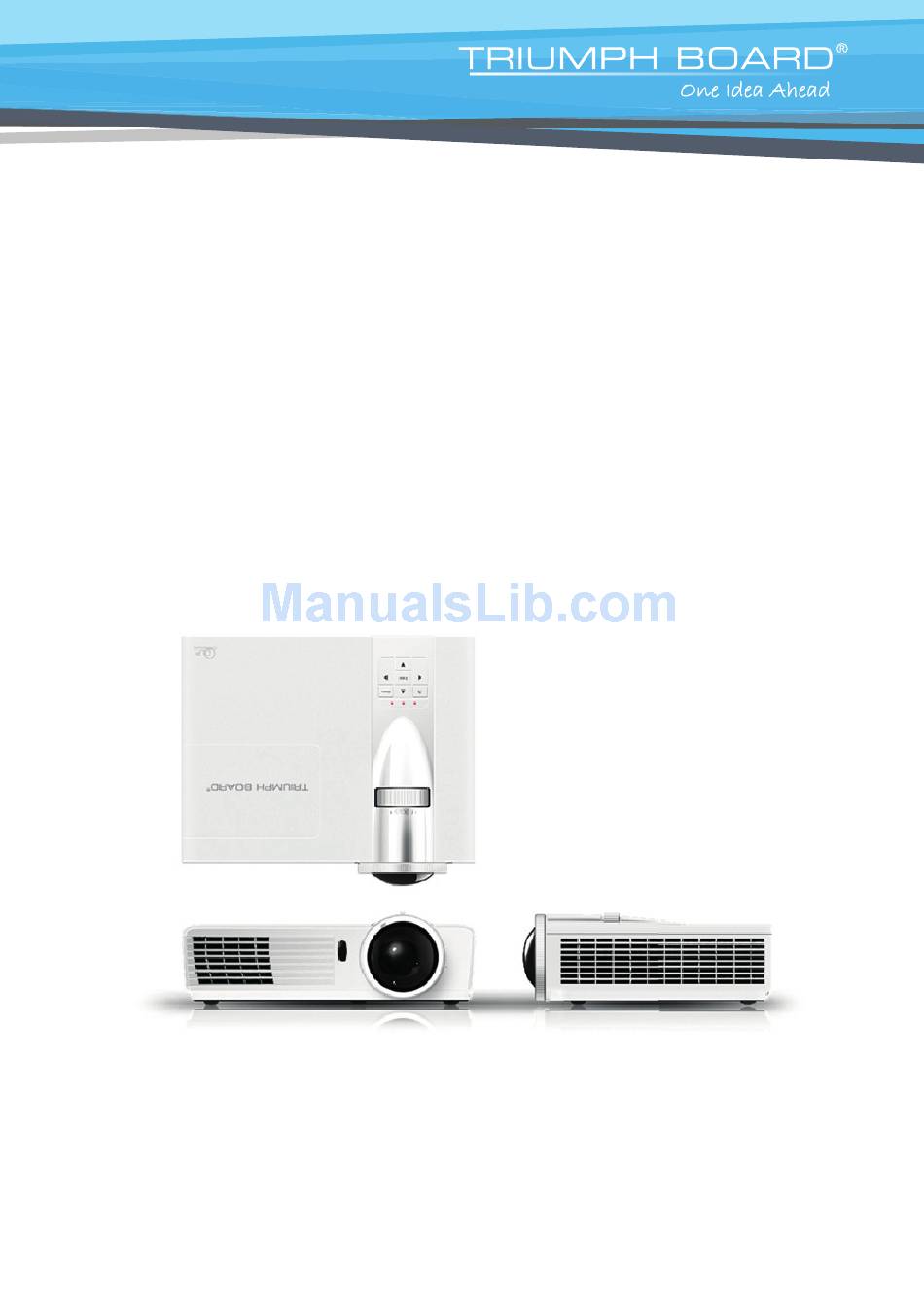

User Manual v 1.0
November 2013
ENGLISH
TRIUMPH BOARD PROJECTOR SERIES
TRIUMPH BOARD PJ1000 ST DLP
TRIUMPH BOARD a. s. , Neklanova 122/15, 128 00 Prague 2, Czech Republic, European Union,
www.triumphboard.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIUMPH BOARD PJ1000 ST DLP and is the answer not in the manual?

Questions and answers

Related Manuals for TRIUMPH BOARD TRIUMPH BOARD PJ1000 ST DLP

Summary of Contents for TRIUMPH BOARD TRIUMPH BOARD PJ1000 ST DLP

  • Page 1 User Manual v 1.0 November 2013 ENGLISH TRIUMPH BOARD PROJECTOR SERIES TRIUMPH BOARD PJ1000 ST DLP TRIUMPH BOARD a. s. , Neklanova 122/15, 128 00 Prague 2, Czech Republic, European Union, www.triumphboard.com...

  • Page 2: Table Of Contents

    Table of Contents Safety ................2 Product Specifications ..........5 Product Description ............6 Installation ..............11 Settings ..............18 Troubleshooting ............44 Replacing the Lamp ...........49 Compatibility Modes ...........51 RS232 Remote Control ..........54 Regulatory ..............58...

  • Page 3: Safety

    Safety Safety Information The lightning fl ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 4 Safety Precautions Please follow all warnings, precautions and maintenance as recommended in this user’s guide. ▀■ Warning- Do not look into the projector’s lens when the lamp is on. The bright light may hurt and damage your eyes. ▀■ Warning- To reduce the risk of fi re or electric shock, do not expose this projector to rain or moisture.
  • Page 5 Safety  Turn off and unplug the power plug from the AC outlet before cleaning the product.  Use a soft dry cloth with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is ...

  • Page 6: Product Specification

    Product specification Product specification ▀■ XGA (1024x768) Native resolution ▀■ HD compatible – 720p and 1080p supported ▀■ VGA monitor loop through (works on standby mode > 0.5W)  Monitor loop through only ▀■ BrilliantColor Technology supported in VGA1-In/YPbPr. ▀■ Security Bar and Kensington Lock ▀■...

  • Page 7: Product Description

    Product description Contents Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your supplier. VGA Cable Projector 3x Power Cord (UK,EU,US) CR2025 IR Remote Control Batteries Documentation : ...

  • Page 8: Product Overview

    Product description Product Overview 1. Control Panel 6. Input / Output 2. Focus Ring Connections 3. Speaker 7. Power Socket 4. Lens 8. Ventilation (inlet) 5. IR Receiver 9. Ventilation (outlet)
  • Page 9 Product description Control Panel 1. Power LED 2. Lamp LED 3. Temp LED 4. Enter / Help 5. Menu 6. Re-Sync 7. Keystone Correction 8. Four Directional Select Keys 9. Source 10. Power/Standby button...
  • Page 10 Product description Input/Output Connections AUDIO-IN HDMI VGA-OUT VGA1-IN / YPbPr RS-232C VIDEO S-VIDEO AUDIO OUT VGA2-IN / YPbPr RJ-45 1. USB Connector (Connect to PC for Remote Mouse func- tion) 2. HDMI Connector 3. Composite Video Input Connector 4. S-Video Input Connector 5.
  • Page 11 Product description Remote Control 1. Source 2. ReSync 3. HDMI 4. Video 5. Menu 6. Enter 7. Four Directional Select Keys 8. Freeze 9. Blank 10. Aspect 11. Power 12. PC 13. Keystone 14. Exit 15. Volume +/-  The interface is subject to model’s specifi cations.

  • Page 12: Installation

    Installation Connecting the Projector to Computer/Notebook PJ1000 MOLEX AUDIO-IN HDMI VGA-OUT VGA1-IN / YPbPr RS-232C VIDEO S-VIDEO AUDIO OUT VGA2-IN / YPbPr RJ-45  Optional accessories Audio Output 1....................Power Cord 2....................*USB Cable 3...................*DVI/HDMI Cable 4.....................VGA Cable 5....................*RS232 Cable 6..................*Audio Input Cable 7..................*Audio Output Cable 8..................*VGA Output Cable 9....................*Network Cable...
  • Page 13 Installation Connecting the projector to Video Sources PJ1000 DVD Player, Set-top Box, HDTV receiver AUDIO-IN HDMI VGA-OUT VGA1-IN / YPbPr VIDEO RS-232C S-VIDEO AUDIO OUT VGA2-IN / YPbPr RJ-45 Composite Video Output S-Video Output  Optional accessories Audio Output 1....................Power Cord 2....................*HDMI Cable 3..........*15-Pin to 3 RCA Component/HDTV Adaptor 4................*3 RCA Component Cable...
  • Page 14 Installation Powering the projector On / Off Power On 1. Remove the lens cap. (optional)  2. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Amber. 3. Turn on the lamp by pressing “ ” button either on the top of the projector or on the remote.

  • Page 15: Power Off

    Installation Power Off 1. Press the “ ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the “ ” button again to confirm otherwise the message will disappear after 15 seconds.
  • Page 16 Installation Projected Image Setting Height Setting The projector is equipped with elevator feet for adjusting the image height. 1. Locate the adjustable foot you wish to modify on the underside of the projector. 2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it.
  • Page 17 Installation Focus Setting To focus the image, rotate the focus ring until the image is clear.  XGA series: The projector will focus at distances from 1.31 to 12.53 feet (0.40 to 3.82 meters). Focus Ring Image Size Setting  XGA series: Projection Image Size from 31.0”...
  • Page 18 Installation Screen Size W x H Projection Distance (D) Diagonal length Offset (Hd) (inch) size of (inch) (feet) 4:3 Screen Width Height Width Height wide tele wide tele (feet) 40.00 0.81 0.61 31.89 24.02 0.50 0.50 1.64 1.64 0.09 0.30 60.00 1.22 0.91...

  • Page 19: Settings

    Settings Control Panel Using the Control Panel Refer to the “Power On/Off the Projector” section on POWER pages 15-16. Automatically synchronize the projector to the input RE-SYNC source. Confi rm your item selection. Enter / Help Help Menu (only available when OSD menu is not shown).

  • Page 20: Remote Control

    Settings Remote Control Using the Remote Control Exit Press “Exit” to close the OSD menu. Source Select an input signal. Automatically synchronize the PC analog ReSync timing to its optimized condition. HDMI Switch to HDMI source. Switch to Composite Video or S-Video Video source.

  • Page 21: Using The Help Button

    Settings Using the HELP button The HELP function ensures easy setup and operation. Press the “?” button on the remote control or press the  “HELP” button on the control panel to open the Help Menu.
  • Page 22 Settings Help menu button functions only when no input source  is detected.  Please refer to the “Troubleshooting” section on pages 49-53 for more details. If input source is detected and help button is pressed, the  following pages will appear to help diagnose any problems.
  • Page 23 Settings...

  • Page 24: How To Operate

    Settings On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. How to operate To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad. When OSD is displayed, use keys to select any item in the main menu.
  • Page 25 Settings IMAGE Display Mode There are many factory presets optimized for various types of images. Presentation: Good color and brightness from PC input.  Bright: Maximum brightness from PC input.  Movie: For home theater.  sRGB: Standardised accurate color. ...
  • Page 26 Settings Sharpness Adjust the sharpness of the image. Press the to decrease the sharpness.  Press the to increase the sharpness.  Color Adjust a video image from black and white to fully saturated color. “Color” and “Tint”  Press the to decrease the amount of saturation in the image.

  • Page 27: Color Settings

    Settings IMAGE | Advanced Gamma This allows you to choose a degamma table that has been fi ne-tuned to bring out the best image quality for the input. Film: for home theater.  Video: for video or TV source.  Graphics: for image source.

  • Page 28: Color Space

    Settings Color Space Select an appropriate color matrix type from AUTO, RGB or YUV. Input Source Use this option to enable / disable input sources. Press enter the sub menu and select which sources you require. Press “Enter” to finalize the selection. The projector will not search for inputs that are not selected.
  • Page 29 Settings DISPLAY Format Use this function to choose your desired aspect ratio. 4:3: This format is for 4×3 input sources.  16:9-I: This format is for 16×9 input sources, like HDTV and  DVD enhanced for Wide screen TV. (576i/p) 16:9-II: This format is for 16×9 input sources, like HDTV and ...

  • Page 30: Image Shift

    Settings Edge Mask Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of Each I/O has  video source. different setting of “Edge mask”. Zoom “Edge mask” and ...

  • Page 31: Menu Location

    Settings SETUP Language Choose the multilingual OSD menu. Press into the sub “SETUP” options  menu and then use the key to select your preferred may vary according language. Press “Enter” to fi nalize the selection. to model. Projection Front-Desktop ...
  • Page 32 Settings Projector ID ID defi nition can be set up via menu (range 0-99), and allows users to control an individual projector by RS232. Refer to pages 60-62 for the complete list of RS232 commands. Mute Choose the “On” to turn mute on. ...
  • Page 33 Settings SETUP | Signal (RGB) “Signal” is only  supported in Analog VGA (RGB) signal. Automatic Automatically selects the signal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not auto- matic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns off and on again.
  • Page 34 Settings SETUP | Advanced Logo Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered Default: The default startup screen.  Neutral: Logo is not displayed on startup screen. ...
  • Page 35 Settings SETUP | Network Network State Display the network connection status. DHCP Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open. On: Assign an IP address to the projector from an external ...
  • Page 36 Settings How to use the web browser to control your projector 1. Turn on DHCP to allow a DHCP 4. Based on network web-page for the server to automatically assign an IP, or input-string in [tools] tab, the limitation for manually enter the required network Input-Length is in the below list (“space”...
  • Page 37 Settings When making a direct connection from your computer to the projector Step 1: Find an IP Address (192.168.0.100) from LAN function of projector. Step 2: Select apply and press “Enter” button to submit function or press “menu” key to exit.

  • Page 38: Crestron Roomview Control Tool

    Settings Crestron RoomView Control Tool Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector’s online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defi ned by the Administrator.
  • Page 39 Settings 3. Edit Attribute 4. Edit Event For more information, please visit http://www.crestron.com & www.crestron.com/getroomview.

  • Page 40: High Altitude

    Settings OPTIONS Source Lock On: The projector will only search current input connection.  Off: The projector will search for other signals if the current  input signal is lost. High Altitude When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
  • Page 41 Settings remote control from IR receiver. By selecting “Off”, you will be able to use the control panel keys. Reset Choose “Yes” to return the display parameters on all menus to the factory default settings.

  • Page 42: Direct Power On

    Settings OPTIONS | Advanced Direct Power On Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ” key on the projector control panel or on the remote control. Auto Power Off (min) Sets the countdown timer interval.

  • Page 43: Lamp Settings

    Settings OPTIONS | Lamp Settings Lamp Hours Display the projection time. Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.
  • Page 44 Settings OPTIONS | Filter Settings Filter Hour Display the filter time. Filter Reminder Choose this function to show or hide the warning massage when the changing filter message is displayed. (Factory default setting: 500 hours) Filter Reset Reset the filter hour counter after replacing the filter.

  • Page 45: Troubleshooting

    Troubleshooting Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. No image appears on-screen Ensure all the cables and power connections are correctly and ...
  • Page 46 Troubleshooting 7. Click on “Show all devices”. Next, select “Standard monitor types” under the SP box; choose the resolution mode you need under the “Models” box. 8. Verify that the resolution setting of the monitor display is lower than or equal to UXGA (1600 × 1200). If you are using a Notebook: ...
  • Page 47 Troubleshooting Image is out of focus Make sure the lens cap is removed.  Adjust the Focus Ring on the projector lens.  Make sure the projection screen is between the required distance.  See page 19. The image is stretched when displaying 16:9 DVD title When you play anamorphic DVD or 16:9 DVD, the projector will ...
  • Page 48 Troubleshooting The projector stops responding to all controls If possible, turn off the projector, then unplug the power cord and  wait at least 60 seconds before reconnecting power. Check that “Keypad Lock” is not activated by trying to control the ...
  • Page 49 Troubleshooting On Screen Messages Temperature warning:  Fan failed:  Lamp warning:  Out of display range:  If the remote control does not work Check the operating angle of the remote control is within ±15°  both horizontally and vertically of one of the IR receivers on the projector.

  • Page 50: Replacing The Lamp

    Replacing the Lamp Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

  • Page 51: Lamp Replacement Procedure

    Replacing the Lamp The screws on the  lamp cover and the lamp cannot be removed. The projector  cannot be turned on if the lamp cover has not been placed back on the projector. Do not touch the  glass area of the lamp.

  • Page 52: Compatibility Modes

    Compatibility Modes Compatibility Modes Computer Compatibility  Analog/Digital Mode Resolution H-Sync (KHz) V-Sync (Hz) 640 × 350 31.50 640 × 350 37.90 720 × 350 31.50 640 × 400 31.50 640 × 400 37.90 720 × 400 31.50 720 × 400 37.90 720 ×...
  • Page 53 Compatibility Modes Analog/Digital Mode Resolution H-Sync (KHz) V-Sync (Hz) 1024 × 768 68.70 1152 × 864 1152 × 864 1152 × 864 1152 × 864 1152 × 870 HD720 1280 x 720 HD720 1280 x 720 HD720 1280 x 720 HD720 1280 x 720 WXGA...

  • Page 54: Video Compatibility

    Compatibility Modes Computer Compatibility  Mode Resolution V-Sync (Hz) H-Sync (KHz) MAC LC 13” 640 × 480 66.66 34.98 MAC II 13” 640 × 480 66.68 35.00 MAC 16” 832 × 624 74.55 49.73 MAC 19” 1024 × 768 60.24 1152 ×...

  • Page 55: Rs232 Remote Control

    RS232 Remote Control RS232 Commands and Protocol Function List RS232 Pin Assignments  RS232 shell is grounded. Spec. Pin no. (from projector side)

  • Page 56: Rs232 Protocol Function List

    RS232 Protocol Function List XX=00-99, projector's ID, Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None TRIUMPH PJ1000 Telnet Command 1. There is a <CR> after Stop Bits: 1 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- all ASCII commands. Baud Rate : 9600 Note : There is a <CR>...
  • Page 57 RS232 Remote Control ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX60 1 7E 30 30 36 30 20 31 0D Format ~XX60 2 7E 30 30 36 30 20 32 0D 16:9-l ~XX60 3 7E 30 30 36 30 20 33 0D 16:9-ll ~XX60 6 7E 30 30 36 30 20 36 0D Native ~XX60 7...
  • Page 58 RS232 Remote Control --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On ~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible) ~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) ~XX107 n...

  • Page 59: Regulatory

    Regulatory Regulation & Safety Notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules.

  • Page 60: Operation Conditions

    Regulatory Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 61 TRIUMPH BOARD a. s. , Neklanova 122/15, 128 00 Prague 2, Czech Republic, European Union, www.triumphboard.com © TRIUMPH BOARD 2013...
