TRIUMPH BOARD PJ1000 ST DLP Service Manual

Hide thumbs Also See for PJ1000 ST DLP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Service manual

PJ1000 ST DLP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ1000 ST DLP and is the answer not in the manual?

Questions and answers

Related Manuals for TRIUMPH BOARD PJ1000 ST DLP

Summary of Contents for TRIUMPH BOARD PJ1000 ST DLP

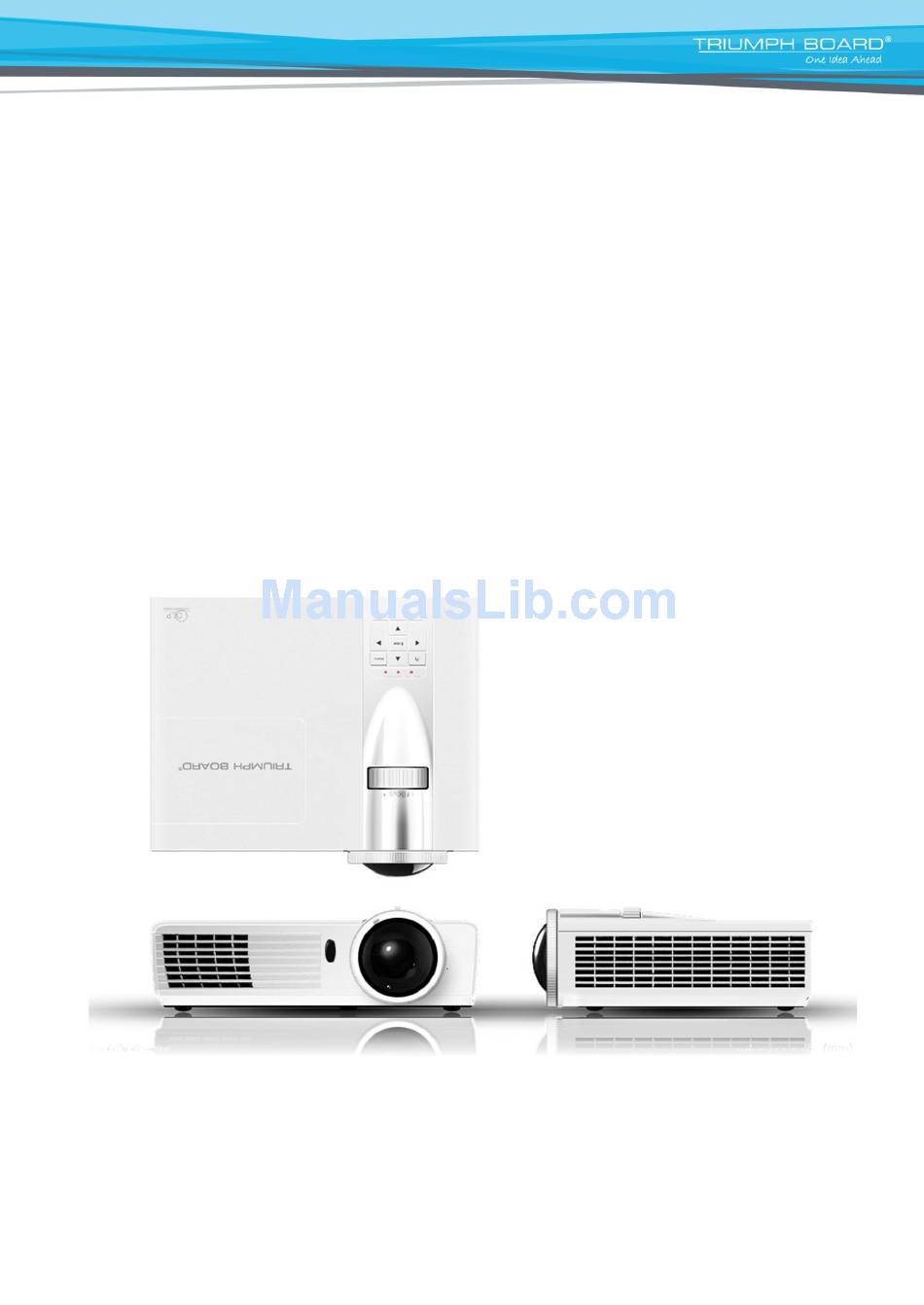

  • Page 1: Service Manual

    Service manual PJ1000 ST DLP...
  • Page 2 Notice: The information found in this manual is subject to change without prior notice. Any subsequent changes made to the data herein will be incorporated in future edition. © TRIUMPH BOARD 2016...

  • Page 3: Table Of Contents

    Disassemble Blower Module and Thermal Vent 2-16 Disassemble LVPS Module 2-17 Disassemble Bottom Shielding and IO Cover 2-18 Rod Adjustment 2-20 Repair Action 2-21 Chapter 3 Troubleshooting LED Lighting Message For Projector Main Procedure No power troubleshooting Power troubleshooting Image troubleshooting © TRIUMPH BOARD 2016...
  • Page 4 4-10 Run In Test 4-14 Test Inspection procedure 4-14 Re-write Lamp Usage Hour 4-16 Chapter 5 Firmware Upgrade Section 1: System Firmware Upgrade Section 2: 8051 Firmware Upgrade Procedure Section 3: Network Firmware Upgrade Procedure 5-14 © TRIUMPH BOARD 2016...
  • Page 5 Chapter 6 EDID Upgrade EDID Upgrade Appendix A Exploded Image Appendix B Serial Number System Definition PCBA Code Definition © TRIUMPH BOARD 2016...

  • Page 6: Chapter 1 Introduction

    • Audio input (Mini Jack) x 1 • RS232 control (9 pin) • Composite Video x1 Input signal spec • USB type B(remote mouse simulation) • HDMI v1.3 • RJ45 • S-Video (Mini DIN) x 1 © TRIUMPH BOARD 2016 © TRIUMPH BOARD 2016...

  • Page 7: Compatible Mode

    SVGA 800x600 37.90 SVGA 800x600 46.90 SVGA 800x600 48.10 SVGA 800x600 SVGA 800x600 53.70 832x624 832x624 1024x576 1024x576 1024x768 48.40 1024x768 56.50 1024x768 57.70 1024x768 1024x768 68.70 1152x864 1152x864 1152x864 1152x864 1152x870 © TRIUMPH BOARD 2016 © TRIUMPH BOARD 2016...
  • Page 8 1152x870 68.68 75.06 MAC G4 640x480 31.35 i MAC DV 1024x768 i MAC DV 1152x870 68.49 Note: If the compatibility supportive signal is different from user's manual, please refer to user's manual. © TRIUMPH BOARD 2016 © TRIUMPH BOARD 2016...

  • Page 9: Equipment Needed & Product Overview

    2. Screw Bit (+): 107 3. Screw Bit (-): 107 4. Hex Sleeves 5mm 5. Long Nose Nipper 6. Tweezers 7. Projector * Before you start: This process is protective level II. Operators should wear electrostatic chains. © TRIUMPH BOARD 2016...

  • Page 10: Disassemble Filter And Focus Ring

    5. Pull out the focus ring. Note: - When you assemble the focus ring, ensure the card slot (as green square) placed in the right area properly (as red circle), and the focus ring can be well adjusted. Focus Ring © TRIUMPH BOARD 2016...

  • Page 11: Disassemble Lamp Module

    2-3 Disassemble Lamp Module 1. Loosen 1 screw (as red circle) on the lamp cover. 2. Loosen 2 screws (as yellow circle) on the lamp module. 3. Take off the lamp module. lamp module © TRIUMPH BOARD 2016...

  • Page 12: Disassemble Top Cover Module

    2-4 Disassemble Top Cover Module 1. Unscrew 2 screws (as red circle) from the top cover. 2. Unscrew 8 screws (as green circle) from the bottom cover. 3. Press two sides of the projector as the blue arrows point. © TRIUMPH BOARD 2016...

  • Page 13: Disassemble Lamp Cover

    1. Unscrew 2 screws (as red circle) and tear off the tape (as yellow square) to disassemble the IR sensor module. 2. Unscrew 4 screws (as blue circle) to disassemble the zoom ring. Zoom Ring IR Sensor Module © TRIUMPH BOARD 2016...

  • Page 14: Disassemble Main Board Module And Shielding

    3. Then remove the lamp cover from the top cover. Lamp Cover 2-6 Disassemble Main Board Module and Shielding 1. Tear off the tape (as blue square) and unscrew 4 screws (as red circle). © TRIUMPH BOARD 2016...
  • Page 15 2. Unscrew 8 hex screws (as green circle) and 1 screw (as yellow circle). 3. Unplug 6 connectors (as red square). 4. Unplug 1 connector (as green square) of color wheel. © TRIUMPH BOARD 2016...
  • Page 16 White/Red Wire, Red Photo Sensor BD Connector and Black tube(3 pin) Compose of Black/ White/Red Wire, White Connector (3 pin) Compose of Black/ Blower Blue/Pink Wire, White Connector (3 pin) Black wire tube (5 Lamp driver pin) © TRIUMPH BOARD 2016...
  • Page 17 5.Unplug 1 connector (as yellow square). 6. Disassemble main board module. 7. Unscrew 2 screws (as green circle). 8. Unscrew 1 screw (as blue circle) to separate LAN board and daughter board. Daughter Board LAN Board © TRIUMPH BOARD 2016...
  • Page 18 9. Unscrew 3 hex screws (as red circle) to disassemble the LAN board. 10. Unscrew 3 screws (as green circle) to disassemble the shielding. © TRIUMPH BOARD 2016...

  • Page 19: Disassemble Speaker Module And Filter Holder

    Module and Filter Holder 1. Unscrew 1 screw (as yellow circle) to disassemble the speaker module. 2. Separate the speaker and rubber. Rubber Speaker 3. Separate the filter holder (as yellow square). Left Filter Hold Right Filter Hold © TRIUMPH BOARD 2016...

  • Page 20: Disassemble Engine Module

    2-8 Disassemble Engine Module 1. Unscrew 4 screws (as yellow circle) to disassemble the engine module. 2. Unscrew 2 screws (as red circle) to disassemble the color wheel module. © TRIUMPH BOARD 2016...
  • Page 21 4. Separate the photo sensor board and spacer. Spacer C/W Module Photo sensor BD 5. Unscrew 2 screws (as blue circle). 6. Disassemble the heat sink and DMD module, and then tear off 2 DMD molars (as green square). © TRIUMPH BOARD 2016...
  • Page 22 Note: - Avoid touching the DMD Chip when you disassemble it. - Pay attention to the fixed position when assembling the DMD chip. 2-9 Disassemble System DMD Board DMD Chip Fan Module 1. Unscrew 3 screws (as red circle) to disassemble system fan module. © TRIUMPH BOARD 2016...
  • Page 23 2. Separate the rubber from the system fan module 3. Unscrew 4 screws (as green circle) to separate system fan and fan shielding. Rubber System Fan Module System Fan Note: Take the fan module as the right gesture. © TRIUMPH BOARD 2016...

  • Page 24: Disassemble Blower Module And Thermal Vent

    1. Unscrew 1 screw (as red circle) and unplug 1 connector (as red square) to disassemble the interrupter switch. 2. Unplug 2 connectors (as blue square), then disassemble the lamp driver module (as yellow square). 2-16 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 25: Disassemble Lvps Module

    1. Unscrew 7 screws (as red circle) to disassemble the LVPS Module. 2. Unplug 2 connectors (as green square). 3. Remove the Cable, LVPS and the AC inlet bracket from LVPS Module. Bracket LVPS Cable 2-17 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 26: Disassemble Bottom Shielding And Io Cover

    Shielding and IO Cover 1. Take off the bottom shielding and molar Bottom shileding 2. Unscrew 3 screws (as red circle) to disassemble the IO cover. 3. Separate bottom cover module and IO cover. 2-18 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 27 4. Tear off molars (as blue square) and sponge (as red square). 5. Pull out the security bar (as yellow square). 2-19 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 28: Rod Adjustment

    3. Abnormal image inspection - It should not have any abnormal color at the rim of the image by estimating through the eyes. Note: - To avoid over adjusting the rod. 2-20 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 29: Repair Action

    Chapter Usage S-Video and Audio Chapter Port Test 4-4-2 Auto Waveform and Chapter Factory Calibration Optical Performance Chapter Measure 4-4-1.9 Note: - After changing parts, check the information according to above table. 2-21 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 30: Chapter 3 Troubleshooting

    Green Flashing Error (Over Temp.) Amber Flashing Error (Fan fail) Flashing Amber Flashing Error (Lamp fail) Amber Steady light No light POWER/STANDBY LED be ON when OSD appears, be OFF when OSD disappears PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 31: Main Procedure

    3-2 Main Procedure PJ 1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 32: No Power Troubleshooting

    3-3 NO Power troubleshooting PJ 1000 Service Manual 3- 3 © TRIUMPH BOARD 2016...

  • Page 33: Power Troubleshooting

    3-4 Power troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 34: Image Troubleshooting

    3-5-1 Image troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 35 3-5-2 Image troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 36 3-5-3 Image troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 37 3-5-4 Image troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 38: Remote Control Troubleshooting

    3-6 Remote control troubleshooting PJ 1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 39: Network Troubleshooting

    3-7 Network troubleshooting PJ 1000 Service Manual 3-10 © TRIUMPH BOARD 2016...

  • Page 40: Audio Troubleshooting

    3-8 Audio troubleshooting PJ 1000 Service Manual 3- 11 © TRIUMPH BOARD 2016...

  • Page 41: Test Equipment Needed

    Circumstance brightness: Dark room less than 2 lux. - Product must be warmed up for 3 minutes. - Screen size: 51.5 inches diagonal. Zone Definition < Figure: Zone A (as green line) Definition > PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 42: Auto Waveform And Fan Calibration

    2. Wait a moment; please get into service mode to check the “Blower Factory RPM” (as right picture shown). Note: - Make sure the “Blower Factory RPM“ is 2900-3900. -If the “Blower Factory RPM“ does not meet above range, please replace the blower. PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 43: I/O Port Test

    - If there is noise on the screen, use auto or manual “frequency” function or “tracking” function to adjust the screen. - The PC mode functionally sure be workable include support format with frequency and auto detected functional will be workable. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 44 - Test equipment: video generator. - Test signal: analog 1024 x 768@60Hz - Test Pattern: blue 60 Inspection item - Dark blemish check Criteria - Please refer to Pixel specification table Blue 60 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 45 - Test Pattern: full screen - Screen size: 51.1 inches diagonal Criteria - Test signal: analog 1024x768@60Hz - unbalance <16.6cm@51.1’ (A, H, E) Picture 1 <24.5cm@ 51.1’ (F, B, G, D, I, C) PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 46 4 color levels.) - Gray level should not have abnormal color or heavy lines. - If color appears abnormal, please get into service mode to do color wheel index adjustment. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 47 - Use CL100 to measure brightness values of full white pattern P5 & full black pattern B5 ( see image: full white) Full black pattern - Follow Contrast formula to calculate contrast values. ☼ Contrast Formula PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 48 S-Video port, check whether “Volume” is normal. - Adjust the volume to “0→ 9” by using the remote controller. - Check the sound from speaker. - Check whether the “mute” is normal. PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 49: Video Port Test

    - Test equipment: DVD player - Test signal: 1080i30/ 1080P50 /720P60 Inspection item - HDTV performance test Inspection Distance - 0.56M~0.66M. Criteria - Check any abnormal color, line distortion or any noise on the screen. PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 50: Component Port Test

    - The image should not appear noise, flicker, shadow, shocking, abnormal color. 4-4-8 RJ45 Port Test 1. Read Projector IP 1. Plug in power cord to the projector and plug in LAN cable to the PC. 4-10 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 51 3. - Remove the light mark to "DHCP" to select "Off", - The IP address will be shown on screen. - Write down the IP address: 192.168.0.100. 2. Network Setting (1) Double click the “Local area connection”, choose “Properties”. PJ1000 Service Manual 4-11 © TRIUMPH BOARD 2016...
  • Page 52 (2) Select “Internet protocol (TCP/IP)” (3)- Modify the IP address to 192.168.0.101, and modify Subnet mask to 255.255.255.0 - Click “OK” (4) Click “OK”. 4-12 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 53 (1) Connect the PC and the Projector with LAN Cable. (2) Click “Internet Explorer”. (3) Write the IP address: http://192.168.0.100 (4) Select “Info”, then the information will be shown on the web. PJ1000 Service Manual 4-13 © TRIUMPH BOARD 2016...

  • Page 54: Run In Test

    TB implementation Related TB must be implement Cosmetic Cosmetic can not be broken Logo Missing logo, missing prints and blurry prints are unacceptable Lamp cover It should be locked in the correct place. 4-14 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 55 After final QC step, we have to erase all saved change again and restore the OSD default settings. The following actions will allow you to erase all end-users' settings and restore the default settings: (1) Please enter OSD menu. (2) Choose "Option" and then execute "Reset" function. PJ1000 Service Manual 4-15 © TRIUMPH BOARD 2016...
  • Page 56 -Select Lamp Hours (Eco) and use “left” or “right” buttons to re-write the lamp hours (Eco). 5. Choose “Exit”, press “Enter” to exit Note: left key = decrease lamp hour right key =increase lamp hour 4-16 PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 57: Chapter 5 Firmware Upgrade

    Section 1: System Firmware Upgrade 5-1-1 Equipment Needed Software: - DLP Composer Lite 11.2 - Firmware (*.img) - 11.2FlashDeviceParameters Hardware: - Projector - Power cord: (42.50115G001) - Cable USB-A to USB-B (42.87304G001) - PC or Laptop PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 58 Program. 2. Click "Next". 3. Read "License Agreement". - Choose "I accept and agree to be bound by all the terms and conditions of this License Agreement". - Click "Next". 4. Click "Next". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 59 5. Click "Next". 6. Click "Next". 7. The program is executing "installing" status. 8. Click "Finish". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 60 1. Execute “Install DLP Device Drivers” in start menu. 2. Select “Jungo WinDriver (WinXP), then click “Install”. Note: If OS is Windows XP, select “Jungo WinDriver (WinXP)”; If OS is Windows7, select Jungo WinDriver” Win 7) PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 61: Section 2: 8051 Firmware Upgrade Procedure

    3. Click “Next”. 4. Click “Finish". 5-1-5 Firmware Upgrade Procedure 1. Execute the "DLP Composer Lite 11.2" file. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 62 - Select the file "11.2FlashDeviceParameters". - Put "FlashDeviceParameters" file into the folder where you setup "DLP Composer Lite 11.2". 3. Click "Edit" and "Preferences". 4. Click "Communications". - Select “USB”, and then click “OK". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 63 - Select “32KB”. - Click "Reset Bus" to erase the flash memory. 7. If the FW is ready, click "Start Download" to execute the firmware upgrade. - Click “Yes” to erase the flash memory. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 64 8. When firmware upgrade process is finished, “Download Complete” will appear. 9. Check system firmware version. - Re-plug in power cord and power on the projector. Get into the service mode (Power--Left--Left--Menu) to check the system firmware version. PJ1000 Service Manual © TRIUMPH BOARD 2016...

  • Page 65: Section 2: 8051 Firmware Upgrade Procedure

    5-2-1 Equipment Needed Software: - TB ICP Programmer, v6.00.zip - USB-to-Serial COM port Driver (PL2303_Prolific_DriverInstaller_v1417.exe) - Program file (*.hex) Hardware: - Projector - Power Cord (42.50115G001) - ICP FIXTURE (SP.8JC08G001) - PC or Laptop PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 66 5-2-2 Setup Procedure Install ICP Utility 1. Double click "Setup, ICP Utility, v6.00.exe". 2. Click "Next". 3. Click "Next". 4. Click "Next". PJ1000 Service Manual 5-10 © TRIUMPH BOARD 2016...
  • Page 67 5. Click "Finish" to end ICP Utility installed. Install PL2303_Prolific_Driver 6. Double Click "PL2303_Prolific_DriverInstall er_v1417.exe" 7. Click "Next". 8. Click "Finish" to end PL2303_Prolific_Driver installed. PJ1000 Service Manual 5-11 © TRIUMPH BOARD 2016...
  • Page 68 -->"TB ICP Utility V6.00" to run "ICP Utility.exe”. 3. Click "Load File" to open the “hex” file which you will upgrade 8051 firmware file, then click " Update Chip" to upgrade the 8051 firmware. PJ1000 Service Manual 5-12 © TRIUMPH BOARD 2016...
  • Page 69 - When 8051 FW upgrade process is finished, "PASS" will be shown. 5. Re-plug in power cord and power on the projector. Get into the service mode to check the 8051 firmware version. PJ1000 Service Manual 5-13 © TRIUMPH BOARD 2016...

  • Page 70: Section 3: Network Firmware Upgrade Procedure

    5-3-1 Equipment Needed Software: - xxx_Network firmware_xxx.bin (*.bin) Hardware: - Projector - Power Cord: 42.50115G001 - LAN Cable - PC Note1: Upgrade Network firmware please use the IE version of 7.0 or above. PJ1000 Service Manual 5-14 © TRIUMPH BOARD 2016...

  • Page 71: Write Down Projector Ip

    - Select "Network", press "Enter" button. 3. - Remove the light mark to "DHCP" to select "Off", - The IP address will be shown on screen. - Write down the IP address: 192.168.0.100. PJ1000 Service Manual 5-15 © TRIUMPH BOARD 2016...

  • Page 72: Network Setting

    Note: - The HOST ID (192.168.0.XXX) of PC IP address must be different from the projector IP address written down in step 4 of 5-3-2. 4. Click "OK". 5. Click "Close" to quit the setting screen. PJ1000 Service Manual 5-16 © TRIUMPH BOARD 2016...
  • Page 73 3. - "Firmware Update" image will appear on the screen. - Click "Browse" button to select the Network firmware file (*.bin) which you saved. - Click "Open". - Click "Update" to start updating. 4. Firmware Upgrade procedure. PJ1000 Service Manual 5-17 © TRIUMPH BOARD 2016...
  • Page 74 5. Click "Re Login". 6. Firmware upgrade procedure completes. - Select "Info" - The projector Network Firmware version will appear. PJ1000 Service Manual 5-18 © TRIUMPH BOARD 2016...

  • Page 75: Edid Upgrade

    Note: - If a display device has digital input ports, like DVI or HDMI, but without EDID in its Main Board, the display device will show no image while the input source is digital signal. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 76 - HDMI to DVI cable (42.00256G001) - DVI Cable (42.83N06G001) - Generic Fixture (80.00001G001) for EDID Key-in - RS-232 9 Pin Cable (pin to pin, F-M) (42.83C07G001) - Power Adapter (47.57803G001) - Monitor - PC PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 77 DVI to HDMI Cable . (4) Plug Power Adapter to P4 of fixture. HDMI TO DVI Cable VGA1-in 6-4 EDID Key-In Procedure (VGA1 &HDMI) 1. Execute EDID Program - Double click "EDID" to execute EDID program. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 78 (5) Key in the Serial Number into the Barcode blank space. (6) In "Write Source Select" item, select "VGA1" and "HDMI". (7) Click "Program". (8) When the message "Please change the cable to VGA1" appears on the screen, click "OK". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 79 - EDID "Analog" information will show the result. (12) Read EDID "Digital" information - In "Read item", select "Digital" and "Trans", then click the "Read". - EDID "Digital" information will show the result. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 80 (3) Plug Power Adapter to P3 of fixture. VGA2-in 6-6 EDID Key-In Procedure (VGA2) 1. Execute EDID Program - Double click "EDID" to execute EDID program. 2. Process (1) Select the COM Port which you are using. (2) Click "Model". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 81 (5) Key in the Serial Number into the Barcode blank space. (6) In "Write Source Select" item, select "VGA2". (7) Click "Program". (8) When the message "Please change the cable to VGA2" appears on the screen, click "OK". PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 82 (9) When the EDID program is completed, a "OK" message will appear on the screen. (10) Read EDID "Analog" information. - In "Read item", select "Analog" and "Trans", then click the "Read". - EDID "Analog" information will show the result. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 83 Appendix A (Exploded Image) Note: This chapter is only designed to show the exploded image of the projector. For updated part numbers, please refer to RSPL report. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 84 S.P. LAMP MODULE FOR PROJECTOR ASSEMBLY OPTICAL ENGINE MODULE G1.5ST0.6 ASSEMBLY IO COVER MODULE FOR 8ZP(SERVICE) FRONT COVER RING ASSEMBLY OPTICAL ENGINE MODULE FOR 8RC(SERVICE) EMI GASKET CONDUCTIVE SPONGE 1 SCREW PAN TAP 2xLVDS SERIES DMD PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 85 Assembly Main Board •• • • • • PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 86 M/B BOTTOM SHIELDING W.A. 16P 90mm LVPS TO MAIN BD UL1007 P1266 SCREW PAN MECH M3*6 NI EMI TAPE W5*H1.0*L11mm PD EMI GASKET W5*H2.5*L20 PCBA RJ45 LAN DAUGHTER BD PCBA LAN MODULE FOR PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 87 Assembly Top Cover Module PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 88 Parts Item Description Supply SCREW PAN TAP ASSEMBLY IR MODULE ASSEMBLY ZOOM RING MODULE LAMP COVER PC PANTONE BLACK BUY ASSEMBLY TOP COVER MODULE LAMP COVER STEP SCREW BLACK LAMP COVER SCREW-SPRING PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 89 ASSEMBLY COLOR WHEEL MODULE FOR 8PJ (SERVICE) COLOR WHEEL SHOULDER SCREW, COLOR WHEEL DISC RUBBER, CW BRACKET SECC FOR LOW COST PHOTO SENSOR BD SPACER PCBA PHOTO SENSOR BOARD FOR SCREW PAN MECH PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 90 Assembly Bottom Cover Module 3 ----- PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 91 SCREW PAN TAP SCREW CAP TAP SPEAKER SCREW CAP MECH SUNON BLOWER / RoHS SCREW ISO PH W/LW BFA AC-INLET-PLATE SECC SCREW PAN TAP POWER SUPPLY, SCREW PAN MECH BACK COVER PC EMI GASKET PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 92 PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 93 BATTERY PE BAG ZIPPER W/RECYCLING MARK PE BAG FOR OPTOMA PACKING TAPE FOR OPTOMA OUTSIDE CARTON B FLUTE PARTITION PAPER CUSHION EPE LEFT CUSHION EPE RIGHT PACK DRIER BUY ASSEMBLY LENS CAP MODULE PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 94 110 = product code 0001 = Serial Code EX: 1311301100001 This label "1311301100001" represents the serial number for PJ1000. It is produced at CPC on 11/30 of 2013. Its serial code is 0001. PJ1000 Service Manual © TRIUMPH BOARD 2016...
  • Page 95 II. PCBA Code Definition PCBA Code for Projector XXXXXXXXXXX EEEE Vendor Code Revision Date Code PJ1000 Service Manual © TRIUMPH BOARD 2016...
