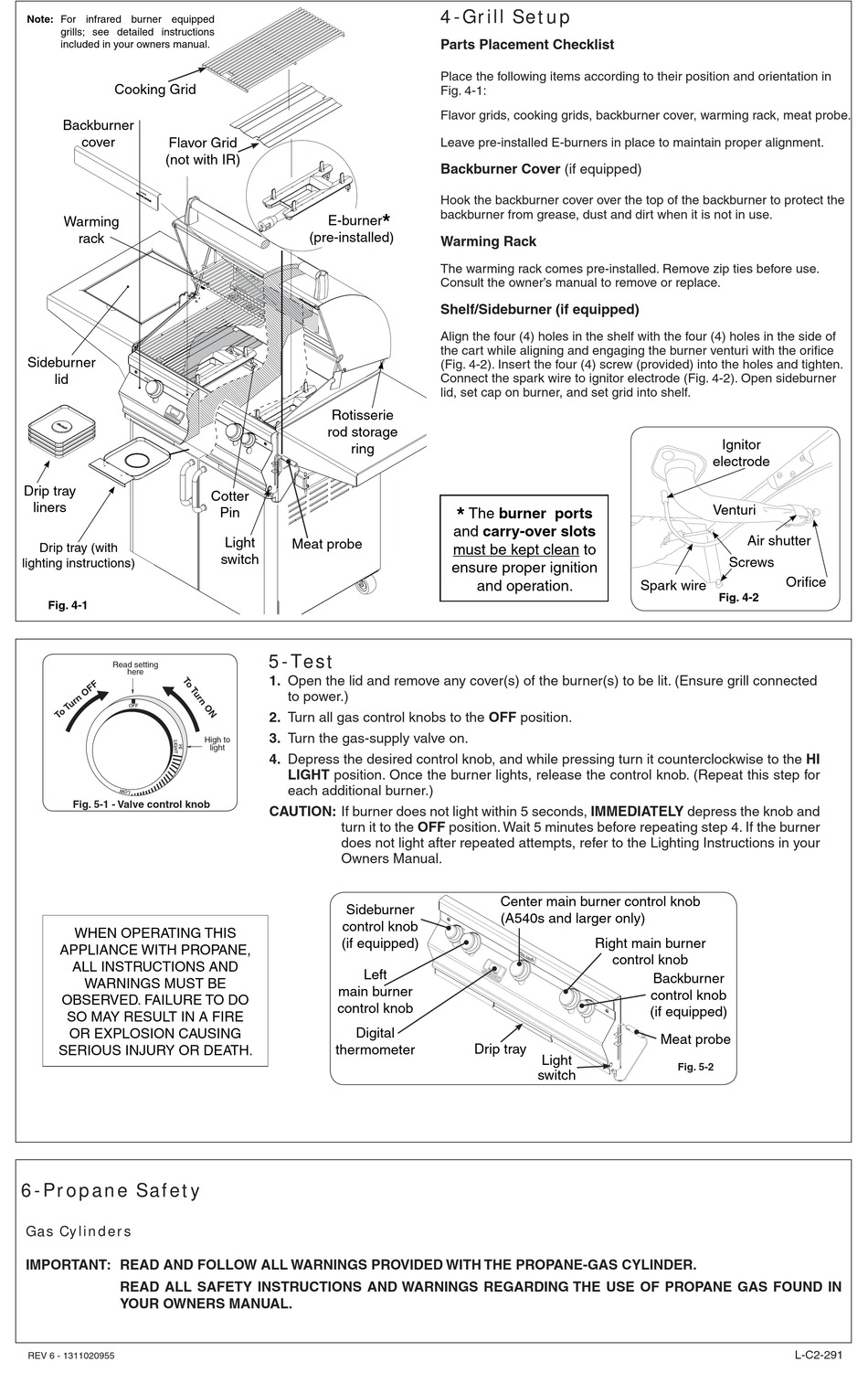

FireMagic Aurora Quick Start Manual page 2

Note: For infrared burner equipped
grills; see detailed instructions
included in your owners manual.
Cooking Grid
Backburner
cover
Flavor Grid
(not with IR)
Warming
rack
Sideburner
lid
Drip tray
liners
Drip tray (with
lighting instructions)
Fig. 4-1
Read setting
Read setting
here
here
OFF
Fig. 5-1 - Valve control knob
WHEN OPERATING THIS
APPLIANCE WITH PROPANE,
ALL INSTRUCTIONS AND
WARNINGS MUST BE
OBSERVED. FAILURE TO DO
SO MAY RESULT IN A FIRE
OR EXPLOSION CAUSING
SERIOUS INJURY OR DEATH.
6-Propane Safety
Gas Cylinders
IMPORTANT: READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
READ ALL SAFETY INSTRUCTIONS AND WARNINGS REGARDING THE USE OF PROPANE GAS FOUND IN
YOUR OWNERS MANUAL.
REV 6 - 1311020955
E-burner
(pre-installed)
Rotisserie
rod storage
ring
Cotter
Pin
Light
Meat probe
switch
5-Test
1. Open the lid and remove any cover(s) of the burner(s) to be lit. (Ensure grill connected
to power.)
2. Turn all gas control knobs to the OFF position.
3. Turn the gas-supply valve on.
High to
HIGH to
LIGHT
light
4. Depress the desired control knob, and while pressing turn it counterclockwise to the HI
LIGHT position. Once the burner lights, release the control knob. (Repeat this step for
each additional burner.)
CAUTION: If burner does not light within 5 seconds, IMMEDIATELY depress the knob and
turn it to the OFF position. Wait 5 minutes before repeating step 4. If the burner
does not light after repeated attempts, refer to the Lighting Instructions in your
Owners Manual.
Sideburner
control knob
(if equipped)
Left
main burner
control knob
Digital
thermometer
4-Grill Setup
Parts Placement Checklist
Place the following items according to their position and orientation in
Fig. 4-1:
Flavor grids, cooking grids, backburner cover, warming rack, meat probe.
Leave pre-installed E-burners in place to maintain proper alignment.
Backburner Cover (if equipped)
Hook the backburner cover over the top of the backburner to protect the
backburner from grease, dust and dirt when it is not in use.
*
Warming Rack
The warming rack comes pre-installed. Remove zip ties before use.
Consult the owner's manual to remove or replace.
Shelf/Sideburner (if equipped)
Align the four (4) holes in the shelf with the four (4) holes in the side of
the cart while aligning and engaging the burner venturi with the orifi ce
(Fig. 4-2). Insert the four (4) screw (provided) into the holes and tighten.
Connect the spark wire to ignitor electrode (Fig. 4-2). Open sideburner
lid, set cap on burner, and set grid into shelf.
* The burner ports
and carry-over slots
must be kept clean to
ensure proper ignition
and operation.
Center main burner control knob
(A540s and larger only)
Drip tray
Light
switch
Ignitor
electrode
Venturi
Air shutter
Screws
Spark wire
Fig. 4-2
Right main burner
control knob
Backburner
control knob
(if equipped)
Meat probe
Fig. 5-2
Orifi ce
L-C2-291
