Summary of Contents for Ten-Haaft D5000

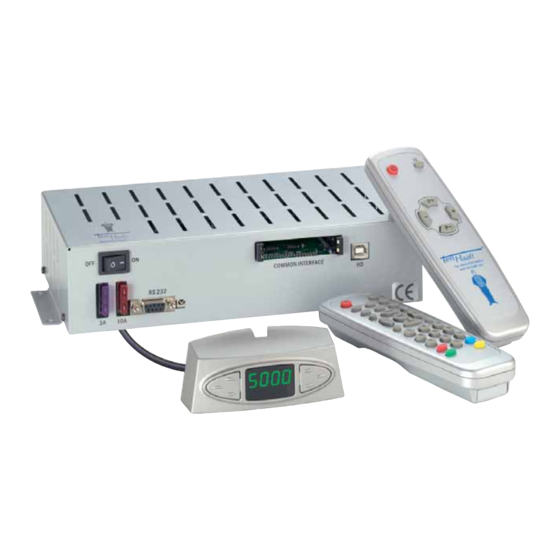

- Page 1 Operating instructions Receiver D5000 Innovative Mobile Technology 04/2010 language: englisch...
-
Page 2: Table Of Contents
Table of content Generals Safety information Control Instruments Receiver Remote control SAT-Mouse – control without remote control Fault code recognition Operation instructions receiver Receiver menu tree Favorite Channel list Editing channel list Channel search Extras Video Hard Disk (HD) Recording -optional Timer Editing Transponder / Channels Piece of equipment description... -
Page 3: Safety Information
Safety information Place the receiver in a place with suffi cient air circulation and away from any heat sources. This will prevent heat accumulation inside the receiver and ensures a longer lifecycle. Do not place any items on the receiver – malfunctions, damage and even self-ignition may occur if the ventilation openings are blocked. -
Page 4: Remote Control
Program down. downward in menus Number keys for direct channel selection TEL: +49(0)7237/4855-0 Direct selection, video/audio settings www.ten-haaft.com Opens the control menu of the personal Video Recorder (optional) Starting DVB-T program search (optional) Caro Digital MA: Starting Menu Intelligent satellite recognition system. -
Page 5: Sat-Mouse - Control Without Remote Control
Sat Mouse - Control without remote control Satellite-mouse connector (RJ-45) Left satellite-mouse key Display Remote-control receiver Right satellite-mouse key The two keys on the satellite mouse (see graphic on this page below) allow the following basic functions of the receiver to be controlled without the remote control: Change to the next channel in the channel list Change to the previous channel in the channel list... -
Page 6: Fault Code Recognition
Fault code recognition Malfunctions of the automatic antenna unit may occur e. g. when the antenna‘s motion is obstructed by branches or snow. Such malfunctions are automatically detected and will be displayed by the satellite mouse as fault codes. E 07/ Short-circuit/open circuit in antenna cable or at antenna: E 09 Check the white antenna cable and the connectors at the receiver and... - Page 7 Stand-by Mode “low current”: This is no error. Please restart the system by pressing both buttons of the SAT Mouse. The receiver is in failure mode: Switch the receiver off by the main circuit breaker. Restart after 10 seconds. (Hardware reset). Other power supply problems: The voltage breaks down or malfunctions from the power supply.
-
Page 8: Receiver Menu Tree
General options OSD/EPG Reception Satellite sytems Signal output Factory defaults Saving settings Extras System info Signal strengtht Sleep timer Stream info Erase harddisk Calendar Game Game Snake Timer Satellite update Encryption Help D5000 / Standby Mode / LED Display upside... - Page 9 Use with remote control: MENU EXIT Function Menu Level To confi gure/ to see Audio channel 1. Menu Level Choice of Audio- and Video channels, if provided by the channels: language, stereo calender Main Menu / extra date channels Main Menu/ channellist/ Confi...
- Page 10 Function Menu Level To confi gure/ to see Stream Info Main Menu / extra display state of signalprocessing System info Main Menu / extra display state of Software + System Teletext 1. Menu Level display Teletext Timer Main Menu Start of auto recording (optional HD) Transponder Main Menu / channel list/ Confi...
- Page 11 Confi guration only with competence Service Menu: Choose the menu item D5000‚ confi guration and press in the menu item LED Dis- play turning the die MENU-button of the remote control to enter the service menu. Sat - Maus Display: The standard confi...
-
Page 12: Favorite Channel List
Favourite channels list Your digital CI receiver provides 9 freely programmable favourite channels lists. A favourite channels list is a selection of channels from the list of all channels. When a favourite channels list is activated, only the channels maintained in this list are available, all other channels will be suppressed. -
Page 13: Editing Channel List
Editing sender list You can adjust the channel list of your receiver to your personal requirements. We suggest to group the channels by the satellites as with the default channel list. Select the channel list editor within the option „Sort Channels“ in the sub-menu „Channel list“... - Page 14 Insert blank: Inserts a blank entry. The subsequent channels are moved downward accordingly. Note: As with the option „Cut“, this function determines areas with channels marked as „unused“ as the end of a block. Pack: This option is only available if you have highlighted a block. Within this block, all free positions marked „unused“...
-
Page 15: Channel Search
Channel search The automatic search function of the receiver scans the individual satellites or, alternatively, the DVB-T channels for new channels. Channels already included in the channel list are automatically updated in case of any changes. Depending on the settings in „Edit Settings , General Options“, encryp- ted channels may be ignored When the mobile search is started, all DVB-T channels are fi... - Page 16 Copy over: Copies the selected new channel over an entry in the channel list. The existing entry is overwritten. Use the SWAP key to toggle between the channel list on the right and the channel selection. If you have navigated to the left-hand channel list using the SWAP key, the following options can be applied to the newly found channels: Activate: Activates the selected channel.
-
Page 17: Extras
Extras 1. Signal-strength display Within the sub-menu „Extras“ in the main menu you can select the signal strength display. The signal strength is then indicated as a vertical bar. The C/N value will indicate the same value in dB. The higher the number, the better the reception quality. In satellite mode, and depending on the channel, a satisfactory TV picture should be received with any value above approx. - Page 18 2. System Info: In the menu tree „Extras/System Info“ you fi nd details about the Software Version and Serial Numbers of your receivers. This information is needed for service purposes or Software updates. Example: ten Haaft Serial: 2800805030 ten Haaft Build: EU/2.11 uC-Firmware: 5.010 Motor Revision: 00403 (only in full automatic antenna system) 3.
-
Page 19: Video Hard Disk (Hd) Recording -Optional
Video Hard Disk (HD) Recording - optional Recording and playback of programs via the integrated hard disk is performed in PVR mode (PVR – Personal Video Recorder). To switch into PVR mode, press the PVR key. To return to normal receiver mode, press EXIT. - Page 20 The receiver can record and playback simultaneously and independently. Only the currently selected channel can be recorded. At the same time, either a previously recorded program or time-shifted, the current recording can be played back. The status of the recording or playback is indicated by one or two status bars at the bottom of the screen.
- Page 21 PC connection (USB 2.0): If the PVR menu is shown on screen but neither the playback nor the recording function is active, the hard disk can be controlled by a personal computer connec- ted to the „HD“ port (USB 2.0) by pressing key „8“. This function must be confi rmed by pressing OK.
-
Page 22: Timer
Timer The timer is determined to process comfortably a hard disc record by time control. Timer recording – receivers without „HD“ option: The timer is used to conveniently record programs on the hard disk at preset times. The timer function is also available on devices without optional hard disk. This function is particularly helpful if you want to be sure not to miss a program on a certain channel. - Page 23 Timer and Stand-by: The timer is only active when the system is switched on or has been set to sleep mode with the antenna open. The timer is inactive in stand-by mode. The antenna does never open automatically and without direct user control. In sleep mode, the system checks whether there are timer programs that have to be processed.
-
Page 24: Editing Transponder / Channels
Editing transponders / channels Confi guration only with competence The program menu (press MENU once) contains the two sub-menus „Edit Transponder“ and „Edit Channel“. These two sub-menus allow you to view and edit the settings required for the reception of the individual channels. Wrong entries at the individual positions may prevent the reception of one or more channels. -
Page 25: Connections
Connections Master switch ON/OFF RS-232 port for software updates Slot for CI module PC interface, harddisk (optional) 14 15 16 17 18 19 DVD IN DVB-T ANTENNA CONTROL CVBS MOUSE 12 – 24 V SPDIF AUDIO TV OUT EXT IR Power supply (- brown = ground;... -
Page 26: Ci Common Interface Module
CI Common Interface At the front of the device there are two slots for modules to decode encrypted programs. To prevent damage only modules with the „PC Card“ logo must be inserted. Any other modules may damage the receiver beyond repair. Do not use excessive force to insert the modules. -
Page 27: Dvb-T (Terrestrial Tv) Optional
DVB-T (terrestrial TV) optional In large areas of Europe, terrestrial analogue TV has been replaced by a digital tech- nology called DVB-T. Just like satellite TV, the reception of DVB-T also requires a receiver (also called „set-top box“). As an option, your digital CI receiver is equipped with this additional receiver and can hence include DVB-T channels in the channel list for playback. -
Page 28: Software Update
Systems produced since January 2007 can be reconditioned with this feature. There- fore a singular update with a computer is necessary. For further information about receiver updates, please visit our homepage: http://www.ten-haaft.de/d/receiverupdate.html Operation: For starting an update please adjust the antenna an ASTRA1 and press on the remote control the button MENU. - Page 29 Once the update has fi nished (notice: “UPDATE fi nished”) the screen stops with this success message. By Pressing “EXIT and “9” the receiver is restarted and the new fi rmware and chan- nel list are ready for use. 2. Display box serial number: This menu item shows the hardware serial number.
- Page 30 Software update - RS232 interface The serial RS232 interface is used to connect the receiver to a computer. On our website at www.ten-haaft.com you will fi nd programs to support this functionality. You can download updates of the operating software and up-to-date channel lists that may resolve technical problems or provide new functions or channels.
-
Page 31: Receiver Data
Receiver data Front end (IF unit) Input frequency range 950..2150 MHz Input level range -65..-25 dBm at 75 Ohm Input socket F standard, female Output (loop-through) socket F standard, female (optional) Signal decoder Supported symbol rates > 15000 MSym/sec Viterbi, all current rates Signal format MCPC-DVB-S MPEG2 TS CI decoding standard... -
Page 32: Declaration Of Ce Conformity
Oyster® Digital 65 HDCI + T SKEW CARO® Digital HDCI+T CARO® Digital MA HDCI+T Cosmo® Digital HDCI+T SamY® Digital HDCI+T D5000 HDCI+T Eine Bescheinigung gemäß Anhang IIIC der EG-RL 72/245/EWG (2006/28/EG) liegt dem Hersteller vor. EN 55013 (2001) + A1 EN 55020 (2001) + A1, A2 Neulingen, den 01.11.2009... -
Page 33: Appendix
Channel list Appendix: Channel list (TV stations): In the original channel list (TV), the programs are allocated to the individual satelli- tes as follows: Satellite Position Channel CH Astra 1 19,2°O 001 – 499 Hotbird 13°O 500 – 999 Astra 2 28,2°O 1000 –... - Page 34 Please note that not all program numbers are occupied by a station. Many numbers are kept blank for further system extensions. Stations frequently stop the transmis- sion of individual programs. You can sort the channel list to your personal taste and you can update the list with new channels with the search function at any time.
- Page 35 Appendix: Choice of TV-Channels: A part selection of the preprogrammed channels by the manufacturer on the receiver: 1000 Sky News 1130 World Movies 1159 PopGirl +1 1001 BBC 1 London 1131 Zone Horror 1160 Tiny Pop 1002 BBC 2 England 1132 Zone Horror+1 1003...
-
Page 36: Search Satellites
Appendix: Search satellites ASTRA 1: Astra 1 primarily serves the German-speaking regions of Europe. It features more than 50 free-to-air programs in German language, including all major privately owned stations, stations under public law, their „third channels“ and numerous radio programs. Reception in Turkey, the Eastern Mediterranean and Eastern Euro- pe is however poor or unavailable. - Page 37 HISPASAT: Hispasat covers mainly the Iberian Peninsula and the Canary Islands, but can also be received in Italy, France, Benelux etc. in good quality. The range of programs is focused on the Spanish region. EUTELSAT W3A: This satellite is undergoing some application changes, so no reliable data is availab- le.
-
Page 38: Protection Of The Environment
Protection of the environment At the end of its lifecycle, this product must not be disposed of with your normal waste, but instead must be returned to a recycling facility for electric and electronic devices. This is indicated by the symbol on the product, the operating manual or the packaging. - Page 39 75245 Neulingen-Göbrichen GERMANY Telefon + 49 (0) 72 37 / 48 55– 0 Telefax + 49 (0) 72 37 / 48 55– 50 E-Mail: info@ten-haaft.com Office hours: Monday – Friday 08:00 – 12:00 Hrs CET 13:00 – 16:30 Hrs CET...
