Honda DVD in-VEHICLE ENTERTAINMENT SYSTEM Installation Instructions Manual
Dvd in-vehicle entertainment system with sunroof
Hide thumbs
Also See for DVD in-VEHICLE ENTERTAINMENT SYSTEM:
- Operating instructions manual (32 pages)
Advertisement
Quick Links
HandA-Accessories.com
INSTALLATION
INSTRUCTIONS
PARTS LIST

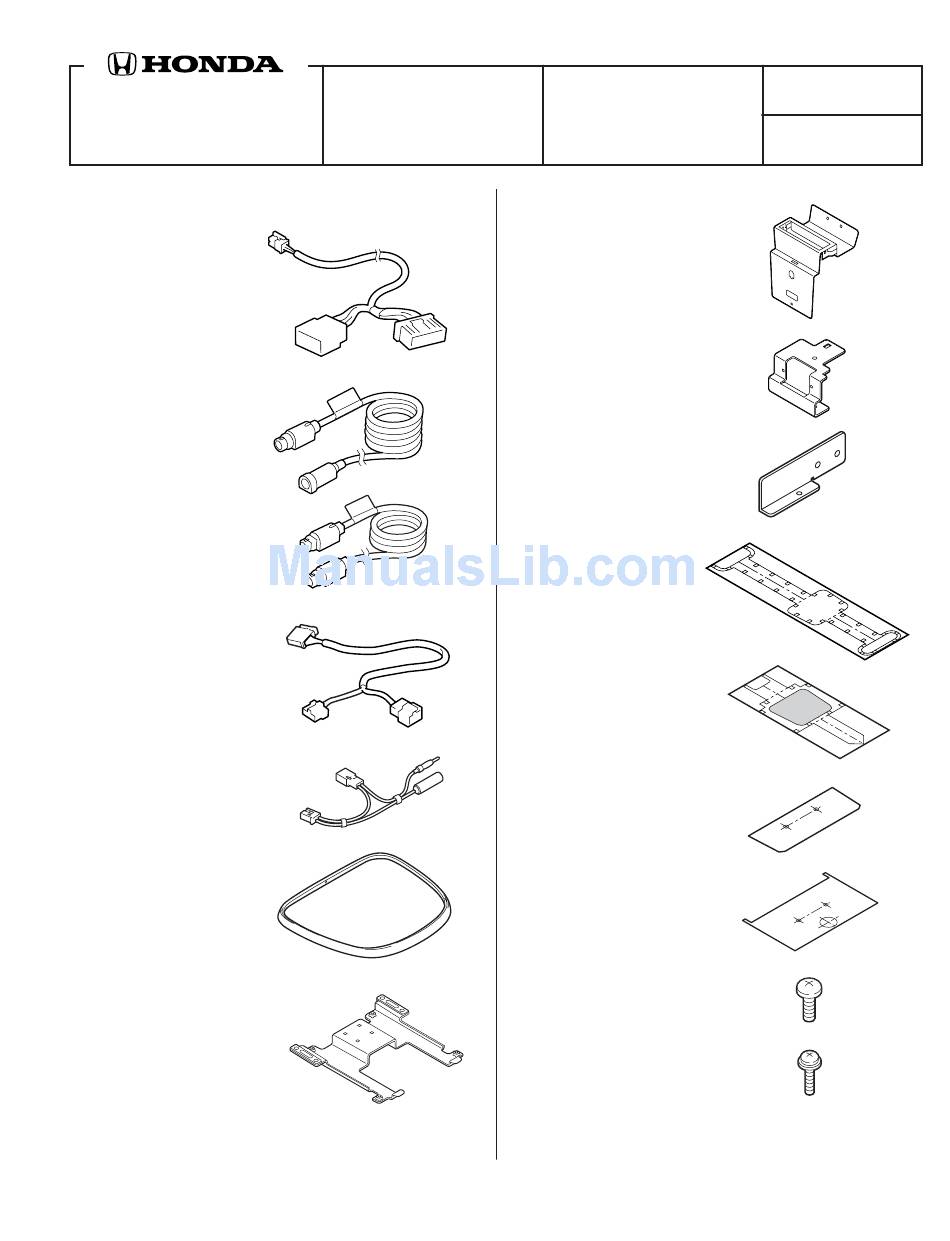

Attachment Kit:
P/N 08B23-SJC-100
i -VES harness
DIN cable "A"
DIN cable "B"
Interior light harness
Sub-feeder cord
Monitor gasket
Monitor bracket
© 2005 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
DVD in-VEHICLE
ENTERTAINMENT SYSTEM
WITH SUNROOF
Template B
AII 28609 (0502)
Application
RIDGELINE
DVD player bracket A
DVD player bracket B
FM modulator bracket
Template: without sunroof
(Not used.)
Template: with sunroof
Template A
2 Screws, 3 x 8 mm
Washer-screw, 5 x 12 mm
Publications No.
AII 28609
Issue Date
FEB 2005
1 of 26
08B23-SJC-1000-9A
Advertisement
Related Manuals for Honda DVD in-VEHICLE ENTERTAINMENT SYSTEM
Summary of Contents for Honda DVD in-VEHICLE ENTERTAINMENT SYSTEM
- Page 1 Template: with sunroof Sub-feeder cord Template A Monitor gasket Template B 2 Screws, 3 x 8 mm Monitor bracket Washer-screw, 5 x 12 mm 1 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502) 08B23-SJC-1000-9A...
- Page 2 4 Washer-screws, 5 x 8 mm 2 Screw caps 18 Wire ties Quick Reference Tag Long wire tie 10 Cushion tapes Owner’s Manual 7 EPT sealers 2 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
-
Page 3: Installation
SHOP TOWEL CLIPS (2) CLIPS (18) FLAT-TIP INTERIOR SCREWDRIVER 3915101T LIGHT i -VES Insert into the HARNESS HARNESS groove. PLAYER CABLE “B” 4917091H 3 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502) - Page 4 With Navi retaining clips and one tab). INSTRUMENT VEHICLE PANEL NAVIGATION CONNECTOR UNIT SCREWS (5) PASSENGER’S 3915020T RETAINING CONSOLE SIDE CLIPS (2) TRIM 4913010H 4 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 5 CLIPS (3) RETAINING TABS (6) SCREW SELF- TAPPING SCREWS (3) SCREW GLOVE 4606041T RETAINING DASHBOARD 3915034T CENTER CLIPS (2) CENTER LOWER POCKET COVER 5 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 6 11. Remove the front center tray (two clips and two hooks). HOOK CENTER TRAY FRONT CLIPS (2) CENTER CONSOLE REAR COVER VEHICLE VEHICLE CONNECTOR CLIP 4907020H 6 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 7 RETAINING RIGHT REAR DOOR SILL TRIM SELF-TAPPING SCREW CLIPS (3) RETAINING CENTER CONSOLE FRONT BOLTS (2) 4D10010H 4907012H 7 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 8 SMALL FLAT-TIP SCREW DRIVER 4D10030H RIGHT SEAT BELT RIGHT B-PILLAR UPPER ANCHOR UPPER TRIM PANEL BOLT COVER RIGHT SEAT BELT 4D10050H UPPER ANCHOR BOLT 8 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 9 RIGHT LENS LEFT LENS SCREW RETAINING COVER RETAINING TABS (4) TABS (4) RETAINING 4216040K SCREW COVER SCREW PASSENGER’S 4703023T RETAINING GRAB RAIL SCREW 9 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 10 BOLT shown. 26. Remove the sunvisor holders by rotating them Cut out areas. clockwise. TEMPLATE (Crease.) SUNVISOR 4N03061H HOLDERS (2) 4217011K FLAT-TIP SCREWDRIVER 10 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 11 30. Using a felt-tip pen, mark the headliner along the KNIFE outer edges of the template. Remove the template. TEMPLATE HEADLINER Cut out this FRONT area. 4N03101H FELT-TIP HEADLINER FRONT 4N03081H 11 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 12 DIN CABLE “A” PASSENGER’S TERMINAL A-PILLAR OPENING HEADLINER OPENING 250 mm CABLE “A” VEHICLE FRAME YELLOW FRONT LABEL GLOVE 4913123H CABLE “A” 4D10070H OPENING 12 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 13 “B” toward the rear of the vehicle. VEHICLE HARNESS CABLE “A” 4D10090H CABLE “B” i -VES HARNESS VEHICLE FRAME CABLE “A” 4915044H 13 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 14 Remove the template. 48. Using a push-pin, mark the center console at the marks on the template. Remove the template. 14 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 15 DVD PLAYER i -VES HARNESS CABLE “B” DVD PLAYER BRACKET A CABLE “A” CENTER CONSOLE 28 mm HOLE 4915101H AUXILIARY INPUT JACKS 4909020H 15 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 16 58. Install the connector clip to the vehicle console light connector, and secure the vehicle console light connector to DVD player bracket B. 16 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 17 8 mm HOLE i -VES HARNESS 4-PIN CONNECTOR CENTER CONSOLE DIN CABLE “B” YELLOW LABEL DIN CABLE “A” 4916013H FRONT 5 mm STEPPED BOLT 4916030H 17 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 18 AUDIO UNIT OPENING FRONT VEHICLE CUSHION PANEL TAPE FLOOR CARPET (Pull back.) 4D26011H i-VES HARNESS CUSHION TAPE DIN CABLE "A" 4916052H DIN CABLE "B" 18 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 19 VEHICLE HARNESS shown. WIRE TIE GLOVE BOX OPENING WIRE TIE CABLE “A” 4D13050H CABLE “B” VEHICLE i- VES HARNESS HARNESS 4916080H 19 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 20 FRONT FRONT HEADLINER 3-PIN CONNECTOR 4916111H LENS 78. Position the 3-pin connector in the cavity in the headliner. Reinstall the rear interior light. 20 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 21 EPT SEALERS (2) Cut in half. EPT SEALER Cut off. SQUARE-HEAD BOLTS (4) FRONT 4N03141H MONITOR 4 mm FLANGE BRACKET Cut off. 4N03111H 21 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 22 MONITOR CONSOLE 3-PIN CONNECTOR LEFT LENS FRONT RIGHT MONITOR 5 x 16 mm LENS CONSOLE 4N03151H WASHER SCREW SCREW FRONT CAPS (2) 4D21020H 22 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 23 EPT SEALER SWITCH With Navi Cut in half. NAVIGATION UNIT MODULATOR MODULATOR EPT SEALER CABLE 4917052M Cut in half in step 88. 4917040M 23 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 24 With Navi 2-PIN CONNECTOR LOCATION NAVIGATION UNIT MODULATOR BRACKET MODULATOR ANTENNA LEAD NAVIGATION UNIT SCREW SUB-FEEDER MODULATOR 2-PIN CONNECTOR SUB-FEEDER ANTENNA LEAD 4917070M 4917090M 24 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
- Page 25 95. Plug the i -VES harness 20-pin connector into the EPT SEALER audio unit/navigation unit. Cut in half. 4917110M 96. Reinstall the audio unit/navigation unit. 25 of 26 © 2005 American Honda Motor Co., Inc - All Rights Reserved. AII 28609 (0502)
- Page 26 106.Pull up on the driver’s window switch fully to close the window completely, then hold the switch for 2 seconds or more. 107.Test the window AUTO function. 26 of 26 AII 28609 (0502) © 2005 American Honda Motor Co., Inc - All Rights Reserved.
