MAAX 2007 Elite spas Owner's Manual

Hide thumbs
Table of Contents

Quick Links

2007
OWNER'S MANUAL
1
Table of Contents
loading

Frequently Asked Questions (10)

  • Why is my MAAX 2007 Elite spas hot tub not heating up?

    If your MAAX 2007 Elite spas hot tub is not heating up, the common causes and solutions are:

    • Water level too low: Add water to reach the fill line on the weir door.
    • Heater mode not selected: Refer to the temperature/heater functioning section in the control instructions (pages 9-15).
    • No power to heater: Check the house circuit breaker.
    • Heater not operating: Contact your dealer.

    For more information, see page 40 of the manual.
    Was this helpful?
  • How do I turn on my MAAX 2007 Elite spas hot tub?

    To turn on your MAAX 2007 Elite spas hot tub, you should:

    1. Fill the spa through the filter hole to the water line on the weir door with tap water. Never use "softened" water in your spa.
    2. Turn power on to unit at circuit breaker or disconnect panel.
    3. Open the air controls, located on the top lip, and cycle the jets from high to low. Water should come from the therapy jets. If water flow is not established, turn off jets and see Priming Your Spa.
    4. Add chemicals.

    For more information, see page 15 of the manual.
    Was this helpful?
  • How do I drain my MAAX 2007 Elite spas hot tub?

    To drain your MAAX 2007 Elite spas hot tub, follow these steps:

    1. Turn off all electrical power to the spa.
    2. For the external drain:
      • Locate the external drain valve at the base of the spa below the side panel.
      • Remove the outer black cap and connect a garden hose to the fitting.
      • Turn the ring on the back of the valve counter-clockwise until it stops, then pull out to open the valve. Water will begin to flow.
      • When flow stops, push in the valve, turn the ring clockwise until it stops, remove the hose, and replace the cap.
    3. For the internal drain hose(s) (if applicable, located behind the front access panel):
      • Remove the access panel screws and the access panel.
      • Locate the drain hose(s).
      • For each hose drain valve, remove the cap, attach the garden hose, and turn the valve handles 90° counter-clockwise. Water will begin to flow.
      • When all water has been evacuated, turn the valve handle clockwise until it stops. Remove the garden hose, and replace the cap.

    Do NOT attempt to use the pump to drain the spa. Ensure all drains are closed and caps replaced before refilling.

    Was this helpful?
  • How often should I change the water in my MAAX 2007 Elite spas hot tub?

    It is advisable to drain your spa and refill it with fresh water every six to eight weeks, or more often, depending on the amount of use. This is because high concentrations of impurities from water evaporation, body oils, perfumes, and other contaminants may accumulate and cannot be filtered out.

    Was this helpful?
  • How often should I clean the filters in my MAAX 2007 Elite spas hot tub?

    The filter in your MAAX 2007 Elite spas hot tub should be inspected/cleaned monthly during normal use, and more often when spa use is heavy. The filter cartridge itself should be cleaned at least once every 90 days. Replacing the filter cartridge annually is recommended to maintain optimum performance.


    For more information, see pages 8 and 36 of the manual.
    Was this helpful?
  • What chemicals are recommended for maintaining the water in a MAAX 2007 Elite spas hot tub?

    For maintaining the water in your MAAX 2007 Elite spas hot tub, you will need:

    • Sanitizers: Common spa sanitizers or oxidizing agents include bromine, chlorine, and ozone. It is important to maintain a residual of sanitizer in your water. For spas using ozone, a residual of 3.0–5.0 ppm of chlorine or bromine is recommended.
    • pH balancing chemicals: To maintain proper pH, which is important for sanitizer effectiveness and user comfort. Recommended pH levels are 7.2-7.6 (ideal 7.4-7.6). Do not use muriatic acid to balance pH.
    • Specialty Chemicals: While ozone can reduce the usage of specialty chemicals, it is not a substitute. These chemicals should continue to be monitored, especially during heavy usage or when changing/replenishing water. If your source water has a high metal or mineral content, a specialty chemical should be used to avoid staining or accumulation of deposits.

    It is recommended to purchase a chemical start-up kit and additional chemicals from your dealer. Tests should be done daily with your test kit to keep proper levels.


    For more information, see page 35 of the manual.
    Was this helpful?
  • How do I properly operate the jets and controls on my MAAX 2007 Elite spas hot tub?

    The operation of jets and controls depends on your specific control system (Powerworks™ 160, 460, or 760 Series), but generally involves:

    • Jets: All full-sized jets are adjustable from fully open to closed. You can rotate the nozzle to target sore muscle areas. It is important to NEVER SHUT ALL FULL SIZED JETS OFF AT ONE TIME.
      • To activate the jets, touch the corresponding "Jets" pad (e.g., "Jets 1" or "Jets 2" for 160 series, "JETS 1", "JETS 2", "JETS 3" for 760 series). The sequence typically cycles through low speed, high speed, and off with successive touches.
    • Air Controls: The intensity of the jet action can be controlled by altering the amount of air injected with water. Your spa has five air controls located on the lip of the spa. Each control activates air to specific jets.
      • Turn the control counter-clockwise to turn the air off and clockwise to turn air on.
      • Air controls should be closed during heating cycles for maximum energy efficiency.
    • Light: Touch the "Light" pad to turn the internal spa light on or off. The light will automatically turn off after 1 hour of operation.

    Some models may also have a Turbo Air Boost or Air Massage system, activated by a "BLOWER" button, which automatically shuts off after 15 minutes.


    For more information, see pages 12, 15, 17, 21, 23, 27 and 32 of the manual.
    Was this helpful?
  • How do I winterize my MAAX 2007 Elite spas hot tub?

    If you do not intend to use your spa during the winter months and there is a danger of freezing, follow these steps to winterize your spa:

    1. Turn off all electrical power to the spa.
    2. Drain the spa and hoses of all water using the directions for Draining Your Spa (page 24). Open all unions and remove drain plugs from the bottom of the pumps. If you cannot draw off all of the water, add Recreational Vehicle antifreeze (inhibitor Propylene Glycol) to the remaining water through the bottom of the skimmer and jets.
    3. The filter should be drained, and the cartridge removed and cleaned.
    4. Check to see that there is no water in the heater element chamber.
    5. Clean your spa as directed in the Spa Surface Care and Cleaning section.
    6. Cover your spa with a water-shedding, impenetrable cover.
    7. For further information on blowing out plumbing lines and winterizing procedures, contact your local dealer.

    For more information, see page 37 of the manual.
    Was this helpful?
  • How do I adjust the temperature settings on my MAAX 2007 Elite spas hot tub?

    To adjust the temperature settings on your MAAX 2007 Elite spas hot tub:

    1. First, ensure the pump is running by pressing the "Jets 1" pad if two dashes are displayed, then wait approximately 2 minutes for the water temperature to display.
    2. To change the set temperature:
      • For Powerworks™ 160 Series Control System: Use the "Temp" pad. Each touch will change the set temperature by 1°F. Continue pressing until the desired temperature is reached.
      • For Powerworks™ 460 Control System: Use the "WARM" or "COOL" pads. Each successive touch will change the set temperature by 1°F. Continue pressing until the desired temperature is reached.
      • For Powerworks™ 760 Control System: Use the "SET UP" or "SET DOWN" pads. Each successive touch will change the set temperature by 1°F. Continue pressing until the desired temperature is reached.

    If the spa is in Standard mode or a filtration cycle, adjusting the set temperature may activate the heater. The maximum set temperature is 104°F (40°C) and the minimum is 80°F (27°C).

    Was this helpful?
  • What is the correct water level for my MAAX 2007 Elite spas hot tub?

    The correct water level for your MAAX 2007 Elite spas hot tub is the water line on the weir door. You should power the spa only when it is filled with water to the water level mark on the Weir door.

    Was this helpful?
Need help?

Need help?

Do you have a question about the 2007 Elite spas and is the answer not in the manual?

Questions and answers

Stephen Reilly
April 27, 2025

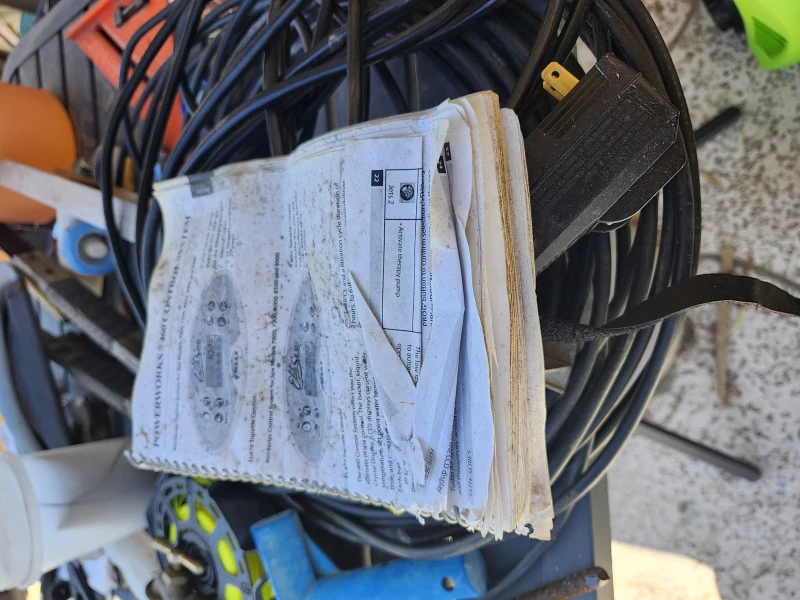

Looking For A Manual ( Paper Version ) For An Elite Spa 460 Control System

User image 680e641dc64cc
0

Related Manuals for MAAX 2007 Elite spas

Summary of Contents for MAAX 2007 Elite spas

  • Page 1 2007 OWNER’S MANUAL...

  • Page 2: Copyrights And Trademarks

    Spas. Disclaimer: The information in this manual is accurate to the best of MAAX Spas (Arizona), Inc.’s knowledge. However, MAAX Spas (Arizona), Inc. assumes no responsibility for errors or omissions. Nor is any liability assumed for damages resulting from use of the information contained herein.

  • Page 3: Safety Warnings

    WARNING: Do not use spas or hot tubs unless all IMPORTANT suction guards are installed to prevent body and hair SAFETY entrapment WARNINGS AVERTISSEMENT: Pour éviter que les cheveux ou une partie du corps puissent être aspirés, ne pas utiliser un spa si les grilles de prise d’aspiration ne sont pas NOTE: When installing and using this equipment, toutes en place.
  • Page 4 AVERTISSEMENT: Il peut être dangereux pour la HYPERTHERMIA santé de se plonger dans de l’eau à plus de 38º C The causes, symptoms, and effects of hyperthermia may be described as follows: Hyperthermia occurs when the internal temperature of WARNING: Before entering the spa or hot tub measure the water temperature with an accurate the body reaches a level several degrees above the thermometer...

  • Page 5: Table Of Contents

    i,ii Changing Filter Cycle Safety Warnings Clean Up Cycle Table of Contents Powerworks® Control System Important Safety Instructions Do’s and Don’ts Operating Instructions Hyperthermia User’s Pads Temperature Controls Spa Installation Temperature Lock Site and Positioning Temperature Unlock Outdoor Installation Panel Lock Indoor Installation Panel Unlock Light...
  • Page 6 Entertainment System Inversion Feature Auxiliary Panel Safety Features Automatic Time Outs 25, 26 Common LCD Equipment Messages Common LCD Messages Maintenance Water Chemistry Sanitizing pH Level Water Maintenance with the CleanZone™ Water Treatment System Sanitizing With Ozone Specialty Chemicals Draining Your Spa Filter Maintenance Winterizing Spa Cabinet Care...

  • Page 7: Important Safety Instructions

    women should check with their physician before IMPORTANT entering spa. SAFETY 3. Before entering a spa, the user should verify the water temperature with an accurate thermometer since INSTRUCTIONS the tolerance of water temperature regulating devices varies. Caution: Risk of electrical shock. Read and 4.

  • Page 8: Do's And Don'ts

    The electrical supply for this product must include a Don’t : suitably rated switch or circuit breaker to open all • Use the spa at 104°F (40°C) for long periods of time ungrounded supply conductors to comply with Section (more than 30 minutes). See Hyperthermia, this 422-20 of the National Electrical Code (NEC) page.

  • Page 9: Spa Installation

    7. Dressing and bathroom location. 8. Storage area for maintenance equipment Spa Installation and chemicals. 9. Location to facilitate adult supervision. Danger: Electrical shock risk. Install at least 5 ft. 10. Landscaping and nighttime lighting. (1,5 m) from all metal surfaces. 11.

  • Page 10: Spa System Components

    Spa System Components F. Drain Access: (Adjacent to the equipment service A. Filter Skimmer/Weir Door: Removes floating panel) Spa drain faucets. debris from the water surface, provides a water return G. Digital/Fiber Optic Lighting: Lighting system path to equipment, and houses water filter element. that displays multiple...

  • Page 11: Spa Components

    Spa Components Reference only. Equipment is not always as shown. Note: No consumer serviceable parts. Do NOT Attempt to service any of these components yourself. Contact your dealer for assistance. Pumps : Low speed for efficient water D. Electrical Connections: The electrical plugs for circulation during filtration and heating;...

  • Page 12: Jets And Air Controls

    Jets and Air Control Cleaning or Replacing Jets Hard water can cause calcium/mineral buildup that can Jets restrict or bind the jets. A jet consists of a face plate All spa jets are individually engineered to provide and a nozzle. Rotate these parts weekly and remove/clean monthly to ensure free movement.

  • Page 13: Electrical Information

    Certain models might be built for a 120 volts Electrical Information connection only. All other models can only be connected to a 240 volts electrical service. Caution: Risk of electrical shock. 120 Volt Installation Read and follow all instructions. Electrical Requirments : •120 Volts, 60 Hz, Single Phase, 40 amp.

  • Page 14: 240 Volts Installation

    240 Volt installations heater. See your authorized dealer if select this option. Permanently Connected Models: Spas installed for 240 volt operation require a 4- wire, 50 or 60 amp. 240 volt sub-feed in non-metallic Refer to the manufacturer’s nameplate located on pipe to the spa equipment compartment (line 1, line 2, the kick plate to determine you spa’s ampere neutral, and ground).

  • Page 15: Start Up Procedures

    Start Up Procedures All models in the Elite Series are equipped with Follow recommendations for site location Maax Spas’ CleanZone water treatment system to and electrical connection. The water line on the weir door is the level at which the water should be assist with your water sanitizing needs.

  • Page 16: User's Pads

    160 Series Control System EL173 Topside Control EL174 Topside Control Powerworks™ Serie Control System The 160 Series Powerworks™ Controls offer you the ultimate in spa control. The backlit, Liquid Crystal Display (LCD) displays current temperature, set water temperature, and operating mode settings. Each feature is actuated through the control panel pad.

  • Page 17: Temperature Controls

    Touch the “Jets 2” pad to activate the Temperature Controls operation of Pump 2. The sequence of the jet action The maximum set temperature of the spa is 104°F (40°C) and the minimum set temperature is 1 touch = High Speed 80°F (27°C).

  • Page 18: Filtration Cycles

    different duration options as shown below. Press the Changing Modes “Jets 1” button to exit the programming sequence. To change the operating mode, press the “Temp” button then the “Light” button. Continue this 2 Hours for each cycle, 4 hours per day sequence until the desired mode is displayed in the 4 hours for each cycle, 8 hours per day LCD window.

  • Page 19: Powerworks® Control System

    460 Series Control System If your Topside Control looks like this, your spa has the following features: • Internal Lights • Air Massage (AeroMaax) • 2 Pumps EL478 Topside Control If your Topside Control looks like this, your spa has the following features: •...

  • Page 21: Temperature Lock

    Temperature Lock Temperature Once you have set the desired water The maximum set temperature is 104°F temperature, you may lock-in the new setting to (40°C) and the minimum set temperature is 80°F prevent unauthorized temperature adjustments to your (27°C). The current water temperature or, if the pump spa.

  • Page 22: Setting The Time

    The hour digit(s) will be flashing on the LCD window. Operating Modes Press the “Warm” or “Cool” button to advance the Your Elite Spa comes with three primary hours up or down to the desired set point. Press the operating modes. “Mode/Prog”...

  • Page 23: Light

    You should now see the “PROGRAM”, Clean Up Cycle “FILTER 1”, and “START TIME” icons on the LCD After periods of heavy use, turn the jets on to Low display window. The hour digit(s) will be flashing on Whirlpool for a four-hour clean up cycle. the LCD window.

  • Page 24: Optional Entertainment System

    Caution Risk of electrical shock. Do not leave Optional Entertainment System stereo compartment door open. Select models may be equipped with an audio system designed to provide the ultimate spa Caution Risk electrical shock. Replace entertainment experience. Power to the entertainment compenents only with identical components.

  • Page 25: User's Pads

    460 Series Control System If your Topside Control looks like this, your spa has the following features: • Internal Lights • Air Massage (AeroMaax) • 2 Pumps EL478 Topside Control If your spa is equipped with this Secondary Control pad, your spa has the following features Third primary Pump.
  • Page 27 Temperature 1 touch = Low therapy jets 2 touches = High therapy jets The maximum set temperature is 104°F (40°C) 3 touches = Off and the minimum set temperature is 80°F (27°C). The The low speed operation of Pump 1 is timed to current water temperature or, if the pump has not been automatically turn off after two hours of operation.
  • Page 28 Panel Unlock Time and Filtration Cycles To unlock the panel, touch the TIME, JETS1, The control system on your spa has been designed and SET DOWN buttons within 3 seconds. The “PL” to function properly and safely at 100°F after indicator light will go out when the panel lock is connecting the electrical wires and installing the cleared.

  • Page 29: Clean Up Cycle

    Changing Filter Cycles the end time of the second filter cycle, the new filtration times will be saved into the system and the The 760 Series Control systems allows you to LCD window will revert back to display the current adjust the start time and duration of each filter cycle water temperature.

  • Page 30: Sequencing Programs

    Starting the Sequencer Sequencing Programs To energize the sequencing system, press the To start the sequencing program, push the JETS3 button on the ELX10 control panel. Once PROGRAM button one time. The LCD will energized, the sequencer will open all 4 solenoid momentarily display “P2”, and then alternate between valves and water will flow through all open jets.
  • Page 31 Article National Electric Code, Refer to the stereo Owner’s Manual included in ANSI/NFPA 70. MAAX Collection Owner’s packette WARNING: Prevent Electrocution. Do instruction programming using not service this product yourself as opening or entertainment system.
  • Page 32 Inversion Feature The 760 Series Control includes an Inversion feature that makes it easy to read the LCD from inside or outside the spa. To invert the LCD display, touch the Invert pad. Repeat the sequence to reverse the inversion process. Auxiliary Panel Select models are equipped with an auxiliary control panel which allows you to operate all three...

  • Page 33: Equipment Safety Features

    Equipment Safety Features Automatic Time Outs Your spa is equipped with an automatic Time Out feature designed to protect both the equipment and the user. For your safety and to reduce unnecessary use of the pumps and lights, the Time Out feature turns selected accessories off automatically, as follows: ACCESSORY MODE...

  • Page 34: Common Lcd Messages

    Common LCD Equipment Safety Messages (continued) If the LCD Indicates… What happens… Possible cause… Corrective action… displays •Water flow •Heater will shut • Plugged filter. •Remove filter and clean Problem - down while spa Persistent continues to Flow problem. function normally. •Low water •Add water.

  • Page 35: Maintenance

    CleanZone™ Water Treatment System chemical balance must be watched carefully. It is recommended that you purchase a chemical start up Equipping your spa with a MAAX spas® Clean kit, and the additional chemicals needed to maintain Zone™ system that includes the Powerworks™...

  • Page 36: Draining Your Spa

    Draining Your Spa Filter Maintenance Note: Always turn the circuit breaker off when you drain your spa. Do not turn the spa heater back on Note: It is not necessary to drain the spa in order to until you have full flow coming from the jets for clean the filters.

  • Page 37: Winterizing

    Winterizing Spa Cabinet Care In cold climates where freezing temperatures occur, special care is required to prevent the possibility Elite series cabinets made of damage to the spa and equipment due to freezing. Duramaax™, a high quality alternative to wood that is If you plan on using your spa during cold months, be virtually maintenance free, requiring no staining, sure your pump and heater are in good working order.

  • Page 38: Common Water Problems

    Common Water Problems Problem Cause Solution Cloudy Water •Inadequate filtration/dirty filter •Check to make sure the filter is running properly; clean filter with a filter cleaner or degreaser. •Excessive oils/organic matter •Shock the spa with a chlorine or bromine sanitizer, or other shock treatment product.
  • Page 39 Common Water Problems (continued) Problem Cause Solution Eye Irritation •Low pH •Raise pH with sodium bicarbonate product. •Insufficient free available chlorine •Shock with a chlorine sanitizer/shock or other shock treatment product. Skin Irritation/ •Unsanitary/polluted water •Keep recommended sanitizer residual at Rash all times;...

  • Page 40: Common Hardware Problems

    Common Hardware Problems Problem Usual Cause Solution System not • House circuit breaker tripped or in • Reset circuit breaker on house operating. OFF position. breaker panel. Heater not • Water level too low. • Add water to reach fill line on Weir operating door.
  • Page 41 Common Hardware Problems (continued) Problem Usual Cause Solution Noisy pump • Clogged floor suction or skimmer. • Clean floor suction/skimmer. and motor. • Low water level. • Add water to normal water level (6" below lip). • Damaged or worn motor bearings. •...

  • Page 42: Spa Soaking Guidelines

    9. Consult your doctor about potential harmful effects Spa Soaking Guidelines of using drugs or medications while hot water soaking. 1. Persons with heart disease, diabetes, blood pressure 10. Never use the spa when you are alone. or circulatory abnormalities, a serious illness, or pregnant women should not enter a spa without prior 11.

  • Page 43: 165 Series System Wiring Diagram

    165 Series System Wiring Diagram...

  • Page 44: 167 Series System Wiring Diagram

    167 Series System Wiring Diagram...

  • Page 45: 460 Series System Wiring Diagram

    460 Series System Wiring Diagram...

  • Page 46: 760 Series System Wiring Diagram

    760 Series System Wiring Diagram...

  • Page 47: Safety Sign

    This manual refers to only year 2007 model spas. MAAX Spas (Arizona), reserves the right to make changes in design or material of its products at any time without incurring liability. This limited warranty applies to the first...
  • Page 48 10xxxx REV.12/03 25605 South Arizona Avenue, Chandler, Arizona 85248 Retail Value $9.95US ©1993-2006 MAAX Spas (Arizona), Inc. • Printed in U.S.A.
