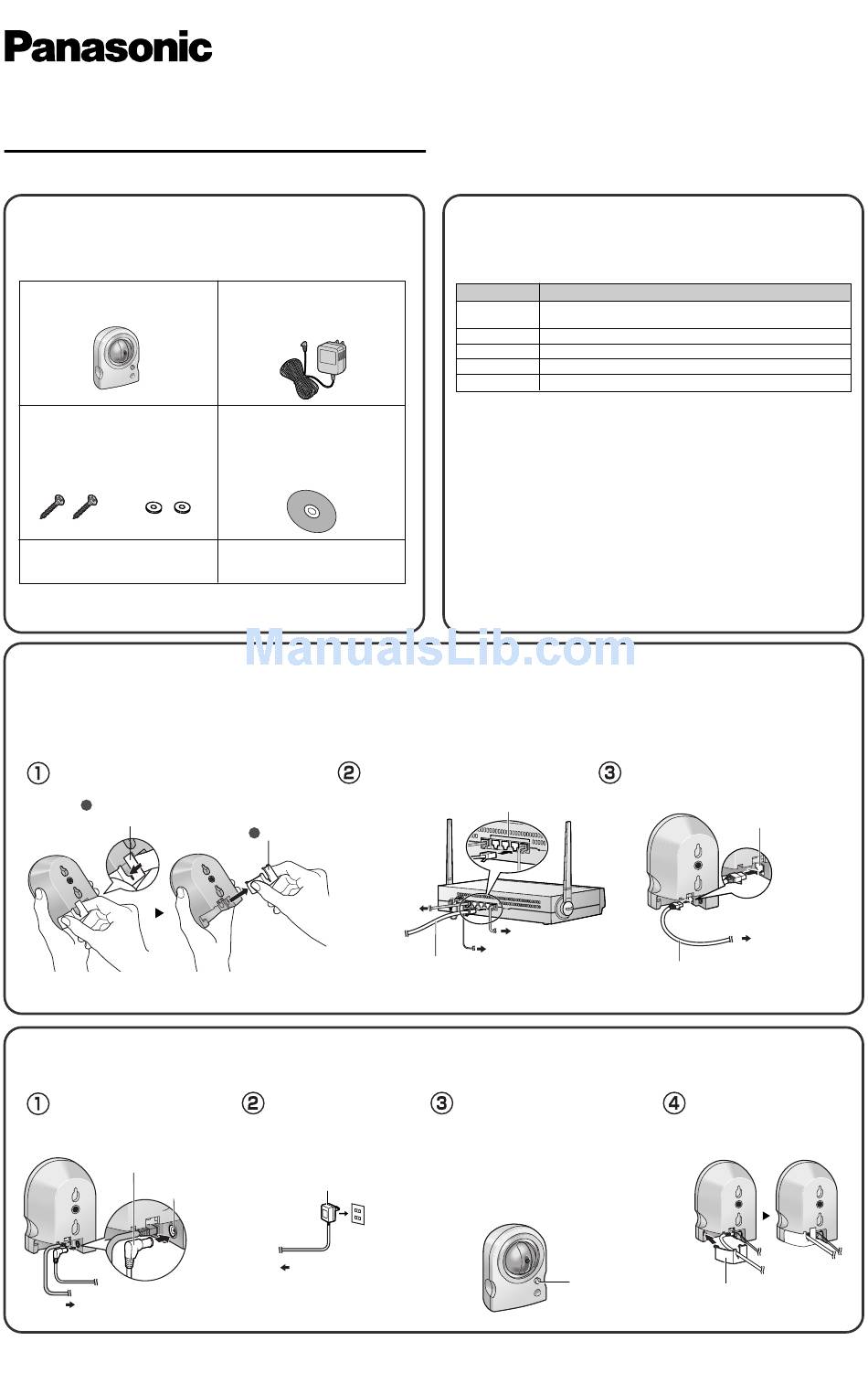

Panasonic BL-C10A Getting Started

Getting Started

Network Camera

BL-C10A
Model No.
1.
Check the included accessories.
The following items are provided with the camera. Additional pieces can be
ordered by calling 1-800-332-5368.
Main Unit . . . . . . . . . . . . . . . . . . 1 pc.
Screws . . . . . . . . . . . . . . . . . . . 2 pcs.
Order No.: PQHE5004Y
Washers . . . . . . . . . . . . . . . . . .2 pcs.
Order No.: XWG35FJ
Getting Started (This manual) . 1 pc.
3.
Connect the camera to your router.
Connect the camera to your router with an Ethernet
• These instructions assume your PC is already connected to the Internet and your home network includes a router that is UPnP
(Universal Plug and Play) compliant.
• The camera will be connected to your router using a "straight" Cat5 network cable (customer-provided).
Push the cable cover to the left, let go
of the tab from the unit, and pull it.
1
Push the cable cover to the left,
let go of the tab from the unit.
4.
Turn the camera on.
Inserting the AC adaptor to the outlet powers up the camera.
Connect the power cord from
the AC adaptor to the DC In
jack.
Power Cord
To the DC IN jack of
the camera
To the router
© 2004 Panasonic Communications Co., Ltd. All Rights Reserved.
PSQX3226YB
KK0604RM3115
AC Adaptor . . . . . . . . . . . . . 1 pc.
Order No. PQLV1Y
(Cord Length: About 5 m [16.4 feet])
Setup CD-ROM . . . . . . . . . . 1 pc.
Order No.: PSQX3229YCD
(Operating Instructions, Installation/
Troubleshooting, Getting Started,
Setup Program)
Installation/
Troubleshooting . . . . . . . . . 1 pc.
® cable to set up the camera.
Connect the Ethernet cable to your
router.
2 Pull.
To your Modem
Plug the AC adaptor into
the power outlet.
• When you operate the camera,
the power outlet should be near
the camera and easily accessible.
AC Adaptor
To the power outlet
To the camera
Please read the Installation/Troubleshooting manual before using.
This Getting Started explains how to connect, set up and mount the
camera. See the Operating Instructions on the Setup CD-ROM for
details about the camera features.
If you cannot complete the setup, see the Troubleshooting section of
•
the Installation/Troubleshooting manual.
2.
Check the system requirement for
your PC.
Your PC (Personal Computer) and network must meet the following tech-
nical specifications for the camera to work properly.
Item
Operating Microsoft
System Microsoft
CPU Pentium
Protocol TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)
Interface 10/100 Mbps network card installed
Web Browser Internet Explorer 6.0 or later (Not included on the Setup CD-ROM)
• See Panasonic Network Camera support website at
http://panasonic.co.jp/pcc/products/en/netwkcam/ for the latest information
about web browser.
Trademarks
• Adobe and Acrobat are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
• Ethernet is either a registered trademark or a trademark of Xerox Corporation
in the United States and/or other countries.
• Microsoft, Windows, and ActiveX are either registered trademarks or trade-
marks of Microsoft Corporation in the United States and/or other countries.
• Pentium is a trademark or registered trademark of Intel Corporation or its sub-
sidiaries in the United States and other countries.
• Screen shots reprinted with permission from Microsoft Corporation.
• All other trademarks identified herein are the property of their respective owners.
Abbreviations
• UPnP TM is the abbreviation for Universal Plug and Play.
• "Network Camera" is called "Camera" in this Getting Started.
To a LAN port of your router
To your PC
To the outlet
Ethernet cable
(Straight Cat5 cable)
(Customer-provided)
After the lens moves (pan/tilt
operation), confirm that the indi-
cator lights green after a minute.
• If the indicator does not light green,
see page 15 and 16 of the Installation/
Troubleshooting.
• A noise can be heard during pan/tilt
operation. This is normal.
Description
® ® ®
Windows 98SE, Microsoft Windows
® ® ®
Windows Me, Microsoft Windows
®
III (500 MHz or greater is recommended.)
Connect the Ethernet cable to the camera.
To the Ethernet (LAN)
port of the camera
Ethernet cable
(Straight Cat5 cable)
(Customer-provided)
After you let the Ethernet
cable through the hole, attach
the cable cover to the camera.
The indicator
Attach the cable cover letting
lights green.
the Ethernet cable through the hole.
®
2000,
®
XP
To your router
