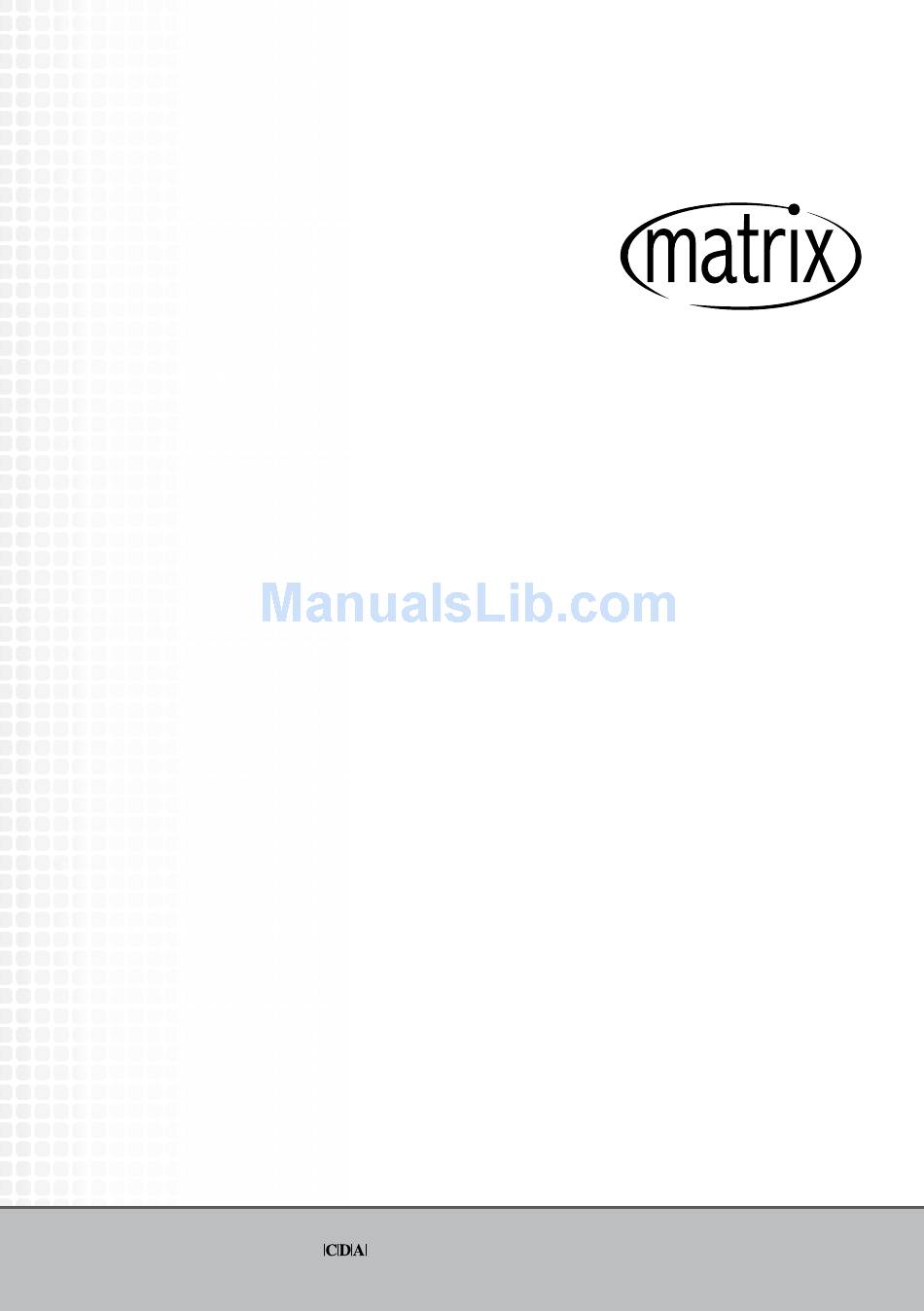

  • Page 1 MD720 Built-Under Double Oven MD920 Built-In Double Oven Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
  • Page 2 Important This appliance must only be used for the purpose for which it is intended, i.e. domestic cooking. Any other use could be dangerous and may lead to premature failure of the appliance. The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.
  • Page 3: Appliance Information

    Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number CE Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and...
  • Page 4 disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin. Important Read the user instructions carefully before using the oven for the first •...
  • Page 5: First Use Of The Oven

    Do not use abrasive cleaners or powders that will scratch the surface of • the enamel. • Do not attempt to repair the internal workings of your oven. • The oven is equipped with a safety thermostat which will switch off the oven in the event of the oven overheating.
  • Page 6: Oven Controls And Use

    Oven controls and use Cooking function knob To set the function, turn the cooking function knob for the required oven clockwise to the required function. Each of the oven functions uses different elements within the oven to offer you the best choice of cooking every time. These are explained below: Conventional oven This function uses the top and bottom heating elements only with a temperature between 50ºC and 250ºC.
  • Page 7 When grilling, please note: • Always grill with the oven door closed. • Put the grill pan as close to the grill as possible. • Do not grill for more than 30 minutes at a time. • Preheat the grill for approximately five minutes with the oven door closed. Oven Lamp This function switches on the oven light in the cavity.
  • Page 8: Programming The Oven

    Temperature knob • To set the temperature, turn the temperature knob for the required oven clockwise to the required temperature. • |Once the oven has reached the required temperature, the temperature indicator lamp on the control panel will switch off. •...
  • Page 9 When the correct time is shown on the display, the clock will set after approximately five seconds’ delay. Setting the volume of the beep • When the current time is shown on the clock display, press and hold button 5. The beep will sound three times. •...
  • Page 10 Programming the oven The oven can be set for semi-automatic cooking, where the oven is programmed to switch off at a specific time, and for automatic cooking, where the oven is set to switch on and off at specific times. To use the oven, first press button 4 To set a semi-automatic programme 1.
  • Page 11 When the cooking time is completed, the programme symbol will no longer be shown, auto will flash and the timer will beep. To switch off the beep, press any button. Then switch off the oven by turning the control knobs to the off position and pressing button 4 to set the programmer to manual.
  • Page 12: Care And Maintenance

    Care and Maintenance IMPORTANT Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply. If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance. The oven exterior As the oven has a stainless steel or enamel surface, you should use a nonabrasive cleaner.
  • Page 13: Changing The Oven Lamp

    IMPORTANT: • Steam cleaners must not be used when cleaning this appliance. • Once care and maintenance is complete, ensure that all parts are correctly replaced before using the oven. Changing the Oven Lamp Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply.
  • Page 14 Refit the protective cover. IMPORTANT Never use screwdrivers or other utensils to remove the light cover. This could damage the enamel of the oven or the lamp holder. Remove only by hand. IMPORTANT Never replace the bulb with bare hands as contamination from your fingers can cause premature failure.
  • Page 15: Removing The Oven

    Cleaning and Maintenance - Removing the Oven Door The oven doors can easily be removed fig. 3 as follows: • Open the door to the full extent (fig. 3. 1 ). • Open the lever A completely on the left and right hinges (fig.
  • Page 16: Mains Electricity Connection

    Mains Electricity Connection Warning! This appliance must be earthed To connect this appliance to a UK standard mains supply, connect the bridging links between 1-2-3 for the live feed and 4-5 for the neutral feed We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C.
  • Page 17 Green and Yellow = Earth (PE) Green/yellow Blue = Neutral Blue Brown = Live Brown Please note: • The mains cable must only be replaced by a qualified electrician or service engineer and must be of equivalent or better rating (i.e. Fig.5 2.5mm 2 , HO5RR-F).
  • Page 18: Installation

    How to install your oven You will need the following housing area fit your oven correctly. MD720 only: We recommend that you fit end support panels onto the adjacent units to allow the oven to be secured in place (as shown in fig. 6)
  • Page 19 MD720 MD920 Dimensions Oven Housing Dimensions Oven Housing Height (mm) Height (mm) Width (mm) Width (mm) Depth (mm) 560 (min) Depth (mm) 560 (min) MD720 MD920 30-50 = airflow end support panels 720 min = airflow fig. 6...
  • Page 20 Serviced by To contact our Customer Care Department, or for Service, please contact us on the details below. Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
