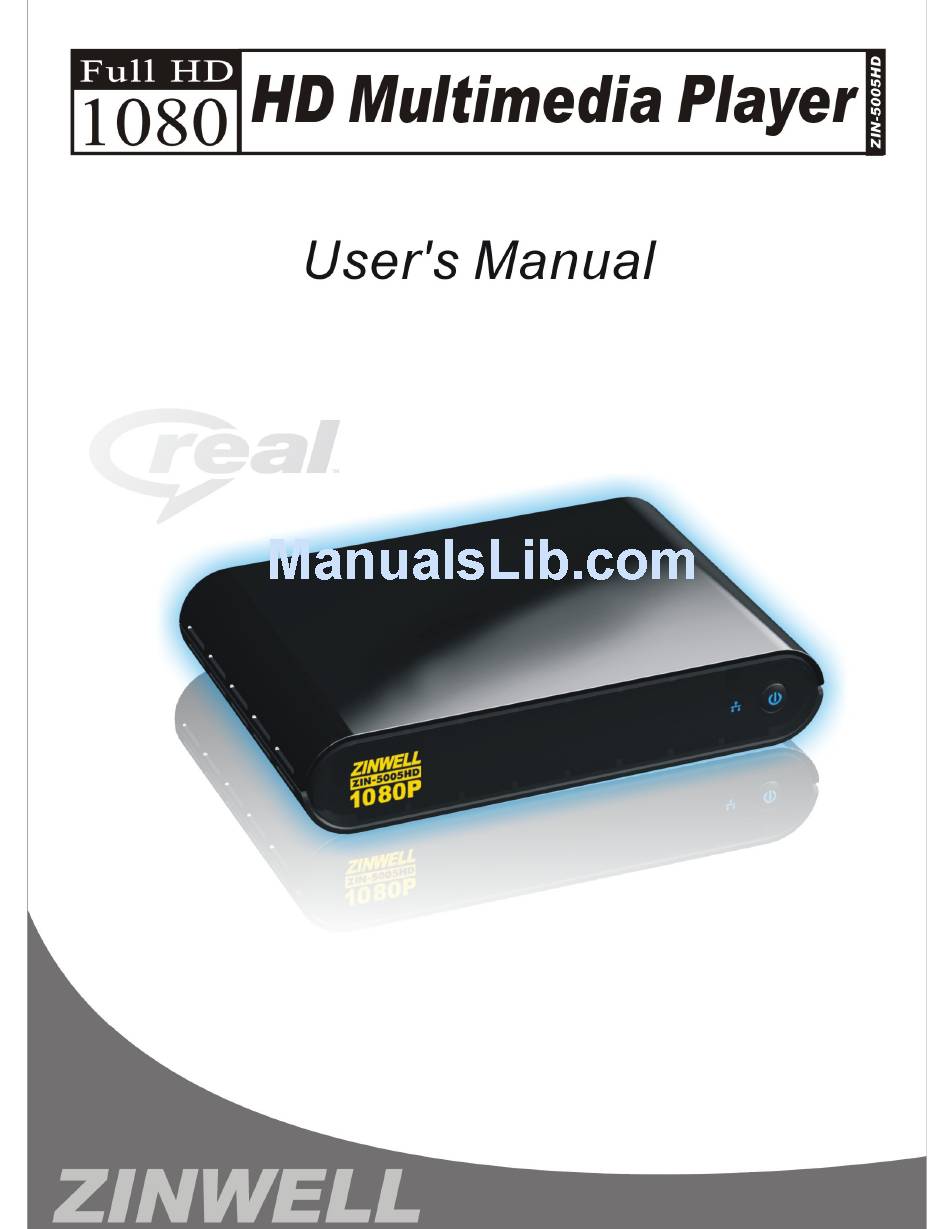

Zinwell ZIN-5005HD User Manual

Full hd 1080
Hide thumbs Also See for ZIN-5005HD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIN-5005HD and is the answer not in the manual?

Questions and answers

Related Manuals for Zinwell ZIN-5005HD

Summary of Contents for Zinwell ZIN-5005HD

  • Page 2 Safety Instructions This product has been engineered and manufactured to assure your personal safety. However, improper use can result in potential electric shock or fire hazards. In order not to defeat the safe-guards incorporated in this instrument and its accessories, please adhere to the following instructions when installing, operating and servicing.
  • Page 3 Usage Warning To reduce the risk of electric shock, do not remove the cover or attempt to disassemble this product. There are no user-serviceable parts inside. Please refer all servicing to qualified service personnel. Protect this product from foreign objects. Never push object of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
  • Page 4 Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Copyright Notice No part of this user’s manual may be copied, translated, or reproduced including electronic form without permission from the copyright owner. We have made effort to ensure the accuracy and completeness of this document.

  • Page 5: Table Of Contents

    Table of Contents 1 1 1 1 INTRODUCTION ..............1 Package content ................ 1 Specification................2 Front View................. 3 Back View.................. 3 Remote Control ................. 4 2 2 2 2 INSTALLATION ..............6 Cable connections ..............6 Internet Connections..............7 Connect USB devices ..............

  • Page 6: 1 1 1 Introduction

    PC-free. It supports most video/audio/image formats so you do not need to convert downloaded media to another format. You can plug in your USB devices to the ZIN-5005HD to play music, movies and pictures on TV by following the on-screen display (OSD) menu. The...

  • Page 7: Specification

    Specification Interfaces HDMI、YPbPr、Composite Video Video Output Audio L/R、S/P DIF (Optical) Audio Output USB x 2、Ethernet Port Data Transfer General Specifications MPEG1 (AVI/MKV/TS/DAT/MPG/MPEG/VOB) MPEG2 (MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP) /M2TS MPEG4 (AVI/MP4/MKV/MOV/WMV/ASF) DivX 3/4/5/6、Xvid (AVI/MKV/MP4/MOV) Video H.264/AVC (TS/AVI/MP4/MKV/MOV/FLV)/M2TS VC-1 (TS/AVI/ASF/WMV)/M2TS Support Media WMV9 (ASF/WMV) Format Real Video 8/9/10 (RM/RMVB) MP3 、...

  • Page 8: Front View

    Connects to the HDMI jack on the display; a single cable transmits both audio and video data. ⑤ S/PDIF Connects the ZIN-5005HD to a display that has an optical digital audio port, using an optical digital audio (also called S/PDIF) cable. ⑥...

  • Page 9: Remote Control

    Remote Control...
  • Page 10 POWER Press to turn on the ZIN-5005HD; press again to switch to stand-by mode. MUTE Press to mute the sound. Number 0-9 number keys for selecting desired options. GOTO Video/movie chapter selection. INFO Display the information of media files while in play mode.

  • Page 11: 2 2 2 Installation

    2 2 2 2 INSTALLATION Cable connections Match the cables to the connections on your TV or display. Your choices of connection include: HDMI For both audio and video output RCA Cable For composite video (yellow) and stereo audio (white and red) Y/Pb/Pr For component video output S/PDIF...

  • Page 12: Internet Connections

    ZIN-5005HD to the network wirelessly using Wi-Fi 802.11 b/g/n. You need to plug the USB dongle into one of the USB port on the front panel of the ZIN-5005HD and connect to the internet through wireless IP sharing router. You may need to know your wireless AP, name of the router, and encryption keys in order to set up correctly.

  • Page 13: Connect Usb Devices

    Connect USB devices Power cord connection Plug one end of the power cord into the back of the ZIN-5005HD and the other end into a power outlet. ZIN-5005HD will start automatically without pressing any other button once the power is connected.

  • Page 14: 3 3 3 Network

    (Access Point), uses DHCP to assign IP address, by default the ZIN-5005HD will automatically request the IP and other related information to set up ZIN-5005HD over the network in DHCP mode (under Setup> Network >Wired). If your network does not have DHCP server, switch to the Static IP mode (under Setup>...

  • Page 15: Wired Network Setup

    To access “Setup” on the main menu. Select “Network”. Select “Wired” on the Network menu. Select “DHCP”. implement DHCP network setting. ZIN-5005HD will automatically receive its IP address from a DHCP sever that is built into the access point or IP sharing router. > Static IP...

  • Page 16: Wireless Network Setup

    Service Provider）first. Wireless Network Setup Select “Wireless setup” on the Network menu. ZIN-5005HD provides you multiple profiles for use across multiple networks. Note: ZIN-5005HD supports WEP, WPA-PSK and WPA2-PSK encryption modes only. Please use approved WI-FI dongle for wireless connection.
  • Page 17 > Infrastructure (AP) ZIN-5005HD performs a list of current wireless network connections- “SSIDs”. Along with its security protocols (WEP/WPA2 2 key) and signal strength. Select your preferred wireless network connection. If an access key is required for the network connection, the keyboard will pop up.
  • Page 18 > Ad-Hoc Setup Rename SSID Rename your wireless network connection. Wireless Security Set your wireless network as an open system or have it protected by WEP key first, in order to connect the ZIN-5005HD to the network.

  • Page 19: File Sharing Configuration

    The ZIN-5005HD is connected to the network; The network is properly set up. For more information on this part, please refer to “Step 2” in “Setting up ZIN-5005HD” section, and “Network” under “Setup Menu”. To allow the ZIN-5005HD to access folders on your computer, you...
  • Page 20 (2) Click the down arrow to the right of File Sharing to expand it. (3) Click Turn on file sharing and then click Apply. You may also refer to Setup menu on the OSD screen of ZIN-5005HD to select wired or wireless connection.
  • Page 21 (on your PC) available through the network. By “enabling” this file sharing, you can view these files / folders (on your PC) to be accessed / viewed on your ZIN-5005HD (on the same network). Caution: File sharing may lead to security problems since, by definition, it gives other users access to the content of a part of the hard drive.
  • Page 22 How to share file folder in Windows 7 (1) run "local security policy" applet under administrative tools. If you don’t see administrative tools, enable it under the properties of the start menu (2) under local policies>user rights assignment “deny access to the computer from the network" REMOVE user "guest" (3) under local policies>user rights assignment “Access this computer from the network”...

  • Page 23: 4 4 4 Media Center

    USB HDD device. > PC Media Connect ZIN-5005HD to your PC using a Ethernet cable. By connecting your PC to the Local Area Network, you can play the media files on the remote PCs. Before you do so, please confirm the network settings and file-sharing setup has been finished successfully.
  • Page 24 Description Select/cancel the files which will be added. Rename/delete file. Note: For the files added to the playlist, ZIN-5005HD will categorize the media files with video/music/photo tags. Playlist cannot be save except on USB media and do not allow for...

  • Page 25: Video Playback

    Video Playback Remote Description Enter Media Center > Video Navigate the media file you want to play. The preview window will show the highlighted video. Rename /Delete file. Add selected file to Playlist. Return to previous display. Full screen mode. Full Screen Mode Remote Description...

  • Page 26: Music Playback

    Music Playback Remote Description Enter Media Center > Music Navigate the media file you want to play. The preview window will show the file details of highlighted file. Rename /Delete file. Add selected file to Playlist. Enable/disable repeat when playing music. Return to previous display.

  • Page 27: Photo Playback

    Photo Playback Remote Description Enter Media Center > Photo Navigate the media file you want to play. The preview window will show the file details of highlighted file. Rename /Delete file. Add selected file to Playlist. Thumbnail mode. Return to previous display. Full screen mode.
  • Page 28 Remote Description Full screen mode. Back to previous display. Previous page. / Next page. First page. / Last page. Leave thumbnail mode. Full Screen Mode Remote Description Previous picture. / Next picture. Rotate the viewing picture counterclockwise Rotate the viewing picture clockwise. Leave full screen mode.

  • Page 29: 5 5 5 Bonus Features

    First, you need to prepare at least one USB hard drive with at least 20GB of free capacity, in the format of NTFS or EXT-3, and connect it to the USB port on the rear panel of the ZIN-5005HD. Caution: Please do not download illegal files or contents.
  • Page 30 Step 3: Select .torrent files to download, and then you can see the download process page. To ensure the system’s efficiency, only 3 download tasks will take place simultaneously, and each .torrent file will be downloaded in sequence. Note: In order to keep the system efficiency, the torrent download would be suspended while playing media or turning on other services.

  • Page 31: 6 6 6 Setup Menu

    6 6 6 6 SETUP MENU Audio Remote Description Enter “Audio” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Item Options On/Off Night Mode HDMI LPCM Digital Output HDMI RAW S/PDIF LPCM S/PDIF RAW AUDIO SETUP-“Night Mode”...

  • Page 32: Video

    miss some dialogue and other sounds. With the Night Mode on, you can reduce the volume butstill enjoy proper tonal balance and dynamic range.” Video Remote Description Enter “Video” setup menu. Select the item for adjustment. Confirm the change. Return to previous display. Item Options Pan Scan 4:3...

  • Page 33: Other

    Central European/ Greek/ Cyrillic/ Hebrew/ SE European. Version/ BOX ID/ Customer ID/ MAC / IP System info. Address/ Subnet Mask/ Gateway/ DNS Online Update Software Update USB Update Cancel/OK Default Setting Other Remote Description Enter “Other” setup menu. Select the item for adjustment. Confirm the change.

  • Page 34: 7 7 7 Troubleshooting

    Use an Ethernet not displayed. LAN cable to connect from the Network jack of the ZIN-5005HD to the network router or Access Point. Or check the setting between your external USB wireless dongle and IP sharing.
