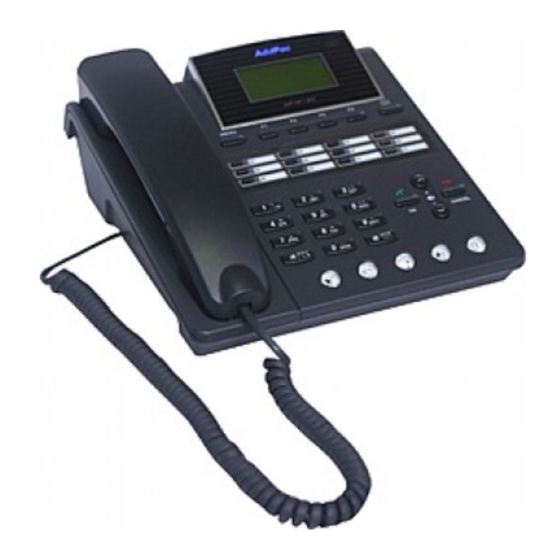

Page 1 AP-IP120 IP Phone [Installation and Operation Guide] March, 2009 AddPac Technology Co., Ltd. www.addpac.com...
Page 2 In no event shall AddPac or its suppliers disclaim all warranties, expressed or implied, including, without limitation, lost profits or loss or damage to data arising out of the use or inability to use this guide. For detail specification, information or sales and warranty, please contact to AddPac Technical Sales division.
Page 3 AP-IP120 IP Phone Installation Guide Version 1.0 AddPac Technology Proprietary & Documentation...
Page 4: Table Of Contents
AP-IP120 IP Phone Installation Guide Version 1.0 [Contents] Getting into AP-IP120 IP Phone Installation Guide ..............13 Chapter 1. Product Overview ................15 Product Overview ........................... 15 Hardware Features ......................... 18 Software Features .......................... 19 Physical Description-Front View ....................21 Physical Description-Rear View ....................
Page 5 AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Ring Setup ........................62 Tool Box – Auto Upgrade .......................66 ToolBox-User Loc ……………………….………………………………………………………………69 Tool Box-Version Info…………………………………………………………………………………….74 Network Setup Menu Category ..................... 76 Network Setup – Internet ....................... 77 Internet – IPv4 Setting…………………………………………………………………………………..77 IPv4 Setting–...
Page 6 AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Voice Class Codec ................... 138 System Setup – Auto Answer ..................... 141 System Setup – Hook…………………………………………………………………………………...144 System Setup – Emergency ......................146 Chapter 5. Additional Features for FXO ................148 Forward Setup (SIP)……………………………………………………………………………………..148...
Page 7 AP-IP120 IP Phone Installation Guide Version 1.0 [Figures] (Figure 1-1) Network Configuration Diagram ................ 17 (Figure 1-2) Front View ......................21 (Figure 1-3) Rear View ......................23 (Figure 3-1) Connecting WAN ....................28 (Figure 3-2) Connecting LAN ....................29 (Figure 3-3) Connecting PSTN ....................30 (Figure 3-4) Connecting PSTN ....................
Page 8 AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 4-25) IPv4 Setup Menu Section ................77 (Figure 4-26) IPv4 DHCP Setting Menu Detail ..............79 (Figure 4-27) Static IP Menu Detail ..................80 (Figure 4-28) PPPoE Setting Menu Detail ................82 (Figure 4-29) Lan Setup Menu Section .................
Page 9 AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 6-1) Terminal Emulator HyperTerminal on MS-Windows ........153 (Figure 6-2) Name Entry for HyperTerminal Connection ............. 154 (Figure 6-3) Access to Telnet by Using TCP/IP ..............155 (Figure 6-4) Login Screen ....................156 (Figure 8-1) 100Base-TX RJ-45 Connector ................
Page 10 AP-IP120 IP Phone Installation Guide Version 1.0 [Table] [Table 1-1] Hardware Specifications ..................18 [Table 1-2] Software Specifications ..................19 [Table 1-3] Description of the Button Features ..............22 [Table 1-4] Description of the Interfaces on the Rear Side ............ 23 [Table 2-1] AP-IP120 Product Package .................
Page 11 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-18] Description of PPPoE Setting Menu Detail ............83 [Table 4-19] Description of LAN Setup Menu Section ............85 [Table 4-20] Description of SIP Protocol Menu Detail ............90 [Table 4-21] Description of QoS Menu Option ............... 92 [Table 4-22] Description of SIP Option Menu Option .............
Page 12 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 9-1] The signal and Pinout specification ..............170 [Table 8-1] Console Port Pinout ..................170 [Table 8-2] Signal and Pinout of Direct Ethernet Cable ............171 AddPac Technology Proprietary & Documentation...
Page 13: Getting Into Ap-Ip120 Ip Phone Installation Guide
This chapter explains the AP-IP120 IP Phone installation guide. [ Contents of AP-IP120 Installation Guide] The purpose of this guide is to assist the users to install the AP-IP120 IP Phone easily. This guide is composed of five chapters as to follow.
Page 14 AP-IP120 IP Phone Installation Guide Version 1.0 If you have any questions and need any technical support of AP-IP300, please contact AddPac Technology in the followings: AddPac Technology Co., Ltd. Fl. Jeong-Am Building, 769-12 Yeoksam-Dong, Kangnam-Ku, Seoul , Korea Phone (02) 568-3848 Fax (02) 568-3847 E-mail : info@addpac.com...
Page 15: Chapter 1. Product Overview
Advanced IP Telephony Solution”, Speed-Dialing Service with User Presence Indication Features AP-IP120 IP telephone provides 12 key buttons (4 column x 3 row) for speed-dialing and user presence service. User Information assigned each key button is easily registered using web based management.
Page 16 VoIP signaling protocols. Privacy and Encryption Features AP-IP120 brings the network security and service security as well. With the built-in CID (Caller ID Detection) feature, user is able to know who is calling before he answers and block the incoming call.
Page 17: (Figure 1-1) Network Configuration Diagram
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 1-1) Network Configuration Diagram AddPac Technology Proprietary & Documentation...
Page 18: Hardware Features
AP-IP120 IP Phone Installation Guide Version 1.0 Hardware Features [Table 1-1] Hardware Specifications Category Specification Model AP-IP120 Product Category IP Phone (Built-in Speaker Phone) Microprocessor High Performance RISC CPU Architecture Digit and Key Buttopns 3 x 4 Standard Numeric Buttons, 17 Menu/...
Page 19: Software Features
- VAD, DTMF, CNG, G.168 and T.38 FAX Relay Enhanced QoS Management Features for Voice Traffics IP-PBX SSCP AddPac Proprietary Protocol Inter-working IP-PBX SIP Signaling Protocol between AddPac IP-PBX and IP Phone Signaling Protocol Voice Mail Voice Mail with IVR, Voice Mail Notification Number &...
Page 20 AP-IP120 IP Phone Installation Guide Version 1.0 → Challenge Handshake Authentication Protocol (CHAP) Operation System Performance Analysis for Process, CPU, Connection I/F & Configuration Backup & Restore for APOS Managements Management Debugging, System Auditing, and Diagnostics Support System Booting and Auto-rebooting with Watchdog Feature...
Page 21: Physical Description-Front View
AP-IP120 IP Phone Installation Guide Version 1.0 Physical Description-Front View This chapter explains the front part’s DIAL and FUNCTION KEY of AP-IP300 IP Phone. The external case is made of high degree of solidity ABS. Main key buttons are equipped on front part so that user can operate all the functions with these buttons.
Page 22: [Table 1-3] Description Of The Button Features
AP-IP120 IP Phone Installation Guide Version 1.0 The following Table 1-3explains each button feature of AP-IP300 on the front side. [Table 1-3] Description of the Button Features Button Names Features Menu Enter the UI Main Menu F1~F4 The soft keys which are displayed on the bottom of LCD screen and can be assigned with each different function such as Phonebook and Speed-Dial.
Page 23: Physical Description-Rear View
AP-IP120 IP Phone Installation Guide Version 1.0 Physical Description-Rear View The rear side is composed of FXO PSTN backup interface, USB interface, power switch and connector and two (2) Fast Ethernet for WAN/LAN connections. (Figure 1-3) Rear View [Table 1-4] explains the interfaces on the rear side.
Page 24: Chapter 2. Preparing For Installation
• Avoid any actions that may lead to the malfunction of the equipment or the operator. Electrical Requirement There are two main sources of electrical problems with AP-IP120 IP Phone : the power supply and static electricity. This section describes safety recommendations for each case.
Page 25: Site Requirements
AP-IP120 IP Phone Installation Guide Version 1.0 Site Requirements The AP-IP120 is ready for use where electronic products are used. However, a location with the following conditions is recommended for the maximum performance: • A level and well ventilated location is recommended.
Page 26: Requirements For Network Connection
RS232C console cable with RJ-45 connector (included in the box Ethernet Port The AP-IP120 has two RJ45 type of 10/100 BaseTX Ethernet ports on the rear side and LED for indicating the status of the port on the front. These ports are physically connected and using the direct cable you can connect to LAN0/ LAN1.
Page 27: Package Contents
AP-IP120 IP Phone Installation Guide Version 1.0 Package Contents Completely unpack all of the contents from the box and inspect each item for damage and ensure that you have all of the components listed below: [Table 2-1] AP-IP120 Product Package...
Page 28: Chapter 3. Installing
AP-IP120 IP Phone Installation Guide Version 1.0 Chapter 3. Installing Connecting Ethernet • A connection to Internet is made through the LAN interface of the WAN accessing equipment such as router, ADSL or cable modem. The LAN is connected by RJ45 standard of the UTP cable.
Page 29: (Figure 3-2) Connecting Lan
AP-IP120 IP Phone Installation Guide Version 1.0 • When LAN1 is set to IP-Share mode, it is connected to PC on Direct-Through cable. • Use Direct-Through cable to connect to PC directly • User Cross-Over cable to connect to the hub directly (Figure 3-2) Connecting LAN AddPac Technology Proprietary &...
Page 30: Connecting Pstn Line (Fxo-Optional)
AP-IP120 IP Phone Installation Guide Version 1.0 Connecting PSTN Line (FXO-Optional) This PSTN port is used for connecting PSTN Central Office line in case of a network failure. The user may connect the PSTN cable to the PSTN port in order to implement PSTN backup. As shown in the figure below, connect the PSTN cable .
Page 31: Connecting Analog Phone Line (Fxs)
AP-IP120 IP Phone Installation Guide Version 1.0 Connecting Analog Phone Line (FXS) This PSTN port is used for connecting PSTN Central Office line in case of a network failure. The user may connect the PSTN cable to the PSTN port in order to implement PSTN backup. As shown in the figure below, connect the PSTN cable.
Page 32: Connecting Audio-In/Out Interface
AP-IP120 IP Phone Installation Guide Version 1.0 Connecting Audio-In/Out Interface Audio-In/Out port located at left side of AP-IP120 IP Phone is for audio devices such as MIC, Speaker System or Headset Device etc. Connect this port to MIC system or External Speaker System using ‘3.5mm stereo jack’...
Page 33: Using The Dial Pad Buttons
Using the Dial Pad Buttons You can enter the characters by using the dial pad buttons in the Menu options: (Figure 3-6) Dial Pad Buttons Layout [Table 3-1] The Characters Associated with the Dial Pad Buttons Dial Pad Characters Description Buttons The characters can be changed in the 1 <...
Page 34: Using Call/Cancel Button On The Keypad
AP-IP120 IP Phone Installation Guide Version 1.0 may wait 2 seconds to enter the second character after entering the first one. Ex1) Enter ‘Apple’ Step1 Press 2 button five times then press 7 button twice Step 2 Hit F2 key then press 7 button twice Step 3 Press 5 button four times then press 3 button three times “...
Page 35: (Figure 3-8) Cancel Button On The Keypad
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 3-8) Cancel Button on the Keypad [Table 3-3] Using Cancel Button on the Keypad Functions Description The END button works as to hang off the phone while you are in conversation hang off...
Page 36: Using The Soft-Key Interworking With Sscp
AP-IP120 IP Phone Installation Guide Version 1.0 Using the Soft-key Interworking with SSCP Softkey functions are supported by SSCP and change depending on the status of the phone (for example, when you are on a call or the phone is not in use) which are shown at the bottom of the LCD screen and they are interconnected with the 4 buttons of the softkey.
Page 37: [Table 3-6] Available Softkey Features In Busy State
AP-IP120 IP Phone Installation Guide Version 1.0 group EndC (End Call) Allows you to pick up incoming calls within their own group [Table 3-6] Available Softkey Features in Busy State Function Description Hold Places a call on hold EndC (End Call)
Page 38: [Table 3-9] Available Softkey Features In Outgoing Call State
AP-IP120 IP Phone Installation Guide Version 1.0 Function Description Answ (Answer) Takes an incoming call [Table 3-9] Available Softkey Features in Outgoing Call State Function Description EndC (End Call) Ends an outgoing call [Table 3-10] Available Softkey Features for Voice Mail...
Page 39: [Table 3-14] Conference Participants
AP-IP120 IP Phone Installation Guide Version 1.0 limited) Info (Party Info) Information of the present held conferencing participants EndC (End Call) Ends the conference in progress (Ends all the terminals in the conference) * Conference Max participants : IP-PBX (audio 4-prty), VP350MCU(video 4-party), VC2000(video 4-party),...
Page 40: Chapter 4. Using Ap-Ip120
Description Date and Time Display the present date & time.When you are on a call, it displays the real “connection time” (SSCP takes the clock souce from AddPac IP-PBX and it automatically sets the time) Display Name Display the name of the device (System Setup -> 1.Display Name)
Page 41: Phone Book Menu Category
AP-IP120 IP Phone Installation Guide Version 1.0 Phone Book Menu Category The Phone Book is a directory in which user can search by name and number and has the functions including phone number registration, recent call history, group lookup, button list, the default setting.
Page 42: Phonebook - Search
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Search The Phonebook uses the registered name, phone number and speed dial number to search the phone number. (Figure 4-4) Search Menu Section in Phone Book Menu Section AddPac Technology Proprietary & Documentation...
Page 43: [Table 4-2] Description Of Search Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-2] Description of Search Menu Section Category Description Search by the name which has been saved in the Phone Book previously. If the Name has more than 2 fields that are same as the search word, all of them are displayed.
Page 44: Phone Book - Registration
AP-IP120 IP Phone Installation Guide Version 1.0 Phone Book – Registration This option allows you to register a new telephone number to the Phone Book. You can use this registered number for other option of search and speed dial. (Figure 4-5) Register Menu Section...
Page 45: [Table 4-3] Description Of Register Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-3] Description of Register Menu Section Registration Parameters Description Enter the index number for the speed dial. Register a name of the other party to Phone Book Enter the other party’s group in Phone Book.
Page 46: Phonebook - Speed Dial
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Speed Dial The telephone numbers are listed per LCD display by simply using name. User can quickly find and make a call to others on the list in this menu. You can also press Call button by using a saved phone number.
Page 47: [Table 4-4] Description Of Speed Dial Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-4] Description of Speed Dial Menu Section Option Description Display the index number in Phonebook Display the name in Phonebook Display the Dial number in Phonebook AddPac Technology Proprietary & Documentation...
Page 48: Phonebook - Group
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Group You can use Group Menu Section to store, manage and use the phone number by group. You can differentiate the bell sound for each group. (Figure 4-7) Group Menu Section in Phone Book...
Page 49: [Table 4-5] Description Of Group Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-5] Description of Group Menu Section Option Description Select a group number to be used in Phone Book. Enter a group name in Phone Book. Make a selection of bell sound for each group.
Page 50: Phonebook - Button List
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Button List Button List Menu Section specifies Speed Button List. The list takes the speed dial list which is configured to the server by using Button Profile Menu Section from the presence server.
Page 51: [Table 4-6] Description Of Button List Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-6] Description of Button List Menu Section Category Description Name Set a name for the Speed Button. Number Set a number for the Speed Button Set a type of icon for the Type AddPac Technology Proprietary &...
Page 52: Phonebook - Button Profile
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Button Profile The Button Profile can interoperate with the Presence Server only. The user can choose the Button Profile form the Speed Button List which has been provided from the server.
Page 53: [Table 4-7] Description Of Button Profile Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-7] Description of Button Profile Menu Section Category Description Select a button profile in Speed Dial List which has been set to Presence Server AddPac Technology Proprietary & Documentation...
Page 54: Figure 4-10) Recent Call Menu Section 1
AP-IP120 IP Phone Installation Guide Version 1.0 Phonebook – Recent Call The recent call displays a call log of the user for incoming and outgoing calls. This feature enables the user to check any incoming call which has been arrived during one’s absence, calls back by using the number of the incoming call and save the number of the incoming calls.
Page 55: Figure 4-11) Recent Call Menu Section 2
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 4-11) Recent Call Menu Section 2 [Table 4-8] Description of Call Menu Option 2 Option Description 01. => Display the index number in Recent Call [O/C] Outgoing Call / Connected [O/N] Outgoing Call / Not Connected...
Page 56: Tool Box Menu Category
Tool Box Menu Category Tool Box menu consists of date/time setting, configuration saving, initialization to factory default mode and language selection. (Figure 4-12) Main Screen (Figure 4-13) Too Box Menu Section...
Page 57: Tool Box - Date & Time
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Date & Time The user can set the date and time. Press F3 to save (Figure 4-14) Date & Time Menu Section [Table 4-9] Description of Date & Time Menu Section...
Page 58 AP-IP120 IP Phone Installation Guide Version 1.0 Enter the present month Enter the present date Enter the present hour Enter the present minute Enter the present second (Press OK to complete entry) AddPac Technology Proprietary & Documentation...
Page 59: Tool Box - Language
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Language You can select a language of your choice. You can choose English or Korean. (Figure 4-15) Language Setup Menu Section [Table 4-10] Description of Language Setup Menu Section Option...
Page 60: Tool Box - Factory Default
Tool Box – Factory Default The Factory Default deletes all the configured settings of AP-IP120 and all the content on phone book and recent call menu. This command reboots the system automatically. This command is not recommended to use except for some inevitable circumstances.
Page 61: Toolbox - Save All
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Save All This UI menu saves the settings which the user has entered in UI. Once the settings are saved, values are preserved even after rebooting. (Figure 4-17) Save All Menu Section...
Page 62: Tool Box - Ring Setup
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Ring Setup You can set the ringer up to 8 different kinds of sound including mute on the integrated speaker, in the ringer settings. The user can choose the sound that one likes after hearing the 7 different kinds of sound, except the mute, by using F1(Play).
Page 63: (Figure 4-18) Ring Setup Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 4-18) Ring Setup Menu Section AddPac Technology Proprietary & Documentation...
Page 64: [Table 4-11] Description Of Ring Setup
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-11] Description of Ring Setup Menu Option Menu Option Description Set to mute digital phone analog phone door bell bicycle bell AddPac Technology Proprietary & Documentation...
Page 65 AP-IP120 IP Phone Installation Guide Version 1.0 harp bell chirp Bell Electric Bell 1 Electric Bell 1 Electric Bell 1 Electric Bell 1 * Play(F1) => Listening to a bell sound in advance AddPac Technology Proprietary & Documentation...
Page 66: Tool Box - Auto Upgrade
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box – Auto Upgrade Whenever a new feature is added, the software (firmware) of the IP phone needs to be upgraded. One of the ways of doing this upgrade is download the new software by using a network transmission protocol such as ftp which is capable of transmitting a large files.
Page 67: (Figure 4-19) Auto Upgrade Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 4-19) Auto Upgrade Menu Section [Table 4-12] Description of Auto Upgrade Menu Option Menu Sections Description Enter URL of the Auto Upgrade server Ex)down.addpac.com/apos/IP120/packing.lst Enter the ID for an authorized access to the Auto...
Page 68 AP-IP120 IP Phone Installation Guide Version 1.0 Enter the password for an authorized access to the Auto Upgrade server Ex) addpac The succeeded Auto Upgrade can be kept in a record for a certain time. The basic default value is set to 30 days.
Page 69: Toolbox-User Loc
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box - User Lock User Lock menu component configures the settings to block the entry to a particular menu section and changes the password. ‘0000’ is set at the default. Keeping the same password is recommended.
Page 70 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-13] Description of User Lock Menu Option Option Description Enable/Disable(Default : Enable) Replaces the old password with the new one (Default : 0000) Selects the menu section to be locked by password.
Page 71: (Figure 4-21) Admin Lock Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box - Admin Lock Admin Lock menu component configures the settings to block the entry to a particular menu and changes the password. ‘2337’ is set at the default. Keeping the same password is recommended.
Page 72 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-14] Description of Admin Lock Menu Option Option Description Enable/Disable(Default : Enable) Replaces the old password with the new one (Default : 2337) Set a password for Factory Default (Default : Disable)
Page 73 AP-IP120 IP Phone Installation Guide Version 1.0 Set a password for Service Port Setup (Default : Disable) Set a password for Auto Upgrade (Default : Disable) AddPac Technology Proprietary & Documentation...
Page 74: Tool Box-Version Info
AP-IP120 IP Phone Installation Guide Version 1.0 Tool Box- Version Info This option allows you to verify the version of the software running at this present time. (Figure 4-22) Version Info Menu Section AddPac Technology Proprietary & Documentation...
Page 75 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-15] Description of Version Info Menu Option Menu Detail Description This is the version running at this present time This is the name of the firmware running at this present time. AddPac Technology Proprietary & Documentation...
Page 76: Network Setup Menu Category
AP-IP120 IP Phone Installation Guide Version 1.0 Network Setup Menu Category The network setup of AP-IP120 is organized in details of WAN, LAN interface setting, SIP/H.323 signaling, FTP service, QoS for guaranteeing VoIP quality, call options and others. This menu option is very important and the user must be familiar with them for using AP-IP120.
Page 77: Network Setup - Internet
This internet menu has the optional features for the WAN interface. Since there are many different network settings, the user has to choose the features which are most suitable to the given. These WAN protocols supported by AP-IP120 are DHCP, static IPv4, PPPoE, and IPv6 etc.
Page 78: [Table 4-16] Description Of Ipv4 Setting Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-16] Description of IPv4 Setting Menu Option Menu Detail Description Enable/ Disable IPv4 Enable DHCP server to take a dynamic IP address fromWAN protocol such as cable , VDSL, ADSL modems Set IP address manually and build WAN interface such as static IP ADSL, E1/T1 leased line.
Page 79: Ipv4 Setting-Dhcp
IPv4 Setting– DHCP If user enables DHCP protocol in network setup internet menu, user gets a dynamic IP address from DHCP server such as cable modem, VDSL, IP-ADSL. (Figure 4-26) IPv4 DHCP Setting Menu Detail...
Page 80: Ipv4 Setting - Static Ip
IPv4 Setting – Static IP If you want to use static IP address, you may find this menu helpful to set a static IPv4 address manually and to configure WAN interface such as static IP ADSL, E1/T1 leased line, etc.. (Figure 4-27) Static IP Menu Detail...
Page 81 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-17] Description of Static IP Menu Option Menu Options Description IP Address Setting Ex> 172.20.1.100 Network Mask Setting Ex> 255.255.0.0 Default Router Setting Ex> 172.20.1.1 First DNS setting (this menu can be applied at IPv6 mode) Ex>...
Page 82: Ipv4 Setting - Pppoe
AP-IP120 IP Phone Installation Guide Version 1.0 IPv4 Setting – PPPoE This is the WAN protocol which takes a dynamic IP address from the PPP Server. ADSL is one of the typical applications in which PPPoE is used. (Figure 4-28) PPPoE Setting Menu Detail...
Page 83: [Table 4-18] Description Of Pppoe Setting Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-18] Description of PPPoE Setting Menu Detail Menu Detail Description Enter a user name Ex> Addpac Enter a user password Ex> 1234 Enter an authentication mode, “PAP/CHAP” using alphanumeric key * Press F4 key to change the input mode from the number to English or English to number.
Page 84: Network Setup-Lan
AP-IP120 IP Phone Installation Guide Version 1.0 Network Setup– This LAN menu option is used for protocol setting of AP-IP120 second LAN interface which is used to connect PC or Ethernet Hub. None, DHCP for single (1) PC, DHCP for multiple PC are available as protocols for second fast ethernet LAN port.
Page 85 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-19] Description of LAN Setup Menu Option Menu Option Description Set LAN to the factory default mode. The default is set to NAT. Configure LAN (the user sets the configuration) Disable LAN Setup (Press OK button to select this...
Page 86 AP-IP120 IP Phone Installation Guide Version 1.0 Configure Lan Setup to Bridge mode. AddPac Technology Proprietary & Documentation...
Page 87: Network Setup-Voip Setup
AP-IP120 IP Phone Installation Guide Version 1.0 Network Setup– VoIP Setup This VoIP setup menu is used for SIP/H.323 VoIP signaling inter-working parameter setting between SIP server, Gatekeeper and AP-IP120 IP Phone.. AddPac Technology Proprietary & Documentation...
Page 88: Voip Setup - Signaling Setup
AP-IP120 IP Phone Installation Guide Version 1.0 – VoIP Setup Signaling Setup This menu is used for VoIP signaling setup such as H.323, SIP protocol. There are 2 different ways: connecting directly to VoIP network and connecting indirectly through SIP proxy server. Each way needs the different optional settings.
Page 89: Signaling Setup - Sip Protocol
AP-IP120 IP Phone Installation Guide Version 1.0 – Signaling Setup SIP Protocol (Figure 4-31) SIP Protocol Menu Detail AddPac Technology Proprietary & Documentation...
Page 90: [Table 4-20] Description Of Sip Protocol Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-20] Description of SIP Protocol Menu Detail Menu Detail Description Enter a username for SIP server registration Enter a user password for SIP server registration. Enter a primary server IP address or domain of SIP server.
Page 91: Voip Setup- Qos
AP-IP120 IP Phone Installation Guide Version 1.0 – VoIP Setup QoS sets a limit to transmitting voice packet within the bandwidth which is guaranteed by the network capacity. (Figure 4-32) QoS Menu Option AddPac Technology Proprietary & Documentation...
Page 92: [Table 4-21] Description Of Qos Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-21] Description of QoS Menu Option Menu Detail Description Disable QoS Enable QoS Set QoS to WAN interface in the range 48Kbps~4Mbps AddPac Technology Proprietary & Documentation...
Page 93: Voip Setup-Sip Options
– VoIP Setup SIP Options These menu options are to set up other supplementary functions and options of SIP protocol in addition. These options need to be setup basing on the network settings. (Figure 4-33) SIP Option Menu Option...
Page 94: [Table 4-22] Description Of Sip Option Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-22] Description of SIP Option Menu Option Menu Option Description Select the call-transfer mode. basic/attend. Enter VoIP Tag for conference service Enter conference service name Enter firewall address to check the public IP address when AP-IP120 is used under NAT/Firewall network environment.
Page 95 AP-IP120 is dial-out. When there is fault on network or network quality is not good, Trying message of INVITE message will be delayed. In this case AP-IP120 transfer next INVITE message. Default is 10 and usually set as ‘3.’...
Page 96 AP-IP120 IP Phone Installation Guide Version 1.0 Set the DNS SRV. When user-name is not number but characters, this option is used to register SIP server. AddPac Technology Proprietary & Documentation...
Page 97: Voip Setup-Pstn Prefix
When user wants to access the FXO interface for PSTN backup, this prefix number is used as PSTN access code. Additionally, AP-IP120 IP phone supports the PSTN back-up service when VoIP service is impossible due to network failure or VoIP call service is interrupted by an accident.
Page 98: Voip Setup-Phone Number
AP-IP120 IP Phone Installation Guide Version 1.0 VoIP Setup– Phone Number This menu is used for E.164 AP-IP120 Number Assignment. (Figure 4-35) Phone Number Menu Option [Table 4-24] Description of VoIP Menu Option Menu Detail Description Enter the E.164 Phone Number.
Page 99: Voip Setup - Area Code
AP-IP120 IP Phone Installation Guide Version 1.0 VoIP Setup – Area Code In this menu option, the user can specify an area code. (Figure 4-36) Area Code Menu Option [Table 4-25] Description of Area Code Menu Option Menu Detail Description Enter an area code to be used AddPac Technology Proprietary &...
Page 100: Network Setup - Sscp (Smart Service Control Protocol)
SSCP Smart Service Control Portocol) is the AddPac proprietary protocol operates between the AddPac IP-PBX systems and IP terminals. The IP-PBX systems support many different call features, through SSCP, in addition to the basic call features of the IP Phone itself. The IP terminals take these call features supported by the IP-PBX, then it display these features on its softkeys.
Page 101 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-26] Description of SSCP Setup Menu Option Menu Option Description Either enable or disable the setting mode of SSCP Make a selection of Call-Manager Setup Configure the Call Manager server: 5 servers can configured maximum.
Page 102: Network Setup-Presence
Unified Message Service (Voice Mail, Short Message), Call Control and Forward Setup. Smart Messenger operates, in the basis of Smart Service Control Protocol (SSCP), which is the AddPac proprietary protocol, between the AddPac IP-PBX and IP terminals.
Page 103: (Figure 4-38) Presence Menu Section
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 4-38) Presence Menu Section [Table 4-27] Description of Presence Menu Option Menu Option Description Enable or disable the presence server Setup (Enable/Disable) Presence User AddPac Technology Proprietary & Documentation...
Page 104 AP-IP120 IP Phone Installation Guide Version 1.0 Presence Server Presence Server Password Presence Server Presence Server Presence Server IP, Port AddPac Technology Proprietary & Documentation...
Page 105: Network Setup - Service
This menu enables or disables FTP, TELNET, TFTP, SNMP protocol service of AP-IP120. You can use FTP to access to AP-IP300 from a remote location and Telnet is used for changing all kinds of information and monitoring and SNMP is also used to access to AP-IP120 from a remote location.
Page 106: [Table 4-28] Description Of Service Setup Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-28] Description of Service Setup Menu Option Menu Option Description Actives/Deactivates the FTP service protocol. Default is enable mode (activating FTP service). Default port number is 21. Actives/Deactivates the TELNET service protocol.
Page 107: Network Setup - Status
AP-IP120 IP Phone Installation Guide Version 1.0 Network Setup – Status This setup allows you to see the current status of the network on the screen such as Link Status , IPv4 Protocol, IPv4 address, Lan address, DNS, SIP Proxy Server, status of registration to GK[H.323], at a glance.
Page 108: [Table 4-29] Description Of Network Status Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-29] Description of Network Status Menu Detail Menu Detail Description Displays the phone number Indicates the status of the link: whether the link of LAN0 (WAN interface) is up or down Indicates the status of the link: whether the link of...
Page 109 AP-IP120 IP Phone Installation Guide Version 1.0 Domain Name Server 2 Table Displays the registration status of SIP-Proxy Server (Registered, Not registered) AddPac Technology Proprietary & Documentation...
Page 110: Applications Menu Category
AP-IP120 IP Phone Installation Guide Version 1.0 Applications Menu Category Applications composed of a group of the call features including Message Box, Voice Mail Box, Conference. You can use Message Box and Voice Box only when they are connected to and supported by SSCP.
Page 111: Applications - Message Box
AP-IP120 IP Phone Installation Guide Version 1.0 Applications – Message Box The Message Box allows you to transmit and verify SMS text messages between one terminal and the other, when it is connected to SSCP. (Figure 4-43) Message Box Menu Section...
Page 112: [Table 4-30] Description Of Message Box Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-30] Description of Message Box Menu Option Menu Option Description Write SMS messages to be sent Store the SMS messages in the box which have been received Save the message in the box which have been sent Store the messages in the box which have been sent AddPac Technology Proprietary &...
Page 113: Write Sms
AP-IP120 IP Phone Installation Guide Version 1.0 Write SMS (Figure 4-44) Write SMS Menu Option [Table 4-31] Description of Write Message Menu Detail Menu Detail Description Enter the messages in this field. (F4 : Changing from the alphabetic characters to the numeric and the numeric to the alphabetic) Enter the sender’s telephone number to be displayed...
Page 114: Inbox
AP-IP120 IP Phone Installation Guide Version 1.0 InBox (Figure 4-45) SMS Inbox Menu Option AddPac Technology Proprietary & Documentation...
Page 115: [Table 4-32] Description Of Sms Inbox Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-32] Description of SMS Inbox Menu Option Menu Option Description [1/3] : The first message of the 3 messages received and stored Seoul: the sender’s name 1003: the sender’s number Hello~~ : the content of the message...
Page 116: Saved
Saved (Figure 4-46) SMS Saved Menu Option [Table 4-33] Description of Saved Menu Detail Menu Option Description [1/2] : the first message of the 2 messages received and stored Seoul: the name of the sender 1003: the sender’s telephone number Hello~~ : the content of the message Read: to read the selected message Dele: to delete the selected message...
Page 117: Sent
Sent (Figure 4-47) Sent Menu Option [Table 4-34] Description of Sent Menu Option Menu Detail Description [1/2] : the first message of the 2 messages sent and stored Seoul: the sender’s name 1003: the sender’s telephone number Hello~~ : the content of the message Read: to read the selected message Dele: to delete the selected message...
Page 118: Application - Voice Mail Box
AP-IP120 IP Phone Installation Guide Version 1.0 Application – Voice Mail Box Voice Mail Box enables you to check the voice message as it interworks with SSCP. (Figure 4-48) Voice Mail Box Menu Section AddPac Technology Proprietary & Documentation...
Page 119: [Table 4-35] Description Of Voice Mail Box Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-35] Description of Voice Mail Box Menu Option Menu Option Description This is the box to where the sent voice messages are kept This is where to keep the voice message which is saved.
Page 120: Applications - Conference
AP-IP120 IP Phone Installation Guide Version 1.0 Applications – Conference This feature enables you to see the list of connections can be made for a conference call at the present time and you can join the conference by just pressing call button.
Page 121 AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-36] Description of Conference Menu Option Menu Option Description [1/2]: the first conference room in the list of two conference rooms [DO]: Dial-Out Conference Meet-Me: the name of the conference room [2/4]: the number of conference party in the room...
Page 122: System Setup Menu Category
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup Menu Category The system setup includes the Display Name, Ring volume control, input/output volume control. (Figure 4-50) Main Screen (Figure 4-51) System Setup Menu Category AddPac Technology Proprietary & Documentation...
Page 123: System Setup - Display Name
System Setup – Display Name This is Name displayed on LCD panel. Default name is AP-IP120. If user wants to change default name, change or modify the default name at Display Name in System Setup Menu. (Figure 4-52) Display Name Menu Section...
Page 124: System Setup - Volume Control
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Volume Control This volume menu controls the Ring volume, Input/Output volume (Speaker volume, Handset volume) of AP-IP120 IP Phone. (Figure 4-53) Volume Setup Menu Section AddPac Technology Proprietary & Documentation...
Page 125: [Table 4-38] Description Of Volume Setup Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-38] Description of Volume Setup Menu Option Menu Option Description Select the ring volume of internal speaker. Default ring volume level is 4. Select the input volume of Speaker Phone or Handset MIC.
Page 126: System Setup - Forward Setup (Sip)
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Forward Setup (SIP) During the user’s to take a call, he/she uses this menu option to configure the incoming call arriving on FXO to be transferred to VoIP call (during the one’s absence, this forwarding feature is not supported for the incoming VoIP call).
Page 127: [Table 4-39] Description Of System Setup Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-39] Description of System Setup Menu Detail Menu Detail Description Set the number to be forwarded Determine which number to be forwarded: FXOCID: On - the number of the incoming call on...
Page 128: System Setup - Forward Setup (Sscp)
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Forward Setup (SSCP) This is the menu option to configure the call forward to redirect no matter what, either the user in the conversation on call or no response to the call.
Page 129: [Table 4-40] Description Of Forward Setup Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-40] Description of Forward Setup Menu Detail Menu Detail Description Enter the number to be forwarded to when the line is busy Disable or Enable the Call forwarding when the line is...
Page 130 AP-IP120 IP Phone Installation Guide Version 1.0 Disable or Enable the Call Forwarding to be connected to Voice Mail when there is no answer (the default setting: disable) Enter the number to be forwarded to no matter what (Call Forwarding Unconditional)
Page 131: System Setup - Call Wait Setup (Sscp)
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Call Wait Setup (SSCP) Call Wait feature enables you to receive a second incoming call with on the same line without disconnecting the first call. This call feature allows you to receive an auditory call alert while you are on the first call.
Page 132: [Table 4-41] Call Wait Setup Menu Detail
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-41] Call Wait Setup Menu Detail Menu Detail Description Disable or Enable Call Wait (Default : Disable) AddPac Technology Proprietary & Documentation...
Page 133: System Configuration - Dnd(Do Not Disturb) Setup
AP-IP120 IP Phone Installation Guide Version 1.0 System Configuration – DND(Do Not Disturb) Setup Do Not Disturb (DND) features allows you to turn off the ringer (Ring Silence) for an incoming call or to reject the call (Call Reject. You may hold pressing the leave of absence button of the IP-Phone for more than 2 seconds to enable or disable this function.
Page 134: Table 4-42] Description Of Dnd Setup Menu Option (1)
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-42] Description of DND Setup Menu Option (1) Menu Option Description Set the mode to Ring Silence Set the mode to Call Reject AddPac Technology Proprietary & Documentation...
Page 135: Table 4-43] Description Of Dnd Setup Menu Option (2)
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-43] Description of DND Setup Menu Option (2) Hold pressing the button for more than 2 seconds [DND] =>DND is enabled Hold pressing the button for more than 2 seconds DND is disabled...
Page 136: System Setup - My Number
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – My Number My Number allows you to set the native number for the Outbound Call, as to select the one number among many numbers that have been assigned. You can take many numbers of incoming calls, but you can send only the predetermined number of the outgoing call at the default setting.
Page 137: [Table 4-44] Description Of My Number Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-44] Description of My Number Menu Option Menu Option Description This is an example for assignment of the 2 telephone numbers. The default setting is set to 1000. AddPac Technology Proprietary & Documentation...
Page 138: System Setup - Voice Class Codec
System Setup – Voice Class Codec The audio codec of AP-IP120 determines the voice codec. You can choose the options of G.711[PCM] and G726, G.729, and G.723.1 on OSD, basing on the priority level which can be suitable to your network settings.
Page 139: [Table 4-45] Description Of Voice Codec Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-45] Description of Voice Codec Menu Option Menu Option Description Select Preference 1 of voice codec Specify the voice codec to Preference 1. (Default : G711ullaw) Select Preference 2 of voice codec.
Page 140 AP-IP120 IP Phone Installation Guide Version 1.0 Specify the voice codec to Preference 3. (Default : G729) Select Preference 3 of voice codec. Specify the voice codec to Preference 3. (Default : G7231r63) AddPac Technology Proprietary & Documentation...
Page 141: System Setup - Auto Answer
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Auto Answer This feature allows your telephone to answer a call automatically and you do not have to pick up the phone. You can set the interval of answering a call selectively: 3, 5, 10 or 15 seconds.
Page 142: [Table 4-46] Description Of Auto Answer Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-46] Description of Auto Answer Menu Option Menu Option Description Disable Auto Answer Receive the call at the first ring Set the mode to Auto Answer to reply on 3 seconds after the bell rings.
Page 143 AP-IP120 IP Phone Installation Guide Version 1.0 Set the mode to Auto Answer to reply on 15 seconds after the bell rings. AddPac Technology Proprietary & Documentation...
Page 144: System Setup - Hook
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Hook Setup Hook is the feature that allows you to disconnect the phone even when the other part did not hang up the line. This feature is supported by SSCP.
Page 145: [Table 4-47] Description Hook Setup Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-47] Description Hook Setup Menu Option Menu Option Description Set Hook-On to manual (the default setting) Set Hook-On to Automatic AddPac Technology Proprietary & Documentation...
Page 146: System Setup - Emergency
AP-IP120 IP Phone Installation Guide Version 1.0 System Setup – Emergency If a terminal limits an outgoing call due to Administrator/ User Lock, the terminal can be configured to take an emergency call. For the phone number specified in Emergency menu section, the outgoing call can be sent out regardless of lock status.
Page 147: [Table 4-48] Description Of Emergency Menu Option
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 4-48] Description of Emergency Menu Option Menu Option Description Specifying a phone number for emergency AddPac Technology Proprietary & Documentation...
Page 148: Chapter 5. Additional Features For Fxo
AP-IP120 IP Phone Installation Guide Version 1.0 Chapter 5. Additional Features for FXO Forward Setup (SIP) This feature allows you to set to change a incoming call on FXO to VoIP, when you are available to take the call. (Figure 5-1) Forward Setup Menu Section...
Page 149: [Table 5-1] Description Of Forward Setup Menu Option
Set the telephone number to where the call is to be forwarded Determine whether to assign the number of Speech port (the predetermined number of AP-IP120) or the number of the incoming call on FXO (The default setting is set to On), when the call is forwarded.
Page 150: Call Waiting (Sip)
AP-IP120 IP Phone Installation Guide Version 1.0 Call Waiting (SIP) For any incoming call arriving to FXO can be placed on hold while the phone user is on another VoIP call. While the phone user is on PSTN call, any incoming VoIP call can be placed on hold as well.
Page 151 AP-IP120 IP Phone Installation Guide Version 1.0 ! FXS voice-port 0/1 ! Pots peer configuration. dial-peer voice 0 pots destination-pattern 1004 port 0/0 call-waiting ! Voip peer configuration. dial-peer voice 1001 voip destination-pattern T session target sip-server session protocol sip...
Page 152: Chapter 6. Testing Operation
Testing Operation Booting Procedure and Operating Bases The things that you have to know, prior to turning on the power of AP-IP120, are the booting procedure. • AP-IP120 checks its basic operation of its interface, memory and CPU through a self-testing procedure •...
Page 153: Using Hyperterminal For The Console Terminal
AP-IP120 IP Phone Installation Guide Version 1.0 Using HyperTerminal for the Console Terminal Terminal Emulator Application must be installed for using the PC for the console terminal. HiperTerminal Application is used for MS-Windows. (Figure 6-1) Terminal Emulator HyperTerminal on MS-Windows After HyperTerminal is performed, determine the name of the new connection.
Page 154: (Figure 6-2) Name Entry For Hyperterminal Connection
AP-IP120 IP Phone Installation Guide Version 1.0 (Figure 6-2) Name Entry for HyperTerminal Connection AddPac Technology Proprietary & Documentation...
Page 155: (Figure 6-3) Access To Telnet By Using Tcp/Ip
AP-IP120 IP Phone Installation Guide Version 1.0 Select the interface of which the console cable is connected Since AP-IP120 does not support Console Interface, the IP Address of LAN1 interface is used to connect PC as it is shown in the following figure: (LAN1 default ip address : 192.168.10.1)
Page 156: (Figure 6-4) Login Screen
AP-IP120 IP Phone Installation Guide Version 1.0 After completing the setup, you can see the login screen of AP-IP120 in the following Figure (Figure 6-4) Login Screen You may see the 2 types of prompt: ‘AP-IP120>’ and ‘AP-IP120#’. The prompt with starting with ‘>’...
Page 157: Using Apos Commands
AP-IP120 IP Phone Installation Guide Version 1.0 Using APOS Commands All the product lines of AddPac Technology are imbedded with APOS AddPac NOTE Operating System). Therefore, all the basic settings of CLI (Command Line Interface) are same The commands are used for the following types of modes:...
Page 158: General User Mode Commands
AP-IP120 IP Phone Installation Guide Version 1.0 General User Mode Commands These are the functions that all the types of the users who logged in the system The prompt for the general user can be indicated as ‘ip-120>’. [Table 6-1] Commands for the General User Mode...
Page 159: Management Mode Commands
AP-IP120 IP Phone Installation Guide Version 1.0 Management Mode Commands These are the types of commands that the administrator, whoever logged in the system, can use. To get into configuration of this system mode, the user must be logged in as an administrator. In this mode, the commands can be same as General User mode such as ‘show’, but more information can be...
Page 160 AP-IP120 IP Phone Installation Guide Version 1.0 traceroute Test the path for IPv4 routing Indicate the users connected to vty whoami Indicate a type of connection established at the present time write Save the configuration in operation process AddPac Technology Proprietary & Documentation...
Page 161: Basic Configuration
AP-IP120 IP Phone Installation Guide Version 1.0 Basic Configuration Configuring Password After a connection is established to the console, the user can only have the basic show command. To gain more privilege to access, the user has to enter enable mode. When the general use enter enable mode, he/she gains the all the privilege to change the system configuration.
Page 162: Table 6-5] User Administration
AP-IP120 IP Phone Installation Guide Version 1.0 [Table 6-5] User Administration AP-IP120# configure terminal AP-IP120(config)# AP-IP120(config)# username {ID} password {password} {administrator | operator | user} AP-IP120(config)# AddPac Technology Proprietary & Documentation...
Page 163: Configuring Fxs/Fxo Port
AP-IP120 IP Phone Installation Guide Version 1.0 Configuring FXS/FXO Port * Configuring after the Display of show run [Table 6-6] Configuring FXS/FXO Port IP120# show run Building configuration... Current configuration: version 8.41.015 hostname IP120 username root password router administrator interface Loopback0 ip address 127.0.0.1 255.0.0.0...
Page 164 AP-IP120 IP Phone Installation Guide Version 1.0 ! Pots peer configuration. dial-peer voice 0 pots destination-pattern 1004 port 0/0 IP120# IP120# con t IP120(config)# dial-peer voice 1 pots => FXS/FXO port dial peer configuration IP120(config-dialpeer-pots-1)# destination-pattern 1014 Assigning the port numbers of FXS/FXO IP120(config-dialpeer-pots-1)# port 0/1 =>...
Page 165 AP-IP120 IP Phone Installation Guide Version 1.0 ----- ! Voice port configuration. ! SPEECH voice-port 0/0 ! FXS voice-port 0/1 ! Pots peer configuration. dial-peer voice 0 pots destination-pattern 1004 port 0/0 dial-peer voice 1 destination-pattern 1014 port 0/1 AddPac Technology Proprietary & Documentation...
Page 166: Chapter 7. Emergency Recovery
Chapter 7. Emergency Recovery The entire AddPac VoiIP product line has 2 different zones. One is to store APOS and Boot Loader is the other. The functions of Boot Loader can be used in the followings: 1. Loss of the password for the root account 2.
Page 167: Entering The Mode Of Boot Loader
Entering the mode of Boot Loader Since AP-IP120 does not have console interface, it is not possible to enter the mode of Boot Loader by using ‘ctrl+x’, ctrl+c’ , which is possible for APOS with presence of console such as ‘send break’., during the booting process.
Page 168: Initialize Apos Settings
AP-IP120 IP Phone Installation Guide Version 1.0 Initialize APOS Settings When the user lost the default IP address of the IP Phone (192.168.10.1) that enables TELNET and FTP access, after making a change, the default IP can be recovered by initializing APOS settings (Please be cautious when you initializes APOS configuration, all the existing settings of configuration are to be erased.)
Page 169: Downloading Apos Image File In Boot Loader Mode
AP-IP120 IP Phone Installation Guide Version 1.0 Downloading APOS Image File in Boot Loader Mode The AddPac AP-IP120 IP Phone allows FTP access, which is supported by the binary code, to transmit APOS image file. APOS image of AP-IP120 can be downloaded from PC by using FTP.
Page 170: Chapter 8. Appendix
AP-IP120 IP Phone Installation Guide Version 1.0 Chapter 8. Appendix This Appendix provides information about the Pinout specifications of the following cables used with AP-IP120 IP Phone. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet UTP Cable Assemble (RJ-45 to RJ-45) Pinout [RS-232C Console Port Signal &...
Page 171: (Figure 8-1) 100Base-Tx Rj-45 Connector
AP-IP120 IP Phone Installation Guide Version 1.0 UTP Cable (RJ-45 to RJ-45) Pinout Specification In order to connect the LAN port of this equipment with other equipments (i.e. HUB), the RJ-45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the signal and Pinout specifications are enlisted at the below table.
Page 172: Acronyms And Glossary
AP-IP120 IP Phone Installation Guide Version 1.0 Acronyms and Glossary Terms Definition & Description An acronym for Asymmetric Digital Subscriber Line, ADSL is a method of ADSL transmitting data over traditional copper telephone lines. Data can be downloaded at speeds of up to 1.544 Megabits per second and uploaded at speeds of 128 Kilobits per second (asymmetric).
Page 173 AP-IP120 IP Phone Installation Guide Version 1.0 used by cable TV provides much greater bandwidth than telephone lines, a cable modem can be used to achieve more bandwidth. Cable network also requires modularization and demutualization process while sending the data.
Page 174 AP-IP120 IP Phone Installation Guide Version 1.0 An acronym for COder-DECoder 1. Built-in circuit device for coding/decoding CODEC of analog signal to bit stream with Pulse Code Modulation method. 2. DSP software algorithm for compressing/ decompressing voice or audio signal DTE interface whether the command is delivered to the host.
Page 175 AP-IP120 IP Phone Installation Guide Version 1.0 machine via telephone line. The transmission and the reproduction at a distance of still pictures printed matter and similar documented material data that is transmitted between network points as a unit complete with Frame addressing and necessary protocol control information.
Page 176 AP-IP120 IP Phone Installation Guide Version 1.0 devices in the multimedia network. The devices register with the gatekeeper at startup and request admission to a call from the gatekeeper. An International Telecommunication Union (ITU-T) standard for H.225.0 H.225 session control and packetization.
Page 177 AP-IP120 IP Phone Installation Guide Version 1.0 the Internet Protocol. Users and service providers can update to IPv6 independently without having to coordinate with each other. An ISP (Internet service provider) is a company that provides individuals and other companies access to the Internet and other related services such as Web site building and virtual hosting.
Page 178 AP-IP120 IP Phone Installation Guide Version 1.0 A data network designed for a town or city. MANs are considered larger than LANs but smaller than WANs. Compare with: LAN, WAN. MGCP, also known as H.248 and Megaco, is a standard protocol for handling...
Page 179 AP-IP120 IP Phone Installation Guide Version 1.0 superseding the SLIP protocol, PPP establishes the session between the user's computer and the ISP using its own Link Control Protocol (LCP). PPP supports PAP, CHAP and other authentication protocols as well as compression and encryption.
Page 180 Initiation Protocol is specified in IETF Request for Comments [RFC] 2543. The real-time monitoring, statistical data search and management GUI based SmartViewer software developed by AddPac Technology for AP-GK1000, AP-GK2000, AP- GK3000 models. Simple Network Management Protocol. Network management protocol used SNMP almost exclusively in TCP/IP networks.
Page 181 AP-IP120 IP Phone Installation Guide Version 1.0 A TDM physical transmission standard consisting of two twisted wire pairs and related equipment capable of carrying a 1.544 Mbps DS-1 signal. Term often used interchangeably with DS-1. Refer to: AMI, B8ZS, DS-1.
Page 182 AP-IP120 IP Phone Installation Guide Version 1.0 VoIP (Voice delivered using the Internet Protocol) is a term used in IP VoIP telephony for a set of facilities for managing the delivery of voice information using the Internet Protocol (IP). In general, this means sending voice information in digital form in discrete packets rather than in the traditional circuit-committed protocols of the public switched telephone network (PSTN).
Page 183 AP-IP120 IP Phone Installation Guide Version 1.0 AddPac Technology Co., Ltd. 2F & 3F, Jeong-Am Bldg., 769-12 Yeoksam- dong, Gangnam-gu, Seoul, 135-080, Korea Tel: +82 2 568 3848 Fax: +82 2 568 3847 Email: sales@addpac.com http:// www.addpac.com AddPac Technology Proprietary & Documentation...
