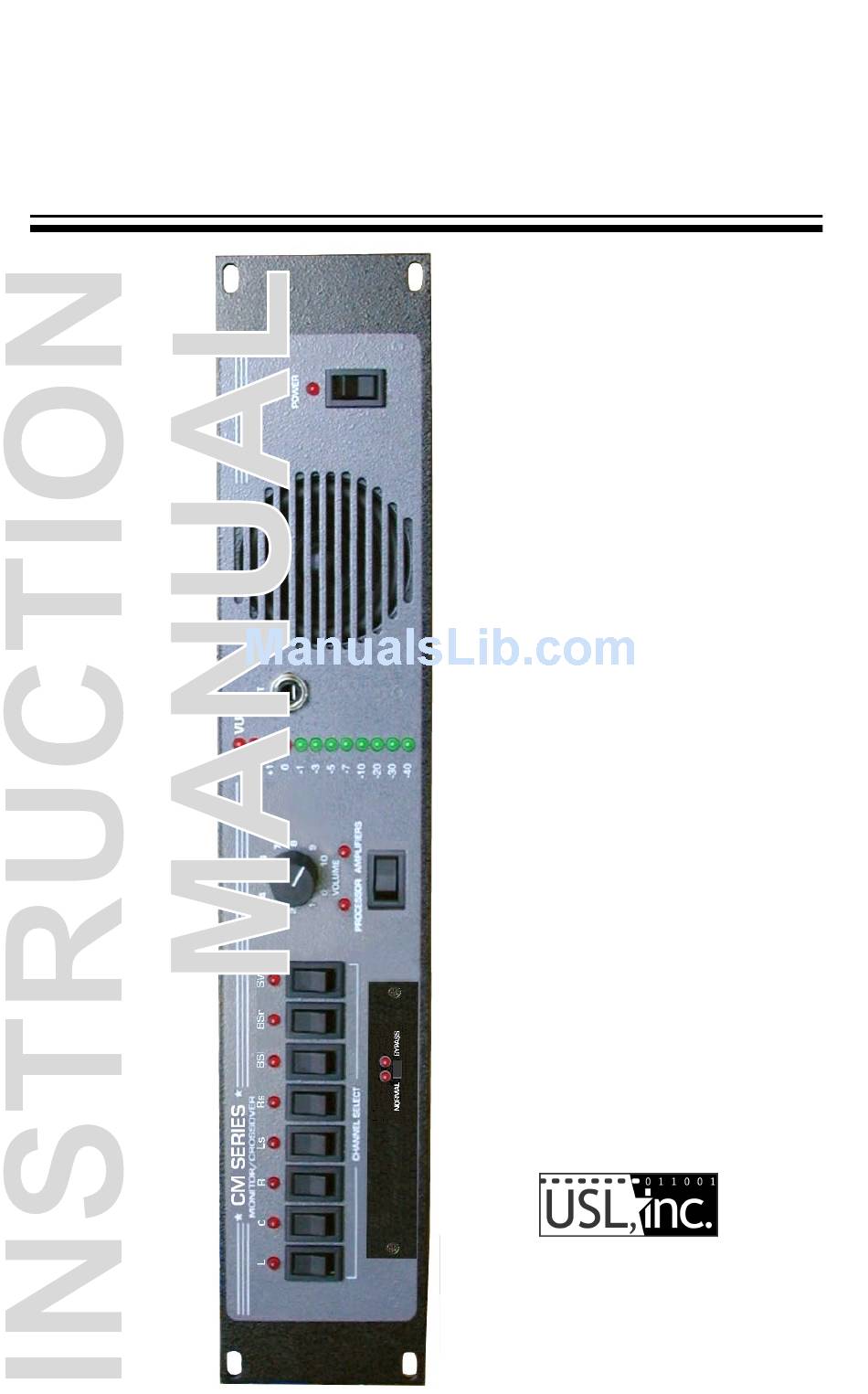

- Page 1 CM SERIES 8 Channel Monitor / Crossover 181 Bonetti Drive San Luis Obispo, CA 93401 ph: 805-549-0161 fax: 805-549-0163 e-mail:usl@uslinc.com...
- Page 2 ANUAL One Year Limited Warranty USL, Inc. warrants that each product manufactured by it will be free from defects in material and workmanship under normal usage for a period of one (1) year after its purchase new from an authorized dealer.
-
Page 3: Table Of Contents
CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL Table of Contents Introduction ............3 Front Panel Description........5 Rear Panel Description.........5 Installation............7 HD-15 Wiring Diagram........8 Terminal Wiring Diagram........9 Monitor & Bargraph Levels.........10 Crossover Setup...........11 Various Speaker Requirements......13 Specifications............15 Please record the following information for your records:... -
Page 4: Introduction
All controls necessary for daily operation of the processor are easily accessible on the front panel. The components that make up the CM Series monitors are of computer grade for reliability. All front panel controls are individually sealed for long life. All Ultra Stereo equipment has been “burned-in”... - Page 5 You will need to supply the following materials: • Shielded audio cable for connecting the CM Series to the cinema processor and power amplifier outputs. • Four 10-32 x 1/2" screws to mount the CM Series in the audio equipment rack. FEATURES The CM Series monitor has the following standard features: •...
- Page 6 CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL - 5 -...
- Page 7 CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL - 6 -...
-
Page 8: Installation
25 pin D cable to connect the output of the cinema processor to the main input of the CM Series. If “EX” channels are to be used, then plug an additional male-female 25 pin D cable from the “Optional Outputs”... - Page 9 CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL SIMPLE WIRING DIAGRAM WITH HD-15 CONNECTORS OPTION CARD I/O Cinema Processor MAIN AUDIO OUTPUTS DB-25 Cables Note: Amplifier output terminal blocks are NOT used when VGA cables are used 115V L Biamp...
-
Page 10: Terminal Wiring Diagram
CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL TERMINAL WIRING DIAGRAM OPTION CARD I/O Cinema Processor MAIN AUDIO OUTPUTS DB-25 Cables LeftHigh/Low Amplifier Input MONITOR INPUTS FROM CROSSOVER OUTPUTS TO POWER AMPLIFIER INPUTS Bsl+ Bsl- Bsr+ Bsr- AMPLIFIER PROCESSOR LEVEL... - Page 11 Ch - Bsr + Rh - LS + Ls + RS + Rs + SW + Lh + CM Series HD 15 pin outs Typical per connector Pin # Name Pin # Name Pin # Name Band A (1), - Signal...
- Page 12 CM Series Ultra Stereo Labs, Inc. NSTRUCTION ANUAL Setting DIP Switches Processor Channel Configuration JSD-80/XD-10P CP-650 L, C, R, SW plus Ls/Rs channels 1-4 ON 1-4 ON L, C, R, SW plus Ls/Rs, Bsl/Bsr “EX” channels 1-4 ON, E-H ON...
-
Page 13: Crossover Setup
XTD-680D and the XTA-680B are discussed in detail in their own instruction manuals. 1. Bypass Card XTB-680B: When using external crossovers, the CM Series must be equipped with a bypass card in the crossover slot. For external crossovers or crossovers built into amplifiers: Turn biamp switch “ON”, triamp “OFF”. -
Page 14: Specifications
The CM Series Monitor is constructed of steel to minimize hum pickup and noise radiation. The overall size of the unit is 3.5" x 19" x 9.625". The CM Series is designed to mount in a standard rack frame or cabinet.
