D4 HP Dimmer

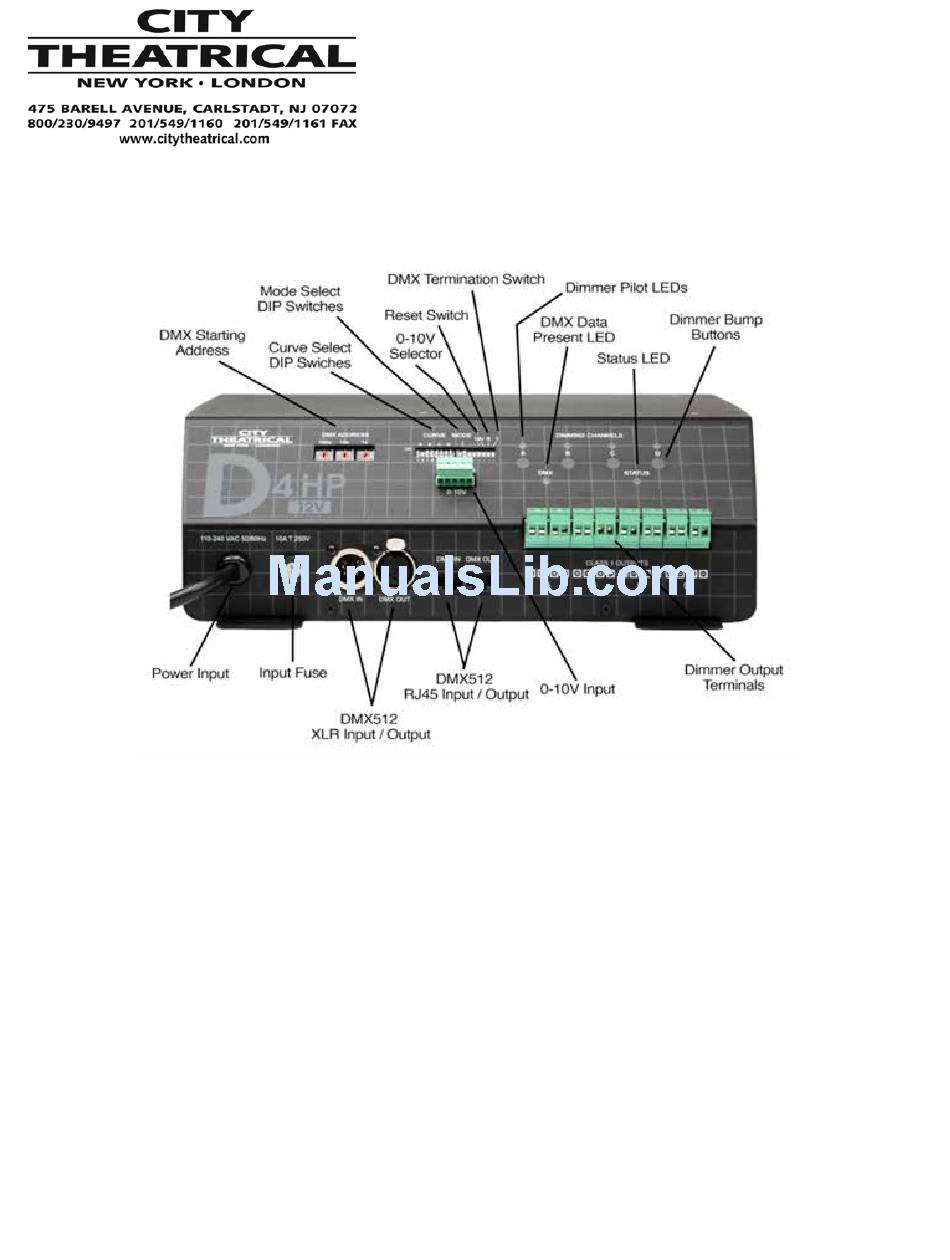

The D4 HP Dimmer can be quickly set up to control your lights:
1. Connect your D4 HP Dimmer to your DMX controller by using either the DMX five pin input, or the RJ-45 DMX input.
DMX out can be either the five pin XLR output, or the RJ-45 output. Note, there can only be a total of one DMX input,
and one DMX output per device.
2. Connect your load to the output channels with either screw terminals (PN5750) or Anderson Powerpole connectors
(PN5752).
3. Connect 100 - 240VAC to the D4 HP Dimmer power input.
4. Set a DMX start address to meet the needs of your installation.
5. Use your bump buttons to check that your output is correctly wired. The DMX LED will blink when not receiving DMX,
and will be solid when receiving DMX.
6. See the full manual for information on dimming curves, modes, and smoothing, which will insure optimum dimming
quality when set to suit your specific dimming needs (LED, incandescent, flicker candles, etc).
D4 HP Dimmer Quick Start Guide
PN5750
PN5752
