City Theatrical QolorFLEX 5750 User Manual

4x10a dimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QolorFLEX® 4x10A Dimmer
(5750)
User's Manual
Rev 1.03
© 2019 City Theatrical, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QolorFLEX 5750 and is the answer not in the manual?

Questions and answers

Related Manuals for City Theatrical QolorFLEX 5750

Summary of Contents for City Theatrical QolorFLEX 5750

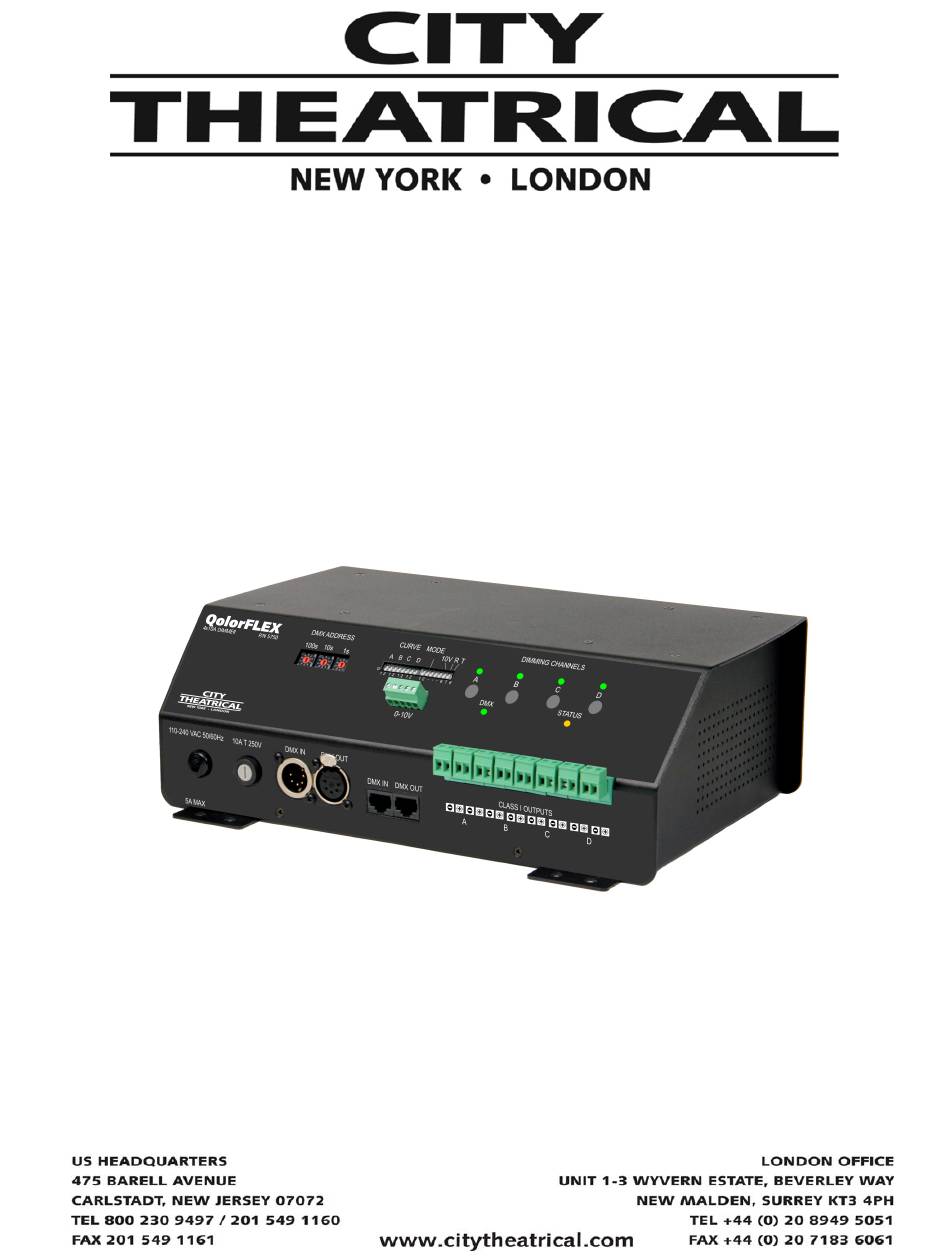

  • Page 1 QolorFLEX® 4x10A Dimmer (5750) User’s Manual Rev 1.03 © 2019 City Theatrical, Inc.

  • Page 2: Table Of Contents

    System Compliance Information ..................3 Safety Notices, Ratings and Power Requirements ............3 Introduction .......................... 3 4x10A Front View ......................... 4 Setting up the QolorFLEX® 4x10A Dimmer................5 Installation ..........................5 Power Connections ......................5 Dimmer Output Connections ....................5 Over-current Protection ......................

  • Page 3: System Compliance Information

    Maximum operating temperature: 0°C - 40°C. Introduction Thank you for using City Theatrical’s QolorFLEX 4x10A Dimmer. The QolorFLEX 4x10A Dimmer represents new benchmarks for control features and affordability in a dimmer for use with LEDs, incandescent fixtures, relays, or other devices.

  • Page 4: 4X10A Front View

    Every effort has been made to anticipate your questions in this manual, but if you have any questions that are not answered here, or you want to discuss a special application, please feel free to contact us directly at City Theatrical. QolorFLEX® 4x10A Front View...

  • Page 5: Setting Up The Qolorflex® 4X10A Dimmer

    Setting up the QolorFLEX® 4x10A Dimmer Installation Install the QolorFLEX 4x10A Dimmer in a suitable location, following the instructions below. Power Connections Connect 100 - 240VAC power to the Dimmer using the front facing power input. The Input power is fed to an internal power supply that is protected by the 10A T 250V fuse located next to the power input.

  • Page 6: 4X10A Dimmer Rdm Parameter Ids

    1. DMX Present LED: Indicates DMX512 Data is being received, blinks if no data is present. 2. Dimmer Pilot Light LEDs: Fade up and down with the dimmer to permit easy monitoring and testing 3. Status LED: Indicates the following error/fault conditions: Blinks followed by 1sec ...

  • Page 7: Dmx Addressing

    MODULATION_FREQUENCY MODULATION_FREQUENCY_DESCRIPTION DMX_START_ADDRESS SLOT_INFO SLOT_DESCRIPTION SENSOR_DEFINITION SENSOR_VALUE RECORD_SENSORS CURVE CURVE_DESCRIPTION IDENTIFY_DEVICE To learn more about RDM, a good place to start is the Wikipedia article on RDM (lighting) at: http://en.wikipedia.org/wiki/RDM_(lighting) DMX addressing Set the starting address for the QolorFLEX® 4x10A Dimmer using the DMX Address rotary switch.

  • Page 8: Selecting Dimmer Curves

    Selecting Dimmer Curves The dimming curve can be set individually for each 10A channel output. The QolorFLEX 4x10A Dimmer has an eight position DIP Switch with two positions for each channel output. Switch Switch Switch Switch Switch Switch Switch Switch Dimmer Function Normal Dimming, ISL Curve...

  • Page 9: Smoothing (Dimmer Response Time)

    Mode Settings The Mode Settings include TV/Film Mode 1 - 4 which are DIP selectable, and TV/Film Mode five which is selectable via RDM only using the MODULATION_FREQUENCY RDM parameter. TV/Film Mode 1 TV/Film Mode 2 TV/Film Mode 3 (Default) TV/Film Mode 4 The settings are also provided to allow control of other specialized loads (see below).

  • Page 10: Appendix A: Using Qolorflex Series Dimmers With Led Tape

    Note The 4x10A Dimmer is a constant voltage PWM dimmer and so will work with any size LED load that is within the Dimmer’s 40A current and 12VDC voltage range. Note that constant voltage dimmers do not compensate for voltage drop in load wiring so care should be taken to optimize load wiring designs by minimizing run length, assuring termination quality, and assuring adequately sized wire is used.

  • Page 11: Connecting Three Color (Rgb) Or Four Color (Rgbw, Rgba) Led Tape

    Connecting Three Color (RGB) or Four Color (RGBW, RGBA) LED Tape 12 Volt three color LED tape is provided with a single +12VDC circuit and a –VDC circuit for each color. 1. Connect the +12VDC circuit to any one of the eight + output terminals. The + terminals are bussed and provide constant voltage.

  • Page 12: Compliance

    • Max total output per device 40A • Fully RDM enabled • Individual DMX addresses • 100 - 240 VAC input • 10A T 250V fuse for protection • Internal power supply (12V, 40A) • Self healing over current protection •...
